Lini Produksi Kabel Patch Cord Simplex / Duplex
Apa yang dihasilkan rute produksi ini? Two linked production lines form the reference cable body for simplex or duplex patch cords. HK-30 turns bare optical fiber into the tight-buffered element. HK-50 feeds one or two tight-buffered elements with aramid yarn, extrudes the project-specified outer jacket, then cools, measures and takes up the finished cable body. Connector termination, end-face polishing and optical testing are separate downstream processes. Final construction follows the approved cable drawing.
- Rute produksi
- HK-30 → HK-50 Patch Cord Cable Body
- Pendekatan kontrol
- Kontrol terkoordinasi ditinjau untuk setiap tahap produksi
- Proses utama
- Ekstrusi buffer ketat · pelapis benang aramid · ekstrusi jaket luar sesuai spesifikasi proyek
- Rentang kabel yang sesuai
- Badan kabel patch-cord simplex atau duplex · perakitan konektor dan pengujian ditangani secara terpisah
Tahap akhir badan kabel · Rangkaian peralatan lengkap ditampilkan tanpa pemotongan TWO-STAGE ROUTE BELOW Tinjau rute peralatan 02 Patch Cord Cable anatomy
Trace the three-part Patch Cord cable body from tight buffer to outer jacket.

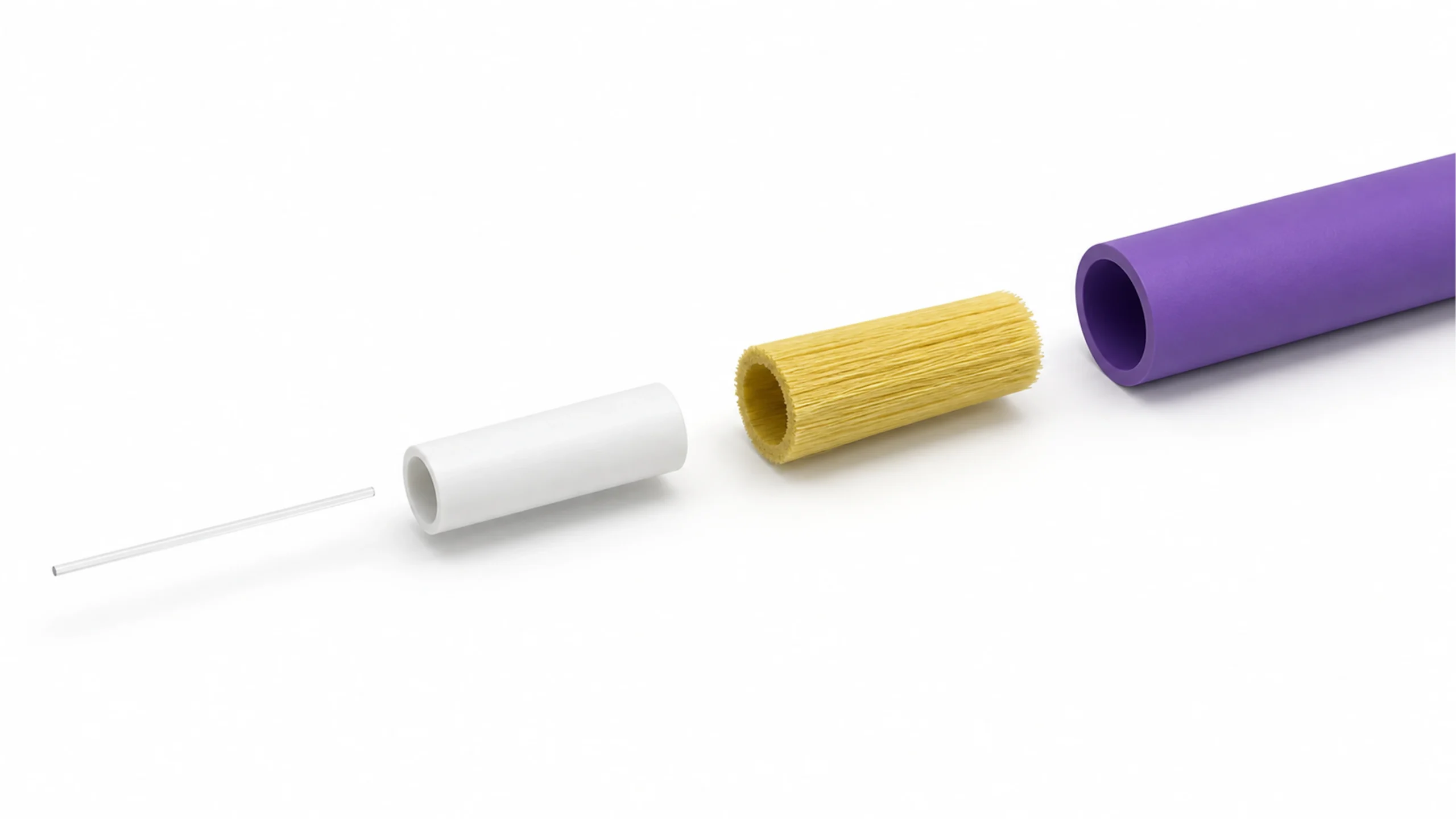

Open the exploded view, select one of the three cable-body parts, and see whether HK-30 or HK-50 forms or integrates it into the finished cable body. Bare optical fiber enters HK-30 directly without coloring.
01 Referensi terpasang Rute struktur-ke-proses
Two production stages form the Patch Cord cable body.
Pilih lapisan di atas untuk menyoroti tahap yang menyiapkan, membentuk, atau mengintegrasikannya.

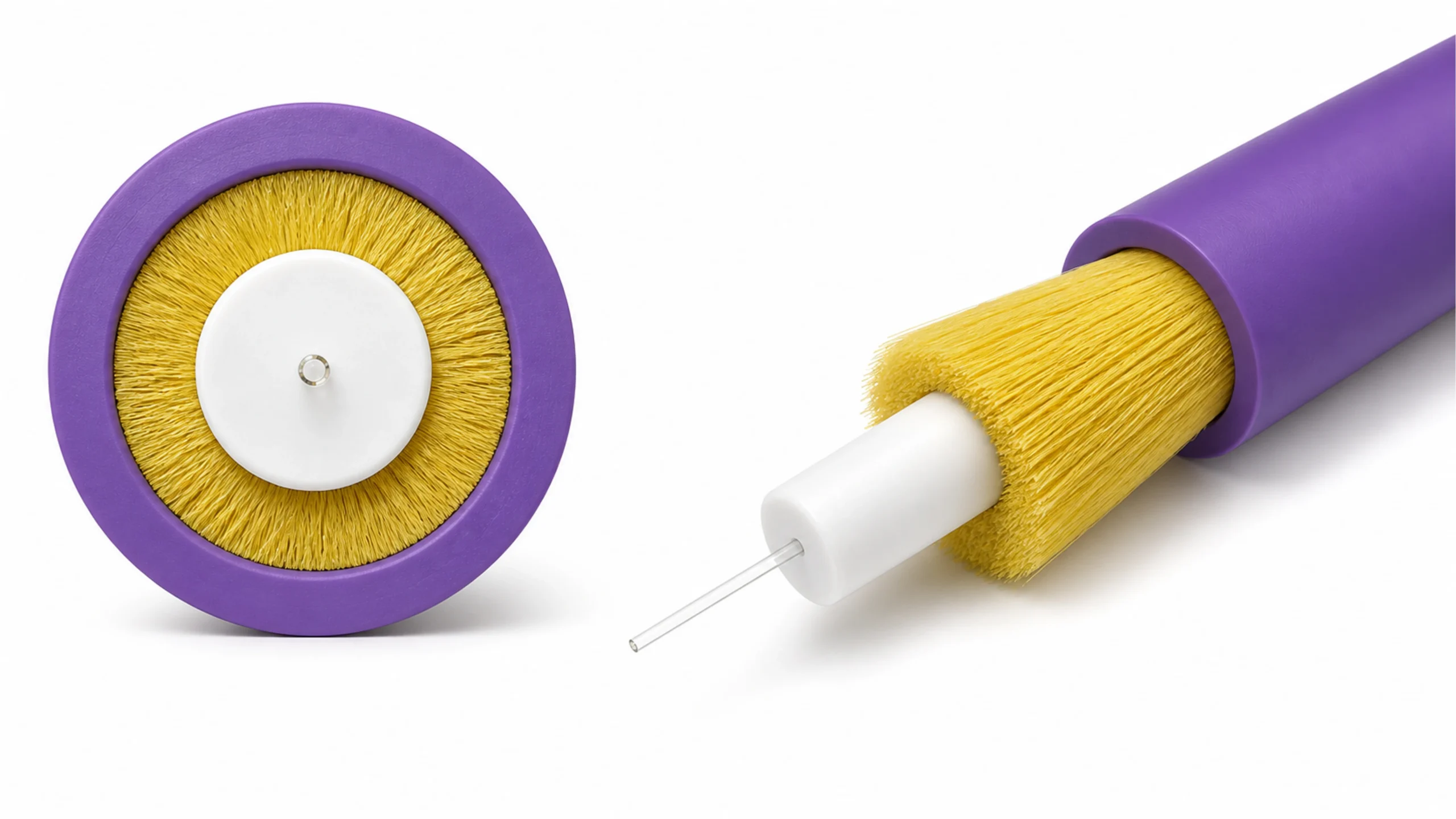

ⓘ Referensi batas: this render indexes only the three cable-body parts: tight buffer, aramid yarn and outer jacket. Uncolored bare optical fiber feeds HK-30 directly; no fiber-coloring stage is part of this route. A duplex construction repeats the same three-part stack for each leg. Confirm materials, dimensions and connector requirements against the approved drawing.
