Is copper wire more expensive than fiber optic cable? There is no single answer without specifying the cable and the job it must do. A useful comparison separates cable purchase price from the cost of the complete installed system.
For communications, compare copper and fiber links against the same requirements for reach, capacity and installation conditions. For electrical power delivery, optical fiber is not a direct substitute for a copper conductor. Specify the application before comparing quotations.
Bagian-bagian di bawah ini menjelaskan faktor-faktor biaya utama, membedakan aplikasi umum, dan menunjukkan detail-detail yang harus disertakan dalam penawaran kabel like-for-like.
Harga Kabel Serat Optik:
Sebagai contoh historis, Atlantech’s July 2022 installation-cost guide cited cable material costs of $1 per foot for 24 fibers and $6 per foot for 288 fibers. These are source-specific historical figures, not a current HONGKAI quotation or a universal market price. Compare current quotations using the same cable specification and length unit. A complete building installation has additional costs that depend on the following factors:
Luas/Ukuran bangunan:
Tentukan jumlah serat berdasarkan tata letak jaringan, koneksi, dan kapasitas cadangan yang direncanakan. Ukuran gedung saja tidak menentukan berapa banyak serat yang dibutuhkan; Panduan desain jaringan FOA dimulai dengan kebutuhan komunikasi aktual dan rute.
Hambatan Fisik:
Lakukan survei rute sebelum memperkirakan biaya instalasi. Penggalian, penyeberangan air, kendala akses, dan izin dapat menambah pekerjaan yang terpisah dari pembelian kabel itu sendiri.
Jarak dari serat terdekat yang menyala:
For a service connection, ask the network provider whether a nearby fiber route is available for your premises and obtain a site-specific connection quotation. Proximity alone is not a sufficient basis for a cost estimate. For a private network, price the planned route and equipment instead.
Skenario Penggunaan Serat Optik:
Serat optik melayani komunikasi dan aplikasi lainnya, including sensing and light delivery. These uses require different components and system designs. A specialized medical or sensing application does not establish the suitability of an ordinary telecommunications cable for the same task.
Bidang Medis:
Panduan cahaya serat optik khusus memberikan penerangan, dan bundel panduan gambar dapat meneruskan gambar dalam endoskop. Ikhtisar endoskopi SCHOTT membedakan komponen-komponen ini. Komponen tersebut merupakan optik medis yang dirancang khusus, tidak dapat dipertukarkan dengan kabel jaringan biasa.
Transmisi Data:
Communications fiber carries optical signals between transmitters and receivers. Link reach depends on the fiber, operating wavelength, transceivers and total optical loss; it is not a fixed property of every cable sold as fiber optic cable.
Penggunaan Industri:
Sistem penginderaan serat optik dapat mengukur suhu, regangan, atau getaran. Sebagaimana Pengenalan FOA ke sensor optik explains, the fiber may act as the sensing element or carry light to a separate sensor. A complete measurement system requires more than a length of cable.
Pertahanan:
Specialized fiber-optic acoustic sensors can be used in underwater sensing arrays. This is a particular sensor-system application, not a capability of every communications cable. Cable selection alone does not define the sensing function or its performance.
Spesifikasi Serat Optik:
Fiber optic links transmit information using light. Glass and plastic describe fiber materials; singlemode and multimode describe how light propagates. These classifications should not be treated as interchangeable performance ratings.
Jenis-jenis Serat Optik:
Perbandingan material di bawah ini mencakup dua kelompok:
- Serat optik plastik
- Serat optik kaca
Itu Panduan serat optik FOA menjelaskan klasifikasi dan aplikasi serat. Isinya panduan tautan data menjelaskan mengapa laju transmisi bergantung pada keseluruhan tautan, bukan hanya pada nama materialnya saja.
| Comparison point | Glass optical fiber | Plastic optical fiber (POF) |
|---|---|---|
| Bahan | Glass core; check the specified core and cladding design | Polymer fiber; check the specific POF grade |
| Fiber design | Singlemode and multimode options | Different index profiles exist; identify the actual type |
| Application examples | Telecom and premises-network links, depending on fiber type | Conventional POF is used in short links, including consumer audio |
| Data-rate selection | Match fiber bandwidth, link loss, distance and transceivers | Match the POF grade, link loss, distance and transceivers |
For either material, request the finished cable’s bend-radius, pulling-tension and temperature limits. Do not assume that all glass cables are fragile or that plastic cables are bend-proof. Compare the complete installed system when evaluating cost, rather than assigning a universal cheaper or more expensive label.
Harga Kawat Tembaga:
There is no single per-meter price for copper cable. Request a dated quotation for the exact construction, length and order quantity, and check whether connectors, freight and taxes are included. Compare cable material prices separately from the cost of an installed, tested link. The three cable types below require different quotation details:
Kabel Twisted Pair:
For twisted-pair cable, specify the application and cable category where applicable, conductor material and size, pair count, shielding and jacket requirements. Ask whether the quotation is for bulk cable or a terminated assembly, and confirm the supplied length and minimum order quantity before comparing unit prices.
Kabel pipih multi-konduktor:
For multi-conductor flat cable, state the conductor count, conductor size, pitch, insulation and required connector compatibility. Confirm whether the supplier is pricing a reel of cable, a cut length or a finished assembly. Compare quotations only after those details and the order quantity are aligned.
Kabel Koaksial:
For coaxial cable, identify the impedance, operating frequency, acceptable attenuation, conductor and shield construction, jacket and required length. Specify any connectors and their termination requirements separately. A quotation for a different cable construction or assembly length is not a like-for-like cost comparison.
Skenario untuk Penggunaan Kawat Tembaga:
Copper’s electrical conductivity makes it useful for power conductors, winding wire and communications cables. The Copper Information Center’s properties and applications guide describes these uses. The required conductor size, insulation and construction still depend on the application.
Elektromagnet:
A current flowing through a wire coil creates a magnetic field. Copper winding wire is used in electromagnets, including electromagnetic locks and lifting magnets. The complete device design determines its force and operating limits.
Motor:
Copper winding wire is widely used in electric motors for applications such as pumps, household appliances and fans. A motor winding is a different product from an insulated building wire or a communications cable, so their prices should not be treated as interchangeable.
Transformers:
Transformers can use copper or aluminum windings. For example, Schneider Electric’s winding-material guidance identifies the construction of particular transformer models. Check the specified winding material rather than assuming that every transformer is made with copper cable.
Telekomunikasi:
Copper communications cables carry electrical signals. Twisted-pair and coaxial cables are common examples, but the supported service and distance depend on the cable specification and connected equipment. A generic multi-conductor flat cable is not automatically suitable for a telecommunications link.
Spesifikasi kawat tembaga:
Berikut ini adalah tiga konstruksi kabel tembaga, bukan peringkat kapasitas data. Aplikasi dan batasannya bergantung pada kabel spesifik serta peralatan yang terhubung:
- Kabel pasangan terpilin - Kabel datar multi-konduktor - Kabel koaksial
Use the comparison below as a specification checklist. The manufacturer examples linked after the table illustrate particular products; they are not ratings for every cable in that group.
| Comparison point | Kabel pasangan terpilin | Kabel datar multi-konduktor | Kabel koaksial |
|---|---|---|---|
| Konstruksi | Konduktor berisolasi yang disusun dalam pasangan terpilin | Konduktor paralel yang disatukan oleh insulasi; desain pita adalah salah satu contohnya | Center conductor, dielectric insulation and an outer conductive shield |
| Application example | Kabel Ethernet dengan kategori tertentu dan aplikasi yang didukung | Koneksi kabel-ke-papan menggunakan konektor yang kompatibel | RF connections between equipment and antennas |
| Performance checks | Kategori kabel, aplikasi Ethernet yang didukung, dan panjang saluran yang diizinkan | Ukuran konduktor, jarak antar lilitan, kompatibilitas konektor, dan persyaratan rangkaian | Impedance, attenuation at the operating frequency and cable length |
| Handling checks | Ikuti radius lengkung pemasangan dan batas tarik kabel | Periksa fleksibilitas produk dan kesesuaiannya untuk pergerakan berulang | Follow the specified bend radius; coaxial cable is not universally rigid |
Manufacturer examples: Belden 2142A Category 6A cable mencantumkan aplikasi Ethernet yang didukung; 3M 3365 flat cable menggambarkan konstruksi pita fleksibel untuk koneksi kabel-ke-papan; Belden 8259 coaxial cable specifies RF applications, attenuation and a minimum installation bend radius.
For a cost comparison, request dated quotations for the required conductor size, shielding, jacket, length and quantity. These three construction names alone do not establish which cable is cheaper.

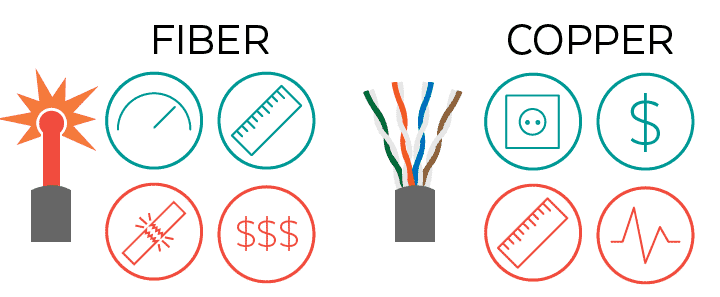

Perbandingan Kabel Serat Optik dan Kawat Tembaga:
Both copper and fiber links have signal loss. For fiber, the loss budget includes the fiber length, splices and connectors; it must fit within the selected equipment’s optical power budget.
Compare supported data rate and reach for the complete link, not the cable material alone. A fiber link’s usable performance depends on compatible fiber, transceivers, bandwidth and loss, as described in the data-link guide above.
Itu Panduan desain jaringan FOA starts media selection with the communication system, required speed and distance. Fiber, copper and wireless can coexist in one network; there is no universal winner for every application.
Pertanyaan Terkait:
Apa saja kerugian dari kabel serat optik?
Fiber installation requires suitable tools, trained personnel and testing. Poor handling or termination can increase loss or damage the cable, but normal routing does not mean the cable will break: follow the manufacturer’s bend-radius and pulling limits. Include termination, splicing where needed and acceptance testing in the project budget. The Panduan instalasi FOA menjelaskan persiapan, penanganan, dan pelatihan instalasi.
Bagaimana cara kerja kabel serat optik?
Conventional glass telecommunications fiber guides light in a core surrounded by cladding with a lower refractive index. The FOA optical-fiber explanation describes this using total internal reflection. In a communications link, a transmitter encodes information onto an optical signal and a receiver detects it.
Keterangan Akhir:
Neither copper nor fiber is always the cheaper choice. First define the required application, data rate, distance, environment and equipment interfaces. Then compare dated quotations for systems that meet those requirements, including cable, connectors or splices, network equipment, installation and testing. A cable-only price does not determine the total project cost, and a forecast that fiber will replace every copper application is not a sound purchasing basis.
