01 Selected production line

Simplex / Duplex Patch Cord Cable Production Line

What does this production route produce? Two linked production lines form the reference cable body for simplex or duplex patch cords. HK-30 turns bare optical fiber into the tight-buffered element. HK-50 feeds one or two tight-buffered elements with aramid yarn, extrudes the project-specified outer jacket, then cools, measures and takes up the finished cable body. Connector termination, end-face polishing and optical testing are separate downstream processes. Final construction follows the approved cable drawing.

Explore Patch Cord Structure See Reference Configuration

Production route: HK-30 → HK-50 Patch Cord Cable Body
Control approach: Coordinated controls reviewed for each production stage
Main processes: Tight-buffer extrusion · aramid-yarn serving · project-specified outer-jacket extrusion
Suitable cable range: Simplex or duplex patch-cord cable body · connector assembly and testing handled separately

PRODUCTION ROUTE PREVIEW HK-50 final cable-body line

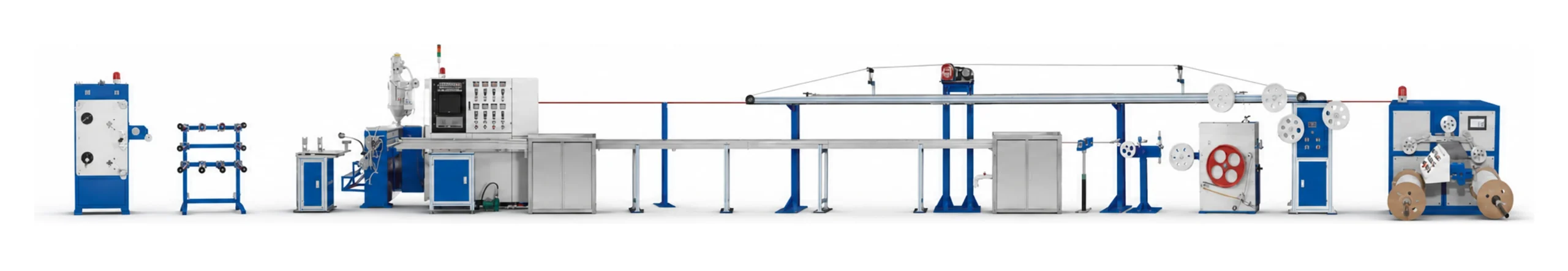

HK-50 cable production line 3D panorama shown completely and centered on a light background

Final cable-body stage · Complete production route TWO-STAGE ROUTE BELOW Review equipment route

WHAT THE CLIENT SELECTED Simplex / Duplex Patch Cord Cable Production Line HK-30 · HK-50 Patch Cord Cable Body · tight-buffered and aramid-reinforced cable-body route

02 Patch Cord Cable anatomy

Trace the three-part Patch Cord cable body from tight buffer to outer jacket.

Open the exploded view, select one of the three cable-body parts, and see whether HK-30 or HK-50 forms or integrates it into the finished cable body. Bare optical fiber enters HK-30 directly without coloring.

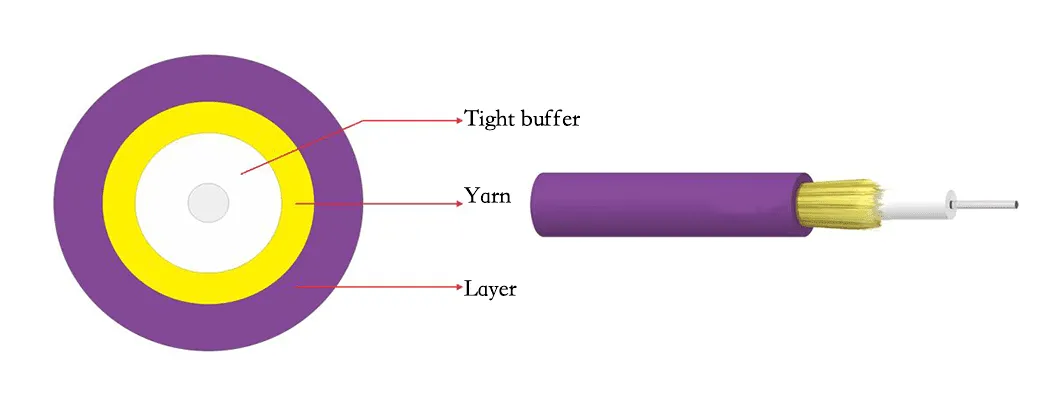

Patch Cord Cable 3D cutaway showing optical fiber, white tight buffer, aramid yarn and purple outer jacket — **Overview** · switch views without leaving this section Select a cable component to review its production role.

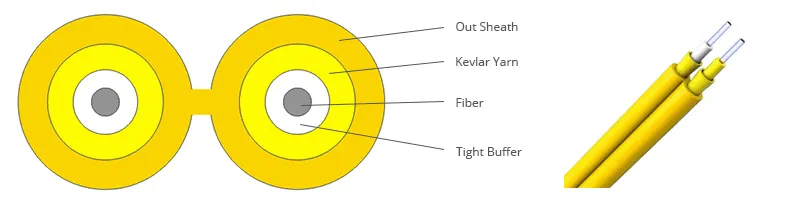

Exploded Patch Cord Cable showing optical fiber, tight buffer, aramid yarn and outer jacket in their visible layer order — **Overview** · switch views without leaving this section Select a cable component to review its production role.

Selected material dossier

One layer, one production responsibility.

Open the 4K layer view first

＋ Select a layer to inspect it.

The visual marker, material function, integration stage and recommended HONGKAI line module will update together.

Structure-to-process route

Two production stages form the Patch Cord cable body.

Select a layer above to highlight the stage that prepares, forms or integrates it.

01HK-30 · Tight-buffer extrusionPay off the uncolored bare optical fiber, apply the tight buffer, cool, measure and take up the buffered element.

02HK-50 · Aramid serving + jacketFeed one or two buffered elements, apply aramid yarn, extrude the outer jacket and take up the cable body.

ⓘ Reference boundary: this illustration identifies only the three cable-body parts: tight buffer, aramid yarn and outer jacket. Uncolored bare optical fiber feeds HK-30 directly; no fiber-coloring stage is part of this route. A duplex construction repeats the same three-part stack for each leg. Confirm materials, dimensions and connector requirements against the approved drawing.

03 Reference configuration

Review the production configuration for the selected cable-body part.

The cable-body choice from Section 02 is carried here. Review its mapped HK-30 or HK-50 stage, then inspect the complete two-stage Patch Cord cable-body route.

Carried from cable-body structure No cable-body part selected Start from the cable-body structure above, or review the full two-stage route below.

Choose a cable-body part

Complete production-line image Complete line · Centered reference scale

Selected production stage Tight-buffer extrusion

Reference route start

HK-30

Tight-buffer extrusion

Pay off uncolored bare optical fiber, apply the approved tight-buffer compound, then cool, measure, haul off and take up the buffered element.

Input: Uncolored bare optical fiber + approved tight-buffer compound
Output: Qualified 0.6/0.9 mm tight-buffered fiber
Route position: Stage 01 · Tight-buffer element formation

Reference production stage

Process role

Form the qualified tight-buffered element

Control fiber pay-off, preheating, extrusion, cooling, diameter measurement, haul-off and take-up without a fiber-coloring stage.

Reference scope

Fiber handling · preheating · tight-buffer extrusion

This stage turns the approved uncolored bare optical fiber into the buffered element required by the Patch Cord cable-body drawing.

Confirm before proposal

Fiber specification, buffer OD and compound

Confirm optical-fiber input, target 0.6/0.9 mm buffer diameter, compound, line speed, tension and reel package.

Patch Cord cable-body route only.

Connector termination, end-face polishing and optical testing are separate downstream processes. Final equipment scope follows the approved cable drawing and project inputs.

Review project scope Discuss cable-body route

03B Production process video

Watch HK-50 complete the Patch Cord cable body.

This HONGKAI video shows the simplex or duplex Patch Cord soft-cable production process. Use it to review aramid-yarn serving, outer-jacket extrusion and finished cable-body take-up alongside the two-stage configuration above.

Continue to project responsibility Back to two-stage configuration

HONGKAI video · Patch Cord HK-50 process Watch on YouTube

Reference boundary: this video supports the HK-50 cable-body stage. Confirm the final simplex or duplex construction, aramid package, jacket material, cable diameter, speed, reel format, equipment list, layout and acceptance criteria in the written proposal. If the embedded player is unavailable, use "Watch on YouTube" above.

04 Project responsibility

Define the Patch Cord cable-body project boundary before the route is finalized.

The two-stage cable-body route above is a reference configuration, not a contractual supply scope. Buyer, HONGKAI and joint responsibilities become final only in the approved technical proposal or agreement.

Selected production route

Mapped from cable structure No cable layer selected Currently reviewing Complete Patch Cord cable-body route Next step Planning inputs

The responsibility boundary applies to the complete two-stage Patch Cord cable-body project, not only the selected or currently viewed stage.

Review configuration Current reference route: HK-30 tight-buffer extrusion → HK-50 aramid-yarn serving and outer-jacket extrusion. Connector termination, end-face polishing and optical testing are separate downstream processes unless quoted separately. Final process and equipment scope require the approved cable-body drawing and written project inputs.

Scope status Engineering review required

Nothing below is treated as included, excluded, buyer-supplied or HONGKAI-supplied until it is confirmed in writing.

Responsibility matrix Review all three responsibility groups

Opening a group only reveals its details; it does not confirm scope.

Buyer prepares Buyer responsibility Project, product and site information for engineering review 4 items

Information HONGKAI must review before fixing the production route and reference equipment configuration.

Approved simplex or duplex cable-body drawing, fiber specification, element count, target buffer OD, finished OD and performance requirements To be confirmed
Uncolored bare optical fiber, tight-buffer compound, aramid-yarn package, jacket material, color and marking inputs To be confirmed
Factory space, utilities, access, reel sizes and installation conditions To be confirmed
Existing upstream and downstream equipment, including any separate connector-termination and testing processes To be confirmed

Defined in the written proposal HONGKAI responsibility Recommended configuration and quoted supply boundary 4 items

HONGKAI defines the recommended configuration and quoted supply boundary after reviewing the available project inputs.

Recommended two-stage HK-30 to HK-50 cable-body route and reference configuration To be confirmed
Quoted equipment list, line interfaces and equipment-source boundary To be confirmed
Required HK-30 to HK-50 interfaces, tooling, tension control, cooling, diameter measurement, haul-off and take-up To be confirmed
Documentation, commissioning, training and after-sales scope stated in the proposal To be confirmed

Confirmed together Joint confirmation Technical interfaces, acceptance and project coordination 4 items

Technical interfaces, acceptance and project coordination require written confirmation from both project teams.

Final Patch Cord cable-body route and equipment configuration To be confirmed
Layout, interface split and site-readiness conditions To be confirmed
Trial materials, sampling and acceptance criteria for the tight-buffered element and finished cable body To be confirmed
Delivery, installation, trial schedule, changes and final sign-off To be confirmed

05 Planning inputs

Prepare the inputs for a complete Patch Cord cable-body production review.

Select the planning topics you are ready to discuss during the first engineering review. A selection marks a review topic only; it does not approve a technical value, equipment quantity, material grade, performance target or supply scope.

Cable drawing & target products Simplex or duplex cable-body drawing, optical-fiber specification, element count, target buffer OD, finished OD, jacket color and marking, performance requirements and applicable project requirements. To be discussed Optical fiber & tight-buffer inputs Uncolored bare optical-fiber specification and reel condition, target tight-buffer OD, tight-buffer compound and the HK-30 input and take-up packages. To be discussed HK-30 tight-buffer extrusion Pay-off tension, preheating, extrusion tooling, cooling, diameter monitoring, haul-off, take-up and the handoff of the qualified buffered element to HK-50. To be discussed HK-50 aramid-yarn serving Aramid-yarn type, package format, yarn count, serving tension and coverage around the tight-buffered element before outer-jacket extrusion. To be discussed Outer jacket & finished cable Jacket material and color, extrusion tooling, finished profile and OD, marking, cooling, haul-off, take-up and delivery reel format. To be discussed Capacity & reel plan Simplex or duplex product mix, operating schedule, target output, source and delivery reel formats and take-up requirements. No default capacity is assumed. To be discussed Factory utilities & route layout Available floor space, material flow, access, voltage, frequency, compressed air, cooling water, reel handling and any connector-termination or testing interfaces. To be discussed Control, acceptance & project schedule Required production data, in-line inspection and sampling, tight-buffer and finished-cable acceptance criteria, delivery window, site readiness, installation, trial production and training coordination. To be discussed

Engineering review planner 0 of 8 topics selected

Choose only the topics you are ready to discuss. Actual values, drawings and files are provided later through the project enquiry.

Topics selected

None selected yet.

Review production references Back to responsibility

This planner is a local review aid only. It does not save, submit or transfer project information and does not confirm the final route, equipment configuration or supplied scope.

06 Reference & verification

Review the available Patch Cord cable-body production references and what still needs confirmation.

These images and videos illustrate the HK-30 and HK-50 stages mapped to the current Patch Cord cable-body route. They are reference records, not a final equipment list, factory layout, performance commitment or acceptance record.

Your review priorities HK-30 tight-buffer extrusion → HK-50 aramid-yarn serving and outer-jacket extrusion

No planning topics selected yet. Return to Section 05 to add review priorities.

Reference image of the complete HONGKAI HK-30 tight-buffered optical-fiber production line mapped to the Patch Cord cable-body route — Stage 01 reference

Reference available

HK-30 tight-buffer extrusion reference

Reference line for receiving uncolored bare optical fiber, applying the approved tight-buffer compound, then cooling, measuring, hauling off and taking up the buffered element. Fiber specification, target buffer OD, compound, tooling, tension and reel format remain project-specific.

Required before final proposal

Verification items still open

Approved simplex or duplex cable-body drawing and material specification Project input required
Bare optical-fiber specification, element count, target tight-buffer OD and finished dimensions Project confirmation required
Tight-buffer compound, aramid-yarn package, jacket material, color, marking and supply formats Project confirmation required
Target output, stable operating conditions and HK-30 to HK-50 interfaces Project confirmation required
Factory utilities, layout, reel handling and existing-equipment interfaces Project confirmation required
In-line inspection, trial materials, FAT and cable-body acceptance criteria, if applicable Project confirmation required
Installation, training and commercial responsibility boundary, including separate connector termination and testing scope Project confirmation required

Read project review Start project review Back to planning inputs

These production-stage images and videos illustrate the current two-stage Patch Cord cable-body planning route only. Connector termination, end-face polishing and optical testing remain separate downstream processes unless quoted separately. Final equipment quantity, sequence, dimensions, supply, performance and acceptance are defined only by the mutually approved technical agreement.

06BPatch Cord project review

Three checks before configuring your Patch Cord line.

Review the cable-body route, product inputs and separate connector-assembly requirements before defining your project scope.

HONGKAI project discussion — HONGKAI project support

Two cable-making stages

Review HK-30 tight-buffer extrusion and HK-50 aramid-yarn serving and jacketing, including the buffered-element handoff and take-up package.

Cable construction

Confirm simplex or duplex drawings, tight-buffer diameter, aramid package, jacket material, tooling and reel formats.

Assembly and acceptance

Review connector termination, end-face polishing and optical testing separately from cable-body production. Agree utilities, layout, inspection and acceptance conditions.

07 Route FAQ

Clarify the Patch Cord cable-body route before requesting a proposal.

These answers connect the simplex or duplex cable-body construction to the HK-30 and HK-50 reference stages and the inputs needed for engineering review.

What stages are included in the Patch Cord cable-body reference route?

The reference route has two stages. HK-30 forms the qualified tight-buffered element from approved uncolored bare optical fiber. HK-50 receives one or two buffered elements, applies the specified aramid-yarn package, extrudes the outer jacket, then cools, measures, hauls off and takes up the finished cable body. The final configuration follows the approved drawing and written project inputs.

Does this route require a fiber-coloring stage?

No. The current reference route feeds uncolored bare optical fiber directly into HK-30, so a separate coloring stage is not included. The buyer still needs to confirm the optical-fiber specification, input reel condition and handling requirements.

How does the route differ for simplex and duplex cable bodies?

A simplex cable body uses one qualified tight-buffered element, while a duplex construction uses two elements or repeated legs. The exact profile, element spacing, aramid distribution, finished dimensions and reel format must be defined by the approved simplex or duplex cable-body drawing.

What does HK-30 control during tight-buffer production?

HK-30 manages bare-fiber pay-off, preheating, tight-buffer extrusion, cooling, dimensional monitoring, haul-off and take-up. The fiber input, buffer compound, target buffer diameter, tooling, tension range and reel package remain project-specific.

What does HK-50 add to the tight-buffered element?

HK-50 guides one or two qualified buffered elements, serves the approved aramid-yarn package and extrudes the project-specified outer jacket. It also covers cooling, dimensional monitoring, marking, traction, accumulation and finished cable-body take-up. Yarn type, package, count, tension, jacket material, color, tooling and finished dimensions require confirmation.

Are connector termination, end-face polishing and optical testing included?

Not by default. The HK-30 to HK-50 route produces the Patch Cord cable body. Connector termination, end-face polishing and optical testing are separate downstream processes unless they are reviewed and quoted as a separate part of the project scope.

Do the reference images and videos confirm speed, capacity or line arrangement?

No. They illustrate the process stages and reference equipment only. They do not confirm machine quantities, factory layout, speed, capacity, performance, certification, supplied scope or acceptance criteria for a specific project. Those values must be defined in the written technical and commercial agreement.

What information should the buyer provide for engineering review?

Please provide the approved simplex or duplex cable-body drawing; optical-fiber and reel data; element count; target buffer and finished dimensions; tight-buffer, aramid and jacket specifications; color and marking; source and delivery reels; product mix and target output; factory utilities and layout; existing equipment interfaces; inspection and acceptance requirements; and the project schedule. Unknown items can remain identified for joint engineering review.

Final cable construction, equipment, performance, acceptance criteria and supply scope are defined in the signed technical and commercial agreement.

08 Investment enquiry

Plan your Patch Cord cable-body production project.

Share the available simplex or duplex cable-body drawing; uncolored bare optical-fiber specification and input reel format; target tight-buffer diameter and compound; aramid-yarn type, package and count; outer-jacket material, color, profile, finished dimensions and marking; product mix, output and reel plan; factory conditions; downstream-process needs; and project schedule. HONGKAI will review the HK-30 to HK-50 route, equipment interfaces, cable-body boundary and open technical items before preparing a project-specific proposal.

Your project Simplex or duplex Patch Cord cable body · HK-30 → HK-50 This context accompanies the enquiry as a reference. It does not confirm the final production route or equipment configuration. Planning inputs remain open · Select a process stage if relevant

What HONGKAI will review

Target product plan: Simplex or duplex cable-body construction, element count, target dimensions and material requirements
Process route: HK-30 tight-buffer extrusion and HK-50 aramid-yarn serving, outer-jacket extrusion, cooling and take-up
Downstream boundary: Connector termination, end-face polishing and optical testing reviewed separately unless included in writing
Capacity & reel plan: Product mix, target output, expected operating conditions and input and output reel formats
Factory conditions: Available space, utilities, existing equipment, material flow and inspection interfaces
Project stage: Planning, budgeting, factory preparation or production expansion · Preliminary technical review

What to prepare · 6 items

Available simplex or duplex cable-body drawing, reference sample or target construction
Uncolored bare optical-fiber specification, input reel, target tight-buffer diameter and compound
Aramid-yarn type, package and count, plus outer-jacket material, color, profile, dimensions and marking
Product mix, target output, expected operating conditions and source and delivery reel formats
Existing equipment, available layout, utilities, material flow and reel-handling conditions
Downstream connector termination, end-face polishing and optical-testing boundary, inspection and acceptance requirements, and project timeline

No complete specification yet? Share the target cable body and current assumptions. Unknown values can remain open engineering inputs.

The information submitted here supports a preliminary technical review. Final cable construction, equipment configuration, performance, price, delivery schedule and supply scope are confirmed only in an approved proposal or agreement.
