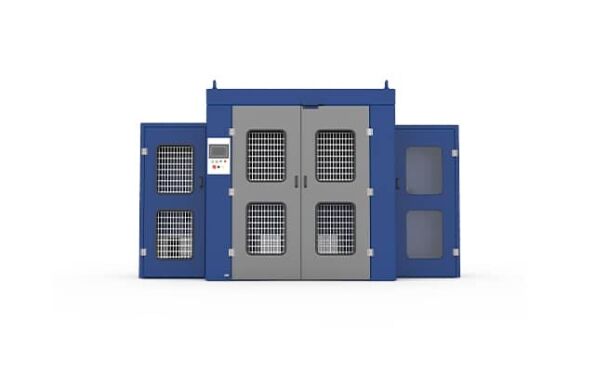

Triple Twist Machine's description
What is the triple twist pair twisting machine?
Triple Twist Pair Twisting Machine (CAT5e–CAT7) — High-speed triple twisting with 0–100% back-twist and servo pitch accuracy to boost throughput and ensure pair uniformity.
Ideal for LAN/data cable pairs — CAT5e / CAT6 / CAT6A / CAT7 (UTP/FTP/S/FTP)
High-speed triple twist machine with 0–100% back-twist and ±2% servo pitch accuracy. Designed to boost throughput, ensure stable impedance, and deliver uniform quality for various cable types.
Why Choose a Triple Twist Machine?
- Higher Throughput: Triple-pitch path enables faster effective rotation at the same lay length, increasing productivity.
- Electrical Stability: Adjustable back-twist and precise servo pitch reduce pair variability and minimize crosstalk.
- Consistent Tension: Active take-up guarantees stable tension from empty to full bobbin.
- Easy Recipes: Touchscreen HMI allows quick setup of lay length, S/Z direction, and back-twist %, with recipe storage for multiple cable types.
Performance depends on the model and lay length. Confirm with your wire size and process requirements.
Applications & Cable Types
The HK series triple twist machines are suitable for a wide range of applications:
- Data cables (Cat5e, Cat6, Cat6A, Cat7)
- Communication cables (UTP, FTP, S/FTP)
- Multi-wire twisting, including PVC, PE, and specialty insulation
- Typical line arrangement: Payoff → Triple Twist → Capstan → Take-Up
Process Control & Electronics
- Touchscreen HMI: Set lay, back-twist %, S/Z direction; save/recall recipes.
- Servo Electronic Pitch: ±2% precision with diagnostic & alarm limits.
- Tension Loop: Active take-up keeps stable tension from empty→full.
- Diagnostics: Wire-break stop, fault history, quick reset.
Safety & Ergonomics
- Door & tray interlocks; guarded zones
- Wire-break detection & auto stop
- Length reset & fault clear functions
- Low-noise engineering for operator comfort
Options & Configurations
- Bobbin size: 500 / 630 mm
- In-line taping, auto spool change
- Data logging, remote support
- CE / UL documentation
Machine Models Overview
| Machine Model | Wire Specification (mm) | Lay Length Range (mm) | Back Twist Rate | Rotation Speed (rpm) | Linear Speed Max | Tension Control | Suitable Materials | Lay Direction | Power Supply |
|---|---|---|---|---|---|---|---|---|---|
| HK-500 | Ø0.8~1.7 mm | 5~50 mm | 0–98% | 1800 rpm | 270 m/min | 0.6–3 kg | Core (PVC, PE insulated) & Conductor (CU/TC/CCA/CCS/ALU/Enamelled wires, etc.) | Left or Right (S or Z) | 3P, 380 VAC, 50 Hz |
| HK-630 | Ø0.8~1.7 mm | 5~60 mm | 0–100% | 1600 rpm | 250 m/min | 0.6–3.5 kg | Core (PVC, PE insulated) & Conductor (CU/TC/CCA/CCS/ALU/Enamelled wires, etc.) | Left or Right (S or Z) | 3P, 380 VAC, 50 Hz |
| HK-T800 | Ø0.8~2.0 mm | 5~70 mm | 0–100% | 1200 rpm | 200 m/min | 0.8–4 kg | Core (PVC, PE insulated) & Conductor (CU/TC/CCA/CCS/ALU/Enamelled wires, etc.) | Left or Right (S or Z) | 3P, 380 VAC, 50 Hz |
Full Specifications
| Item | Specification | Notes |
|---|---|---|
| Applicable Cable Types | CAT5e / CAT6 / CAT6A / CAT7 (UTP/FTP/S/FTP) | Pair twisting |
| Conductor / Wire Size | Ø0.8–1.7 mm (HK-TT-500/630); Ø0.8–2.0 mm (HK-TT-800) | Per model |
| Pair Outer Diameter | Process dependent | Confirm with recipe |
| Pitch Range | 5–50 / 5–60 / 5–70 mm | Servo electronic pitch |
| Back-Twist Range | 0–98% (500) • 0–100% (630/800) | Touchscreen set |
| Twisting Direction | S / Z free setting | Recipe storage |
| Max Rotation Speed | 1800 / 1600 / 1200 rpm | 500 / 630 / 800 |
| Typical Line Speed | ~120–150 m/min* | *Lay & wire dependent |
| Linear Speed Max | 270 / 250 / 200 m/min | 500 / 630 / 800 |
| Tension Control | 0.6–3 / 0.6–3.5 / 0.8–4 kg | Active take-up |
| HMI & Control | Touchscreen, alarms, length reset | Servo pitch ±2% |
| Safety | Door/tray interlocks; wire-break stop; fault clear | CE options |
| Power | — | Fill with actual |
| Dimensions / Weight | — | Per model |
Model Comparison (500 / 630 / 800)
| Model | Bobbin Size | Max Rotation | Linear Speed Max | Typical Line Speed | Max Pair OD | Footprint (L×W×H) |
|---|---|---|---|---|---|---|
| HK-500 | 500 mm | 1800 rpm | 270 m/min | ~120–140 m/min | — | — |
| HK-630 | 630 mm | 1600 rpm | 250 m/min | ~130–150 m/min | — | — |
| HK-800 | 800 mm | 1200 rpm | 200 m/min | — | — | — |
Get Pricing & Lead Time
Tell us your cable categories, target lay length, bobbin size, and options — we’ll send a tailored proposal.
FAQs
Triple twist vs double twist — what’s the practical gain?
Triple-pitch enables higher effective rotation at equivalent lay, improving throughput and pair stability for higher categories.
How to choose back-twist for Cat6A vs Cat6?
Start with your current recipe; fine-tune in 5–10% steps while monitoring impedance and crosstalk. We provide ranges during commissioning.
How is servo pitch verified to ±2%?
Use HMI diagnostics + physical lay measurement over a defined gauge length; adjust calibration offsets if needed.
