Cantilever Single Twisting Machine
Lay up insulated cores into a cable core. Combine covered cores for control, communication and data-cable constructions. Select the cantilever size from the core dimensions, finished cable diameter, lay and take-up package.
Lay up insulated cores into a cable core
Combine covered cores for control, communication and data-cable constructions. Select the cantilever size from the core dimensions, finished cable diameter, lay and take-up package.
Position in your production line
LAN cable application. In a twisted-pair cable route, cabling follows pair twisting and precedes outer sheathing. Provide the pair count, pair dimensions, cable-core lay and any separator or wrapping shown in the cable drawing. Review the complete LAN cable route; the model, auxiliary feeds and supply scope are selected for that construction.
How this operation works
The single-twist arrangement lays already insulated cores together into the required cable core. Pay-offs, core handling, lay and take-up must suit that construction. Fillers, binders and centre or side taping are included only where the cable drawing and equipment scope require them.
- Core inputs
- List the insulated cores or pairs, their dimensions and any filler or separator feeds.
- Lay and wrapping
- Agree core lay, direction and the required tape material, overlap and supply arrangement.
- Take-up interface
- Check reel dimensions, package weight and compatibility with the sheathing pay-off.
Compare the selection references
| Parameter | Φ630 | Φ800 | Φ1000 | Φ1250 |
|---|---|---|---|---|
| Core wire specification | Φ1.0–4.0 mm | Φ1.5–6.0 mm | Φ2.5–8.0 mm | Φ3.0–10 mm |
| Twisted outside diameter | Φ3–10 mm | Φ3–14 mm | Φ3–20 mm | Φ3–25 mm |
| Catalog maximum rotation speed | 800 rpm | 600 rpm | 500 rpm | 450 rpm |
| Catalog pitch setting | 20–250 mm, touchscreen setting | |||

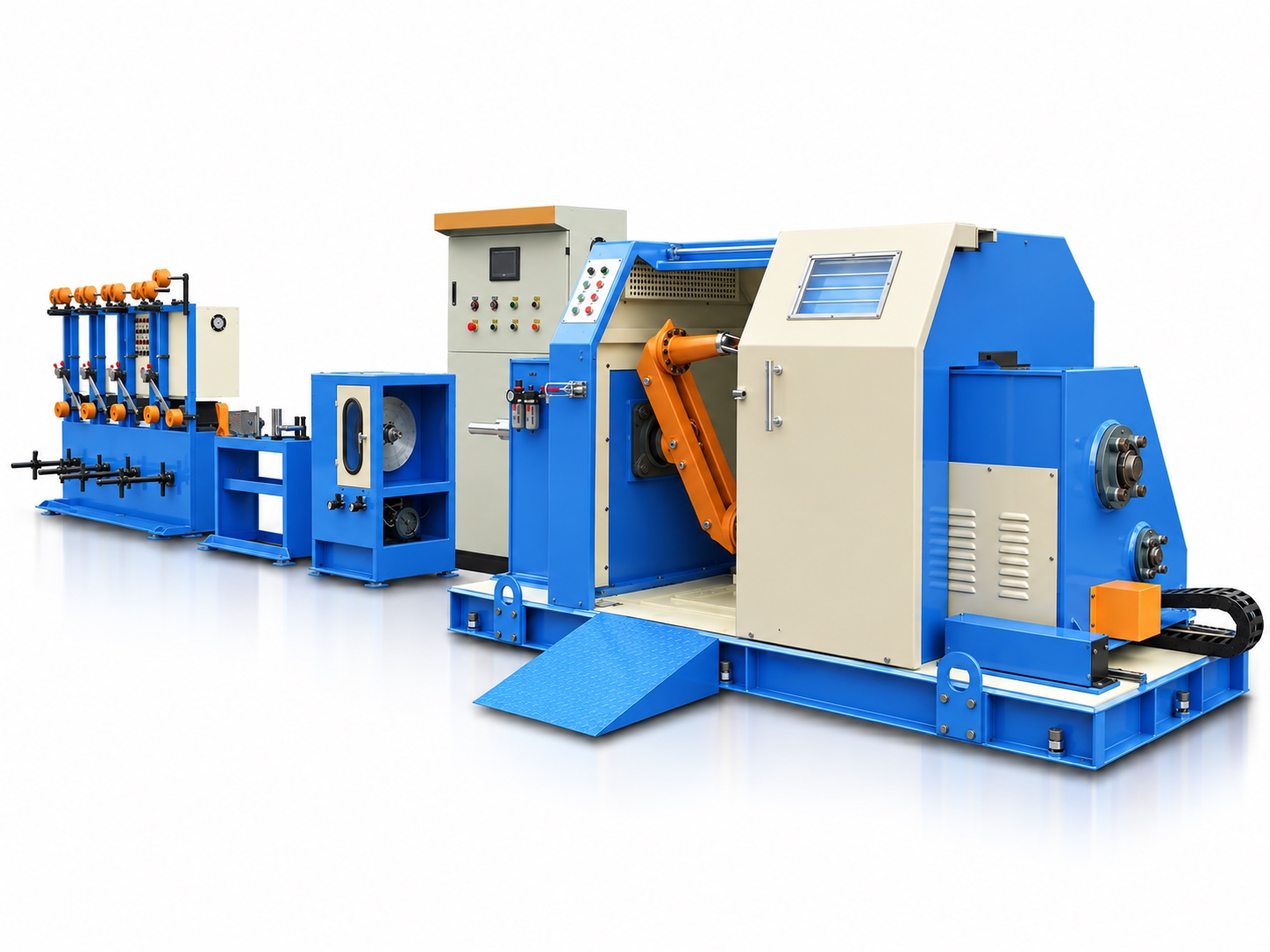

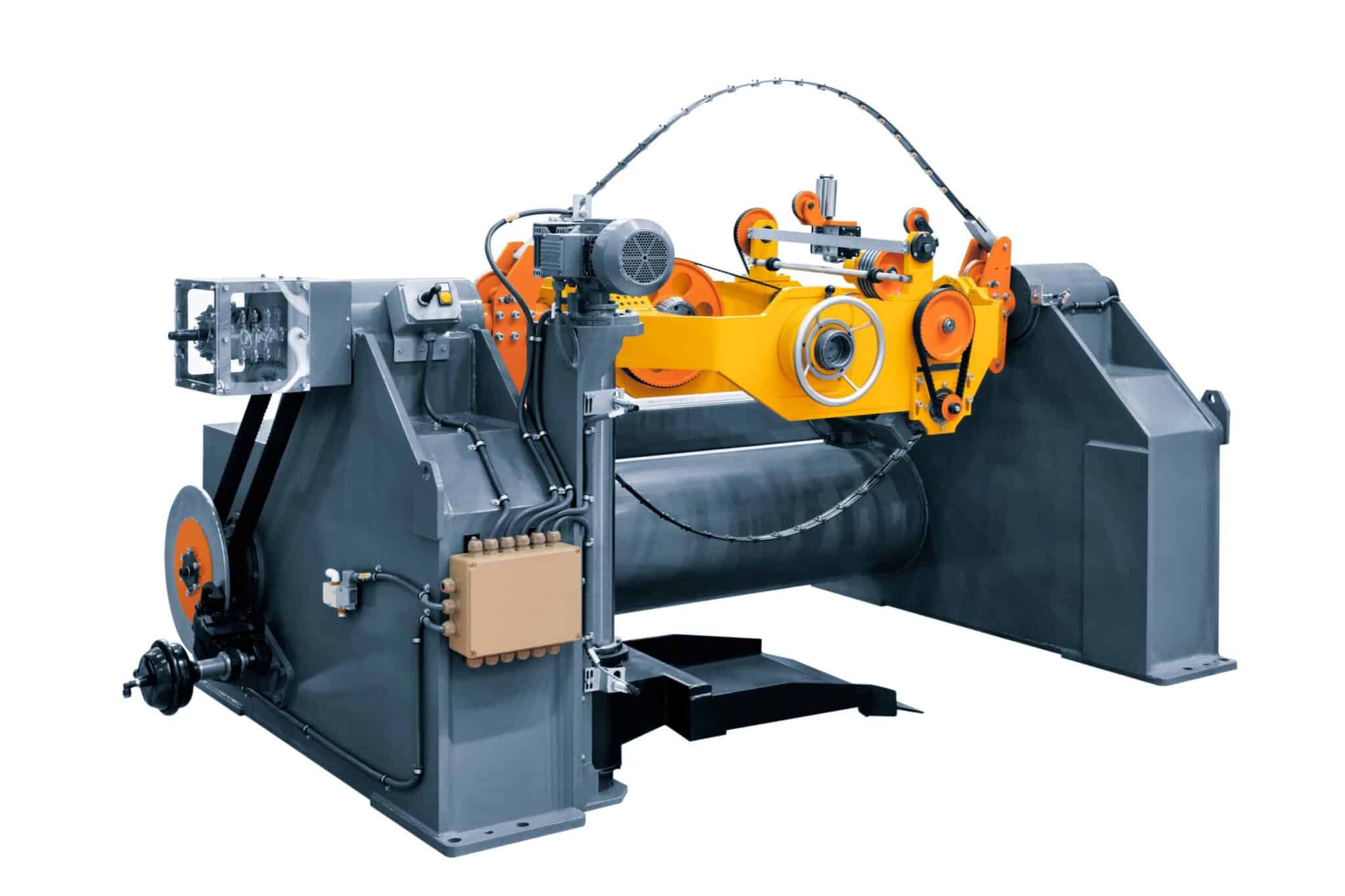

The catalog photograph represents the Φ630–Φ800 family. Maximum rotation speed is a reference limit; practical output depends on the core construction and lay.
Select around your actual product
Core construction
Provide the core count, insulation material and outside diameter of every core. Include fillers or separators shown in the drawing.
Lay and finished diameter
Specify the target lay length, direction and finished core diameter. Check all three against the proposed model.
Taping arrangement
State the tape material, width, overlap and package size. Centre and side taping must be included explicitly in the machine scope.
Reel and handling
Give the take-up reel flange, barrel and traverse dimensions, package weight and loading requirements.
Define what your quotation includes
- Cantilever machine and selected take-up size.
- Pay-off count, package dimensions and tension arrangement.
- Taping, filling or separating equipment required by the cable drawing.
- Controls, utilities, layout and agreed operating conditions.
State whether this is a new line, an additional machine or an upgrade. Include existing equipment interfaces so the offer covers the connections that matter.
From your requirement to the agreed equipment
Use these review steps to compare proposals and agree responsibilities for this machine.
01Define your requirement
List the insulated cores or pairs, their dimensions and any filler or separator feeds. Agree core lay, direction and the required tape material, overlap and supply arrangement. Identify whether this is a new line, an additional machine or an upgrade.
02Review the configuration
Compare the proposed working range, included machines, tooling and reel interfaces. Record optional items and customer-side utilities before agreeing the quotation.
03Agree the acceptance checks
Set the trial material, operating point and acceptance method for core inputs; lay and wrapping; take-up interface. Identify which checks require samples or records and who provides them.
04Plan delivery and handover
Confirm packing, delivery terms, site preparation and any agreed installation or training scope. Identify operating documents, maintenance information and the machine-specific spare-parts list.
Continue your equipment selection
Double Twisting Machine
Compare HK-500, HK-650 and HK-800 for drawn-wire conductor bunching.
Cable Outer Sheath Extrusion Line
Match a PVC/PE sheathing line to your incoming cable, jacket thickness and finished diameter. Review the extruder together with cooling, haul-off and drum handling.
Cage Stranding Machine
A cage strander carries multiple wire packages around the cable path. The cage size, bobbin arrangement and supporting equipment are selected for the actual conductor or armoured cable construction.
Explore the cable production equipment overview to place this machine in the wider production route.
Questions before choosing this machine
Is this a machine for bunching bare copper wires?
Its principal task here is laying up already insulated cores. Bare-wire conductor bunching belongs to a different selection route.
Is taping included in every machine?
Specify the centre or side taping arrangement in the quotation. The tape supply, width and overlap depend on the cable construction.
Can I choose only by the reel diameter?
No. Check core dimensions, finished diameter and lay together with the reel, package weight and operating target.
