Cable Outer Sheath Extrusion Line

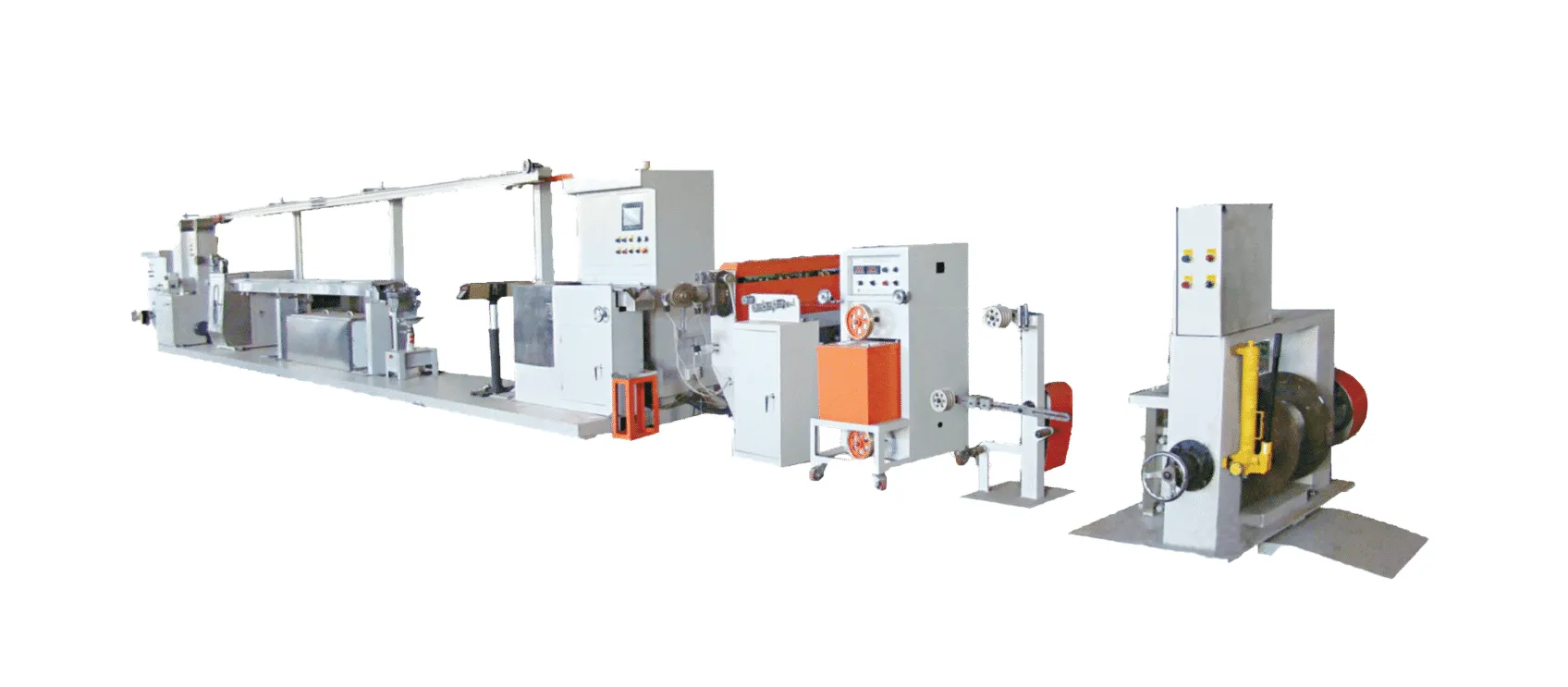

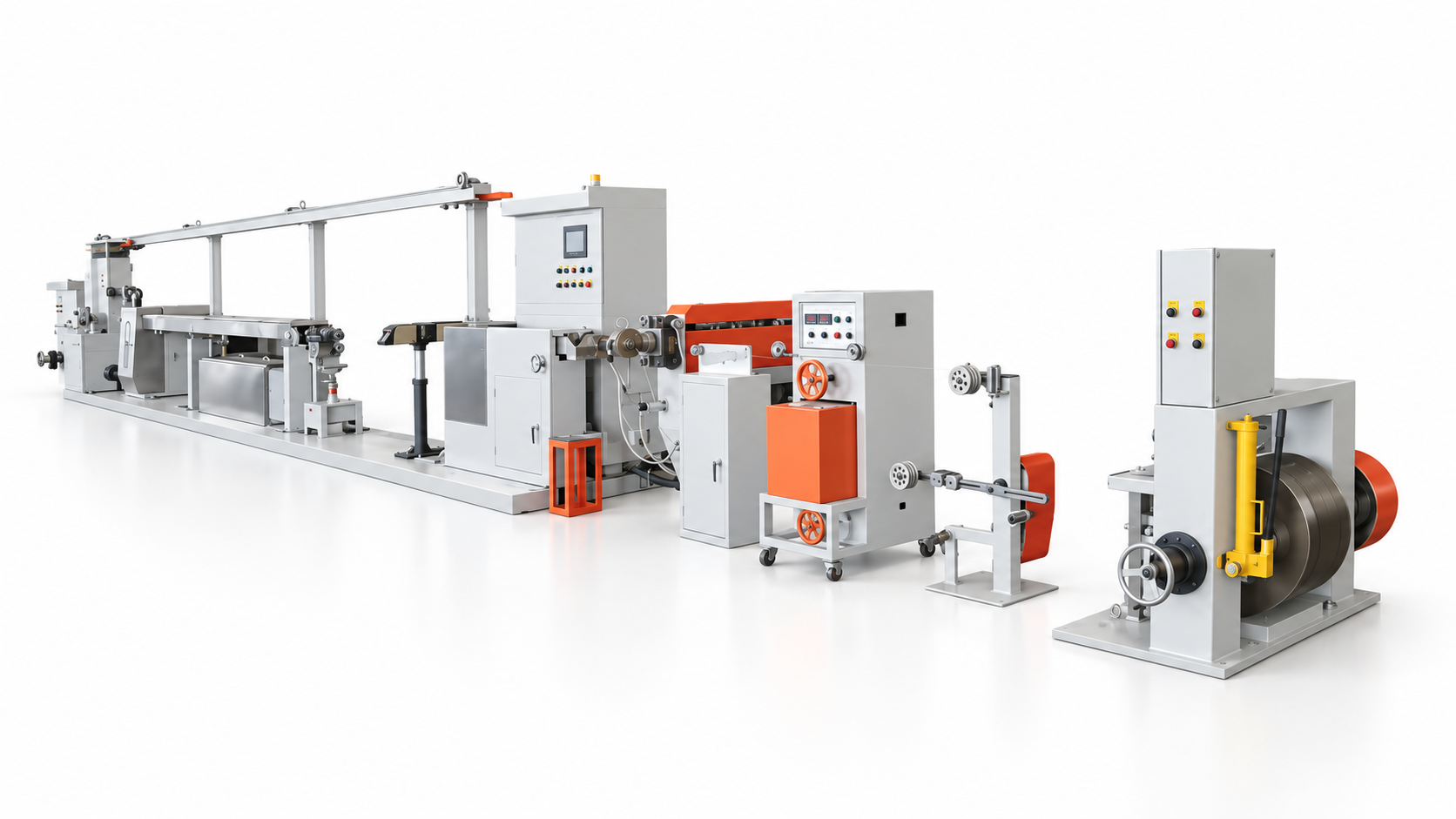

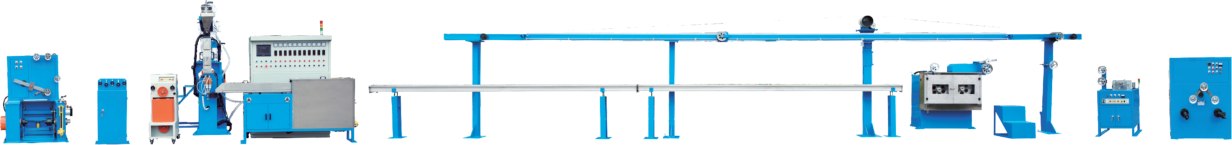

HONGKAI cable sheathing line with guide pulleys, control cabinets and reel handling equipment

Extrude the protective outer jacket over a formed cable core. Match a PVC/PE sheathing line to your incoming cable, jacket thickness and finished diameter. Review the extruder together with cooling, haul-off and drum handling.

Discuss this machine
01EQUIPMENT OVERVIEW

Extrude the protective outer jacket over a formed cable core

Match a PVC/PE sheathing line to your incoming cable, jacket thickness and finished diameter. Review the extruder together with cooling, haul-off and drum handling.

FAMILY70 / 80 / 90 mm screw references
PROCESS STEPOuter sheath extrusion
SELECT BYCable diameter, wall and material
02PROCESS FIT

Position in your production line

LAN cable application. Outer sheathing receives the core from LAN cable-core assembly. Confirm the incoming diameter, jacket compound, wall thickness, finished diameter and take-up package, then match the accepted cable to the required coiling and packaging arrangement. Review the complete LAN production route; material-specific processing and the working output require project confirmation.

01Formed cable coreFeed the laid-up or otherwise prepared cable core from the agreed drum arrangement.
02Outer jacket extrusionApply the selected sheath compound and thickness through suitable tooling.
03Cooling and take-upCool the jacket and collect the finished cable, including required marking or measurement.
03MODELS & SPECIFICATIONS

Compare the selection references

Parameter 70 80 90
Screw diameter Φ70 mm Φ80 mm Φ90 mm
Catalog extrusion capacity 140 kg/h 200 kg/h 250 kg/h

Catalog extrusion capacity is a mass-output reference, not cable line speed. Practical output depends on the compound, jacket section and complete line configuration.

04MACHINE SELECTION

Select around your actual product

01 / SELECTION

Incoming cable

Supply the cable cross-section, construction and minimum/maximum incoming diameter.

02 / SELECTION

Jacket specification

State PVC or PE grade, wall thickness, final diameter, tolerance and colour/layer requirements.

03 / SELECTION

Output requirement

Provide the intended cable sizes and working speed. Compare extrusion capacity with the material demand of those constructions.

04 / SELECTION

Drums and cooling

Confirm reel dimensions and weights, haul-off requirements, available cooling length and site utilities.

05SUPPLY SCOPE

Define what your quotation includes

  • Extruder, screw and selected PVC/PE processing arrangement.
  • Crosshead, dies and agreed colour or layer options.
  • Pay-off, cooling, haul-off and take-up.
  • Printing, measurement and other specified line functions.

State whether this is a new line, an additional machine or an upgrade. Include existing equipment interfaces so the offer covers the connections that matter.

06RELATED EQUIPMENT

Continue your equipment selection

Core-Wire Insulation Extrusion Line

Configure the HK-UL-25–60 family for the required electrical or electronic wire construction. Match the material, layer arrangement, tooling and cooling to the finished insulation dimensions.

Cantilever Single Twisting Machine

Combine covered cores for control, communication and data-cable constructions. Select the cantilever size from the core dimensions, finished cable diameter, lay and take-up package.

Automatic Cable Coiling and Packaging Machine

Select the coiling and packaging arrangement from the cable construction, length per coil and finished package format. Define which measuring, cutting, tying and packing operations are included.

Explore the cable production equipment overview to place this machine in the wider production route.

07FAQ

Questions before choosing this machine

Does 250 kg/h mean a guaranteed cable speed?

No. Mass output and line speed are different quantities. The jacket cross-section, compound and operating conditions are needed to establish a production point.

Can this replace core-wire insulation extrusion?

Outer sheathing and conductor insulation are different duties. Use the incoming construction and wall requirements to select the correct extrusion route.

What does a complete sheathing offer include?

Confirm extrusion equipment and tooling together with pay-off, cooling, haul-off, take-up and the marking or measurement functions you require.
