Cable package machine's description
In today’s competitive cable processing market, are you facing challenges with low production efficiency, high labor costs, and inconsistent product quality? Traditional manual methods for measuring, cutting, and coiling are not only time-consuming and labor-intensive but also fail to guarantee the precision and neatness of every cable roll, directly impacting your production schedules and product competitiveness.

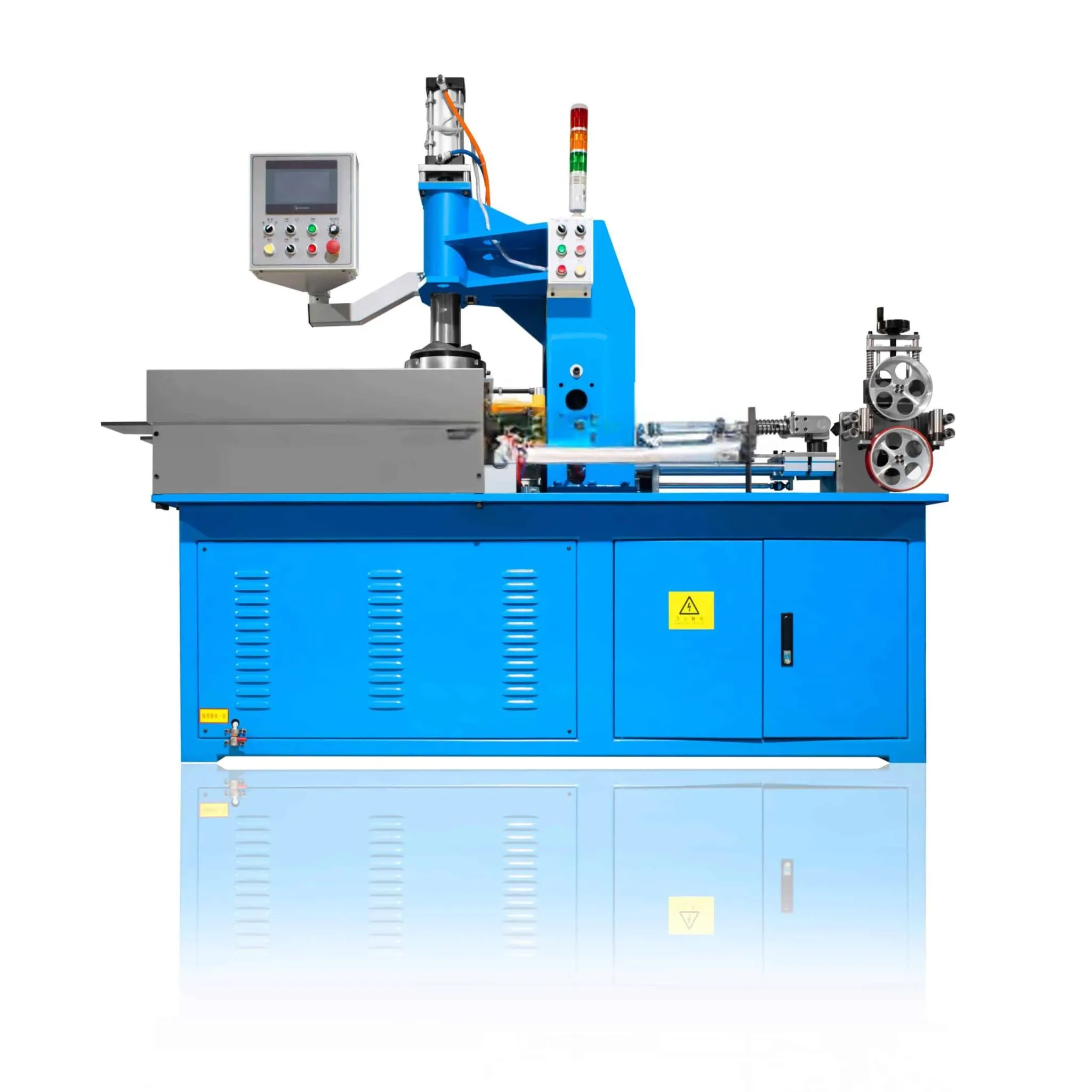

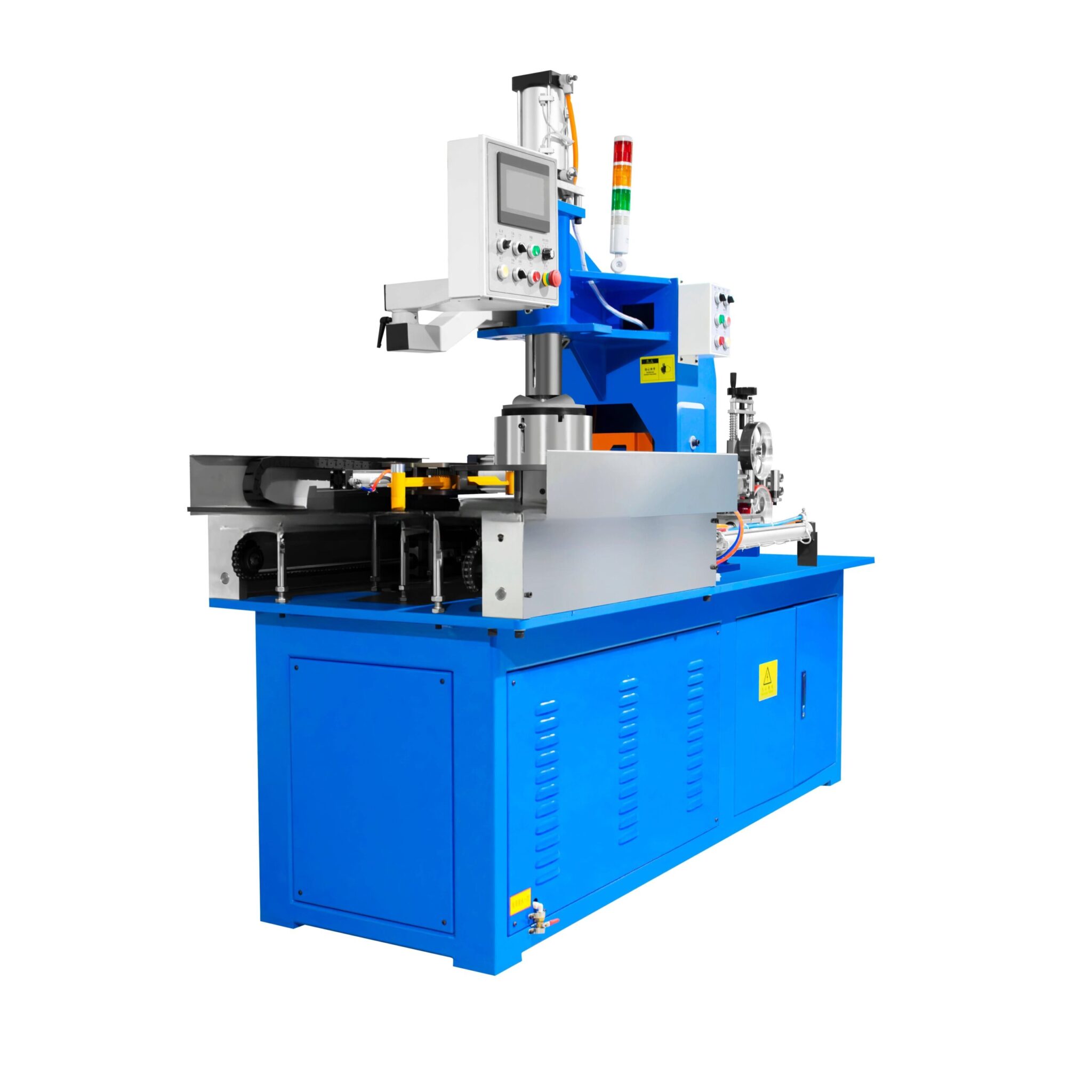

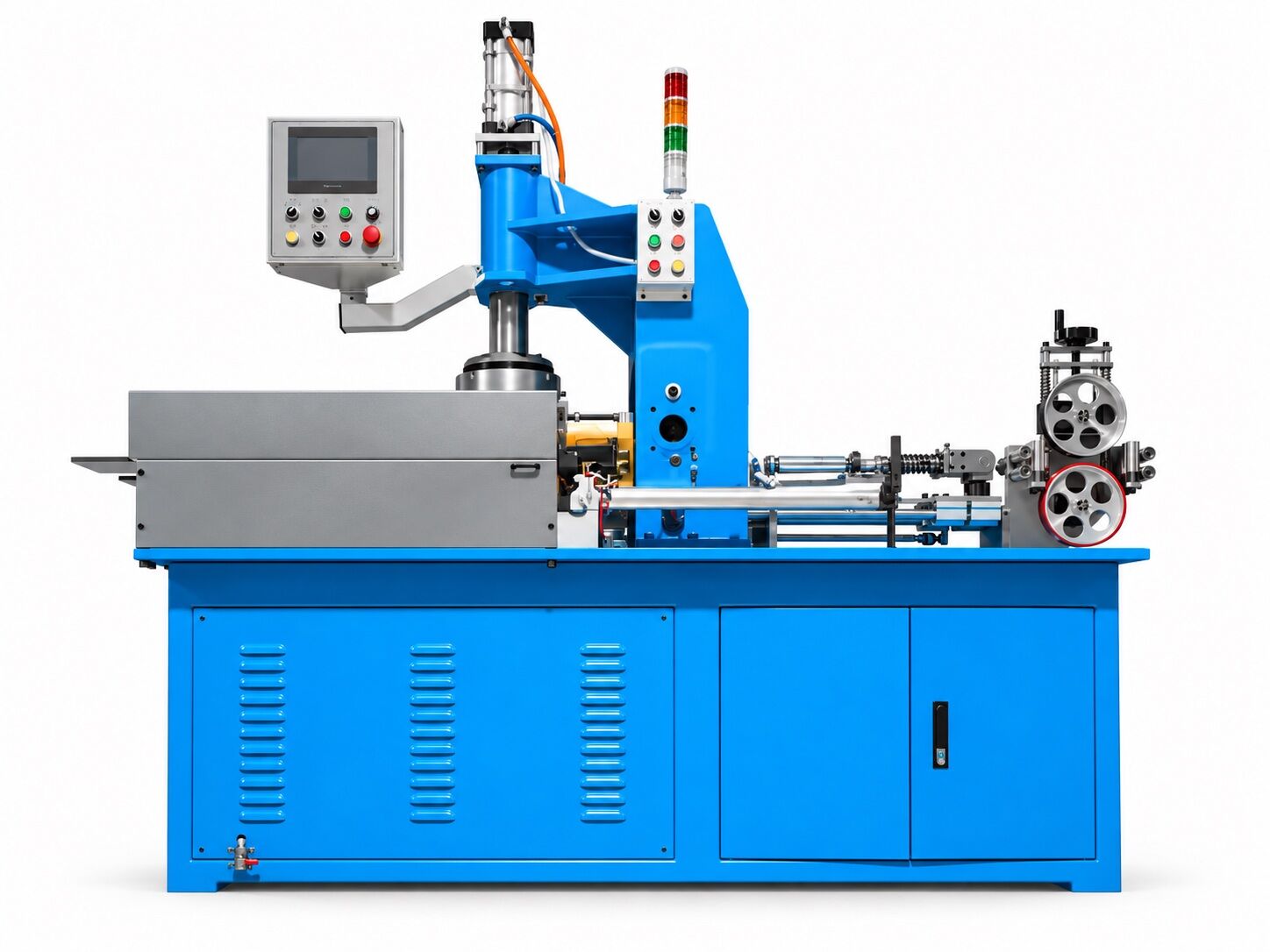

To solve these pain points, we introduce the Automatic Cable Cutting, Coiling, and Tying Machine—the intelligent solution you’ve been searching for to elevate your productivity to new heights.
This machine will completely revolutionize your workflow:
-

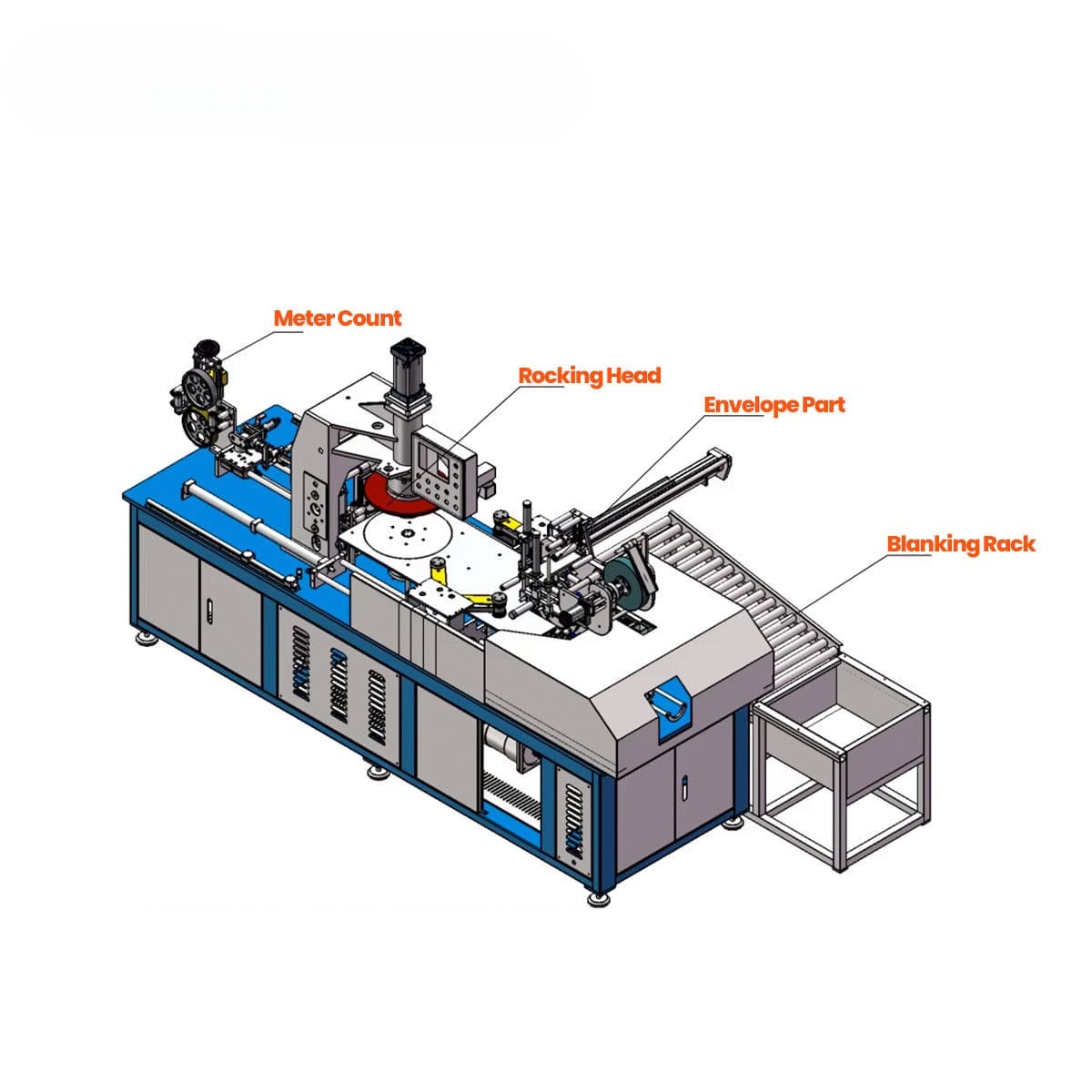

Seeking Higher Efficiency? Our equipment integrates automatic metering, high-speed cutting, rapid coiling, and automated tying into one seamless process. This fully automated workflow drastically reduces cycle times. A single non-specialized operator can easily manage several machines, allowing your output to grow exponentially.
-
Worried About High Costs? Imagine consolidating tasks that once required multiple skilled workers into a process overseen by just one person. This means direct savings on labor costs and the elimination of material waste caused by human error. Every meter of your cable is used effectively.
-
Demanding Precision and Quality? Featuring an advanced PLC computer control system, you can effortlessly set the length, number of coils, and other parameters on the user-friendly touchscreen. The machine executes each job with exceptional accuracy. Coils are tight and orderly, and the ties are secure and neat, ensuring your final product has a professional finish and consistent quality.
-
Is It Complicated to Operate? We understand the importance of user-friendliness. The intuitive touchscreen interface supports both English and Chinese, with a simple and clear operating logic. Your staff can be up and running on the same day without extensive training.
Core Applications: Whether you are producing power cables, communication fiber optics, automotive/appliance wire harnesses, or consumer cables like USB and HDMI, this machine is perfectly suited for the task. It is an indispensable core asset for any modern cable processing facility.
Investing in the Automatic Cable Cutting & Winding Machine is an investment in efficiency, quality, and the future. Contact us today to learn how this machine can take your business to the next level.
To ensure our equipment perfectly integrates into your production line, please refer to the detailed technical specifications below. We also offer customization services to meet your unique requirements.
Please Note: Due to limited information from the original source, some parameters below are estimated based on industry standards. We strongly recommend you verify and modify these against your product’s official data sheet to ensure 100% accuracy.
| Parameter | Specification |
|---|---|
| Model Number | 1246mm |
| Control System | PLC Programmable Controller + HD Touchscreen (Supports English/Chinese) |
| Metering Method | Precision Encoder Automatic Metering |
| Cutting Method | Pneumatic Automatic Cutter |
| Applicable Wire Diameter | Ø 1mm – Ø 10mm (Please verify against actual specs) |
| Winding Speed | 1 – 8 coils/sec (Adjustable) |
| Tying Speed | Approx. 0.7 sec/tie |
| Finished Inner Diameter | 100mm – 280mm (Adjustable) (Please verify against actual specs) |
| Finished Outer Diameter | ≤ 350mm (Please verify against actual specs) |
| Max. Load Weight | 20 KG (Please verify against actual specs) |
| Length Setting | 0.1m – 9999m |
| Length Accuracy | ± 0.1% |
| Drive Motor | Precision Stepper Motor |
| Power Requirement | AC 220V / 50Hz (Can be customized for local voltage) |
| Air Supply Requirement | 0.4 – 0.6 Mpa (Clean, dry air) |
| Machine Dimensions | Approx. 1100mm(L) x 550mm(W) x 900mm(H) (Please verify against actual specs) |
| Machine Weight | Approx. 250 KG (Please verify against actual specs) |
Optional Models / Customization
- Safety Guard: Optional full or semi-enclosed safety cover to ensure operator safety.
- Applicable Wire Diameter Range: The machine can be customized to handle larger or smaller wire diameters based on your needs.
- Load Capacity: The machine’s load-bearing capacity can be enhanced to handle heavier cable spools.
- Pay-off Stand: Can be paired with an active (motorized) or passive pay-off stand to suit different types of raw cable reels.
SHARE Cable package machine WITH YOUR CLIENTS
Packing &Delivery
Visualization of Quote
Quotations are like short, helpful sentences that allow customers to understand your plan in an instant.
Whole plant planning
According to the actual specifications of this factory, it’s possible for you to plan or layout your whole production process.
OEM Aiailable
With our customizable options, you can make your product stand out from the rest!
Cost Check
The cost of a product is determined by many different factors. From materials used to produce it, all the way down through even what country you manufacture in can make a difference on your final price tag!
Order Follow Up Sheet
Wow! The list is updated every Friday, so that customers also know the order process. It’s a great way to stay in touch with what you need and when it will be delivered.”
Free Commissioning &Installation
Technical support is available for all of your needs. Whether it’s an installation or training, we’ve got you covered!
Letter ofthanks
FAQS
IS THIS THE COMPLETE PLAN FROM A-Z?
Yes, this is. One-stop service can save you time and money, isn't it?
IS IT THE PRODUCTION LINE IS NEW?
Yes, it is. We don’t make used equipment, so it may not be possible to see a complete production line in our factory every time.
CAN I SEE THE ACTUAL EQUIPMENT USAGE BEFORE I PLACE AN ORDER?
Sure, we can arrange any machine you want to check around our city. if you are from INDIA, we also can arrange it in NOIDA.
WHAT'S THE LIFE OF EACH MACHINE?
Yes, it is. We don’t make used equipment, so it may not be possible to see a complete production line in our factory every time.
IS THERE ANY MANUAL OF EACH MACHINE?
We will provide the water/electric circuit diagram and operation manual of the equipment.
COULD YOU CLEARING EVERYTHING IF WE WANT TO BUILD A NEW FACTORY?
we will provide the power, gas, water consumption and floor area of the each production line.
