स्टील वायर कोटिंग उत्पादन लाइन

संदर्भ डिज़ाइन गति Up to 600 m/min* इंजीनियरिंग पुष्टि आवश्यक है

यह उत्पादन लाइन क्या तैयार करती है? चयनित FTTH केबल संरचनाओं के लिए एक्सट्रूज़न-कोट स्टील वायर, नियंत्रित अंतिम आयामों के साथ, जिसका उद्देश्य लंबे सतत उत्पादन के दौरान मरोड़ से संबंधित हैंडलिंग जोखिम को कम करना है।.

Reference model
HK-TFGS-30
मुख्य प्रक्रिया
प्रीहीटिंग और एक्सट्रूज़न कोटिंग
Application boundary
चयनित FTTH केबल संरचनाओं के लिए लेपित स्टील तार; आयाम और पॉलिमर परियोजना-परिभाषित हैं
Published price
USD 45,000
अंतिम उपकरण क्षेत्र और वाणिज्यिक शर्तें औपचारिक उद्धरण में पुष्टि की जाती हैं।.
संदर्भ डिज़ाइन गति
Up to 600 m/min*
*The 600 m/min figure is from the 2026 reference configuration. It is not a commitment for every operating condition. Actual speed depends on steel-wire diameter, coating material, finished outside diameter, cooling capacity and reel handling, and requires engineering confirmation in the approved technical proposal.
FULL-LINE VISUALIZATION HK-TFGS-30 reference configuration
SELECTED LINE स्टील वायर कोटिंग उत्पादन लाइन HK-TFGS-30 चयनित FTTH ड्रॉप-केबल निर्माण प्रक्रियाओं से पहले एक्सट्रूजन कोटिंग
02 Material and process map

Map the wire, coating and finished function before fixing the line scope.

The line coordinates pay-off, straightening, tension control and take-up with preheating, extrusion coating, cooling and measurement. This is intended to reduce wire rotation and twist-transfer risk during long-length processing and help maintain cable and fiber geometry in the following FTTH manufacturing route. Results depend on the approved project design and operating window.

Coated-wire structure workbench Steel-wire strand + project-defined polymer coating + coated steel wire
3D visualization of a coated seven-wire galvanized steel strand shown in cross-section and perspective 01 Coated-wire 3D structure
3D structure view · switch views without leaving this section These illustrations explain the material relationship. Final wire, coating and dimensions remain project-defined.
Input-to-output route

छह प्रक्रम चरण संदर्भ कोटिंग मार्ग का निर्माण करते हैं।.

Select a material role above to highlight the functional zone that receives, forms or stabilizes it.

01Raw steel wireपुष्टि किए गए रील को लोड करें और लाइन को इनपुट प्रस्तुत करें।.
02Straightening & tensionतार के मार्ग, संरेखण और प्रवेश तनाव को स्थिर करें।.
03Preheatingतार को पुष्टि की गई कोटिंग प्रणाली के लिए तैयार करें।.
04Extrusion coatingस्टील तार के चारों ओर प्रोजेक्ट-परिभाषित पॉलिमर लगाएं।.
05Cooling & measurementतैयार कोटेड-वायर के आयामों को स्थिर और निगरानी में रखें।.
06खींचने और लपेटने की मशीनडाउनस्ट्रीम पुल को नियंत्रित करें और समाप्त कोटेड वायर एकत्र करें।.
ⓘ संदर्भ सीमा: raw-wire diameter and grade, coating material, finished outside diameter, concentricity target, cooling duty, reel format and the downstream FTTH cable drawing require engineering confirmation. The workbench does not define a universal coated-wire construction.
03 संदर्भ विन्यास

Review five coordinated functional zones for HK-TFGS-30.

The material choice from Section 02 is carried here. Review its mapped functional zone, then inspect the complete reference route without treating project-dependent dimensions or auxiliary scope as a fixed standard.

मटीरियल मैप से लिया गया कोई सामग्री भूमिका चयनित नहीं है Start from the material workbench above, or review all five reference zones below.
Choose a material role
Equipment stage overview Equipment illustration
HONGKAI motor-driven reel unit mapped to raw-wire pay-off, equipment illustration
Equipment illustration of the pay-off role; reel format, loading and operating direction remain subject to the written proposal.
Selected functional zone Raw-wire pay-off
संदर्भ मार्ग शुरू

HK-TFGS-30 · Pay-off

Raw-wire pay-off

Present the confirmed steel-wire reel to the line with a controlled, stable entry path for continuous processing.

इनपुट
Confirmed raw steel wire + supply reel
आउटपुट
Stable wire feed to straightening and tension control
मार्ग स्थिति
Zone 01 · Wire entry
Reference functional zone
प्रक्रिया भूमिका

Feed the raw wire continuously

Present the approved reel to the downstream wire-conditioning path without defining a universal reel size.

Key production controls

Reel handling, alignment and entry tension

Coordinate reel support, pay-off behavior and wire entry with the confirmed material and production window.

प्रस्ताव से पहले पुष्टि करें

तार ग्रेड, व्यास और आपूर्ति रील

Confirm raw-wire specification, reel dimensions, package mass and required changeover method.

2026 catalog reference

प्रारंभिक परियोजना योजना के लिए संदर्भ पैरामीटर।.

These values describe the published catalog configuration. They do not replace the final proposal, utility schedule, layout or FAT agreement.

Line structure speed
Up to 600 m/min*
संदर्भ डिज़ाइन मान, निर्माण गति की गारंटी नहीं
Reference line length
≤ 32 m*
Final footprint, access and installation layout are project-defined
Catalog power source
AC 380 V ±10% · 50 Hz*
त्रि-चरण पांच-तार संदर्भ; स्थल इंटरफ़ेस की पुष्टि आवश्यक है
Complete-line power
Approx. 40 kW*
कैटलॉग संदर्भ रेटिंग, संचालन-ऊर्जा गारंटी नहीं
Catalog application reference: the publication identifies 0.4 mm and 1.0 mm steel-wire coating for FTTH drop-cable production. These are two published reference points, not a universal 0.4–1.0 mm range. Final raw-wire and coated dimensions require written engineering confirmation.
संदर्भ रेखा घटक

Separate published features from project-defined functions.

यह एक योजना रजिस्टर है, सामग्री का निश्चित बिल नहीं। सटीक मशीन फॉर्म, मात्राएँ, आकार, ब्रांड और शामिल सहायक उपकरण अनुमोदित तकनीकी प्रस्ताव के अनुसार होंगे।.

  1. 01 Active raw-wire pay-off

    पुष्टि किए गए आपूर्ति रील को लाइन में फ़ीड करता है; रील प्रारूप, लोडिंग और चेंजओवर विधि परियोजना-परिभाषित बनी रहती है।.

    Catalog reference
  2. 02 सीधा करना और प्रवेश-पथ नियंत्रण

    Maintains the planned wire path before coating; the straightening method and adjustment range require confirmation.

    परियोजना-परिभाषित फ़ंक्शन
  3. 03 Precise tension control

    Supports stable material entry; the sensor, dancer or other control form and tension window are proposal items.

    Catalog reference
  4. 04 Wire preheating

    Conditions the approved wire before extrusion; heating method, setpoint and residence time are confirmed by project.

    परियोजना-परिभाषित फ़ंक्शन
  5. 05 Precision small extruder

    Applies the buyer-approved coating compound; screw, output, drive and heating-zone details are configuration-specific.

    Catalog reference
  6. 06 Fine-adjustment crosshead

    Supports coating-centering adjustment; tooling, die set and finished dimensions require the approved product basis.

    Catalog reference
  7. 07 Cooling path

    Stabilizes the coated member before measurement; cooling method, water conditions and effective length are project-defined.

    परियोजना-परिभाषित फ़ंक्शन
  8. 08 Dimensional monitoring and history

    Supports coated-dimension review and historical diameter-curve inquiry; instrument, accuracy and feedback method are confirmed later.

    Catalog reference
  9. 09 Haul-off and pull-control zone

    Coordinates the downstream pull with coating, cooling and winding; traction form and operating window are project-defined.

    परियोजना-परिभाषित फ़ंक्शन
  10. 10 Single-bobbin automatic take-up

    Winds the coated output; reel dimensions, package mass, traverse and changeover requirements require confirmation.

    Catalog reference
Control and quality chain

Review the controls as one coordinated route.

The catalog describes several reference capabilities. Final brands, control logic, data points, measurement methods and integration scope remain part of the written project configuration.

  1. 01
    Stable material entry

    Active pay-off and precise tension control establish the inlet condition.

  2. 02
    Controlled temperature

    The 2026 catalog references Japan RKC temperature control; final make and quantity follow the proposal.

  3. 03
    Coating geometry

    सटीक एक्सट्रूडर और फाइन-एडजस्ट क्रॉसहेड, सहमत मानदंडों के विरुद्ध OD और समकेंद्रता नियंत्रण का समर्थन करते हैं।.

  4. 04
    Diameter trace

    The catalog describes finished-diameter monitoring with historical production-curve inquiry.

  5. 05
    Coordinated winding

    पुल नियंत्रण और सिंगल-बॉबिन स्वचालित टेक-अप की समीक्षा अनुमोदित रील पैकेज के साथ की जाती है।.

  6. 06
    Production data interface

    Industrial-computer control, online tracking and MES/ERP connection are catalog reference capabilities, not automatic inclusions.

संदर्भ विन्यास / इंजीनियरिंग पुष्टि आवश्यक है।.

Machine sizing, tooling, auxiliary systems, performance and final arrangement follow the approved steel-wire specification, polymer, finished dimensions, production target, reel package and plant conditions.

03B Verified process video

See the verified 0.4–0.6 mm 1-to-2 project line

This public HONGKAI video records a steel-wire coating route from dual wire input and extrusion through cooling, online diameter monitoring, haul-off and dual take-up. Its operating details belong to the recorded project configuration shown in the footage.

HONGKAI public process evidence · HK-TFGS-30 Publicly verified video
Evidence boundary: this factory-recorded video verifies the visible 0.4–0.6 mm, 1-to-2 project route and its project-specific maximum 500 m/min statement. It does not prove the final scope, speed or acceptance result of a different buyer configuration; the approved technical proposal remains controlling.
04 प्रोजेक्ट जिम्मेदारी

मार्ग के अंतिम रूप से तय होने से पहले स्टील वायर कोटिंग प्रोजेक्ट की सीमा परिभाषित करें।.

The five-zone route above is a reference configuration, not a contractual supply scope. Buyer, HONGKAI and joint responsibilities become final only in the approved technical proposal or agreement.

क्षेत्र स्थिति इंजीनियरिंग समीक्षा आवश्यक

Nothing below is treated as included, excluded, buyer-supplied or HONGKAI-supplied until it is confirmed in writing. A twist-risk target is a project objective, not an absolute twist-free guarantee.

जिम्मेदारी मैट्रिक्स सभी तीन जिम्मेदारी समूहों की समीक्षा करें

एक समूह खोलने से केवल उसके विवरण प्रकट होते हैं; इससे क्षेत्र की पुष्टि नहीं होती है।.

खरीददार तैयार करता है खरीददार की जिम्मेदारी इंजीनियरिंग समीक्षा के लिए प्रोजेक्ट, उत्पाद और साइट जानकारी 4 आइटम

जानकारी HONGKAI को उत्पादन रूट और संदर्भ उपकरण कॉन्फ़िगरेशन निर्धारित करने से पहले समीक्षा करनी चाहिए।.

  • कच्चे स्टील तार की विशिष्टता, व्यास, सहनशीलता, सतह की स्थिति और प्रतिनिधि नमूने अभी पुष्टि के लिए
  • पॉलिमर कोटिंग कंपाउंड, सटीक ग्रेड, रंग, सामग्री के आंकड़े और तैयारी की आवश्यकताएं अभी पुष्टि के लिए
  • Target coated OD, tolerance, coating thickness, concentricity and surface requirements अभी पुष्टि के लिए
  • Intended FTTH structure, observed long-length twist issue, affected cable or fiber parameter and current inspection method अभी पुष्टि के लिए
लिखित प्रस्ताव में परिभाषित HONGKAI की जिम्मेदारी अनुशंसित कॉन्फ़िगरेशन और उद्धृत आपूर्ति सीमा 4 आइटम

HONGKAI उपलब्ध प्रोजेक्ट इनपुट की समीक्षा के बाद अनुशंसित कॉन्फ़िगरेशन और उद्धृत आपूर्ति सीमा को परिभाषित करता है।.

  • अनुशंसित मिलान कोटिंग मार्ग और संदर्भ उपकरण विन्यास अभी पुष्टि के लिए
  • Quoted equipment list, supply boundary and buyer-interface schedule अभी पुष्टि के लिए
  • Engineering basis for tooling, preheating, line tension, cooling, measurement and take-up अभी पुष्टि के लिए
  • लिखित प्रस्ताव में निर्दिष्ट प्रलेखन, कमीशनिंग, प्रशिक्षण और बिक्री-उपरांत दायरा अभी पुष्टि के लिए
एक साथ पुष्टि किया गया संयोजन की पुष्टि तकनीकी इंटरफेस, स्वीकृति और परियोजना समन्वय 6 items

तकनीकी इंटरफेस, स्वीकृति और परियोजना समन्वय के लिए दोनों परियोजना टीमों से लिखित पुष्टि की आवश्यकता होती है।.

  • Approved raw-wire samples, coating-compound grade, material data and downstream FTTH application basis अभी पुष्टि के लिए
  • Stable-run basis, trial reel package, target operating window, sample locations and inspection instruments अभी पुष्टि के लिए
  • Coated OD, tolerance, coating thickness, concentricity, surface quality and agreed measurement method अभी पुष्टि के लिए
  • Twist-risk objective, affected cable or fiber parameter, observation method and written pass criteria अभी पुष्टि के लिए
  • Utilities, cooling, grounding, compressed air if required, layout access and automation or data interfaces अभी पुष्टि के लिए
  • FAT record, approved deviations, delivery, installation, commissioning, training, handover documents and final sign-off अभी पुष्टि के लिए

05 योजना इनपुट

Prepare the inputs that define the HK-TFGS-30 coating project.

Select the planning topics you are ready to discuss during the first engineering review. A selection marks a review topic only; it does not approve a technical value, equipment quantity, material grade, performance target or supply scope.

Select the production-line planning topics to review
06 संदर्भ और पुष्टि

Review the equipment arrangement and the inputs required for your project.

Use the line image, layout and coated-wire illustration to discuss your equipment arrangement. Performance targets and acceptance criteria are confirmed for your project.

आपके समीक्षा प्राथमिकताएं कच्चे तार का पे-ऑफ → सीधा करना, तनाव नियंत्रण और पूर्व-तापन → एक्सट्रूज़न कोटिंग → शीतलन और माप → हॉल-ऑफ और टेक-अप

अभी तक कोई योजनाबद्ध विषय नहीं चुना गया है। समीक्षा प्राथमिकताएँ जोड़ने के लिए अनुभाग 05 पर लौटें।.

Stage 01 equipment review
Project configuration to confirm
Review the equipment requirements

Raw-wire pay-off equipment

Confirm the raw-wire diameter, condition, reel package and pay-off behavior for your project.

Public media is presented with a narrow evidence boundary. It does not verify twist reduction, speed, stage-level equipment, supplied scope or acceptance. Final requirements and results belong in the mutually approved technical agreement.

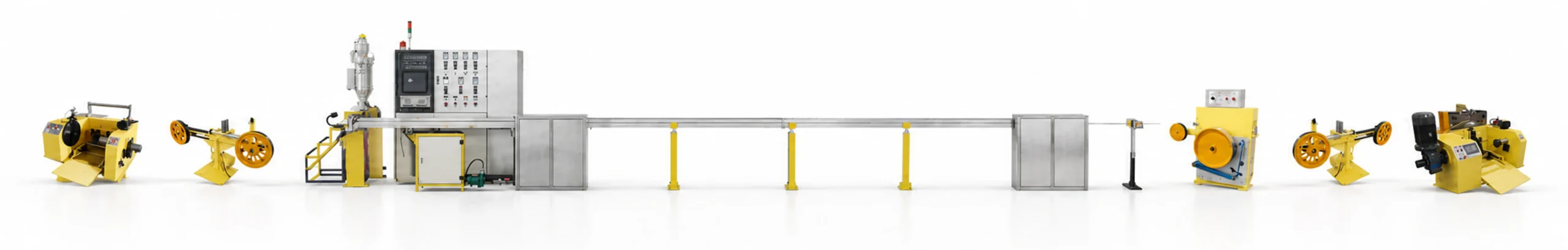

HONGKAI HK-TFGS-30 complete steel wire coating line, public reference image
Published full-line image

HK-TFGS-30 complete-line public reference

1 of 3 equipment references
06BBrazil FTTH evaluation

Why Brazilian FTTH Producers Evaluate the HK-TFGS-30

HONGKAI project-support photographs are shown for reference. For Brazilian FTTH producers, the useful question is how the selected FTTH structure, coated-wire target and complete process route are confirmed before the project scope is fixed.

HONGKAI team with a Brazil customer group in a published project archive photograph
Brazil customer team · archive
FTTH application input 01 / 03

Prepare coated steel wire for selected FTTH structures

HK-TFGS-30 is evaluated when a selected FTTH structure needs steel wire prepared with a project-defined coating before downstream cable production. Raw wire, coating material and finished dimensions remain project inputs.

Project referenceHONGKAI project-support reference. Confirm the equipment scope and performance targets for your project.
HONGKAI representatives with a customer during a published Brazil installation visit
Brazil installation visit · archive
Coordinated route 02 / 03

Evaluate one connected process route

Assess pay-off, straightening, preheating, extrusion coating, cooling, measurement, haul-off and take-up as one coordinated route. Final equipment selection follows the approved wire, polymer, coated dimensions, cooling duty and reel conditions.

Project referenceHONGKAI installation-support reference. The exact equipment supplied follows each project's technical agreement.
HONGKAI representatives with a São Paulo customer project group in a photograph published on the HONGKAI website
São Paulo project group · public record
Engineering speed check 03 / 03

Match speed to the approved project window

Up to 600 m/min is HONGKAI's 2026 reference design speed, not an unconditional production guarantee. Actual operating speed requires engineering confirmation against wire diameter, coating material, coated dimensions, cooling capacity and reel handling.

Project referenceHONGKAI project-support reference from São Paulo. Confirm the operating conditions and acceptance criteria for your own production line.
07 Buyer FAQ

Confirm the coated-wire target before requesting a line proposal.

These answers define the inputs HONGKAI needs to review the HK-TFGS-30 reference configuration for a buyer's steel-wire coating project.

यह उत्पादन लाइन किस चीज़ पर कोटिंग करती है?

The line applies a project-specified polymer coating to approved raw steel wire, then cools, measures, hauls off and rewinds the coated member. It does not coat a completed FTTH cable. Raw wire construction, coating compound, target coated OD and tolerance remain buyer inputs for engineering confirmation.

FTTH केबल निर्माण से पहले स्टील तार को क्यों कोट किया जाता है?

For the intended FTTH application, coating is reviewed together with straightening, line tension and winding so the coated member can be prepared for long continuous downstream processing. This coordinated preparation is intended to reduce the risk of wire rotation or twist transfer and help the downstream process maintain the specified cable and fiber geometry. It does not mean twisting can never occur. The actual result depends on the approved wire, coating, reel, downstream FTTH structure and acceptance method.

पेज 600 m/min तक क्यों लेबल किया गया है?

Up to 600 m/min is the HONGKAI 2026 catalog reference design and line-structure speed, not an unconditional production-speed guarantee. The approved operating speed requires engineering confirmation against raw wire diameter, coating material, coated OD and tolerance, cooling, reel package, stable-run basis and written acceptance conditions.

क्या एक व्यास सीमा या विन्यास हर परियोजना पर लागू किया जा सकता है?

No. HONGKAI references include different diameter and configuration variants, so a range named in one catalog or indexed file must not be treated as universal capability. The proposal should be based on the buyer's raw wire, target coated OD, tolerance, compound, reel package and downstream FTTH construction.

किस तार, मिश्रण और डाउनस्ट्रीम इनपुट की आवश्यकता है?

Provide the raw wire diameter and construction, incoming condition, coating compound and grade, target coated OD and tolerance, intended FTTH cable structure, input and output reel details, and any observed long-length rotation or twist-transfer issue. Also identify the cable or fiber geometry parameter affected downstream.

क्या संदर्भ छवियाँ या वीडियो एंटी-ट्विस्ट परिणाम को सिद्ध करते हैं?

No. Images and video can illustrate a line, coated-wire sample or process sequence. They cannot prove reduced rotation or twist transfer, stable operating speed, dimensional conformity, the final machine configuration or acceptance performance for a buyer's material and downstream FTTH structure.

किन लेआउट, उपयोगिताओं और मौजूदा उपकरण विवरणों की समीक्षा की जानी चाहिए?

Share the usable line length and width, access and material flow, voltage and frequency, cooling-water conditions, compressed-air availability where applicable, and the interfaces of any retained equipment. The catalog layout and power values are references only. Final footprints, utilities and supply boundaries require written engineering confirmation.

FAT और स्वीकृति को कैसे परिभाषित किया जाना चाहिए?

Agree the buyer-supplied wire and compound, test reel package, coated-OD and tolerance method, stable-run length and speed basis, sampling points, inspection instruments, and downstream FTTH verification method. If the project addresses a long-length rotation or twist-transfer issue, record the observed condition and the affected cable or fiber parameter so the acceptance method tests the intended risk-reduction objective without implying an absolute result.

Final materials, equipment, performance, acceptance criteria and supply scope are defined in the signed technical and commercial agreement.

08 Investment enquiry

Define the coated-wire target and downstream FTTH condition.

Share the raw wire diameter and construction, coating compound and grade, target coated OD and tolerance, downstream FTTH structure, any observed long-length rotation or twist-transfer issue, the affected cable or fiber parameter, input and output reel package, and the proposed acceptance method. HONGKAI will review the open engineering items before preparing a project-specific proposal.

Your project HK-TFGS-30 steel wire coating reference configuration Your selections help HONGKAI review the enquiry. It does not approve the material, configuration, operating result or supplied scope. योजना इनपुट खुले रहते हैं · यदि प्रासंगिक हो तो एक प्रक्रिया चरण चुनें

HONGKAI क्या समीक्षा करेगा

Raw wire
Diameter, construction, incoming condition and buyer-supplied sample basis
Coating target
Compound and grade, coated OD, tolerance and inspection method
FTTH interface
Downstream cable structure and the cable or fiber parameter to help maintain
Issue record
Observed long-length rotation or twist transfer and operating conditions
Reel package
Input and output reel dimensions, loading condition and handling needs
स्वीकृति आधार
Stable-run method, sampling, instruments and downstream verification
तैयारी करें · 6 आइटम
  • Raw wire diameter, construction, incoming condition and available sample
  • Coating compound, grade, target coated OD, tolerance and measurement method
  • Downstream FTTH structure and intended role of the coated member
  • Observed long-length rotation or twist issue and affected cable or fiber parameter
  • Input and output reel package, handling needs and planned stable-run length
  • Factory conditions, inspection instruments, FAT and acceptance method

No complete specification yet? Share the known material and downstream conditions. Unknown values can remain open for engineering review.

यहाँ जमा की गई जानकारी एक प्रारंभिक तकनीकी समीक्षा का समर्थन करती है। अंतिम उपकरण कॉन्फ़िगरेशन, प्रदर्शन, मूल्य, डिलीवरी अनुसूची और आपूर्ति क्षेत्र केवल एक अनुमोदित प्रस्ताव या समझौते में पुष्टि किए जाते हैं।.

Steel wire coating project brief

Provide raw wire diameter, coated OD and tolerance, coating material and reels.

Provide the raw wire diameter, target coated OD and tolerance, coating material and grade, and input and output reels. Add the downstream FTTH structure, observed long-length issue and acceptance method when available.

Contact context

Cable & application

प्रोजेक्ट की दायरा

फ़ाइलें ड्रैग एंड ड्रॉप करें, अपलोड के लिए फ़ाइलें चुनें
यदि उपलब्ध हो तो केबल ड्राइंग, उत्पाद नमूना छवि या तकनीकी विशिष्टता अपलोड करें।.

उद्धरण के लिए पूछें

हम आपको चौबीस घंटे के भीतर जवाब देंगे!!!
