PRODUCTION ROUTE PREVIEW
HK-30 plus configured GJFJV / HK-50 phase
01
خط الإنتاج المختار
خط إنتاج كابل GJFJV
ما الذي تنتجه مسار الإنتاج هذا؟ A two-phase reference route for an indoor tight-buffered distribution cable. HK-30 forms the individual tight-buffered fiber elements. The configured GJFJV/HK-50 phase gathers them, applies aramid yarn and extrudes the common outer jacket. Final fiber count, buffer size, jacket material, gathering method and equipment scope follow the approved cable drawing and written proposal.
- مسار الإنتاج
- HK-30 → configured GJFJV / HK-50 phase
- نهج التحكم
- تمت مراجعة ضوابط التنسيق وتسليم المهام لكلا مرحلتي التصنيع
- العمليات الرئيسية
- تبطين محكم · تجميع الألياف · تطبيق الأراميد · بثق الغلاف المشترك
- مدى الكابلات المناسب
- كابل توزيع داخلي GJFJV بطبقة عازلة مشدودة · تم تأكيد التصميم النهائي وفقًا للمشروع

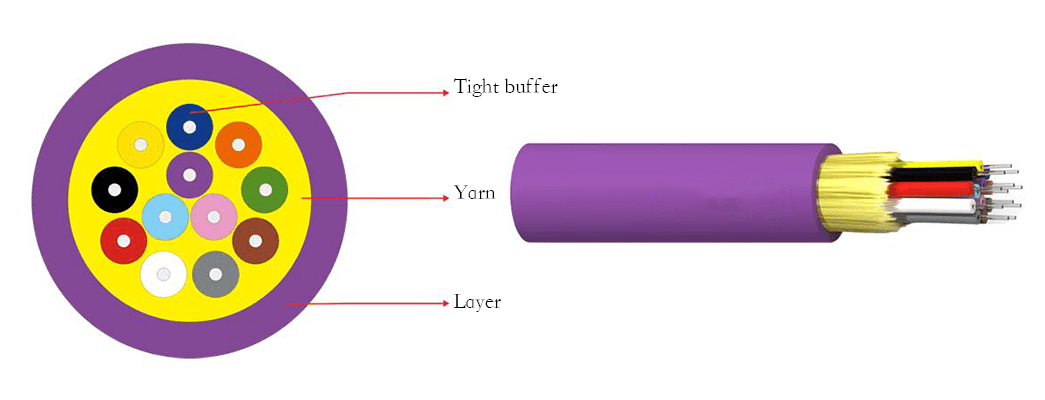

02 GJFJV cable anatomy
Trace the 12-fiber GJFJV reference structure from optical fiber to common outer jacket.
Open the exploded view and select one of four visible structure groups. See whether it is an incoming HK-30 material, formed by HK-30, or integrated in the configured GJFJV/HK-50 phase. The 12-fiber count is a page reference; final construction follows the approved drawing.
01
Assembled / cutaway reference
مسار الهيكل إلى العملية
Two manufacturing phases form the GJFJV reference cable.
حدد طبقة أعلاه لتسليط الضوء على المرحلة التي تعدّها أو تشكّلها أو تدمجها في الكابل.
ⓘ
Reference boundary: the selected 12-fiber render explains four
visible structure groups, not a fixed product specification. Confirm
fiber count, tight-buffer dimensions and compound, identification plan,
gathering method, aramid package, outer-jacket material and every finished
dimension against the approved drawing. The written proposal must state
whether the gathering cage is integrated with HK-50 or supplied as a matched unit.
03 التكوين المرجعي
Review the two production phases behind the GJFJV reference cable.
Carry a structure group from Section 02 into its mapped phase, then compare HK-30 upstream preparation with the configured GJFJV / HK-50 cable-formation phase.
Carried from GJFJV structure
No structure group selected
Start from the structure workbench above, or review both production phases below.
Choose a structure group
Reference production-phase image
HK-30 reference · Uncropped image
Selected production stage

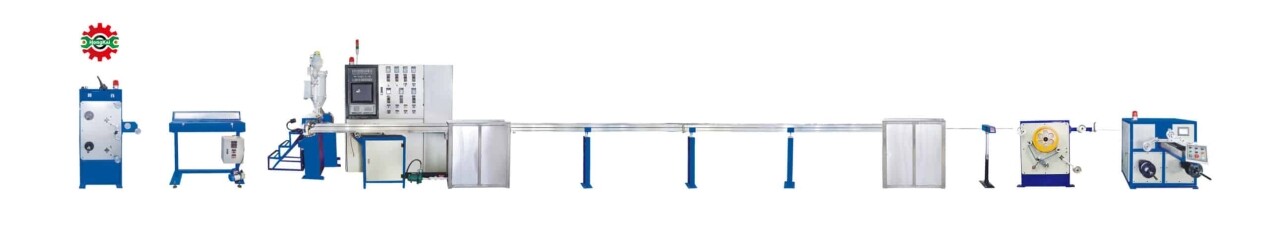

Individual tight-buffer formation
HK-30
Individual tight-buffer formation
Pay off the approved primary-coated optical fiber, prepare it as configured, extrude the specified tight buffer, cool, monitor and take up each identified element.
- المدخل
- Approved primary-coated optical fiber + project-specified tight-buffer compound and identification plan
- المخرج
- Individually identified tight-buffered fiber elements ready for cable formation
- موقع المسار
- Stage 01 · Upstream element formation
- Interface to confirm
- Finished package, buffer dimensions, identification and Stage 02 feeding interface
مرحلة الإنتاج المرجعية
شكّل كل عنصر مخزّن بإحكام محدد للمشروع
Coordinate fiber payoff and handling, buffer extrusion, cooling, dimensional monitoring, traction and take-up.
معالجة الألياف · توصيل المركب · التحكم بالأبعاد
HK-30 prepares the individual buffered elements required by the approved GJFJV construction. It does not form the common cable jacket.
مدخل الألياف، نظام العزل ومعايير القبول
تأكيد نوع الألياف، البكرة، أبعاد العازل، المركب، الألوان، الشد، الهدف من الإنتاج، البكرات ومعايير الفحص.
Reference configuration only.
The Stage 02 panorama explains a configured process phase, not a final machine layout or supply commitment. Final equipment scope, interfaces and acceptance criteria follow the approved cable drawing and written proposal. No default capacity is assumed.
06
مرجع والتحقق
Review the available GJFJV production references and the evidence boundaries.
The Stage 01 image and video plus the Stage 02 panorama and related equipment video illustrate the current GJFJV reference route. They are not the approved line layout, FAT record, customer case, performance commitment, confirmed supply scope or acceptance record.
سياق القسم 05 المُستَمر
HK-30 tight-buffer formation → configured GJFJV / HK-50 phase for gathering, aramid application and common-jacket extrusion
0 موضوعًا مُستَمرًا
لم يتم اختيار أي مواضيع تخطيطية بعد. عد إلى القسم 05 لإضافة أولويات المراجعة.
المرجع متاح
HK-30 tight-buffer formation reference
Reference line for paying off primary-coated optical fiber, forming the identified tight-buffered element, then cooling, measuring, hauling off and taking up. Fiber input, tight-buffer material, dimensions, tooling, tension, identification and reel format remain project-specific.
فيديو المرحلة المحددة غير متاح مؤقتًا
تظل الرسومات المعتمدة والمقترح الكتابي أساسًا لمسار المعدات النهائي ونطاقها.
These production-stage images and the two stage-specific videos illustrate the current GJFJV planning route only. The Stage 02 recording is related equipment footage, not exact configured-line proof. None proves the approved drawing, final layout, equipment quantity, performance, customer result, FAT, supplied scope or acceptance. Those items are defined only by the mutually approved technical and commercial documents.
06B
تغذية مرتدة لخط GJFJV
Customer feedback published with HONGKAI's GJFJV production line.
These five-star reviews are reproduced from HONGKAI's current GJFJV production-line page. The selected comments focus on fiber-optic production-line experience and retain their published wording.
“I highly recommend Hongkai's fiber optic cable production line. It has helped us reduce production time and costs while maintaining the highest standards of quality. The customer service provided by Hongkai has also been exceptional.”
“We've been using the Hongkai fiber optic cable production line for years now and it never fails to impress. It's an essential piece of equipment for our operations in Jakarta.”
“The quality of the fiber optic cable produced by Hongkai's production line is unmatched. It's helped us become a major player in the telecom industry here in São Paulo.”
Source boundary: these review excerpts and five-star displays reproduce what is currently published on HONGKAI's GJFJV page. Customer statements describe their experience; final GJFJV configuration, output, FAT, supplied scope and acceptance remain project-specific.
08
استفسار الاستثمار
Define the GJFJV construction and two-stage production boundary.
Share the available GJFJV drawing or sample, target fiber count, optical-fiber and reel inputs, tight-buffer dimensions, material and identification, gathering or stranding method, cage arrangement, aramid and common-jacket requirements, finished dimensions and marking, output and reel plan, factory conditions, inspection and acceptance basis, and project schedule. HONGKAI will review the open engineering items before preparing a project-specific proposal.
سياق الصفحة الحالي
GJFJV · HK-30 to configured GJFJV / HK-50 phase
يصاحب سياق المتصفح الاستفسار لأغراض التوجيه فقط. ولا يُعدّ موافقةً على تركيب الكابل، أو المواد، أو المعدات، أو نتيجة التشغيل، أو نطاق التوريد.
Planning inputs remain open · No supporting process stage carried forward
ما الذي سيُراجعه HONGKAI
- بناء الكابل
- Drawing or sample, target fiber count, individual tight-buffer arrangement and finished requirements
- Stage 01 interface
- Primary-coated fiber input, tight-buffer dimensions, material, identification and reel handoff
- Gathering & cage
- Parallel gathering or defined stranding method and whether the cage is integrated or matched
- Aramid & jacket
- نظام الأراميد الشائع، مادة الغلاف، المقطع العرضي، اللون، الأدوات، الوسم والأبعاد النهائية
- Capacity & reels
- مزيج المنتجات، والورديات، وناتج الإنتاج المستهدف، وأساس التشغيل المستقر، وتنسيقات بكرات الإدخال والإخراج
- Factory & acceptance
- Layout, utilities, existing equipment, inspection, FAT, installation and service boundary
ما يجب إعداده · عناصر 6
- Available GJFJV drawing, reference sample, target fiber count and finished requirements
- Optical-fiber input, tight-buffer dimensions, material, identification and qualified-element status
- Gathering or stranding method, fiber order, applicable lay definition and cage arrangement
- نظام الأراميد، مادة الغلاف المشترك، المقطع العرضي، اللون، الأدوات والوسم
- Target output, shifts, stable-operation basis and source and delivery reel formats
- Factory conditions, existing interfaces, inspection, FAT, acceptance, installation and schedule
No complete specification yet? Share the known construction and operating conditions. Unknown values can remain open for engineering review.
The information submitted here supports a preliminary technical review. Final cable construction, equipment configuration, performance, price, delivery schedule and supply scope are confirmed only in an approved proposal or agreement.
ملخص مشروع إنتاج GJFJV
Provide the GJFJV drawing, tight-buffer inputs, gathering method and finished-cable targets.
Add the available drawing or sample, target fiber count, optical-fiber and reel inputs, tight-buffer dimensions, material and identification, gathering or stranding and cage arrangement, aramid and common-jacket requirements, target output, factory conditions and acceptance basis.
