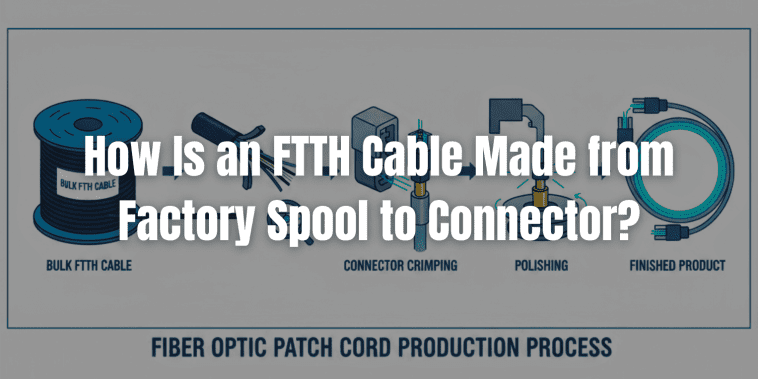

Como um cabo FTTH é fabricado, desde o carretel de fábrica até o conector?

Thinking about FTTH cables can be misleading. Most people only see the final part—attaching a connector. This creates a blind spot, causing many to overlook the complex industrial process where the cable itself is born, which is where true quality and reliability are forged.

The complete creation of a ready-to-use Cabo pendente FTTH¹ happens in two distinct phases. First, the bulk cable is manufactured on a specialized production line. Second, in an assembly workshop, the bulk cable is cut, stripped, fitted with connectors, polished, and tested to become a finished patch cord or pigtail.

Understanding both phases is crucial for anyone serious about fiber optics. It connects the dots between industrial manufacturing and high-precision assembly². Let’s walk through the entire journey, starting on the factory floor where the cable is made, and finishing in the clean workshop³ where it becomes a usable product.

How Are Raw Materials Combined Into a Cable in One Pass?

You need the cable itself before you can have a finished patch cord. You have delicate fiber, strong reinforcement wires, and plastic pellets. How do you combine these into a durable cable without a complex, multi-step process?

This is accomplished on a modern Cabo pendente FTTH¹ production line. In a single, continuous pass, the optical fiber and two strength members (steel wire or FRP) are precisely aligned and fed through an extruder, where a molten plastic jacket is formed around them, creating the final cable structure.

This integrated method is the heart of efficient manufacturing. It starts with the pay-off stands, where spools of optical fiber⁴ e strength members⁵ are unspooled with perfect tension. The strength members⁵, often steel wires, pass through a straightening unit to ensure they are perfectly straight. Then, all components are guided into a positioning mold that locks them into the classic flat butterfly geometry—fiber in the center, strength members⁵ on the wings. This entire assembly is then pulled into the extrusora⁶‘s crosshead. Molten plastic (like LSZH or PE) is forced around the components, forming the protective outer jacket. The newly formed cable is immediately pulled through a long water trough to cool and solidify its shape, its dimensions checked by a laser scanner, and its surface printed with identifying marks before being wound onto a large drum. This continuous process is the foundation of quality, from raw materials to a multi-kilometer spool⁷ of perfect cable. I’ve seen firsthand how this efficiency, a cornerstone of HONGKAI’s machine design, empowers our clients to produce high-quality cable at scale.

How Does a Bulk Cable Begin Its Transformation?

Now we have a large drum holding thousands of meters of perfect FTTH cable. It’s useless in this form. The first step in the "backend process" is preparing it to become an individual patch cord. But stripping a tough cable to get to the hair-thin fiber inside is a recipe for disaster if not done right.

The process begins with precise cutting and stripping. The bulk cable is cut to the desired length (e.g., 3 meters). Then, using a series of specialized tools, each layer—the outer jacket, the strength members, and the plastic buffer—is carefully removed to expose a clean, undamaged length of bare optical fiber.

This is where craftsmanship meets precision engineering. An operator first uses an automated cutter or a manual tool to cut the cable to a specific length. Then, the stripping begins. A jacket stripper scores and removes a section of the tough outer sheath. This exposes the two strength members⁵, which are then snipped off with special high-strength scissors. Now, the centrally located buffered fiber is visible. Using a different precision stripper with a pre-set notch, the 900-micron tight buffer is removed. Finally, the most delicate tool removes the final 250-micron colored coating, revealing the pristine, 125-micron bare glass fiber. Throughout this process, the goal is not to put any stress, scratches, or nicks on the glass. A single microscopic flaw will cause the fiber to snap later. After stripping, the bare fiber is wiped with a lint-free cloth and isopropyl alcohol. I tell new assembly teams: "A perfect connection starts with a perfect strip." All the polishing and testing in the world can’t fix a damaged fiber at this first, crucial step.

How Is the Connector Permanently Attached to the Cable?

You have a perfectly prepared fiber end. Now you must attach the connector housing and secure that fragile fiber. How do you create a mechanically strong bond to resist pulling and be optically stable for a perfect light path?

This is achieved through the factory-standard "epoxy and crimp" method. A tiny amount of optical-grade epoxy is injected into the connector’s ferrule, the fiber is inserted, and the epoxy is heat-cured. Then, the connector body is mechanically crimped onto the cable’s strength members⁵ and jacket for pull-proof strength.

%A technician injecting epoxy into a fiber optic connector before inserting the fiber ^{4 4}

This is a robust two-part bonding system—first, the chemical bond. Using a syringe, a small, bubble-free amount of two-part epoxy is injected into the long, thin hole of the connector’s ceramic ferrule⁸. The prepared fiber is then carefully threaded until its tip protrudes from the ferrule’s end. The assembly is then placed into a specialized curing oven for 5-10 minutes. This hardens the epoxy, creating a solid, unshakable bond between the glass fiber and the ceramic ferrule⁸. While that secures the delicate fiber, it does nothing for pull strength. That’s the job of the mechanical bond. After curing, a crimping tool squeezes a metal ring at the back of the connector. This crimp firmly grips the cable’s outer jacket and, most importantly, the tough strength members⁵ nós saímos mais cedo. Se alguém puxar o cabo, a força é transferida para o corpo do conector resistente, e não para a fibra frágil epoxiada no interior. Essa abordagem de duplo método é o motivo pelo qual os patch cords fabricados em fábrica são muito mais confiáveis do que conectores instalados rapidamente no campo.

Por que o polimento é o passo final mais crítico?

A fibra agora está firmemente travada no conector, mas é opticamente inútil. A ponta está áspera, coberta de resíduos de epóxi e protrai da ferrula. Se você tentasse conectar isso, a luz se dispersaria em todas as direções, resultando em perda de sinal massiva. Como criar uma superfície óptica perfeita?

O passo final, e mais artesanal, é o polimento. Usando uma máquina de polimento de alta precisão, a ponta do conector é moída e polida contra filmes de lapidação progressivamente mais finos. Esse processo cria uma superfície impecável, lisa como espelho e perfeitamente moldada, permitindo que a luz passe com perda ou reflexão quase nulas.

É aqui que a precisão microscópica define o desempenho do conector. Os conectores são montados em um dispositivo (uma ferramenta), que é então colocado sobre a polishing machine⁹. A máquina move a ferramenta em um padrão de figura-8 sobre os filmes de polimento. O processo começa com um filme de grão diamantado grosso para moer a fibra e o epóxi protruentes até que a superfície fique plana. Em seguida, um ou dois filmes intermediários removem os arranhões do primeiro passo e moldam a face da fibra em uma geometria precisa, ligeiramente convexa (um UPC, ou polimento Ultra Physical Contact). O passo final usa um filme não abrasivo, à base de sílica, que confere à face da fibra seu acabamento final, semelhante ao de um espelho. Após cada etapa, os conectores devem ser limpos meticulosamente. O resultado é uma superfície lisa com praticamente nenhum espaço de ar entre os núcleos de vidro quando dois conectores se tocam. A qualidade é então verificada sob um microscópio 400x. Quaisquer arranhões, cavidades ou sujeira remanescentes comprometerão a conexão. Esta etapa de polimento determina sozinha os dois métricos de desempenho mais importantes: Perda de Inserção e Return Loss¹⁰. É a verdadeira marca de uma terminação de alta qualidade.

Conclusão

Criar um cabo pronto para uso FTTH é uma peça em dois atos: a fabricação industrial do cabo a granel¹¹, seguida pela montagem e polimento meticulosos do conector. Ambos são essenciais para um produto final confiável e de alto desempenho.
