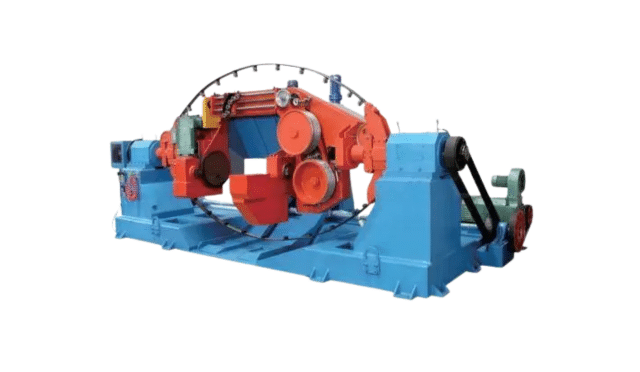

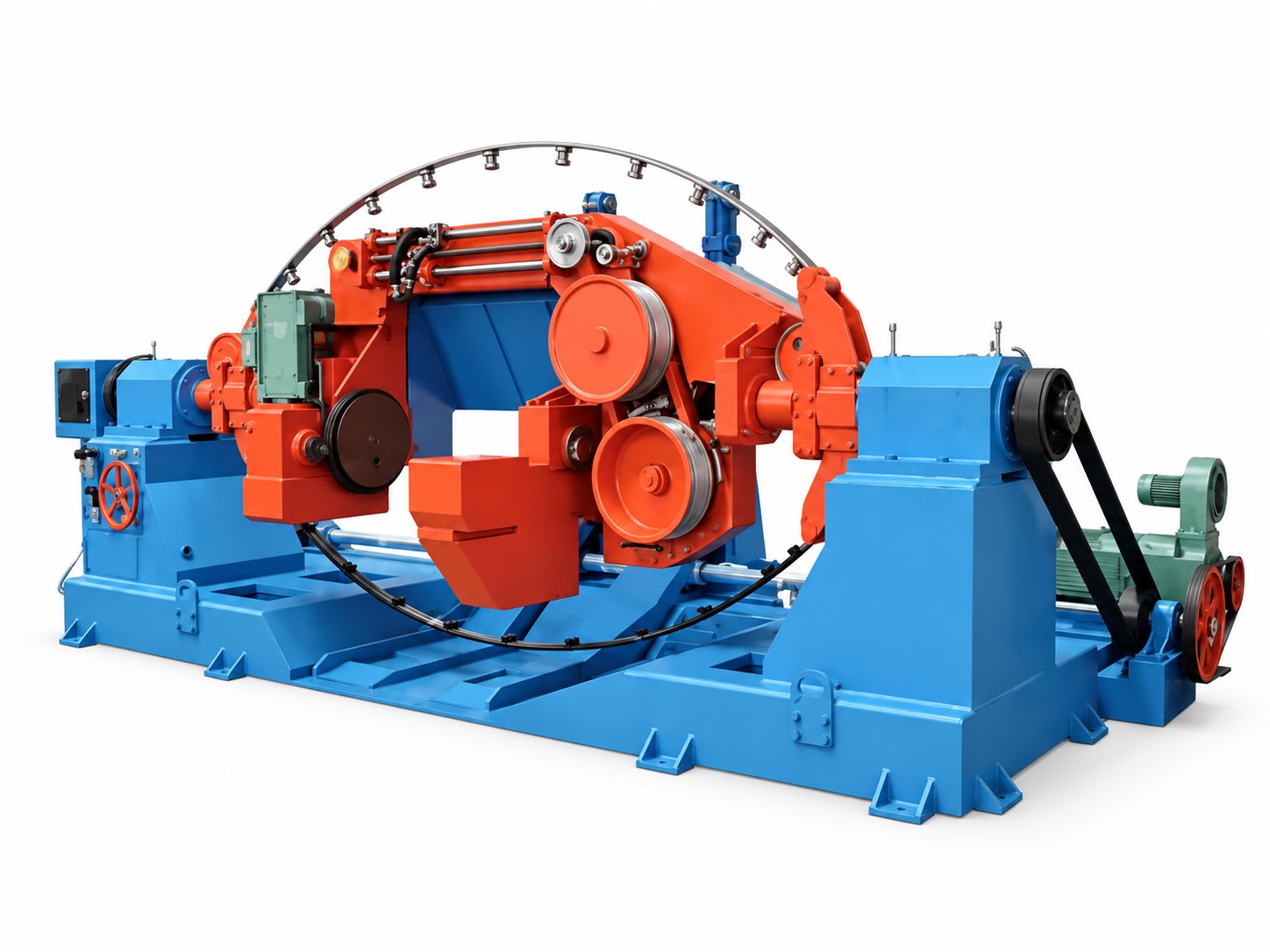

Bow Type Stranding Machine

Prepare stranded conductors for building wire and power cable. The bow-stranding family belongs to the conductor preparation stage. Match the incoming wires, conductor construction and lay before choosing the reel arrangement and operating point.

01

Prepare stranded conductors for building wire and power cable

The bow-stranding family belongs to the conductor preparation stage. Match the incoming wires, conductor construction and lay before choosing the reel arrangement and operating point.

FAMILYBow-stranding family
PROCESS STEPCopper-wire conductor preparation
SELECT BYWire count, section and take-up
02

Position in your production line

01Drawn wire feedSupply the specified material and individual wire sizes from suitable packages.
02Bow strandingCombine the wires to the required conductor section and lay.
03Insulation preparationCollect the conductor on a reel that suits the downstream insulation process.

How this operation works

Prepared wires are combined by the bow-type stranding arrangement into the specified conductor. Wire count, individual diameter and strand construction establish the duty. Review the required lay and output together with the input packages and the reel used by the next insulation stage.

Wire combination
Define the material, number of ends and diameter of every wire group.
Conductor geometry
Use the actual strand arrangement and section, rather than section alone, to compare configurations.
Working point
Agree output for the specified lay and conductor, with compatible incoming and finished reels.
03

Compare the selection references

FAMILY REFERENCE

Bow-stranding family

Use the equipment family to establish the process fit.

PROJECT SPECIFICATION

Confirm the operating range

The quotation will define dimensions, operating values and equipment scope for your supplied construction.

The catalog process illustration references a nominal 10–35 mm² conductor range. This is a family-selection reference; individual model performance requires a project specification.

04

Select around your actual product

01 / SELECTION

Incoming wires

List the material, single-wire diameter and number of ends, including any different sizes in the construction.

02 / SELECTION

Conductor geometry

Provide the section and strand arrangement. The same total section can be made from different wire combinations.

03 / SELECTION

Lay and production target

State lay length, direction and required output. Request the operating point for this particular construction.

04 / SELECTION

Package compatibility

Confirm input packages and take-up reel dimensions, weight and the reel used by the next machine.

05

Define what your quotation includes

  • Bow-stranding machine selected for the conductor drawing.
  • Pay-off and take-up reel arrangement.
  • Tension, traverse, controls and agreed stop functions.
  • Layout, utilities and production acceptance points.

State whether this is a new line, an additional machine or an upgrade. Include existing equipment interfaces so the offer covers the connections that matter.

From your requirement to the agreed equipment

Use these review steps to compare proposals and agree responsibilities for this machine.

Define your requirement

Define the material, number of ends and diameter of every wire group. Use the actual strand arrangement and section, rather than section alone, to compare configurations. Identify whether this is a new line, an additional machine or an upgrade.

Review the configuration

Compare the proposed working range, included machines, tooling and reel interfaces. Record optional items and customer-side utilities before agreeing the quotation.

Agree the acceptance checks

Set the trial material, operating point and acceptance method for wire combination; conductor geometry; working point. Identify which checks require samples or records and who provides them.

Plan delivery and handover

Confirm packing, delivery terms, site preparation and any agreed installation or training scope. Identify operating documents, maintenance information and the machine-specific spare-parts list.

07

Questions before choosing this machine

Does 10–35 mm² identify a guaranteed range for every build?

No. It is the range shown in the catalog process illustration. Wire count, individual diameter, lay and take-up must be checked for the selected machine.

How does this relate to insulation extrusion?

Bow stranding prepares the conductor. A separate extrusion line applies insulation after conductor preparation.
