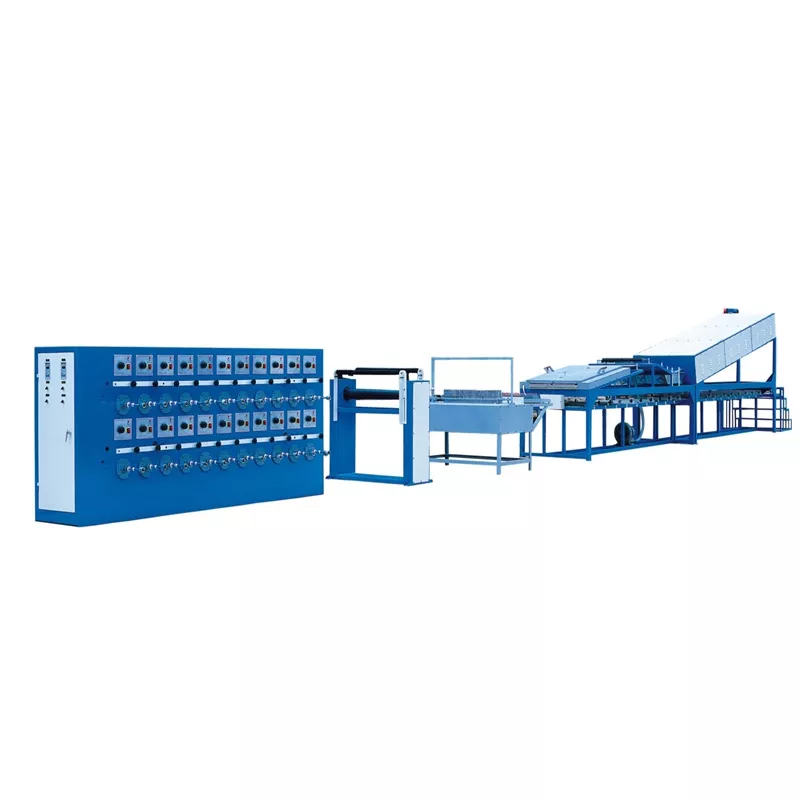

Wire Annealing and Tinning Machine

Prepare annealed and tinned wire after drawing. Specify annealing and surface tinning when the conductor design requires that wire condition and coating. This is a wire-finishing stage; the incoming wire is already drawn to size.

01

Prepare annealed and tinned wire after drawing

Specify annealing and surface tinning when the conductor design requires that wire condition and coating. This is a wire-finishing stage; the incoming wire is already drawn to size.

FAMILYAnnealing and tinning family
PROCESS STEPWire finishing after drawing
SELECT BYDiameter, coating and wire condition
02

Position in your production line

01Drawn wire supplyProvide material, wire diameter, number of ends and incoming package.
02Annealing and tinningApply the specified wire-condition and surface-finishing requirements.
03Finished wire take-upCollect the finished wire for bunching or the next conductor process.

How this operation works

The line receives drawn wire for the specified annealing and tinning operations, then collects the finished wire. Wire condition and surface coating are separate requirements: both need an agreed specification and acceptance method for the material and diameter to be processed.

Input wire
Define the material, diameter, number of ends and incoming reel.
Annealed condition
Agree the required wire condition and how it will be checked.
Tinned surface
Provide the coating requirement and surface acceptance criteria, with a sample if available.
03

Compare the selection references

FAMILY REFERENCE

Annealing and tinning family

Use the equipment family to establish the process fit.

PROJECT SPECIFICATION

Confirm the operating range

The quotation will define dimensions, operating values and equipment scope for your supplied construction.

The catalog identifies the annealing and tinning family. Wire count, operating range and power requirements are confirmed for the proposed model.

04

Select around your actual product

01 / SELECTION

Incoming wire

Confirm material, diameter range and the number of ends to be processed.

02 / SELECTION

Finished wire condition

Describe the annealed condition and acceptance criteria required by the conductor specification.

03 / SELECTION

Tinning requirement

Supply the coating specification and surface acceptance criteria, together with a sample where available.

04 / SELECTION

Output and handling

Define target line speed, pay-off/take-up packages, utilities and factory layout.

05

Define what your quotation includes

  • Annealing and tinning equipment for the specified wire.
  • Wire count and processing arrangement.
  • Input and output handling and agreed controls.
  • Utilities, layout and coating/wire-condition acceptance points.

State whether this is a new line, an additional machine or an upgrade. Include existing equipment interfaces so the offer covers the connections that matter.

From your requirement to the agreed equipment

Use these review steps to compare proposals and agree responsibilities for this machine.

Define your requirement

Define the material, diameter, number of ends and incoming reel. Agree the required wire condition and how it will be checked. Identify whether this is a new line, an additional machine or an upgrade.

Review the configuration

Compare the proposed working range, included machines, tooling and reel interfaces. Record optional items and customer-side utilities before agreeing the quotation.

Agree the acceptance checks

Set the trial material, operating point and acceptance method for input wire; annealed condition; tinned surface. Identify which checks require samples or records and who provides them.

Plan delivery and handover

Confirm packing, delivery terms, site preparation and any agreed installation or training scope. Identify operating documents, maintenance information and the machine-specific spare-parts list.

07

Questions before choosing this machine

Does this machine replace the drawing stage?

The process described here follows drawing. Incoming wire should already have the specified diameter before its annealing and tinning requirements are addressed.

Can the same setup cover all wire sizes?

The diameter range, number of ends, coating requirement and operating speed must be checked together.

What sample is helpful for selection?

A wire sample and its written diameter, temper and coating requirements help define the finishing duty and acceptance method.

08

Tell us what you need.

Ask for a quotation, check a specification or get help selecting equipment.
