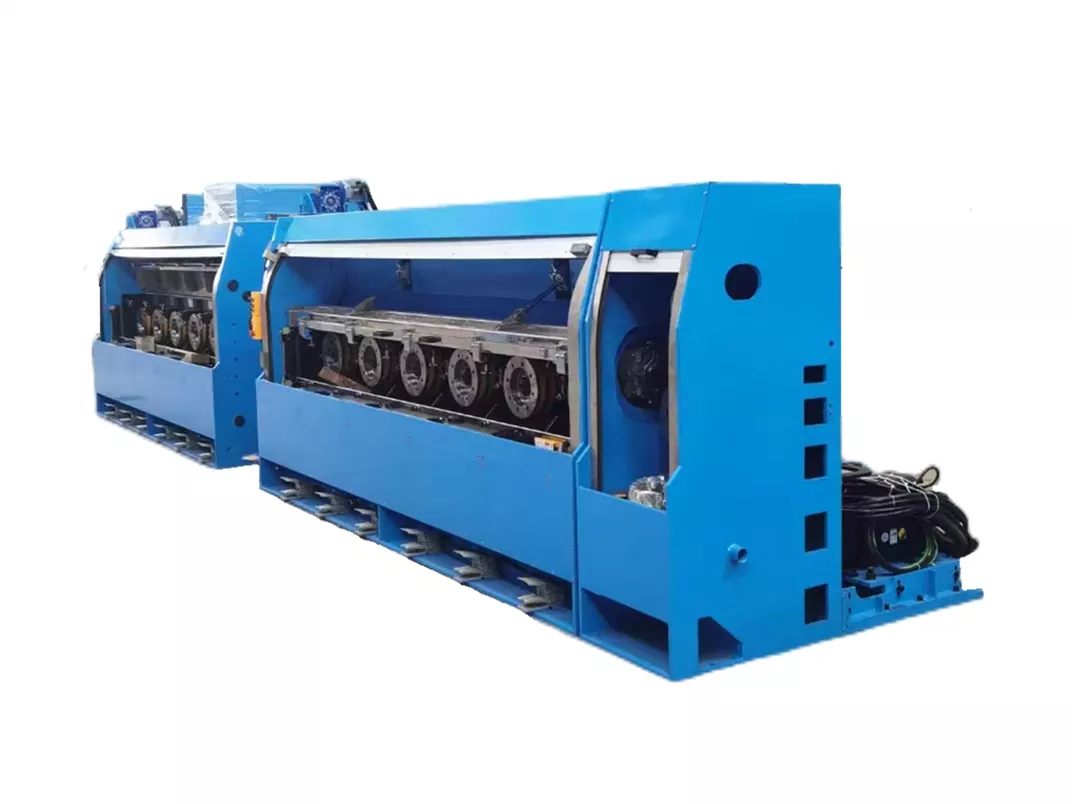

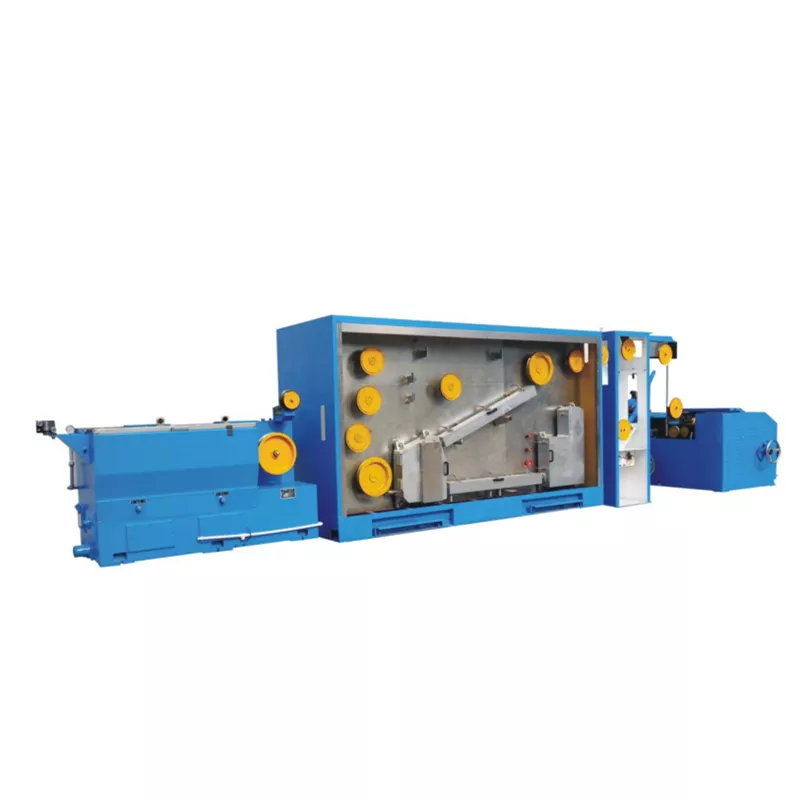

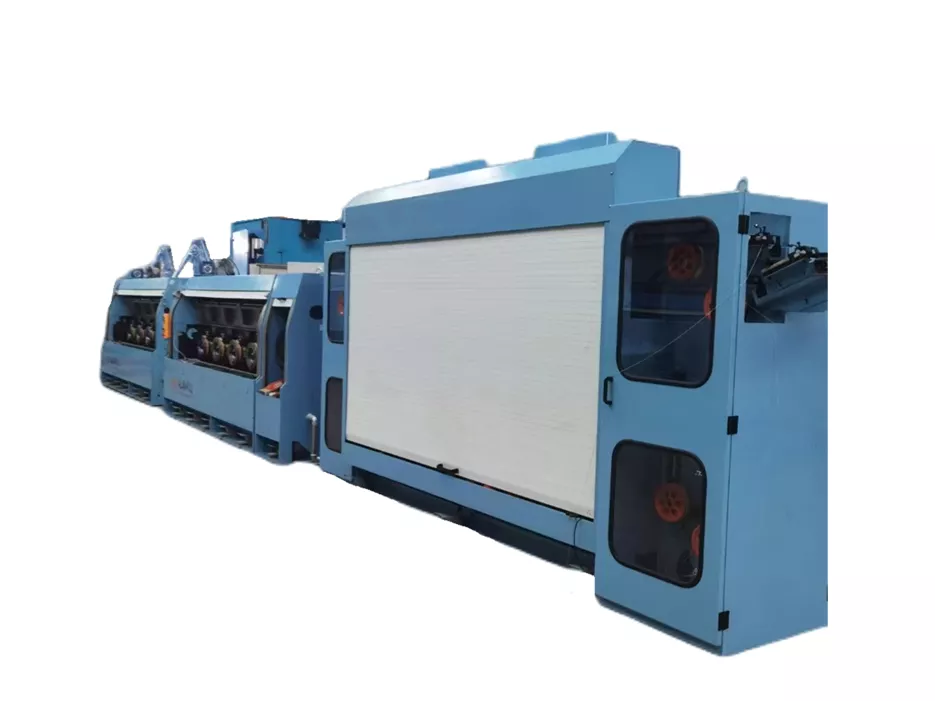

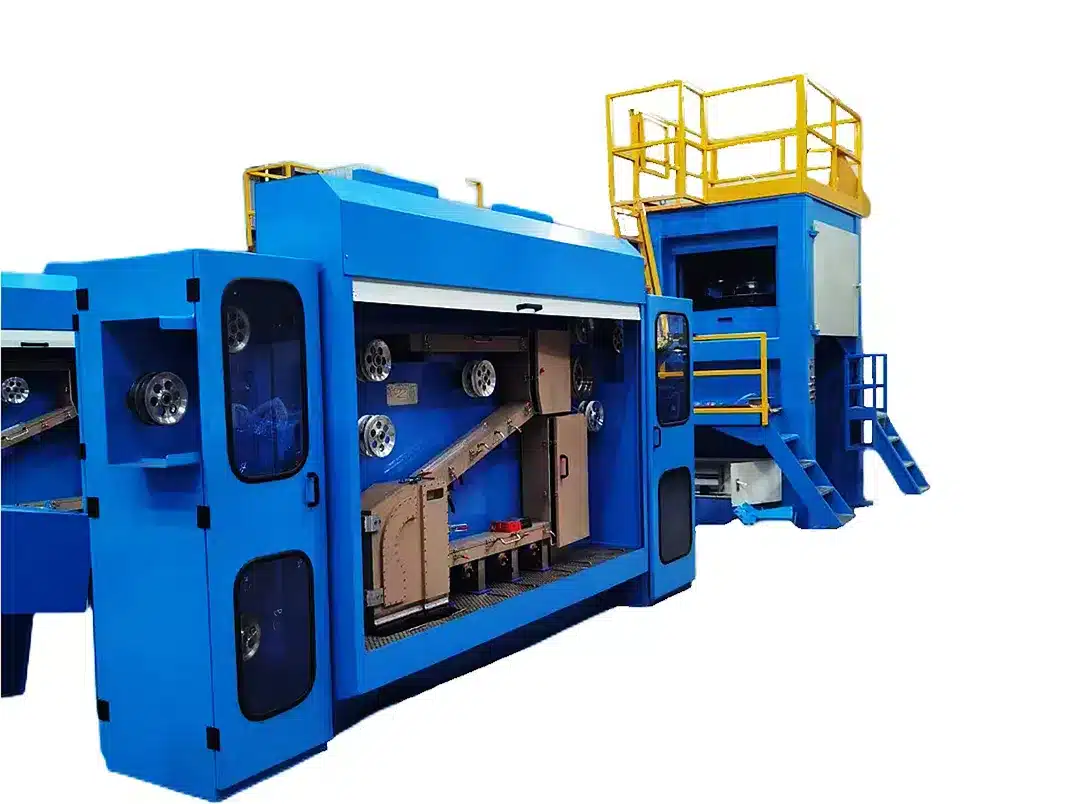

Intermediate Wire Drawing Machine with Annealer

HONGKAI intermediate copper-wire drawing machine and annealing equipment

Match intermediate drawing with the required annealed wire condition. Combine diameter reduction with an annealing stage for the specified copper-wire condition. The drawing range, annealing duty and collection package should be selected together.

Discuss this machine
01EQUIPMENT OVERVIEW

Match intermediate drawing with the required annealed wire condition

Combine diameter reduction with an annealing stage for the specified copper-wire condition. The drawing range, annealing duty and collection package should be selected together.

FAMILYDrawing with annealer
PROCESS STEPCopper-wire size and temper preparation
SELECT BYInput size, finished wire and output
02PROCESS FIT

Position in your production line

01Copper wire feedCheck the grade, incoming diameter and pay-off package.
02Drawing and annealingReduce the wire to size and specify the required wire condition after annealing.
03Take-up and conductor makingCollect the finished wire for the planned bunching, stranding or insulation route.
03MODELS & SPECIFICATIONS

Compare the selection references

FAMILY REFERENCE

Drawing with annealer

Use the equipment family to establish the process fit.

PROJECT SPECIFICATION

Confirm the operating range

The quotation will define dimensions, operating values and equipment scope for your supplied construction.

The catalog identifies this combined equipment family. Die count, line speed, electrical load and footprint are established in the model-specific technical proposal.

04MACHINE SELECTION

Select around your actual product

01 / SELECTION

Input and reduction

Provide copper grade, incoming diameter and required finished diameter range.

02 / SELECTION

Annealed condition

Specify the required temper and acceptance criteria so drawing and annealing are reviewed together.

03 / SELECTION

Operating target

State output at the intended finished size and identify whether continuous annealing is required.

04 / SELECTION

Line interfaces

Confirm pay-off/take-up dimensions, cooling water, power and the available space for the complete line.

05SUPPLY SCOPE

Define what your quotation includes

  • Intermediate drawing machine and agreed tooling.
  • Annealer selected for the wire and operating point.
  • Pay-off, collection package and interface controls.
  • Cooling, utilities, layout and finished-wire acceptance criteria.

State whether this is a new line, an additional machine or an upgrade. Include existing equipment interfaces so the offer covers the connections that matter.

06RELATED EQUIPMENT

Continue your equipment selection

Intermediate Wire Drawing Machine for Copper Rod

Select a copper-wire drawing arrangement from the incoming material and the finished wire specification. Include any annealing requirement and downstream package constraints in the same review.

Fine Wire Drawing Machine

Reduce incoming wire through a sequence of drawing dies before conductor bunching or another cable-making process. Start with the input wire condition and the required finished diameter.

Double Twisting Machine

Compare HK-500, HK-650 and HK-800 for drawn-wire conductor bunching.

Explore the cable production equipment overview to place this machine in the wider production route.

07FAQ

Questions before choosing this machine

Why specify the annealing requirement at the start?

It affects the required finished wire condition and the operating point of the complete line. Drawing speed alone is insufficient for selection.

Can the drawing unit be specified separately?

State whether you need drawing only or a drawing-and-annealing line. The equipment scope and interfaces can then be defined clearly.

Which finished-wire details are needed?

Provide diameter, tolerance, required temper, surface criteria and the downstream process, together with the output target.
