Fine Wire Drawing Machine
Draw copper wire to the required fine-wire size. Reduce incoming wire through a sequence of drawing dies before conductor bunching or another cable-making process. Start with the input wire condition and the required finished diameter.
Draw copper wire to the required fine-wire size
Reduce incoming wire through a sequence of drawing dies before conductor bunching or another cable-making process. Start with the input wire condition and the required finished diameter.
Position in your production line
Compare the selection references

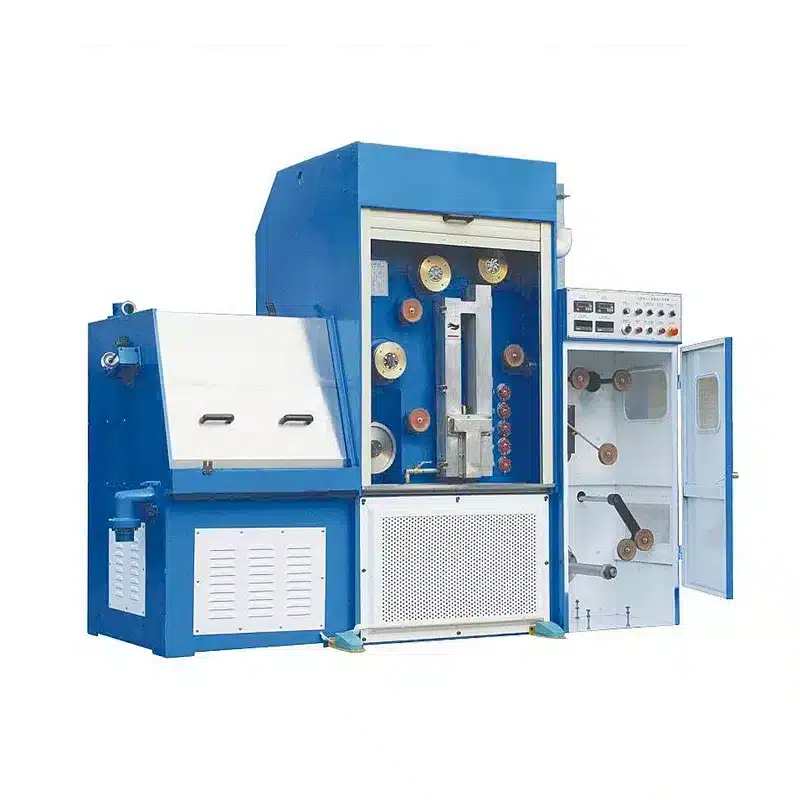

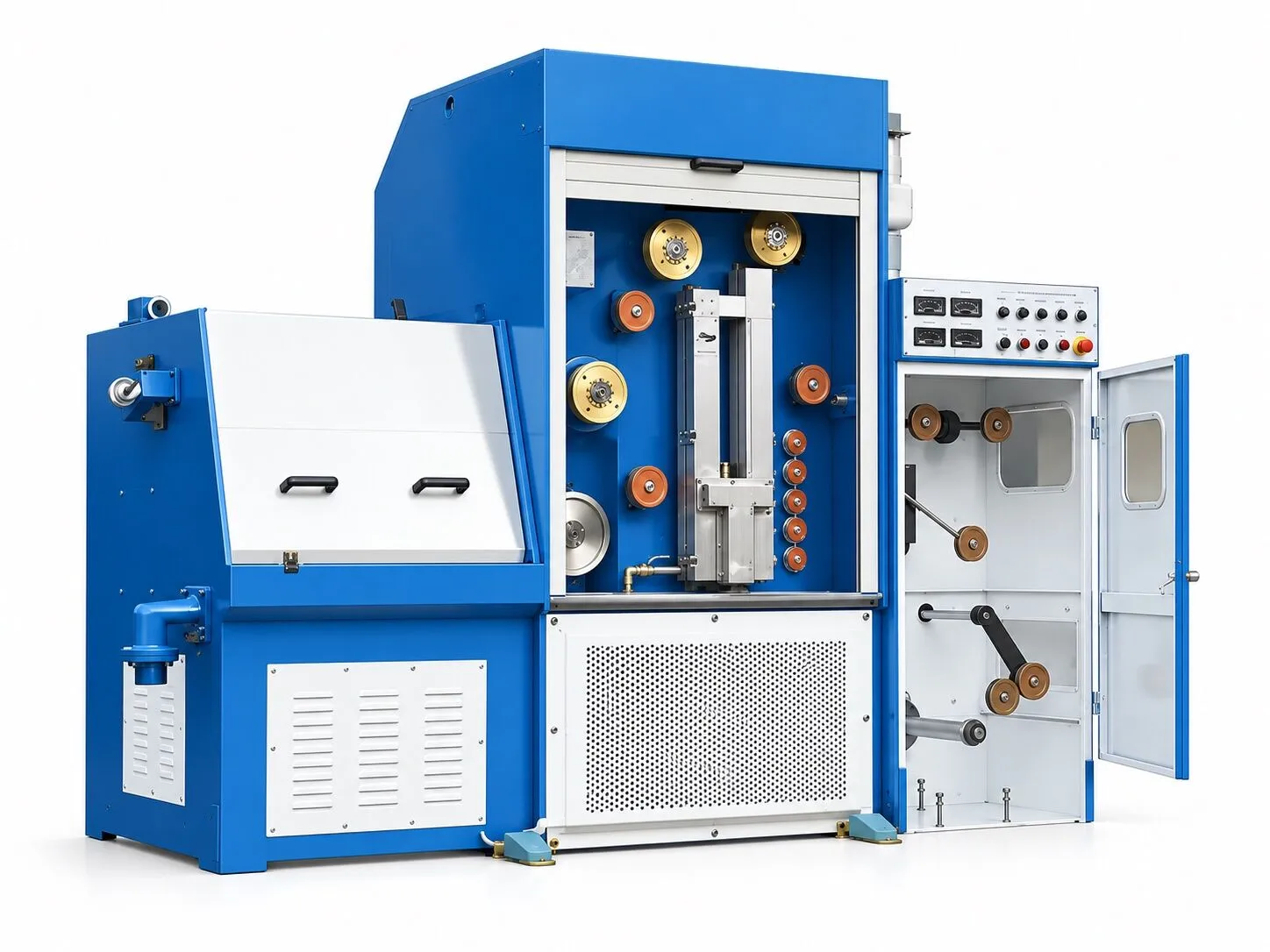

Horizontal fine-wire drawing
Use the equipment family to establish the process fit.
Confirm the operating range
The quotation will define dimensions, operating values and equipment scope for your supplied construction.
The catalog identifies a horizontal fine-wire drawing family with a dual-inverter arrangement. Die count, speed, motor ratings and dimensions are confirmed for the selected build.
Select around your actual product
Diameter range
Provide minimum and maximum incoming and finished wire diameters. Identify the sizes used most frequently.
Wire condition
State the incoming temper and the finished wire condition, surface quality and dimensional tolerance.
Output and take-up
Give the production target, number of wires and reel dimensions. Compare output at the requested wire size.
Utilities and next process
Provide available power, cooling and floor space. State whether the wire goes to annealing, bunching or direct insulation.
Define what your quotation includes
- Drawing machine and proposed die schedule/tooling scope.
- Input handling and take-up package.
- Annealing requirement and process interfaces.
- Cooling arrangement, electrical load, controls and site layout.
State whether this is a new line, an additional machine or an upgrade. Include existing equipment interfaces so the offer covers the connections that matter.
Questions before choosing this machine
Is fine-wire drawing the same as bunching?
No. Drawing reduces individual wire diameter. Bunching subsequently combines several wires into a conductor.
Is an annealer included?
Include the required finished temper in the enquiry. The quotation should state whether annealing equipment is included and how it connects to the drawing process.
Can I select the machine from finished diameter alone?
The input size and condition also matter. Share the incoming wire, finished tolerance, production target and take-up package.
