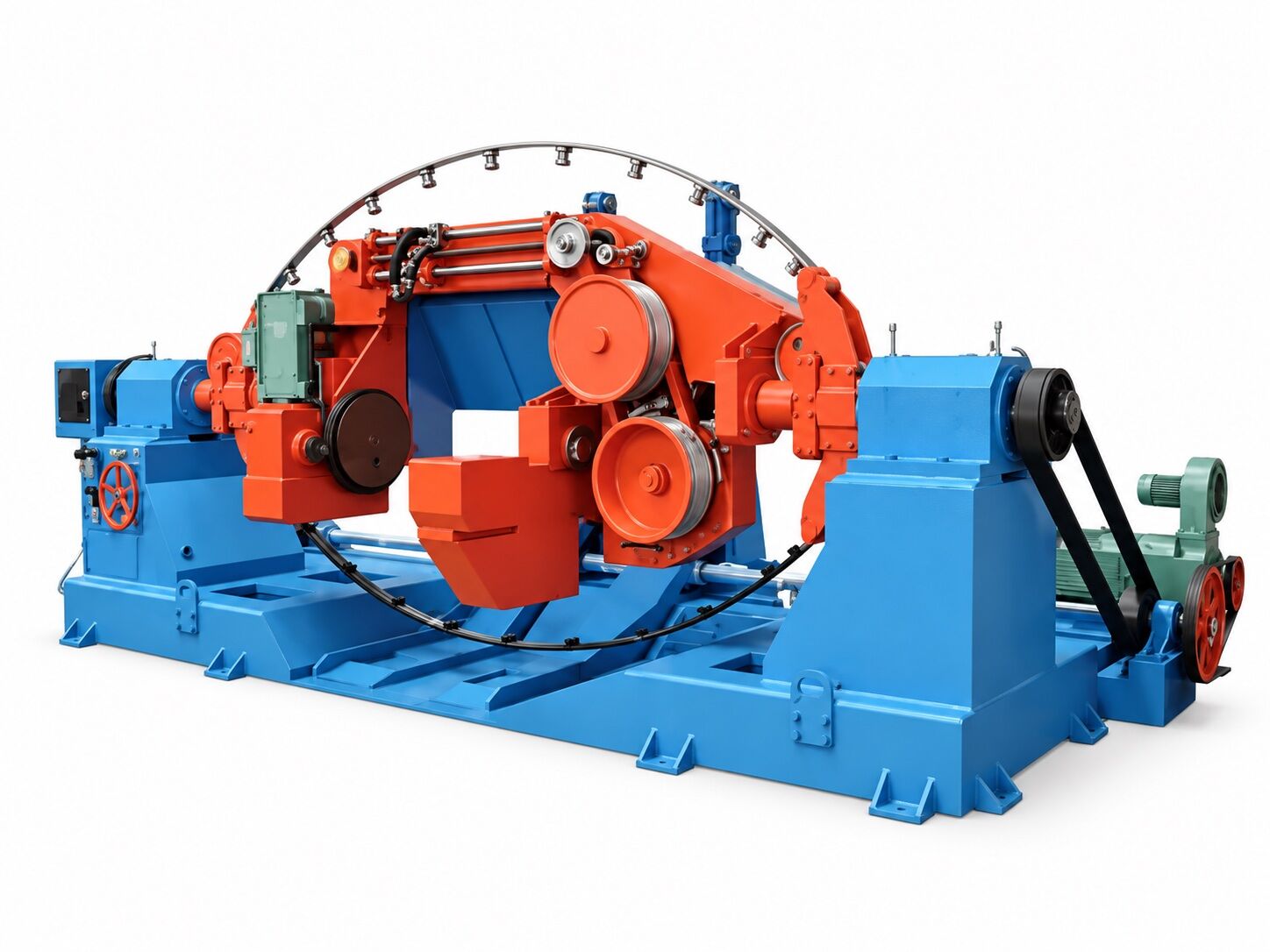

Bow Type Stranding Machine
Prepare stranded conductors for building wire and power cable. The bow-stranding family belongs to the conductor preparation stage. Match the incoming wires, conductor construction and lay before choosing the reel arrangement and operating point.
Prepare stranded conductors for building wire and power cable
The bow-stranding family belongs to the conductor preparation stage. Match the incoming wires, conductor construction and lay before choosing the reel arrangement and operating point.
Position in your production line
Compare the selection references
Bow-stranding family
Use the equipment family to establish the process fit.
Confirm the operating range
The quotation will define dimensions, operating values and equipment scope for your supplied construction.
The catalog process illustration references a nominal 10–35 mm² conductor range. This is a family-selection reference; individual model performance requires a project specification.
Select around your actual product
Incoming wires
List the material, single-wire diameter and number of ends, including any different sizes in the construction.
Conductor geometry
Provide the section and strand arrangement. The same total section can be made from different wire combinations.
Lay and production target
State lay length, direction and required output. Request the operating point for this particular construction.
Package compatibility
Confirm input packages and take-up reel dimensions, weight and the reel used by the next machine.
Define what your quotation includes
- Bow-stranding machine selected for the conductor drawing.
- Pay-off and take-up reel arrangement.
- Tension, traverse, controls and agreed stop functions.
- Layout, utilities and production acceptance points.
State whether this is a new line, an additional machine or an upgrade. Include existing equipment interfaces so the offer covers the connections that matter.
Questions before choosing this machine
Does 10–35 mm² identify a guaranteed range for every build?
No. It is the range shown in the catalog process illustration. Wire count, individual diameter, lay and take-up must be checked for the selected machine.
How does this relate to insulation extrusion?
Bow stranding prepares the conductor. A separate extrusion line applies insulation after conductor preparation.
What is needed to compare bow and cage stranding?
Provide the complete strand construction, input bobbins, lay and output target. The process and package requirements guide the comparison.
Tell us what you need.
Ask for a quotation, check a specification or get help selecting equipment.
