Start with the cable you want to make.
Equipment for optical cable manufacture
Equipment for twisted-pair cable
Machinery for insulated wire and cable
Replacement parts for HONGKAI machinery.
Explore parts by production line
Check photos, nameplates and part numbers
Send machine details, photos and quantity
Explore cable structures and inputs.
Browse fiber optic cable types
Materials for optical cable production
Planning a complete factory?
Connect your product, production lines and material needs.
COMPLETE FACTORY SOLUTIONS
Complete cable lines, materials, layout and startup support.
Cable manufacture, MPO assembly and final optical testing.
Base cable, connector assembly, polishing and release.
Equipment selection and process planning for network cable.
Make informed decisions before you invest.
Understand the investment inputs
Review the process study
Compare triple and double twist
Your product is the starting point.
Plan the equipment, materials and factory around it.
INDOOR · FIBER ELEMENT
An individually buffered optical fiber element for indoor cable constructions and termination work. Confirm the buffer diameter, fiber specification and assembly requirements.
Not sure it fits? Start with your installation
Select a starting point to see what needs to be confirmed for your project.
Select your route to see the questions that matter for this cable.
Review the cable components, then confirm the drawing for the configuration you intend to order.
The approved cable drawing defines the final dimensions and materials.
The transmission element; fiber category follows the network requirement.
Use these references to frame your requirement. The quotation and approved cable datasheet define the product supplied.
Published construction examples for initial comparison, not guaranteed supply ratings.
Public technical references checked September 2026. Manufacturer examples illustrate a construction; they do not identify HONGKAI’s source factory or establish the specification of your order.
G.652 describes single-mode fiber and cable; G.657 addresses bending-loss-insensitive single-mode fiber. Ask for the precise category and the finished-cable test limits needed by your network. For multimode requirements, state the OM category and link design.
G.652 attenuation limits are not a blanket specification for short indoor cables, jumpers or drop cables. Fiber bending performance also does not determine the minimum bend radius of a finished cable.
Public technical references checked September 2026. Manufacturer examples illustrate a construction; they do not identify HONGKAI’s source factory or establish the specification of your order.
Keep the route and protection requirements in view when you compare cable families.

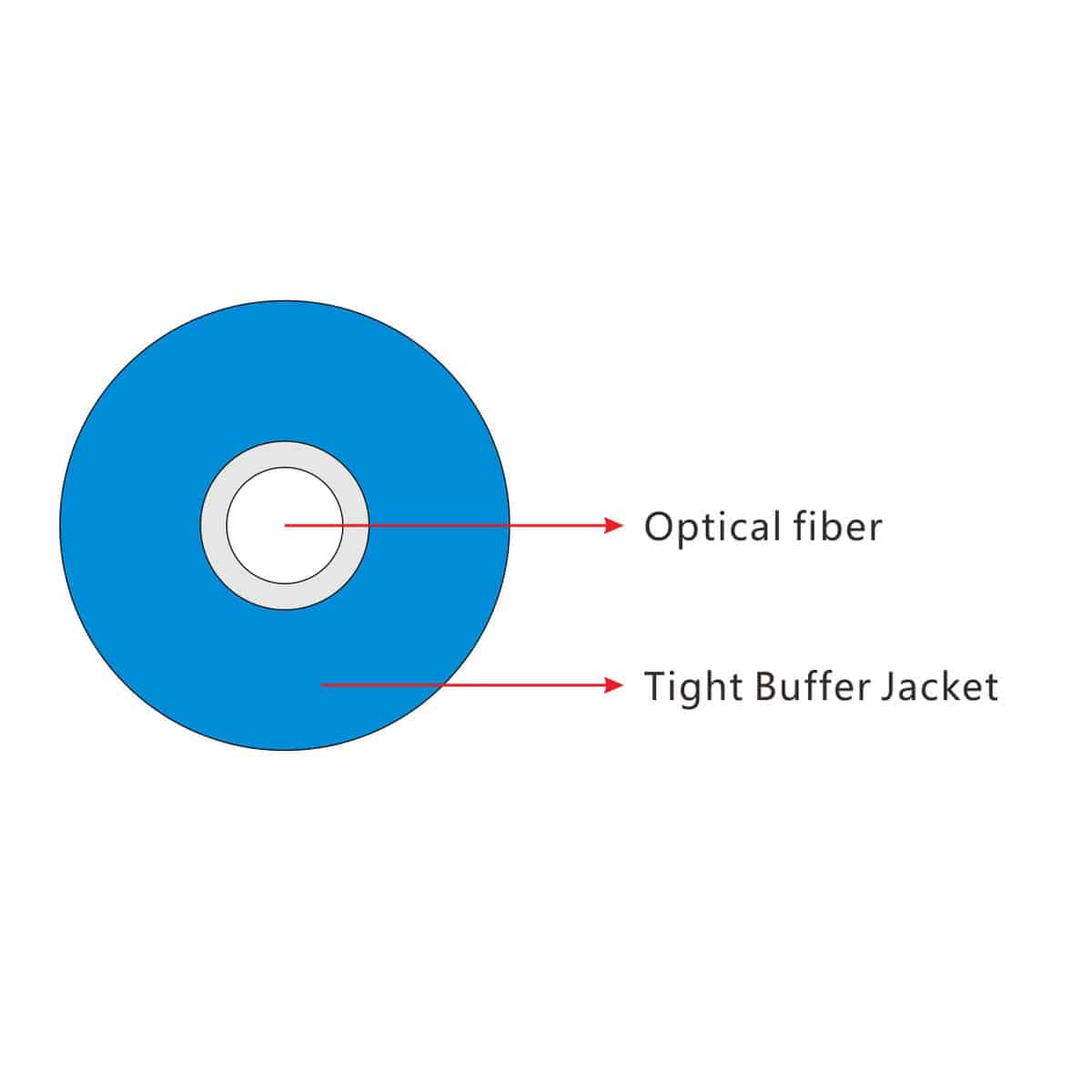

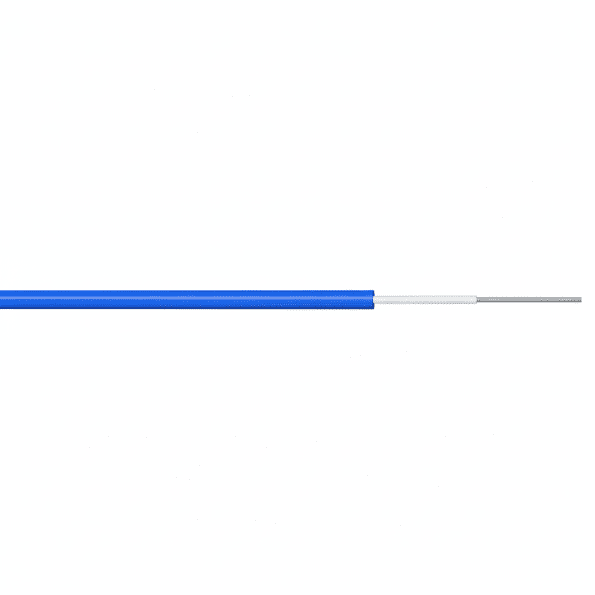

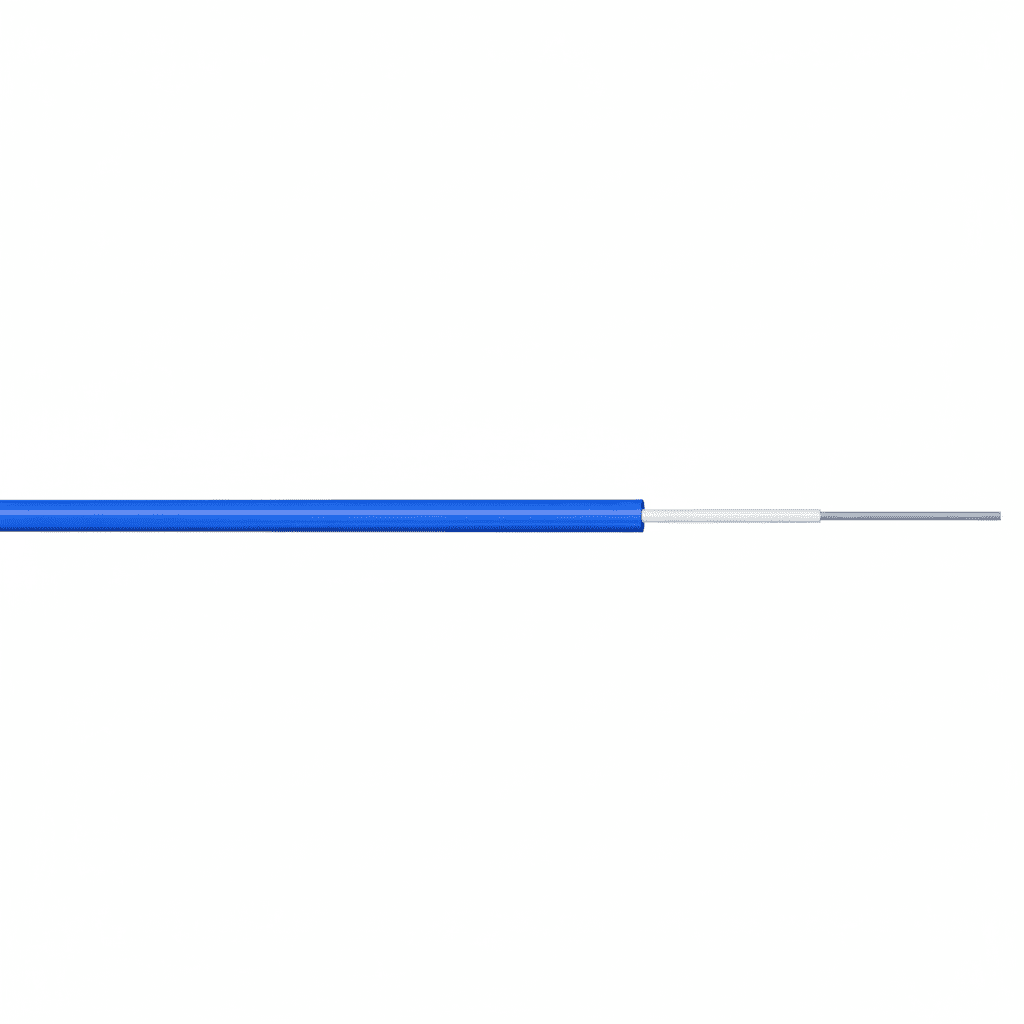

Buffered fiber for cable and termination assemblies
An individually buffered optical fiber element for indoor cable constructions and termination work. Confirm the buffer diameter, fiber specification and assembly requirements.
Simplex tight-buffered indoor cable
A simplex indoor connection built around a tight-buffered fiber, aramid yarn and a PVC or LSZH jacket. Match the fiber, cable diameter and jacket to the termination plan.
Paired indoor fiber optic cable
A duplex indoor cable for paired fiber connections. Review the unit layout, fiber type, termination method and jacket requirements before ordering.
Tight-buffered fiber · upstream element — from fiber preparation to agreed acceptance and delivery. See HONGKAI equipment and process references matched to the listed construction.
The functions below explain how this construction is made. They are not a fixed machine count or a final equipment specification.
Start with the approved optical fiber. Apply and cure the specified identification colors, then rewind; if colored fiber is purchased, verify the incoming identification and package instead.
Form the specified buffer around each approved fiber, then cool, monitor dimensions and take up. Buffer material, dimensions, identification and reel interface follow the cable drawing.
Check the agreed buffer geometry and optical performance, identify the output reel and preserve traceability for the receiving cable or assembly process.
Confirm package dimensions, lengths and the receiving process interface. HONGKAI handles the agreed acceptance and delivery scope.
This product is a buffered-fiber element. Aramid cable formation, common jacketing and loose-tube SZ stranding are not presented as required stages for this element. Final materials, equipment interfaces and acceptance follow the approved drawing and order.
HONGKAI coloring and rewinding footage: identification ink is applied and cured before the fiber is rewound. Already-colored input can enter the next approved production stage. Equipment and process reference only. Not proof of the manufacturing source, full equipment configuration or acceptance of your cable batch.
Only matching process functions have video controls. Other stages retain their explanation where suitable footage has not been established. These clips are not one continuous factory tour or a batch inspection record.
Independent factories manufacture the finished cable; HONGKAI handles customer-facing supply, payment, agreed acceptance inspection and delivery. Some equipment customers also manufacture the cables we supply. The actual source, specification and acceptance requirements are confirmed for each order.
HONGKAI supports cable machinery and production projects, and supplies finished fiber optic cables. Our finished cables are produced by independent factories in China that use HONGKAI equipment.
For orders supplied by HONGKAI, we handle the quotation, customer payment, agreed acceptance inspection and delivery coordination.
Work with HONGKAI on your cable requirements, quotation and order arrangements. Specifications, payment terms and delivery responsibilities are confirmed through one supplier.
Our cable-equipment experience provides a practical basis for discussing cable construction and production requirements with supplying factories. This helps connect your application requirements with the proposed cable design.
Acceptance criteria, inspection scope and required supporting records are agreed for the order. HONGKAI handles acceptance inspection against that agreed scope before delivery.
HONGKAI coordinates delivery arrangements and order communication under the agreed commercial terms. Lead time, packing requirements and required shipping documents are confirmed as part of the order scope.
Independent factories in China that use HONGKAI cable-making equipment. HONGKAI is the supplier, not the finished-cable manufacturer; the actual manufacturing source is confirmed for your order.
The agreed cable specification, inspection scope and order records. Using HONGKAI equipment is a production relationship, not a finished-product certification.
SUPPLY & DELIVERY
One point of contact for your cable requirements, agreed acceptance and delivery coordination.
Work with one HONGKAI contact on cable requirements, quotation and order arrangements. We confirm the specification, payment terms and delivery responsibilities for your order.
Discuss the cable construction and agree the acceptance criteria, inspection scope and required records before ordering. HONGKAI handles acceptance inspection against the agreed scope.
Coordinate packing requirements, shipping documents and delivery arrangements through HONGKAI. Lead time and delivery responsibilities follow the confirmed commercial terms.
Service scope is defined in the confirmed quotation or order agreement.
HONGKAI also supplies cable-making equipment and production-project support. Start from the cable drawing, materials and production requirements.
HONGKAI combines cable-making equipment experience with customer-facing supply responsibility. Some of our equipment customers also manufacture finished cables supplied through HONGKAI. You work with HONGKAI on your requirement, payment, agreed acceptance inspection and delivery. The actual manufacturing source and specification are confirmed for your order.
An individually buffered optical fiber element for indoor cable constructions and termination work. Confirm the buffer diameter, fiber specification and assembly requirements. Share your route, quantity, destination and any drawing or customer specification so the configuration can be reviewed.
HONGKAI supplies finished fiber optic cables and handles payment, acceptance inspection and delivery. The cables are manufactured by independent factories in China using HONGKAI cable-making equipment. The actual manufacturing source and acceptance requirements are confirmed for each order.
For finished cable orders, HONGKAI receives payment and handles acceptance inspection and delivery. The actual manufacturer, specification and acceptance requirements are confirmed for your order.
You can enquire without selecting a model. Send the route, intended connection, approximate quantity or a drawing. We will help identify the information needed for selection.
Yes. HONGKAI also supplies cable-making equipment and production-project support. The equipment configuration follows your cable drawing, materials and production requirements.
A route, a drawing or a question is enough to start. You do not need to know the cable model.
Or email peterhe@hkcablemachine.com. For finished cable orders, HONGKAI receives payment and handles acceptance inspection and delivery. The actual manufacturer, specification and acceptance requirements are confirmed for your order.
