Cantilever Single Twisting Machine
Lay up insulated cores into a cable core. Combine covered cores for control, communication and data-cable constructions. Select the cantilever size from the core dimensions, finished cable diameter, lay and take-up package.
Lay up insulated cores into a cable core
Combine covered cores for control, communication and data-cable constructions. Select the cantilever size from the core dimensions, finished cable diameter, lay and take-up package.
Position in your production line
LAN cable application. In a twisted-pair cable route, cabling follows pair twisting and precedes outer sheathing. Provide the pair count, pair dimensions, cable-core lay and any separator or wrapping shown in the cable drawing. Review the complete LAN cable route; the model, auxiliary feeds and supply scope are selected for that construction.
Compare the selection references
| Parameter | Φ630 | Φ800 | Φ1000 | Φ1250 |
|---|---|---|---|---|
| Core wire specification | Φ1.0–4.0 mm | Φ1.5–6.0 mm | Φ2.5–8.0 mm | Φ3.0–10 mm |
| Twisted outside diameter | Φ3–10 mm | Φ3–14 mm | Φ3–20 mm | Φ3–25 mm |
| Catalog maximum rotation speed | 800 rpm | 600 rpm | 500 rpm | 450 rpm |
| Catalog pitch setting | 20–250 mm, touchscreen setting | |||

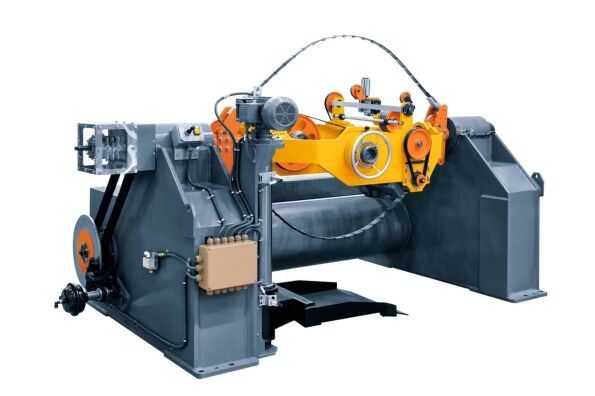

The catalog photograph represents the Φ630–Φ800 family. Maximum rotation speed is a reference limit; practical output depends on the core construction and lay.
Select around your actual product
Core construction
Provide the core count, insulation material and outside diameter of every core. Include fillers or separators shown in the drawing.
Lay and finished diameter
Specify the target lay length, direction and finished core diameter. Check all three against the proposed model.
Taping arrangement
State the tape material, width, overlap and package size. Centre and side taping must be included explicitly in the machine scope.
Reel and handling
Give the take-up reel flange, barrel and traverse dimensions, package weight and loading requirements.
Define what your quotation includes
- Cantilever machine and selected take-up size.
- Pay-off count, package dimensions and tension arrangement.
- Taping, filling or separating equipment required by the cable drawing.
- Controls, utilities, layout and agreed operating conditions.
State whether this is a new line, an additional machine or an upgrade. Include existing equipment interfaces so the offer covers the connections that matter.
Questions before choosing this machine
Is this a machine for bunching bare copper wires?
Its principal task here is laying up already insulated cores. Bare-wire conductor bunching belongs to a different selection route.
Is taping included in every machine?
Specify the centre or side taping arrangement in the quotation. The tape supply, width and overlap depend on the cable construction.
Can I choose only by the reel diameter?
No. Check core dimensions, finished diameter and lay together with the reel, package weight and operating target.
Tell us what you need.
Ask for a quotation, check a specification or get help selecting equipment.
