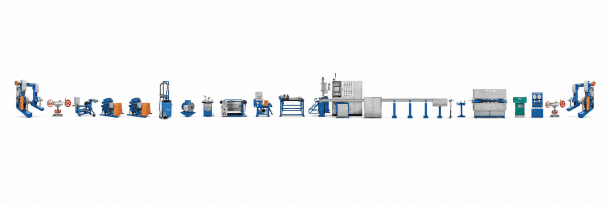

PRODUCTION ROUTE PREVIEW HK-90 final-stage sheathing line
Final-stage panorama · Complete equipment train shown without cropping FOUR-STAGE ROUTE BELOW Review each process and its equipment 01 Selected production line
Micro Cable Production Line
What does this production route produce? This reference solution follows a four-stage route for compact Micro Cable used in microduct and dense-access projects. HK-235 prepares the colored fibers, HK-50 forms the jelly-filled PBT loose tubes, HK-800/12 strands the specified tubes around the central member, and HK-90 integrates the confirmed water-blocking package before extruding the PE sheath. Final construction follows the approved cable drawing.
- Production route
- HK-235 → HK-50 → HK-800/12 SZ → HK-90 Micro Cable
- Control approach
- Coordinated controls reviewed for each production stage
- Main processes
- Fiber preparation · jelly-filled PBT loose-tube extrusion · SZ stranding · water-blocking integration · PE sheathing
- Suitable cable range
- Compact stranded loose-tube Micro Cable · microduct and dense-access applications · final design confirmed per project
