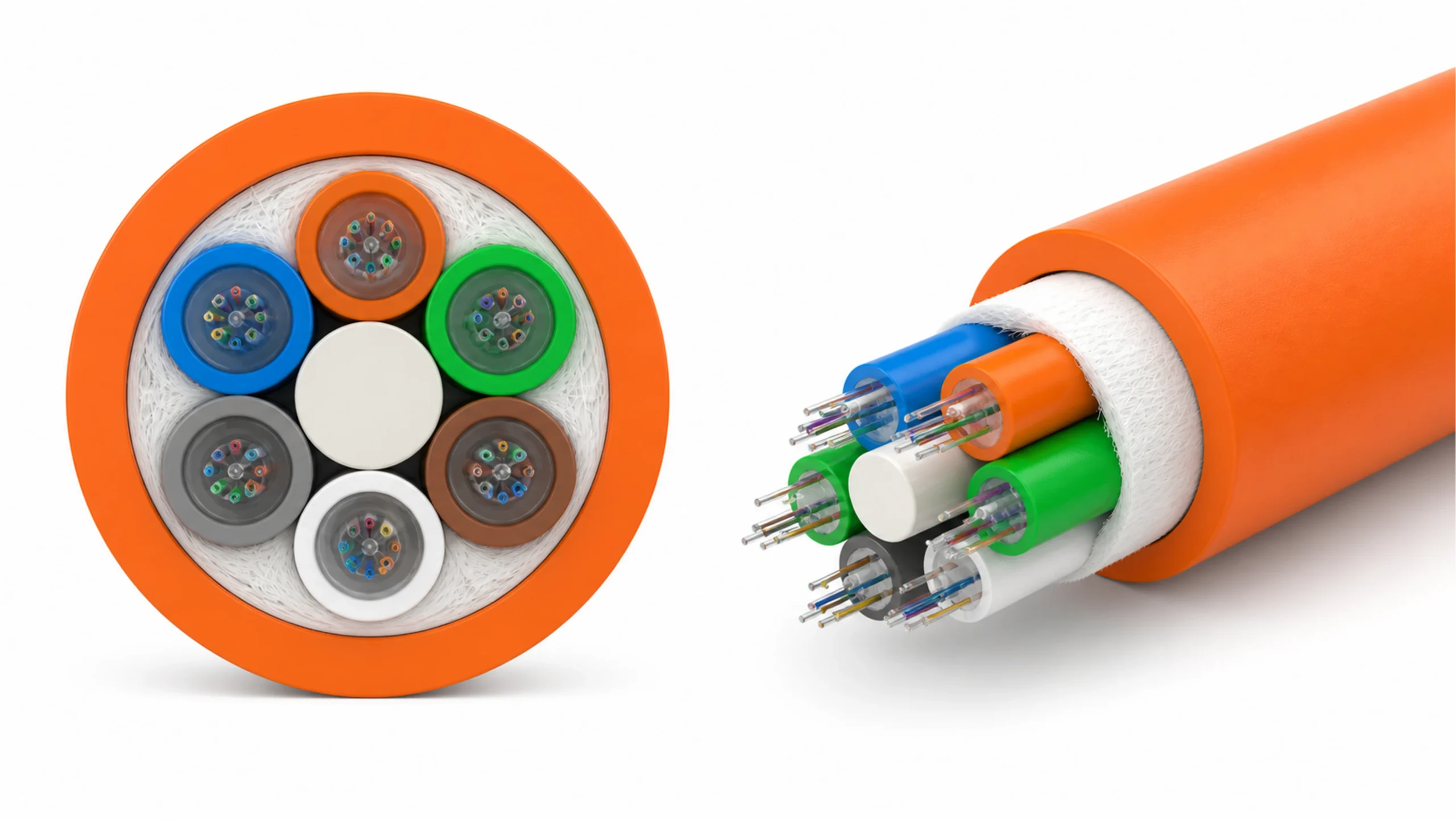

این مسیر تولید چه محصولی تولید میکند؟ This reference solution follows a four-stage route for compact Micro Cable used in microduct and dense-access projects. HK-235 prepares the colored fibers, HK-50 forms the jelly-filled PBT loose tubes, HK-800/12 strands the specified tubes around the central member, and HK-90 integrates the confirmed water-blocking package before extruding the PE sheath. Final construction follows the approved cable drawing.
پانورامای مرحله نهایی · تمام تجهیزات بدون برش نمایش داده شدهاند
FOUR-STAGE ROUTE BELOW
بررسی هر فرآیند و تجهیزات مربوطه

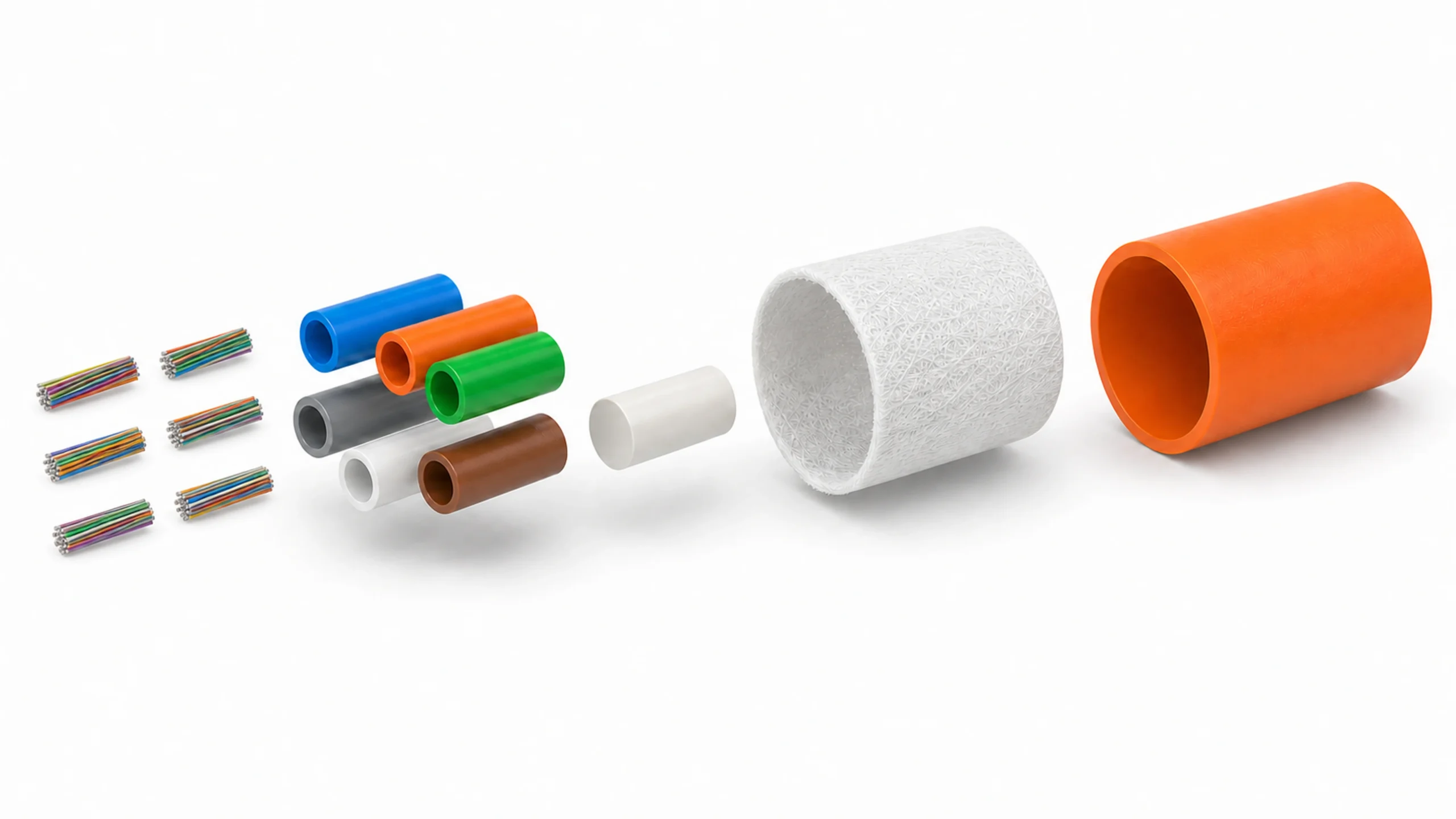

Open the exploded view, select a visible component, and see which of the four production stages prepares, forms or integrates it into the finished Micro Cable.
01
مجموعه مرجع
لایهای را در بالا انتخاب کنید تا مرحلهای که آن را آماده، شکل میدهد یا ادغام میکند، برجسته شود.
The cable-layer choice from Section 02 is carried here. Review its mapped production stage, then inspect the complete four-stage Micro Cable reference route.
رنگهای شناسایی تأییدشده را اعمال کرده، پوشش را خشک کرده و هر الیاف را تحت کشش کنترلشده قبل از اکستروژن لوله آزاد بازپیچیده کنید.
Create identifiable, tension-controlled fiber packages for the HK-50 loose-tube stage.
دنباله شناسایی کنترل، یکنواختی پوشش، عملآوری، سرعت خط، کشش و ساخت ردیف را کنترل کنید.
Confirm fiber specification, count, color sequence, supply reel and required finished package.
Machine quantity, performance, auxiliary systems and final arrangement are configured from the approved Micro Cable drawing, production target and plant conditions.
These images illustrate the HK-235, HK-50, HK-800/12 SZ and HK-90 stages mapped to the current Micro Cable route. They are reference visuals, not a final equipment list, factory layout, performance commitment or acceptance record.
هیچ موضوع برنامهریزیای انتخاب نشده است. به بخش 05 بازگردید تا اولویتهای بررسی را اضافه کنید.
Reference equipment for coloring and rewinding optical fibers before loose-tube extrusion. Final fiber count, color sequence, number of units, payoff interfaces and operating requirements remain project-specific.
These production-stage images illustrate the current four-stage Micro Cable planning route only. Final equipment quantity, sequence, dimensions, supply, performance and acceptance are defined only by the mutually approved technical agreement.
The feedback focuses on compact stranded loose-tube construction, SZ cable-core control, water-blocking integration and final PE sheathing. HK-235 → HK-50 → HK-800/12 SZ → HK-90
For the Micro Cable Production Line, the four-stage route made the project easier to review. We could follow fiber coloring, PBT loose-tube extrusion, SZ cable-core formation and final PE sheathing as one connected process.
The HK-800/12 SZ stage made tube count, fillers, central-member alignment, SZ pitch, binders and water-blocking materials easier to review before the cable core entered final PE sheathing.
The planning boundary kept fiber and tube counts, central-member material, jacket dimensions, tooling, reel sizes, utilities and acceptance conditions visible throughout the final Micro Cable configuration review.
Names, roles and photos follow existing HONGKAI customer records. The Micro Cable-specific wording summarizes technical project-review priorities and is not presented as a verified product-specific quotation.
Share the approved cable drawing, fiber and loose-tube counts, color plan, tube and filler arrangement, loose-tube geometry, central-member specification, PBT and filling-compound grades, binder and water-blocking construction, PE grade, finished dimensions, output and reel plan, and factory conditions. HONGKAI will review the four-stage route, equipment interfaces and open technical items before preparing a project-specific proposal.
