كيفية العثور على مصنّعي كابلات Cat6 موثوقين في الصين

إذا كنت تستورد كابل Cat6، أو تبيعه تحت علامتك التجارية الخاصة، أو تشتره للمشاريع، فإن السعر المنخفض والعينة المُعلَّمة بـ “PASS” (ناجح) يُعدان مجرد نقطة بداية. فأنت بحاجة إلى معرفة ما إذا كان المصنع قادرًا على الاستمرار في تصنيع الكابل الذي وافقت عليه، بالجودة ومعدل التسليم اللذين يتطلبهما طلبك.

ابدأ بالنموذج الدقيق للكابل من فئة Cat6، سواء كنت بحاجة إلى كابلات سائبة أو كابلات توصيل جاهزة، والاختبارات التي يجب أن يجتازها المنتج. ثم قارن هوية المورِّد، وسجلات العيّنات، ونطاق الشهادة، ومراقبة الإنتاج والقدرة عند مستوى جودة مُثبت. ضع نفس مواصفات المنتج ومتطلبات الاختبار في الطلبية الأولى.

يساعدك هذا الدليل في العثور على المرشحين، والتحقق من أدلةهم، واعتماد طلب أولي خاضع للرقابة. ولا يصنّف المصانع المحددة ولا يؤيد أي مورّد.

أنشئ قائمة مختصرة حول مواصفة Cat6 واحدة

اجمع أسماء المرشحين أولاً، ولكن قارن بينها فقط بعد أن تحدد نفس متطلبات المنتج والاختبار. موقع المصنع أو إدخال الدليل أو المقدمة يُعدّ معلومة استرشادية، وليس دليلاً على الموثوقية.

Use online searches, maps, factory websites, supplier directories, trade shows, social media and industry introductions to build an initial list. Record the company, claimed production site, offered cable model and contact. A map listing, exhibition presence or factory video is a lead; it does not establish who owns or operates the production equipment.

Send the same short enquiry to each candidate: exact Cat6 model, bulk cable in boxes or reels versus finished patch cords, construction, market requirements, order quantity, packaging, required tests and delivery target. Request a quotation, matching sample specification and relevant test records. Shortlist the candidates that can connect those items; use the six checks below before committing to an order.

قم بتأكيد الطراز ونموذج البيع والاختبار المطلوب قبل مناقشة سعر المصنع أو حجمه. هذا يمنح كل مرشح نفس متطلبات الشراء للإجابة عنها.

Existing HONGKAI 3D reference: four unscreened pairs with a cross separator. This is one illustrative construction, not a universal Cat6 design, a dimensional drawing or proof of compliance. Compare each supplier against the same approved cable specification.

Screening and certification are additional specification choices, not separate proof that the product is suitable. Define the screen construction and any required safety listing or performance-verification program for the product you are buying.

نشرت TIA المعيار ANSI/TIA-568.2-E الخاص بتمديدات الكابلات والموصلات المزدوجة المجدولة المتوازنة في نوفمبر 2024.¹ تغطي المواصفة القياسية IEC 61156-5:2020 الكابلات المزدوجة أو الرباعية المتماثلة المستخدمة بشكل رئيسي في التوصيلات الأفقية للأرضيات.² اذكر الوثيقة الحاكمة وطبعتها في الاستفسار؛ فـ“Cat6” و“TIA” و“IEC” ليست ملصقات موافقة قابلة للتبديل.

Do not assume box cable and patch cords can be compared by length or a PASS label alone. Fluke’s guidance explains that patch-cord adapters assess the plug connections differently from channel testing.³ طابق العينة، والإعداد، والمحولات والحدود المختارة مع الاختبار المتفق عليه. لا يوجد تصنيف عام مفيد بكونه “أسهل” أو “أصعب” دون تلك التفاصيل.

Decision criterion: Compare prices only for the same product, packaging and test scope. If one quotation costs less, ask what changed before assuming the factory is more efficient or the sample represents the cheaper offer.

استخدم بوابات الأدلة الست لتأهيل مصنّع كابلات Cat6

استخدم ستة فحوصات للفصل بين الحقائق المثبتة وادعاءات البيع. قد يكون بالإمكان معالجة السجل المفقود، لكن عيّن مسؤولًا عن هذه الفجوة وحدد موعدًا نهائيًا قبل الموافقة على الطلب.

1. الهوية القانونية: هل الشركة المذكورة في العرض هي المصنع الذي ستشتري منه؟

لماذا يهم ذلك: قد لا تكون الشركة التي تقدّم عرض السعر، وتُصنّع الكابل، وتتلقى الدفع، وتحتفظ بالشهادة هي نفسها. فأنت بحاجة إلى سجل واضح لدور كل طرف.

What to ask: Request the legal company name in Chinese and English, registered and production addresses, payment recipient and exporter if different. Ask which production, testing or packing steps are subcontracted.

How to verify: Compare names and addresses across the registration documents, quotation, payment instructions, certificate record and product label. Ask for documents explaining any difference; “same group” alone does not establish who is responsible.

Then check the claimed factory in practice. Ask which equipment is owned, leased or used through a production partner, where it operates, and who controls the work. Connect the actual site and machine identities to production and quality records for the offered cable. If needed, arrange a live walkthrough or an independent site visit; do not rely only on selected photos and edited videos.

2. نطاق المنتج: هل يتطابق العينة مع المنتج الذي ستحضه؟

لماذا يهم ذلك: يجب أن يصف العينة والاقتباس نفس الكابل. تحقق من ذلك مباشرةً بدلاً من افتراض أن العينة الجيدة تثبت جودة كل منتج يبيعه المصنع.

Evidence to request: Keep the drawing, BOM and sample under one agreed revision. Include material identities, conductor construction, dimensions and tolerances, pair lay lengths, any separator or screen, jacket marking and package length. Link the sample ID to its production lot and test file.

If the price, product form or testing scope changes between the sample and the bulk order, ask for an updated specification. Confirm whether the original sample still represents the revised offer before approving it.

Red flags: The sample has no traceable ID; the quotation says only “Cat6 UTP 23 AWG”; the factory will decide the compound later; or the sales sample cannot be connected to a production batch, drawing and test record.

Explanatory illustration, not a certificate or a real test result. Keep design approval, lot release, independent product verification and installed-link reports separate when checking a supplier’s claims.

3. مطالبات الأطراف الثالثة: هل الشهادات سارية ومرتبطة بالمنتج بشكل خاص؟

Decision criterion: Check each claimed approval against its issuer’s records. Match the holder, site where specified, product or construction, scope, current status and permitted mark. A supplier’s PDF is a starting point for verification.

احتفظ بهذه الأنواع الثلاثة من الأدلة منفصلة.

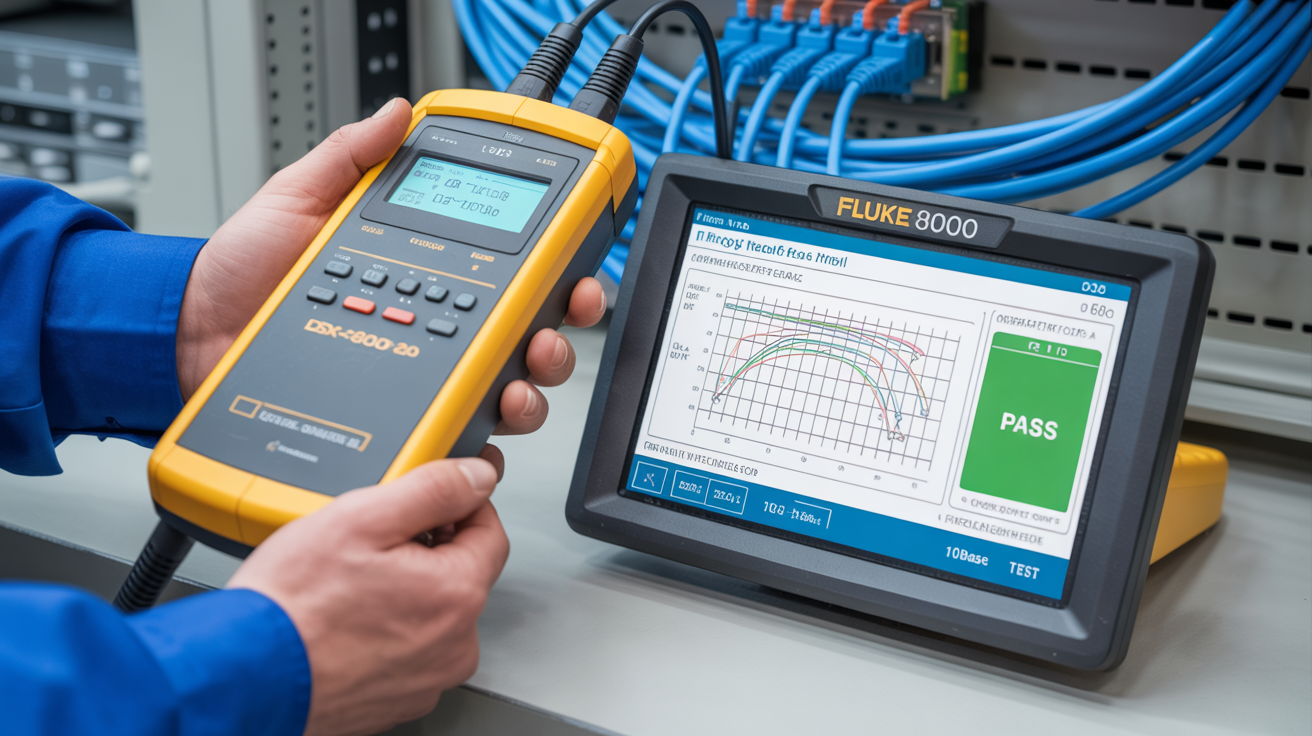

• A Fluke test report records a test. Fluke states that it does not certify or endorse another manufacturer’s cabling components. Ask for the original result file and check the tested object, selected limits and instrument details; a cropped PASS screenshot is not enough.⁴
• يتطلب الادعاء بشهادة UL سجل المنتج ذا الصلة ونطاق العلامات. يدعم Product iQ عمليات البحث باستخدام معرّفات مثل الملف ورقم التحكم في الفئة ورقم الإنشاء.⁵ يفرّق دليل الأسلاك والكابلات من UL بين العلامة التعريفية الموجودة على اللفة أو البكرة أو الحافة أو الصندوق وبين الطباعة التكميلية على سطح الكابل.⁶
• ISO 9001 concerns a quality-management system, not approval of the ordered Cat6 cable’s transmission performance. Check the certified company, site and scope as well as the issuing body and current status.

يوفر IAF CertSearch تفاصيل الشركة والمعيار والحالة والنطاق وهيئات الإصدار/الاعتماد للتحقق من شهادات أنظمة الإدارة.⁷ If a record is missing or unclear, seek confirmation from the issuer rather than drawing a conclusion from the search alone. Which product approvals you need depends on the target market and order; these three items are not one universal certification package.

كيفية التحقق: احفظ سجلات التحقق المؤرخة مع ملف المورّد. أعد الفحص قبل الشحنة الأولى وبعد أي تغيير في الحامل أو الموقع أو التركيب أو العلامة.

4. مراقبة العمليات: هل يمكن للمصنع تتبع نتيجة ما عبر مراحل الإنتاج؟

Why it matters: Final testing finds a problem; it does not fix the process that caused it. Ask whether each finished box or reel can be traced to its materials, production settings and test records.

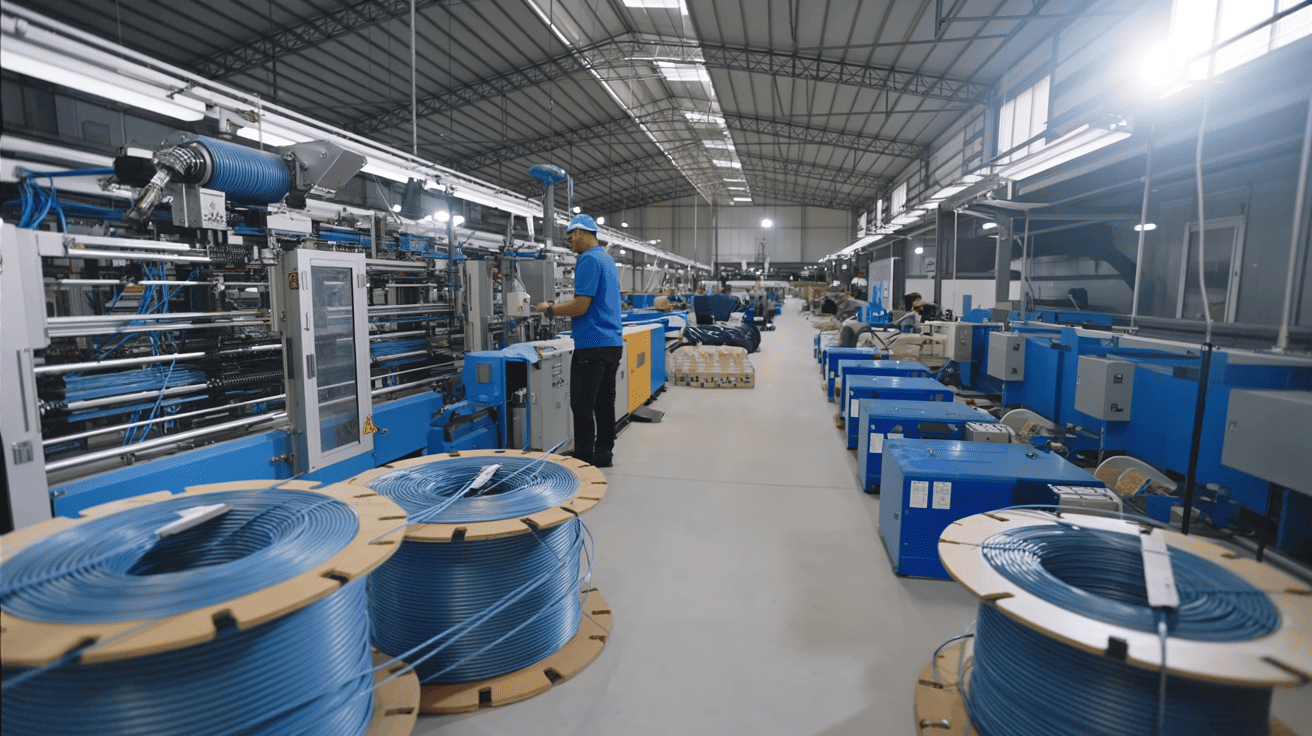

ال HONGKAI مسار إنتاج كابلات LAN تُعدّ خرائط تحضير الموصل، وعزل السلك الأساسي، واللفّ الزوجي، والتجميع الكبلي، والدرع الاختياري، والغلاف الخارجي، والاختبار الكهربائي، والتغليف كعملية واحدة مترابطة. الـ دليل امتثال مصنع كابلات Cat6 يوضح سبب وجوب بقاء تصميم الكابل، وإصدار دُفعات الإنتاج، والتحقق المستقل من المنتج، وأدلة الوصلة المثبتة منفصلة.

Evidence to request: Choose one recent lot of the offered cable. Trace the conductor and compound batches through insulation, pair twisting, cabling, any screening, sheathing and final tests. Match the package label to that record, including failed tests and any rework. Use the approved product’s control limits, not generic numbers.

Machine condition is part of this review. Older or simplified equipment is a reason to examine maintenance, tension and speed control, repeatability and production records more closely. Age alone does not prove poor quality, and a new machine alone does not prove stable production. Ask to see the actual setup making a comparable cable.

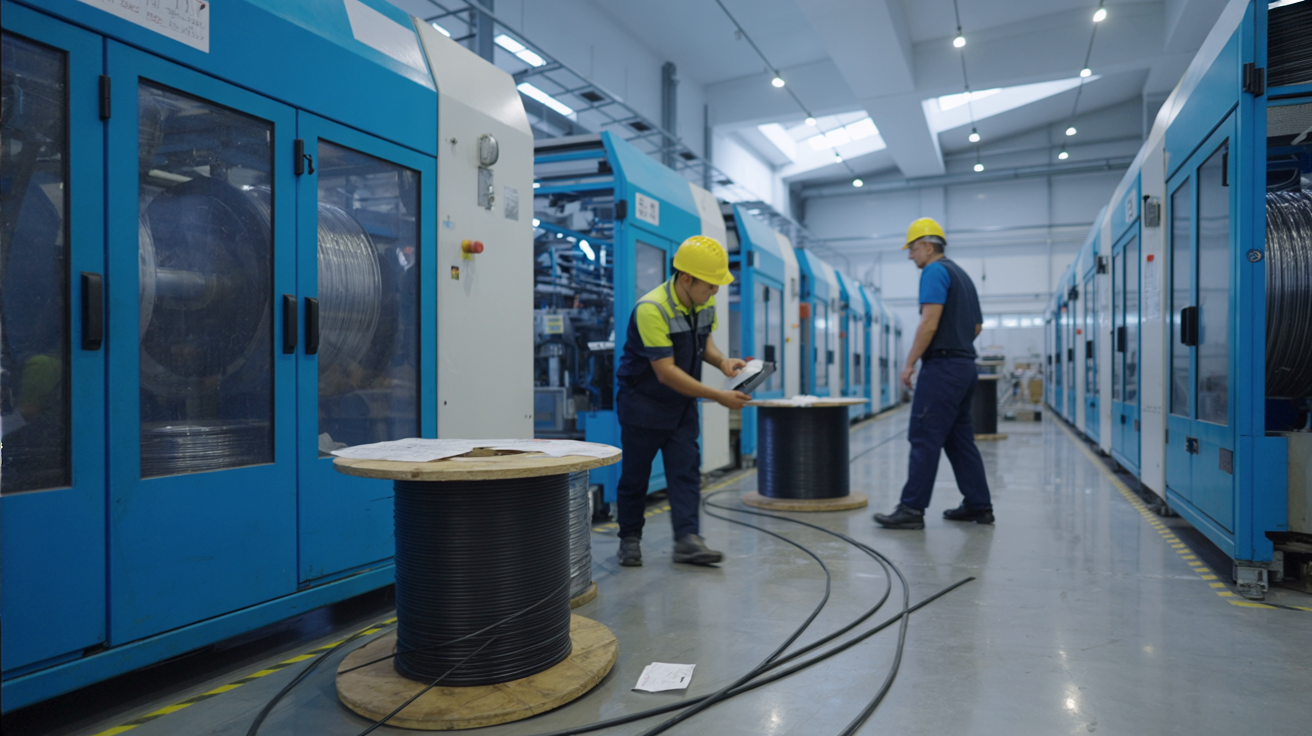

Existing HONGKAI 3D cabling-equipment reference. During a supplier review, inspect the actual line’s condition and production records; this reference is not evidence of that supplier’s factory or output.

Also ask how the factory invests in product development and process improvement. A claimed research budget is only one indicator, not a Cat6 pass criterion. To check the capability behind it, request relevant engineering roles, development projects, trial and test records, and examples of documented improvements that the supplier can share. Use these as supporting evidence, without imposing an invented spending threshold.

Red flags: The only test evidence is a cropped PASS screenshot; material lots are not recorded; failed first tests disappear after retesting; production settings are handwritten without product revision; or the sample room cannot identify which line and lot made the displayed cable.

5. دليل القدرة: هل يمكن للمصنع تلبية هذا الطلب بالتصميم المعتمد؟

Decision criterion: Use the stable production speed at which the specified cable passes its agreed tests. Do not use the machine’s brochure maximum or the tester’s measurement speed as the production rate.

Ask what speed the line was running when it produced cable that passed the specified test. Connect the product revision, run date and line speed to the lot’s quality records. A short demonstration is useful, but it does not by itself establish sustained output.

How to verify: Build the delivery calculation from that supported rate, available shifts, stoppages, changeovers, usable yield and the slowest stage. Include testing and packing, and check what capacity is already booked. For a new construction, make pilot-run evidence a condition before accepting a volume promise.

Common mistakes: Multiplying brochure maximum speed by operating hours; counting every machine as available for the order; ignoring setup, material change, test, packing and rework time; or accepting a monthly total that mixes different cable types and package units.

6. التحكم في التغيير: هل سيظل الكابل المعتمد هو الكابل المسلّم؟

What to ask: Define which changes require written buyer approval or renewed evidence. Typical decision fields include conductor source or construction, insulation and jacket compounds, foaming route, pair lay plan, separator or screen materials, manufacturing site, process route, test method, marking and packaging.

Evidence to request: Attach the approved drawing, BOM revision, sample ID, test plan and accepted deviations to the order. Agree how changes will be approved, how failed results and retests will be recorded, and who can stop shipment when the delivered product or evidence does not match.

Red flags: The contract permits “equivalent material” without a review path; the golden sample has no sealed or photographed identity; the sales team can change construction verbally; or the pre-shipment inspector receives only a visual checklist with no product-specific data.

قارن بين الموردين المدرجين في قائمة المختارات في مصفوفة أدلة واحدة

Do not total vague scores before resolving hard gates. Record a finding as verified, conditional or not demonstrated, and keep the evidence link or document reference in the same row.

Explanatory illustration, not supplier performance data. If suppliers quote a pass rate, compare the same test configuration and agreed unit; passed units divided by tested units gives the rate. Record first tests and retests separately. No minimum acceptance percentage is implied.

How to verify: Ask a colleague or third-party auditor to pick one finished package at random and reconstruct its evidence chain. A presentation assembled only from the supplier’s best sample is not the same as a traceable production record.

تحويل القائمة المختصرة إلى طلب أولي خاضع للرقابة

Before the first order, write down what will be tested, at what length, by which method and against which pass criteria. “Must pass Fluke” does not contain enough information to settle an acceptance disagreement.

Complete this test-agreement worksheet before production, alongside the approved product specification. Fill the fields from the buyer’s requirement and applicable method; no single test length or instrument suits every Cat6 order.

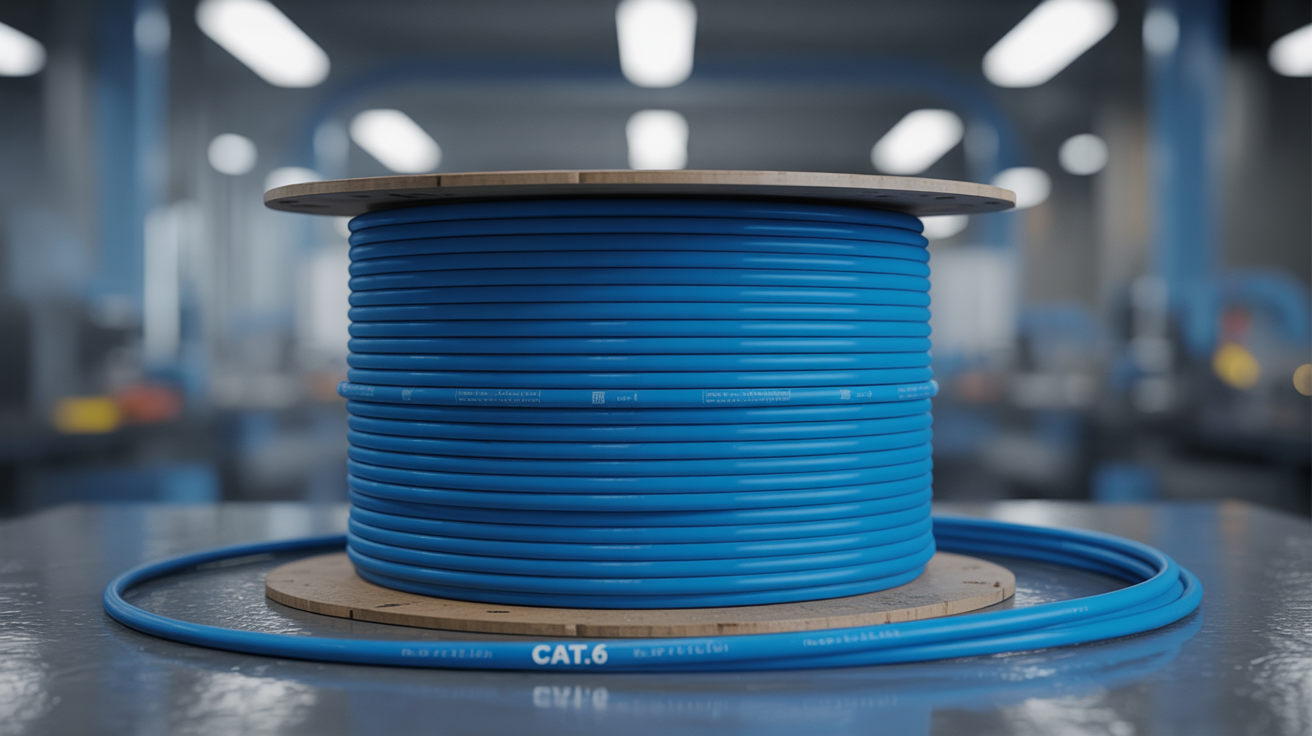

Explanatory comparison, not a wiring instruction. The pictured reel and channel lengths describe different example configurations, not a default factory test length. Agree the test object, method, adapters and limits for the order; a patch-cord test is not the same as a channel test.³

Keep package length and test length as separate fields. Testing a prepared sample from a box does not mean the whole packaged length was tested in that configuration. Likewise, an installed-channel result should not be relabelled as a standalone patch-cord result.

Before shipment, compare the production lot with the approved specification and sample. Check labels, quantity, the agreed inspection results and any failed tests or rework. Record deviations and resolve them through the agreed release process. Keep the first accepted lot’s record pack as the comparison point for repeat orders.

Pitfalls: A buyer approves a polished sample but not its BOM; pays an exporter without reconciling the manufacturer; asks for “full Cat6 test” without naming the test object; or allows shipment because the cable appearance matches while the traceability and raw results remain missing.

أين يناسب HONGKAI دليل المعدات

HONGKAI can help review whether a proposed cable construction matches the equipment and production route. That is different from certifying a finished-cable manufacturer or independently approving its product.

ال HONGKAI مرجع خط إنتاج كابلات Cat6 provides a starting point for equipment questions. Match the actual drawing, materials, process controls and production target to the proposed configuration. A machine picture or equipment list does not prove a cable supplier’s ownership, available capacity or certification.

Existing HONGKAI 3D equipment reference, not a factory-audit photo. Use it to frame questions about the actual pairing setup, tension control and process records. The pictured equipment does not establish any supplier’s ownership, available output or cable approval.

For a machinery project, agree the supplied equipment, any integration, factory acceptance test (FAT), training and exclusions in the project scope. Product certification, independent factory audits and shipment acceptance need their own named responsible parties; they are not implied services.

Choose the supplier that can connect your exact cable to a matching sample, relevant tests, controlled production and a credible delivery plan. Keep those same requirements in the first order and every repeat order.
