خط إنتاج كابل GYXTC8S

ما الذي تنتجه مسار الإنتاج هذا؟ This reference solution follows a four-stage route for GYXTC8S figure-8 self-supporting aerial cable. HK-235 colors and rewinds the fibers, HK-50 forms the jelly-filled PBT loose tubes, HK-800/12 strands those tubes around the confirmed central member, and HK-90 applies the steel-tape armor, positions the messenger and extrudes the joined black PE figure-8 sheath. Final construction follows the approved cable drawing.

استكشاف هيكل GYXTC8S عرض التكوين المرجعي
مسار الإنتاج
HK-235 → HK-50 → HK-800/12 SZ → HK-90 GYXTC8S
نهج التحكم
تم مراجعة أنظمة التحكم المنسقة لكل مرحلة إنتاج
العمليات الرئيسية
تلوين الألياف · PBT بثق الأنابيب الفضفاضة · SZ لفّ الألياف · تشكيل شريط الصلب · غلاف figure-8 PE
مدى الكابلات المناسب
كابل معلق بقلب مُلفّ GYXTC8S · حبل مساعِد من الصلب المُلفّ · التصميم النهائي مؤكد وفقًا للمشروع
PRODUCTION ROUTE PREVIEW خط التغليف في المرحلة النهائية HK-90
HK-90 optical cable sheathing production line shown in full on a white background منظور نهائي · تُعرض مجموعة المعدات الكاملة دون قص FOUR-STAGE ROUTE BELOW راجع كل عملية ومعداتها
WHAT THE CLIENT SELECTED خط إنتاج كابل GYXTC8S HK-235 · HK-50 · HK-800/12 SZ · HK-90 GYXTC8S · مسار figure-8 المُلفّ SZ-
02 تشريح كابل GYXTC8S

اقرأ كابل GYXTC8S من الداخل إلى الخارج.

افتح المنظور المُفكك، وحدد مكونًا، وشاهد أيًا من المراحل الأربعة لإنتاجه أو تشكيله أو دمجه في الكابل النهائي المعلق ذاتي الدعم figure-8.

لوحة التصميم المُفكك الهندسية مرجع بنية SZ- المُلفّة GYXTC8S

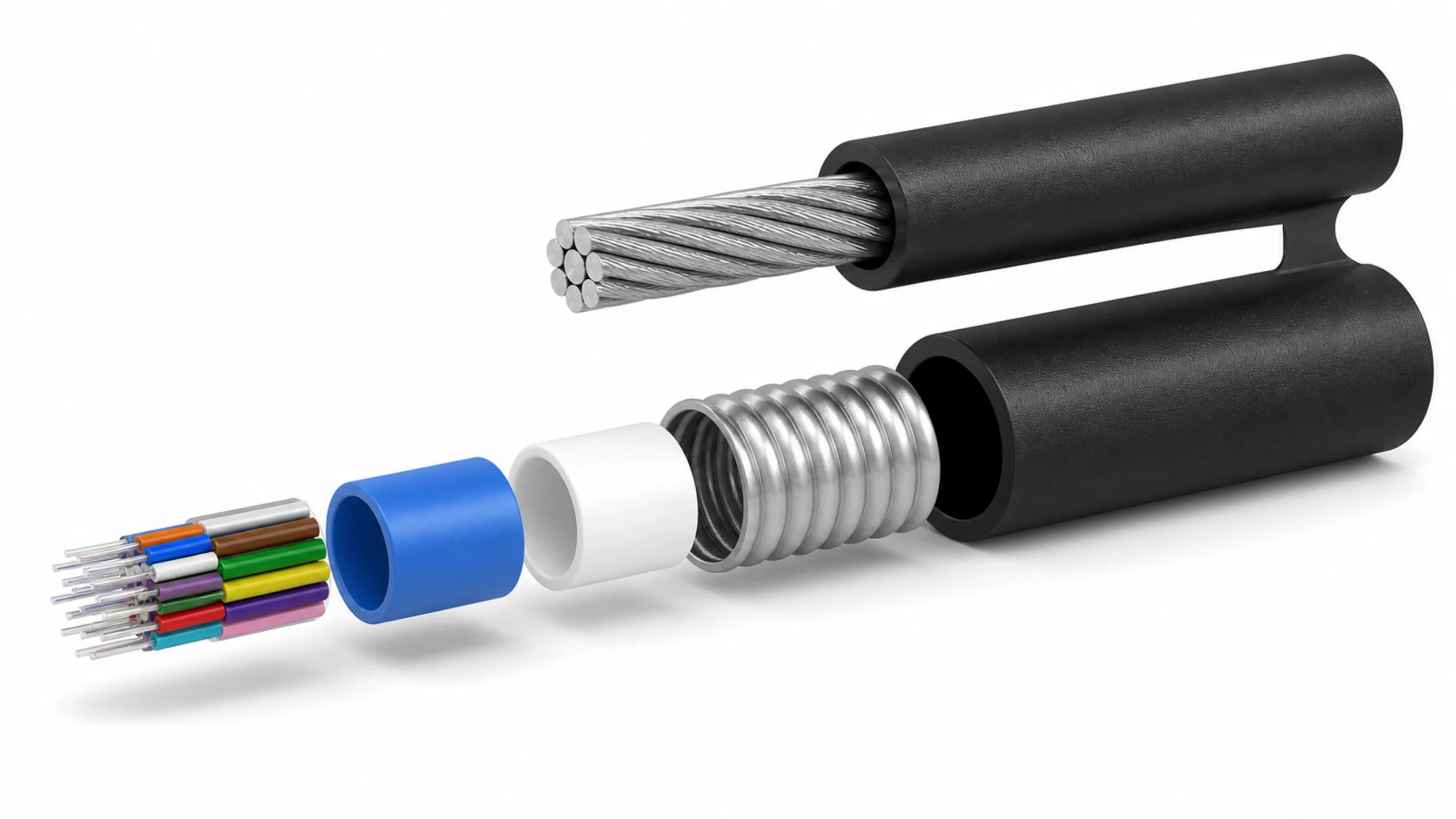

GYXTC8S figure-8 fiber optic cable 3D structure showing the stranded loose-tube core, corrugated steel tape armor and stranded-steel messenger 01 مرجع مُجمَّع
