Double-sheathed self-supporting aerial cable
ADSS Current cable
An ADSS construction with an FRP-centered optical core, inner PE sheath, aramid yarn and outer PE or AT sheath. Review span and electrical conditions before selecting a configuration.
AERIAL NETWORKS
ADSSDouble-sheathed self-supporting aerial cable
An ADSS construction with an FRP-centered optical core, inner PE sheath, aramid yarn and outer PE or AT sheath. Review span and electrical conditions before selecting a configuration.
- Starting route
- Pole / tower routes
- Configuration
- Confirm fiber, construction and jacket
- Order basis
- Approved specification and acceptance criteria
Not sure it fits? Start with your installation
Production knowledgeCable-making equipment experience.
One supplier contactPayment, acceptance and delivery.
A clear order basisDrawing, specification and agreed checks.
Start with where
the cable will run.
Select a starting point to see what needs to be confirmed for your project.
WHAT TO CONFIRM
A few details make the choice clearer.
Select your route to see the questions that matter for this cable.
- Installation method and mechanical loads
- Fiber type, count and network requirements
- Jacket, protection and acceptance criteria
Every layer has a purpose.
Review the cable components, then confirm the drawing for the configuration you intend to order.
The approved cable drawing defines the final dimensions and materials.
Stranded optical core
Loose tubes and fillers are arranged around an FRP center.
Specifications, with context.
Use these references to frame your requirement. The quotation and approved cable datasheet define the product supplied.
ADSS design basis
Published construction examples for initial comparison, not guaranteed supply ratings.
- Construction
- Dielectric center, loose tubes and aramid yarnConfirm the actual drawing and sheath selection.
- Span and loading
- Calculate for the routeA span value without its load and sag conditions is not an installation rating.
Sources & scope
Public technical references checked September 2026. Manufacturer examples illustrate a construction; they do not identify HONGKAI’s source factory or establish the specification of your order.
Optical selection reference
If your selected fiber is G.652.D
- 1310–1625 nm
- ≤ 0.40 dB/kmG.652.D cable-attribute reference in ITU-T G.652 (08/2024), Table 2.
- 1530–1565 nm
- ≤ 0.30 dB/kmIncludes 1550 nm. These are standard limits, not a HONGKAI batch test result.
G.652 attenuation limits are not a blanket specification for short indoor cables, jumpers or drop cables. Fiber bending performance also does not determine the minimum bend radius of a finished cable.
Sources & scope
Public technical references checked September 2026. Manufacturer examples illustrate a construction; they do not identify HONGKAI’s source factory or establish the specification of your order.
Compare the construction.
Then narrow your shortlist.
Keep the route and protection requirements in view when you compare cable families.
Two-FRP aerial fiber optic cable
ASU / GYFFY
A compact aerial cable construction with a central PBT loose tube, two FRP strength members and a PE sheath. Span, loading and installation conditions define the required configuration.
Central-tube figure-8 aerial cable
GYXTC8S
A figure-8 aerial construction combining a central optical tube with a stranded-wire messenger. Specify the span, installation loads and metallic support requirements.
Follow the ADSS route, from fiber coloring.
See the upstream preparation and downstream cable-making processes through HONGKAI videos. These are equipment and process references; they do not establish the manufacturing source or acceptance of your cable batch.
Start with approved optical fiber. Follow the five production functions, then confirm inspection and delivery for the order.
- 01
Fiber coloring & rewinding
Identify the approved optical fibers with the specified color sequence, cure the ink and prepare the output reels.
- 02

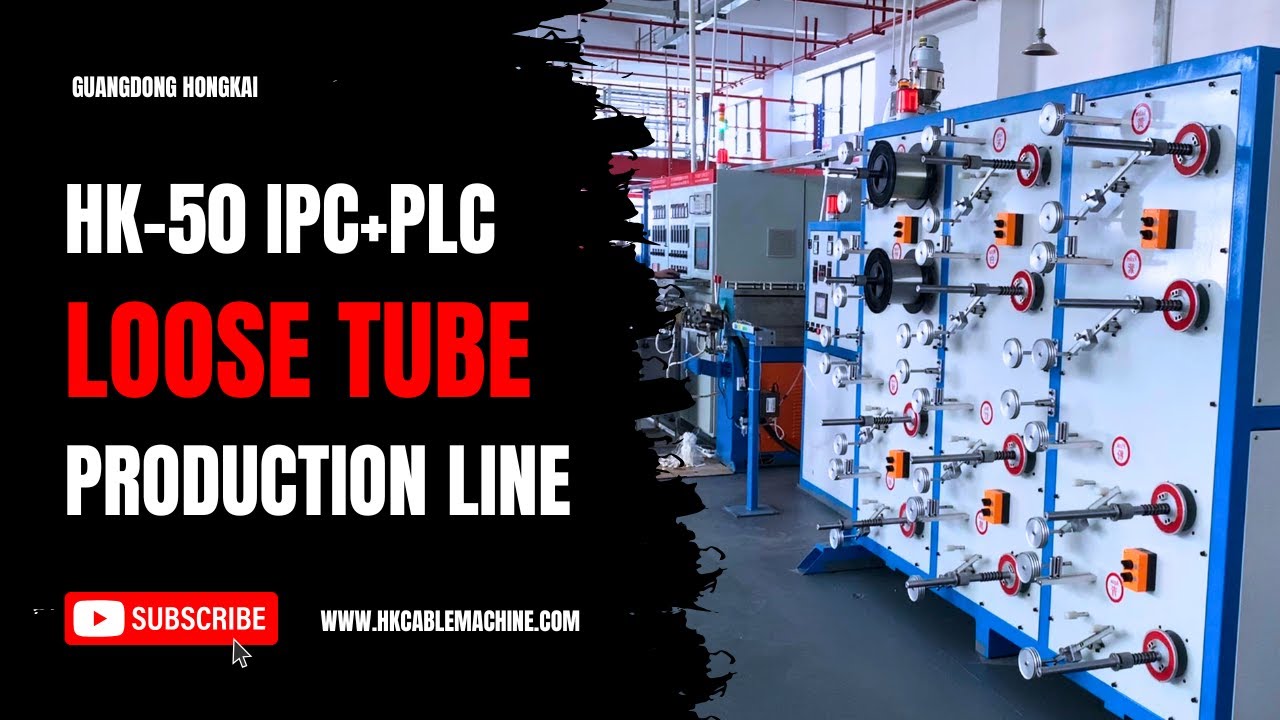

Loose-tube extrusion
Form protective loose tubes around the fibers. Confirm tube material, excess fiber length and filling or water-blocking construction.
- 03
SZ core stranding
Strand the tubes and fillers around the FRP center; apply the specified binders and water-blocking package.
- 04
Inner sheath & aramid
Apply the inner PE sheath before the aramid strength layer for this double-sheathed construction. Confirm the approved arrangement and mechanical design.
- 05
Outer sheathing & take-up
Apply the selected PE or AT outer sheath, then cool, check dimensions, mark and take up the cable.
- 06
Inspection & drum delivery
Complete the agreed optical and mechanical checks, records, drum lengths, marking and delivery preparation. HONGKAI handles agreed acceptance and delivery.
Functions are not a fixed machine count. Aramid application may be integrated with sheathing; this design includes an inner PE sheath before the aramid layer. Final equipment, materials and acceptance follow the approved drawing and order.
Optical fiber coloring & rewinding
Identification ink is applied and cured, then the fiber is rewound for the next stage. HONGKAI process-reference footage.
Loads YouTube when you press play.Watch on YouTube
Four process videos, in route order. Reinforcement and inspection scope remain drawing- and order-specific; the videos are not one continuous factory tour or a batch test report.
Some HONGKAI equipment customers also manufacture the finished cables we supply. Independent factories manufacture the cable; HONGKAI handles the customer-facing supply, payment, agreed acceptance inspection and delivery. The actual source and order requirements are confirmed for your project.
One partner for your finished-cable order.
HONGKAI connects cable-making equipment experience with finished-cable supply. Work with us on your requirement, then keep payment, acceptance inspection and delivery with HONGKAI.
A production perspective on cable selection
Our equipment business gives the cable discussion a practical starting point: how the fiber, reinforcement, protection and jacket fit the required construction.
A direct relationship with your supplier
HONGKAI is your customer-facing supplier. In our usual supply arrangement, you pay HONGKAI, and we handle acceptance inspection and delivery.
An agreed basis for acceptance
Set the cable drawing, specification, inspection scope and required records in the order documents, so the supply is assessed against your agreed requirement.
Who makes the finished cable?
Independent factories in China that use HONGKAI cable-making equipment. HONGKAI is the supplier, not the finished-cable manufacturer; the actual manufacturing source is confirmed for your order.
What establishes product acceptance?
The agreed cable specification, inspection scope and order records. Using HONGKAI equipment is a production relationship, not a finished-product certification.
Planning your own cable production?
HONGKAI also supplies cable-making equipment and production-project support. Start from the cable drawing, materials and production requirements.
Why source finished cable through HONGKAI?
HONGKAI combines cable-making equipment experience with customer-facing supply responsibility. Some of our equipment customers also manufacture finished cables supplied through HONGKAI. You work with HONGKAI on your requirement, payment, agreed acceptance inspection and delivery. The actual manufacturing source and specification are confirmed for your order.
How do I know whether ADSS fits my project?
An ADSS construction with an FRP-centered optical core, inner PE sheath, aramid yarn and outer PE or AT sheath. Review span and electrical conditions before selecting a configuration. Share your route, quantity, destination and any drawing or customer specification so the configuration can be reviewed.
Is HONGKAI the manufacturer of this finished cable?
HONGKAI supplies finished fiber optic cables and handles payment, acceptance inspection and delivery. The cables are manufactured by independent factories in China using HONGKAI cable-making equipment. The actual manufacturing source and acceptance requirements are confirmed for each order.
Who receives payment and handles acceptance and delivery?
For finished cable orders, HONGKAI receives payment and handles acceptance inspection and delivery. The actual manufacturer, specification and acceptance requirements are confirmed for your order.
What if I do not know the model or specification?
You can enquire without selecting a model. Send the route, intended connection, approximate quantity or a drawing. We will help identify the information needed for selection.
Can HONGKAI also help with cable-making equipment?
Yes. HONGKAI also supplies cable-making equipment and production-project support. The equipment configuration follows your cable drawing, materials and production requirements.
