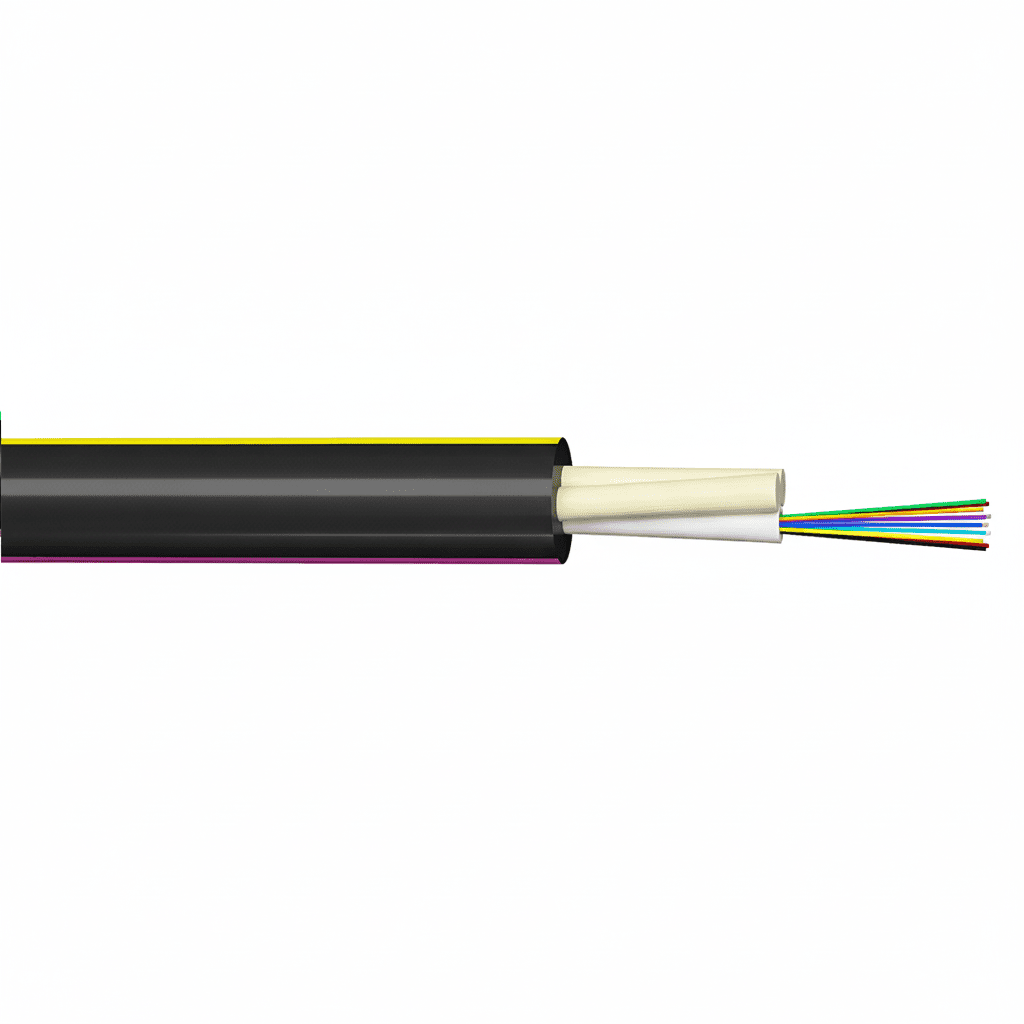

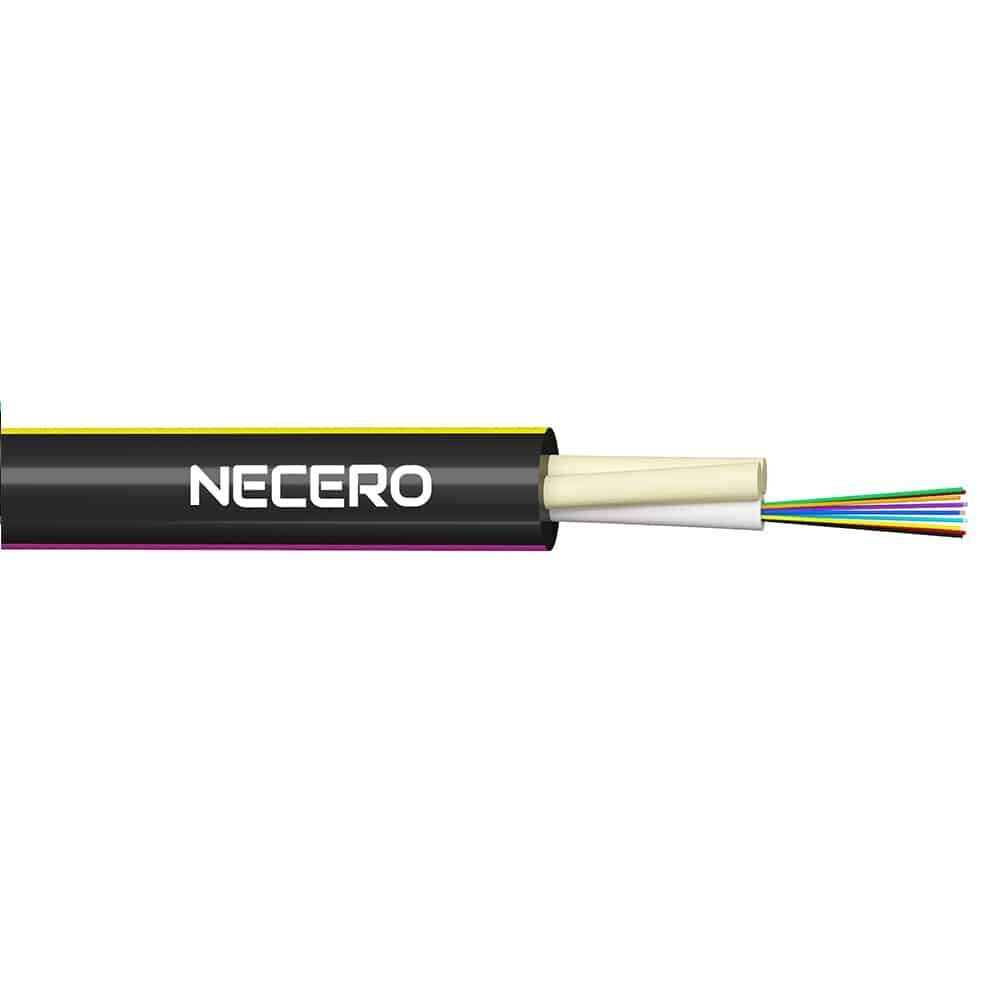

Two-FRP aerial fiber optic cable
ASU / GYFFY Current cable
A compact aerial cable construction with a central PBT loose tube, two FRP strength members and a PE sheath. Span, loading and installation conditions define the required configuration.
AERIAL NETWORKS
ASU / GYFFYTwo-FRP aerial fiber optic cable
A compact aerial cable construction with a central PBT loose tube, two FRP strength members and a PE sheath. Span, loading and installation conditions define the required configuration.
- Starting route
- Pole / tower routes
- Configuration
- Confirm fiber, construction and jacket
- Order basis
- Approved specification and acceptance criteria
Not sure it fits? Start with your installation
Your supplier: HONGKAIPayment, acceptance and delivery.
Independent productionChinese factories using HONGKAI equipment.
Order-specific acceptanceSpecification and inspection requirements agreed.
01FIND YOUR FIT
Start with where
the cable will run.
Select a starting point to see what needs to be confirmed for your project.
WHAT TO CONFIRM
A few details make the choice clearer.
Select your route to see the questions that matter for this cable.
- Installation method and mechanical loads
- Fiber type, count and network requirements
- Jacket, protection and acceptance criteria

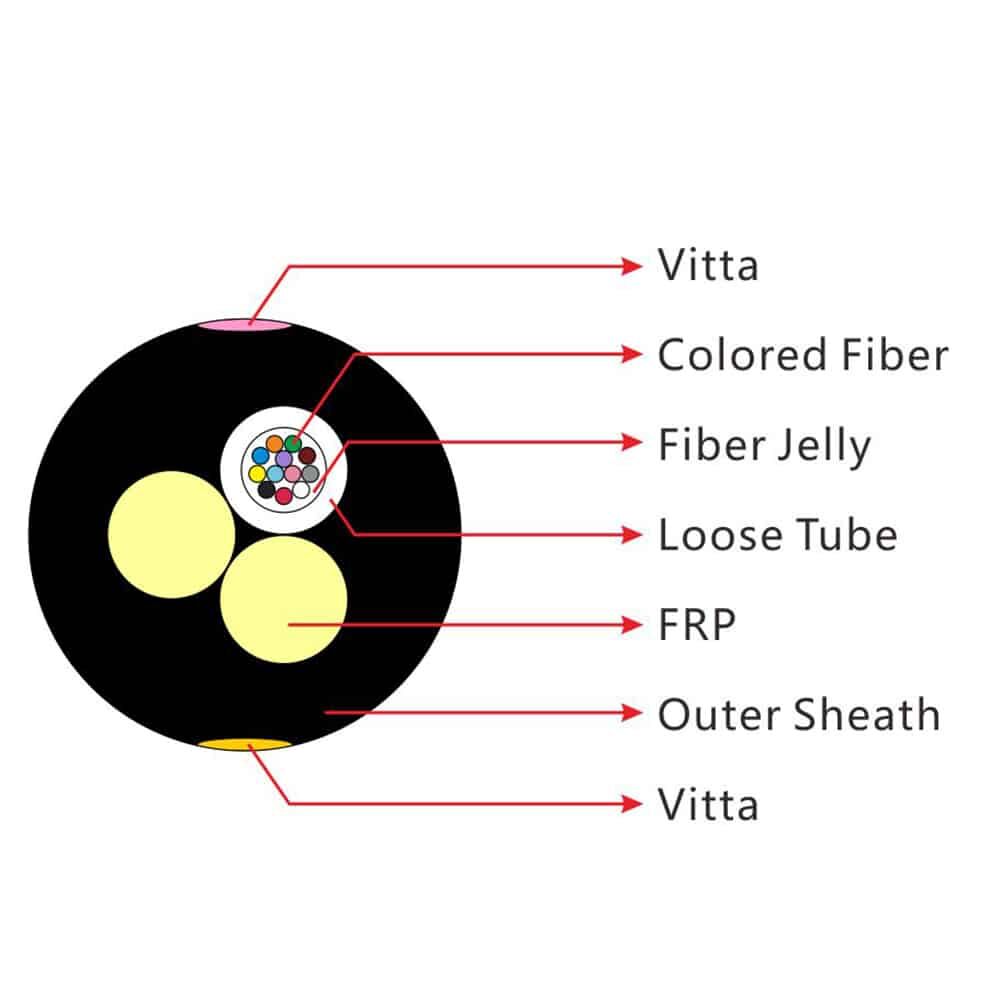

02UNDERSTAND THE CONSTRUCTION
Every layer has a purpose.
Review the cable components, then confirm the drawing for the configuration you intend to order.
The approved cable drawing defines the final dimensions and materials.
Optical fibers
Colored fibers are placed inside the loose tube.
03CHECK THE DETAILS
Know what you’re specifying.
Review the listed reference configurations. Final values follow the approved order specification.
Swipe or scroll sideways to view all columns.
Optical characteristics
| G.652 | G.655 | 50/125μm | 62.5/125μm | |
|---|---|---|---|---|
| Attenuation (+20°C) | ||||
| @850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | ||
| @1310nm | ≤0.36 dB/km | ≤0.23 dB/km | ||
| @1550nm | ≤0.22 dB/km | ≤0.23 dB/km | ||
| Bandwidth (Class A) | ||||
| @850nm | ≥200 MHZ·km | ≥200 MHZ·km | ||
| @1300nm | ≥500 MHZ·km | ≥500 MHZ·km | ||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | ||
| Cable Cut-off Wavelength | ≤1260nm | ≤1480nm |
Dimensions and mechanical characteristics
| Cable Core | Unit | 2F | 4F | 6F | 8F | 10F | 12F |
|---|---|---|---|---|---|---|---|
| core | core | core | core | core | core | ||
| No. Of Tubes | 1 | 1 | 1 | 1 | 1 | 1 | |
| No. Of fibers | 2 | 4 | 6 | 9 | 10 | 12 | |
| Fiber Counts in tube | core | 2 | 4 | 6 | 9 | 10 | 12 |
| Cable Diameter | mm | 6.6±0.5 | 6.8±0.5 | ||||
| Cable Weight | Kg/km | 40±10 | 45±10 | ||||
| Allowable tensile Strength | N | Span=80, 1.5*P | |||||
| Allowable crush resistance | N | 1000N | |||||
| Operation temperature | °C | -20°C to +65°C | |||||
04COMPARE THE ALTERNATIVES
Compare the construction.
Then narrow your shortlist.
Keep the route and protection requirements in view when you compare cable families.
Central-tube figure-8 aerial cable
GYXTC8S
A figure-8 aerial construction combining a central optical tube with a stranded-wire messenger. Specify the span, installation loads and metallic support requirements.
Stranded-tube figure-8 aerial cable
GYFTC8S
A stranded optical unit paired with a metallic messenger in a figure-8 profile. Confirm the messenger design, span loads and optical-core configuration.
05HOW HONGKAI SUPPORTS YOUR PROJECT
HONGKAI supplies.
Independent factories manufacture.
HONGKAI supplies finished fiber optic cables from independent factories in China that use HONGKAI cable-making equipment. We are your supplier for payment, acceptance inspection and delivery — not the finished-cable manufacturer.
YOUR SUPPLIER · HONGKAIPayment, acceptance
Payment, acceptance
and delivery.
- Payment is made to HONGKAI.
- HONGKAI handles acceptance inspection and delivery.
- The specification and acceptance requirements are agreed for your order.
YOUR MANUFACTURING SOURCE · CHINAFactories using
Factories using
HONGKAI equipment.
Your cable is produced by independent Chinese factories using HONGKAI cable-making equipment. These factories are the actual finished-cable manufacturers.
Equipment use does not replace product inspection. Cable acceptance follows the agreed specification, tests and records for your order.
OUR EQUIPMENT & PROJECT BUSINESS
Want to make the cable?
HONGKAI also supplies cable-making equipment and production-project support. Define the equipment route from your cable drawing and production requirements.
- 01Cable drawing
- 02Process route
- 03Equipment configuration
How do I know whether ASU / GYFFY fits my project?
A compact aerial cable construction with a central PBT loose tube, two FRP strength members and a PE sheath. Span, loading and installation conditions define the required configuration. Share your route, quantity, destination and any drawing or customer specification so the configuration can be reviewed.
Is HONGKAI the manufacturer of this finished cable?
HONGKAI supplies finished fiber optic cables from independent factories in China that use HONGKAI cable-making equipment. We are your supplier for payment, acceptance inspection and delivery — not the finished-cable manufacturer.
Who receives payment and handles acceptance and delivery?
For finished cable orders, HONGKAI receives payment and handles acceptance inspection and delivery. The actual manufacturer, specification and acceptance requirements are confirmed for your order.
What if I do not know the model or specification?
You can enquire without selecting a model. Send the route, intended connection, approximate quantity or a drawing. We will help identify the information needed for selection.
Can HONGKAI also help with cable-making equipment?
Yes. HONGKAI also supplies cable-making equipment and production-project support. The equipment configuration follows your cable drawing, materials and production requirements.
