FINAL PRODUCT'S description

5/5

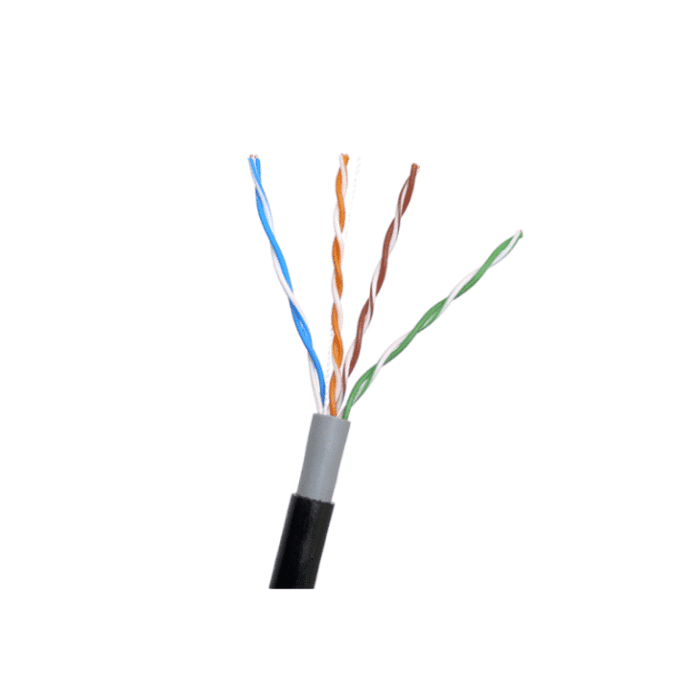

What‘s the Lan cable?

There’s a lot of confusion about what cat5 cable is. Some people think it’s a type of cat food, while others believe it’s a new style of a cat toy. The truth is, cat5/5e cable is actually a type of computer networking cable. It’s used to connect computers and other devices to each other and can carry data at speeds of up to 100 Mbps.

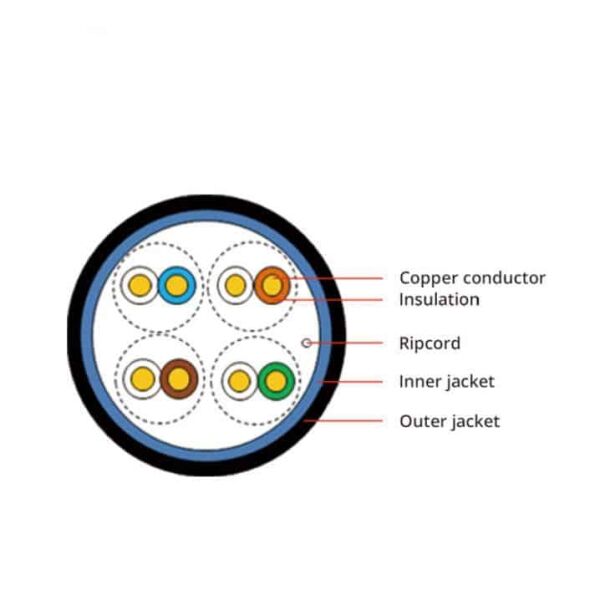

Structurally the lan cable consists of the following components.

  1. copper wire
  2. PE/PVC jacket with cooper wire
  3. Lay after the PE jacket
  4. Rip cord
  5. PE Jacket of all

How to produce the Lan cable?

So these production lines are needed in the equipment to complete:

  1. HK-50+35 PLC control core wire insulation production line to extrusion PE/PVC material for the copper wire.
  2. HK-500 pair-twist and back twist machine to twist and back twist the insulation cables.
  3. HK-800 cantilever type singe twist machine to twist the 4 pair insulation cables with rip cord together.
  4. HK-80 PLC control Sheathing Production Line to do the PE Jacket of the whole cable.
PROCESS OF PRODUCT

1.HK-50+35 PLC CONTROL CORE-WIRE INSULATION PRODUCTION LINE

lan cable insulation line

  • Single head shaft-less motorized pay off rack: put on the 400-500mm bobbin
  • Copper wire straight platform: straighten the copper wire
  • Automatic induction copper wire preheater: Heat the surface of the copper wire. Better adhesion of the adhesive
  • Main extruder: 15HP Siemens+Emerson Transducer with free-adjustment crosshead
  • φ35mm Infuse Color Machine: Used for extruding auxiliaries
  • Main cabinet: temperature control by RKC, switch control by Schneider, main touch panel: Siemens
  • 1.5m+8m water trough: cooling the cable under higher speed.
  • Capstan: V≤450m/min is coordinated action control with the main motor.
  • Accumulator: Wire-storage length: 10m-150m, linked with the take-up machine
  • High-frequency spark machine: it is applied for the pressure-resistance test under the no-line movement of electric wire and cable.
  • Take up machine: Φ400~Φ630mm roll style and axis style, line speed V≤450m/min.

2.HK-500 PAIR-TWIST AND BACK-TWIST MACHINE

lan cable twist and back twist machine

Pair twist machine:

  1. Max. revolution speed: Max.2500rpm, no period of adjustable
  2. Shaft of take up: Φ500mm, throw of traverse:280mm
  3. Diameter of inlet wire: Φ0.5mm-Φ1.5mm
  4. Stranding pitch:4.22mm~41.62mm, gear-change type

Back twist machine:

  1. Type: vertical cabinet, double drum, electric-lifting wire drum
  2. Max. revolution speed: Max. 1000rpm
  3. Back-twist rate: Max.80% step-less adjustable
  4. Pay-off spool: Φ500mm(outer diameter) ×Φ56mm(inner diameter) ×Φ300mm (width)

3.HK-800 CANTILEVER TYPE SINGLE TWIST MACHINE

cantilever single twist machine

  • Motorized pay off rack: place 4 pcs Φ400-630mm bobbin with the twisted cable, Displacement sensor control, swing type tension control, and automatically stop when the wire is broken
  • Hub stand: bunching the cable for wrapping
  • Center wrapping machine: Rotary drum for tape: 250mm. Width: 10mm, Wrapping speed: Max.2500rpm.
  • Φ800mm cantilever single twist machine:
  1. Single-wire diameter: Φ0.8-4.0mm covering the wire
  2. Revolution speed of the main shaft: Max.800rpm/min
  3. pitch set: setting on the Touch screen, control by Siemens PLC, stable acceleration and deceleration winch distance.
  4. Motor: Siemens, Transducer: Emerson

4.HK-80 PLC CONTROL SHEATHING PRODUCTION LINE

lan cable sheathing line

  • Double head magnetic powder pay off: place Φ630—Φ800mm bobbin, auto-stop without wire broken
  • Copper wire straight platform: straighten the cable
  • Main extruder: 15HP Siemens+Emerson Transducer with free-adjustment cross-head
  • φ35mm Infuse Color Machine: Used for extruding auxiliaries
  • Main cabinet: temperature control by RKC, switch control by Schneider, main touch panel: Siemens
  • 1.5m+8m water trough: cooling the cable under higher speed.
  • Capstan: V≤450m/min is coordinated action control with the main motor.
  • Accumulator: Wire-storage length: 10m-150m, linked with the take-up machine
  • High-frequency spark machine: it is applied for the pressure-resistance test under the no-line movement of electric wire and cable.
  • Take up machine: Φ400~Φ630mm roll style and axis style, line speed V≤450m/min.



cat 5/5e production machine



Full machine’s video link: https://www.youtube.com/watch?v=Iz3Xdt9N0ik&t=70s



SHARE Lan Cable Production Line WITH YOUR CLIENTS

Facebook
WhatsApp
LinkedIn
Skype

Steps of How To Get The Machine

pi
Get Full Project
Discussing
Depending on your specific needs, we set up the most suitable solution. If you have a new factory to build, we can also design a reasonable length to fit the space of your factory.
pi
Get Full Project
Cutting
Making Your Machine
Producing
We will deliver your product within 55-65 days after receiving a 30% deposit and finalizing the orientation/color of the equipment. (Specific time depends on different products)
Cutting
Making Your Machine
testing report
Testing The Machines
Trailing Before Dispatch
We will perform a complete run of the equipment and provide a full test report prior to shipment.
testing report
Testing The Machines

Packing &Delivery

WHY Choice HONGKAI

pi
Visualization of Quote

Quotations are like short, helpful sentences that allow customers to understand your plan in an instant.

layout
Whole plant planning

According to the actual specifications of this factory, it’s possible for you to plan or layout your whole production process.

oem
OEM Aiailable

With our customizable options, you can make your product stand out from the rest!

cost check
Cost Check

The cost of a product is determined by many different factors. From materials used to produce it, all the way down through even what country you manufacture in can make a difference on your final price tag!

order follow up sheet
Order Follow Up Sheet

Wow! The list is updated every Friday, so that customers also know the order process. It’s a great way to stay in touch with what you need and when it will be delivered.”

commissionging and trail available
Free Commissioning &Installation

Technical support is available for all of your needs. Whether it’s an installation or training, we’ve got you covered!

Letter ofthanks

Thanks letter from USA
USA
thanks letter from Russia
Russia
thanks letter from Ukraine
Republic of Belarus

What  you want to know

Yes, this is. One-stop service can save you time and money, isn't it?

Yes, it is. We don’t make used equipment, so it may not be possible to see a complete production line in our factory every time.

Sure, we can arrange any machine you want to check around our city. if you are from INDIA, we also can arrange it in NOIDA.

Yes, it is. We don’t make used equipment, so it may not be possible to see a complete production line in our factory every time.

We will provide the water/electric circuit diagram and operation manual of the equipment.

we will provide the power, gas, water consumption and floor area of the each production line.
