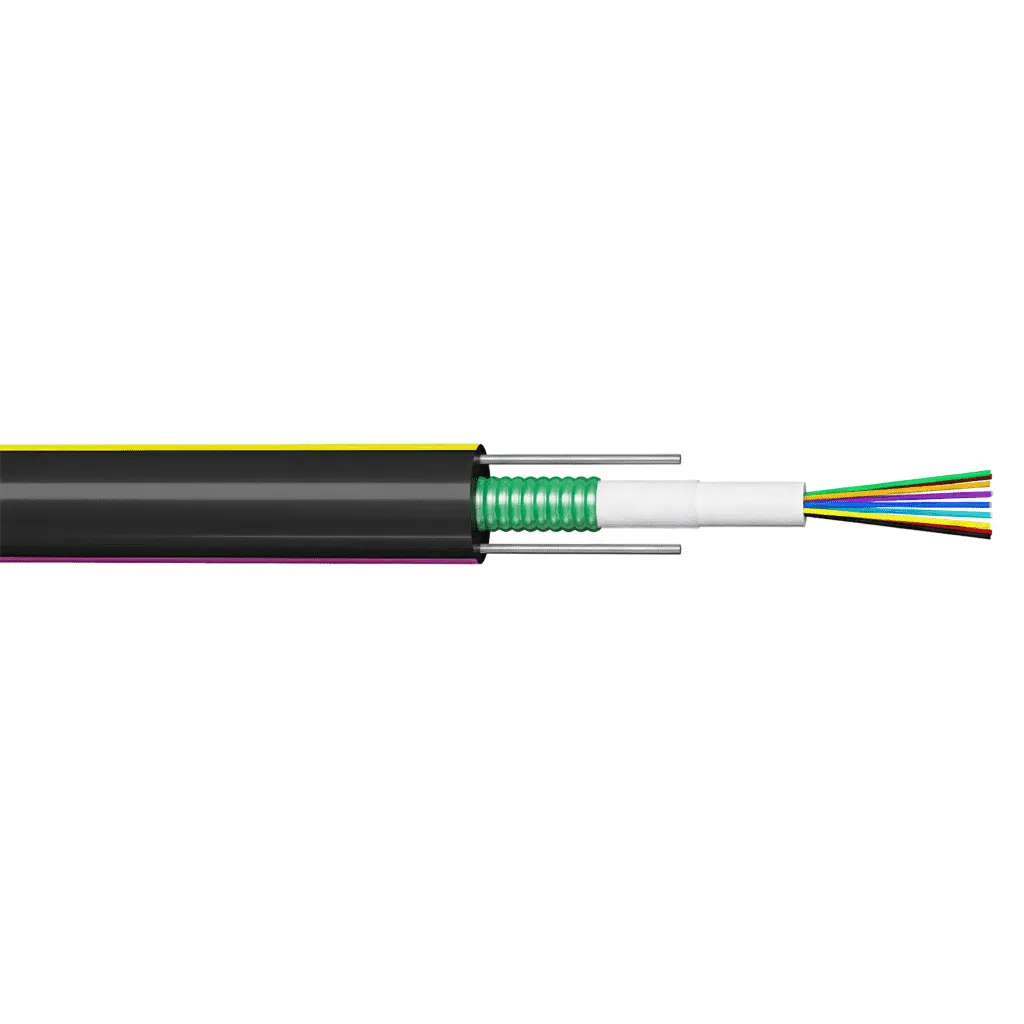

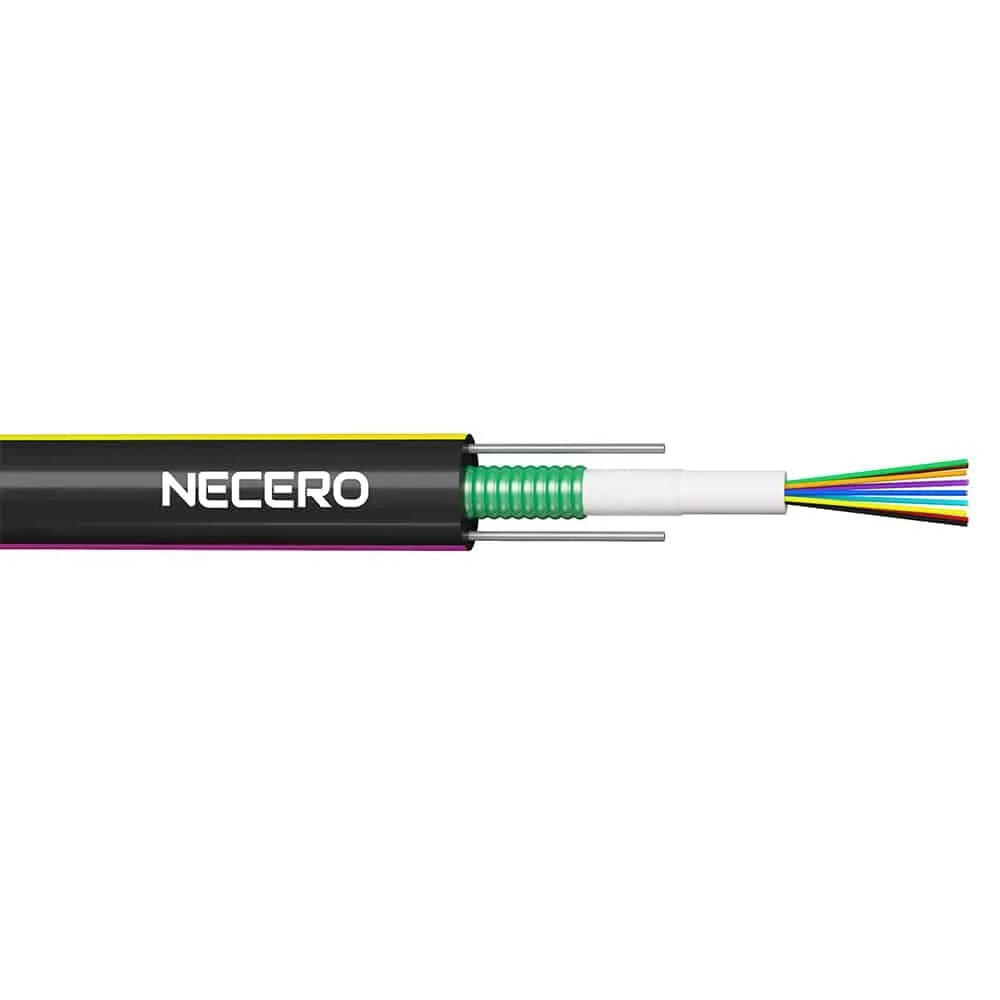

Light-armored Cable（GYXTW）

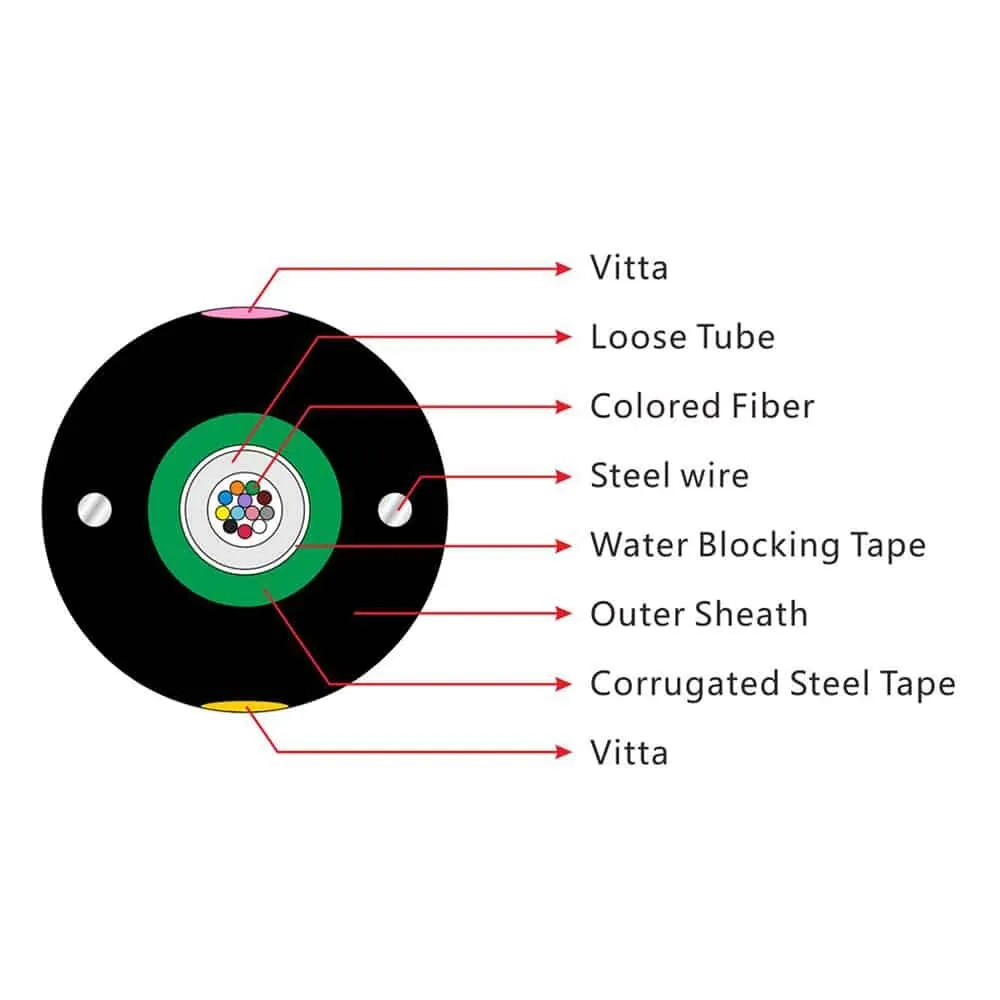

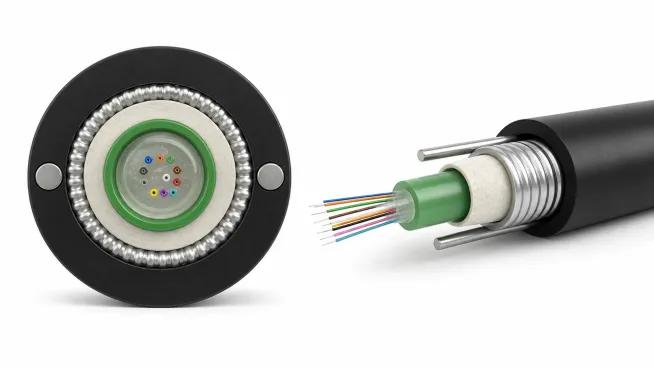

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.

Characteristics

Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility
PSP enhancing moisture-proof
Two parallel steel wires ensure tensile strength
Small diameter, light weight and friendly installation
Long delivery length

Standards

GYXTW cable complies with Standard YD/T 769-2003.

Optical Characteristics

	G.652	G.655	50/125µm	62.5/125µm
Attenuation (+20°C)
@850nm			≤3.0 dB/km	≤3.0 dB/km
@1300nm			≤1.0 dB/km	≤1.0 dB/km
@1310nm	≤0.36 dB/km	≤0.40 dB/km
@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth (Class A)
@850nm			≥500 MHz·km	≥200 MHz·km
@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture			0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength	≤1260nm	≤1480nm

Technical Parameters

Cable Type	Fiber Count	Cable Diameter mm	Cable Weight kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100mm	Bending Radius Static/Dynamic mm
GYXS/GYXTW-2~12	2~12	10.0	105	600/1500	300/1000	10D/20D
GYXS/GY XTW-2~12	2~12	10.6	124	1000/3000	1000/3000	10D/20D
GYXS/GY XTW-14~24	14~24	12.5	149	1000/3000	1000/3000	10D/20D
GYXS/GY XTW-26~36	26~36	14.0	190	1000/3000	1000/3000	10D/20D
GYXS/GY XTW-38~48	38~48	15.0	216	1000/3000	1000/3000	10D/20D
