Non-metallic Strength Member Non-armored Cable(GYFTA)

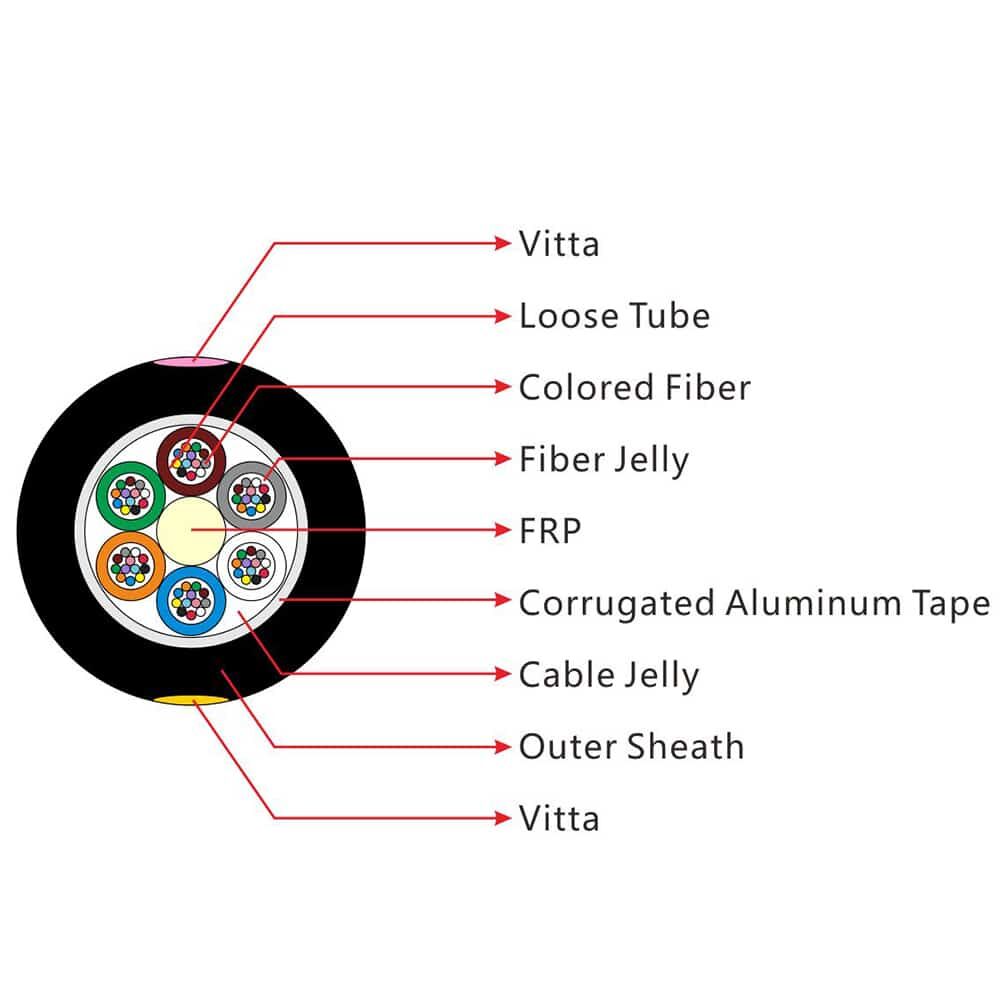

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After an Aluminum Polyethylene Laminate (APL) moisture barrier is applied around the cable core, the cable is completed with a PE sheath.
DESCRITION OF PRODUCT
Characteristics
- Good mechanical and temperature performance.
- Special tube filling compound ensure a critical protection of fiber.
- Specially designed compact structure is good at preventing loose tubes from shrinking.
- Excellent crush resistance.
- The following measures are taken to ensure the cable watertight:
- Single Fiber Reinforced Plastic as the central strength member.
- Loose tube filling compound.
- 100% cable core filling.
- APL moisture barrier.
Standards
GYFTA cable complies with Standard YD/T 901-2001 as well as IEC 60794-1.
Optical Characteristics
| G.652 | G.655 | 50/125μm | 62.5/125μm | |
|---|---|---|---|---|
| Attenuation (+20°C) | ||||
| @850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | ||
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | ||
| @1550nm | ≤0.22 dB/km | ≤0.23 dB/km | ||
| Bandwidth (Class A) | ||||
| @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
| @1300nm | ≥1000 MHz·km | ≥500 MHz·km | ||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | ||
| Cable Cut-off Wavelength | ≤1260nm | ≤1480nm |
Technical Parameters
| Cable Type | Fiber Count | Tubes | Fillers | Cable Diameter (mm) | Cable Weight (kg/km) | Tensile Strength Long/Short Term (N) | Crush Resistance Long/Short Term (N/100mm) | Bending Radius Static/Dynamic (mm) |
|---|---|---|---|---|---|---|---|---|
| GYFTA-2~6 | 2~6 | 1 | 5 | 11.4 | 108 | 400/1000 | 300/1000 | 10D/20D |
| GYFTA-7~12 | 7~12 | 2 | 4 | 11.4 | 108 | 400/1000 | 300/1000 | 10D/20D |
| GYFTA-14~18 | 14~18 | 3 | 3 | 11.4 | 108 | 400/1000 | 300/1000 | 10D/20D |
| GYFTA-20~24 | 20~24 | 4 | 2 | 11.4 | 108 | 400/1000 | 300/1000 | 10D/20D |
| GYFTA-26~30 | 26~30 | 5 | 1 | 12.8 | 134 | 400/1000 | 300/1000 | 10D/20D |
| GYFTA-32~36 | 32~36 | 6 | 0 | 12.8 | 134 | 400/1000 | 300/1000 | 10D/20D |
| GYFTA-38~48 | 38~48 | 6 | 0 | 12.8 | 134 | 600/1500 | 300/1000 | 10D/20D |
| GYFTA-50~60 | 50~60 | 8 | 0 | 14.8 | 176 | 600/1500 | 300/1000 | 10D/20D |
| GYFTA-62~72 | 62~72 | 9 | 1 | 16.8 | 255 | 600/1500 | 300/1000 | 10D/20D |
| GYFTA-74~84 | 74~84 | 7 | 1 | 14.8 | 176 | 600/1500 | 300/1000 | 10D/20D |
| GYFTA-86~96 | 86~96 | 8 | 0 | 14.8 | 176 | 1000/3000 | 300/1000 | 10D/20D |
| GYFTA-98~108 | 98~108 | 9 | 1 | 17.1 | 266 | 1000/3000 | 300/1000 | 10D/20D |
| GYFTA-110~120 | 110~120 | 10 | 0 | 17.1 | 266 | 1000/3000 | 300/1000 | 10D/20D |
| GYFTA-122~132 | 11 | 1 | 19.2 | 279 | 1000/3000 | 300/1000 | 10D/20D | |
| GYFTA-134~144 | 12 | 0 | 19.2 | 279 | 1000/3000 | 300/1000 | 10D/20D |
