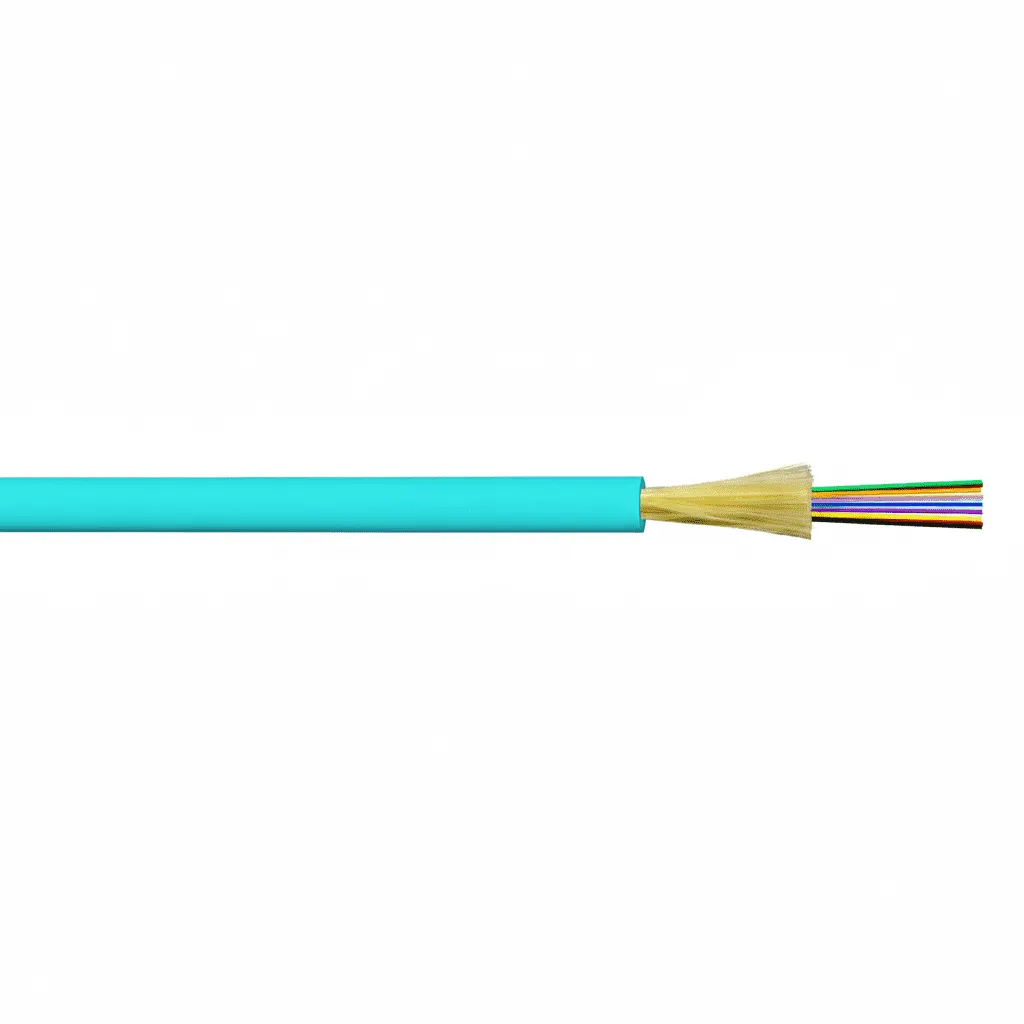

Mini-bundle indoor fiber optic cable
GJFV Current cable
A compact indoor mini-bundle construction with colored fibers and aramid yarn. Specify the fiber count, access method and final jacket requirements for your application.
INDOOR CONNECTIONS
GJFVMini-bundle indoor fiber optic cable
A compact indoor mini-bundle construction with colored fibers and aramid yarn. Specify the fiber count, access method and final jacket requirements for your application.
- Starting route
- Indoor routing
- Configuration
- Confirm fiber, construction and jacket
- Order basis
- Approved specification and acceptance criteria
Not sure it fits? Start with your installation
Production knowledgeCable-making equipment experience.
One supplier contactPayment, acceptance and delivery.
A clear order basisDrawing, specification and agreed checks.
Start with where
the cable will run.
Select a starting point to see what needs to be confirmed for your project.
WHAT TO CONFIRM
A few details make the choice clearer.
Select your route to see the questions that matter for this cable.
- Installation method and mechanical loads
- Fiber type, count and network requirements
- Jacket, protection and acceptance criteria

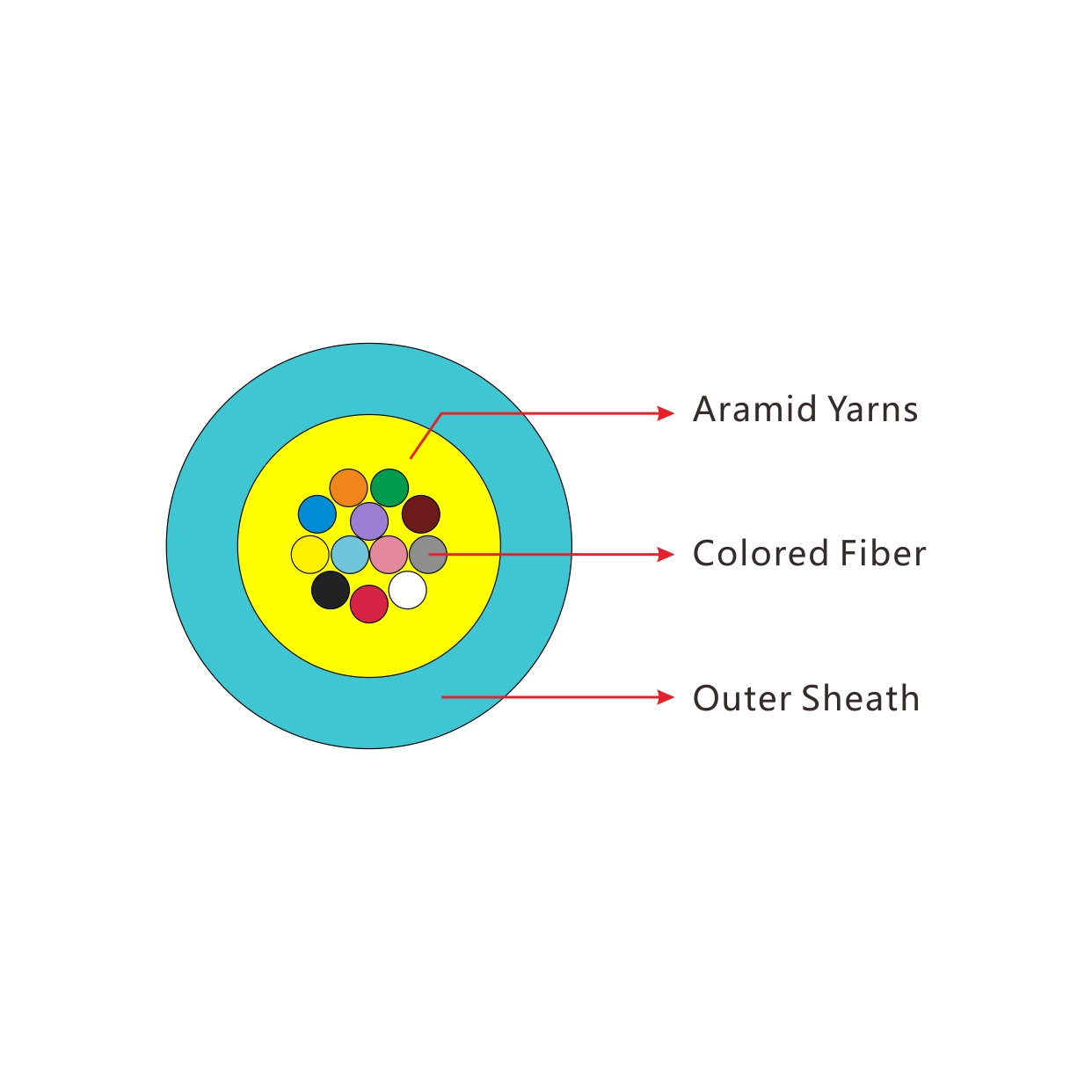

Every layer has a purpose.
Review the cable components, then confirm the drawing for the configuration you intend to order.
The approved cable drawing defines the final dimensions and materials.
Colored optical fibers
The cable listing describes 250 μm colored fibers.
Specifications, with context.
Use these references to frame your requirement. The quotation and approved cable datasheet define the product supplied.
GJFV configuration guide
Start with the construction and installation requirements below.
- Cable construction
- Colored optical fibers · Aramid yarn · Compact outer jacketThe approved drawing defines materials, dimensions and tolerances.
- Optical configuration
- Specify the fiber category and countSelect against the network design, wavelengths and acceptance limits.
- Mechanical configuration
- Match the installation conditionsTensile, crush and bending limits depend on the complete cable construction.
Optical selection reference
Select the fiber and finished cable separately
G.652 describes single-mode fiber and cable; G.657 addresses bending-loss-insensitive single-mode fiber. Ask for the precise category and the finished-cable test limits needed by your network. For multimode requirements, state the OM category and link design.
G.652 attenuation limits are not a blanket specification for short indoor cables, jumpers or drop cables. Fiber bending performance also does not determine the minimum bend radius of a finished cable.
Sources & scope
Public technical references checked September 2026. Manufacturer examples illustrate a construction; they do not identify HONGKAI’s source factory or establish the specification of your order.
Compare the construction.
Then narrow your shortlist.
Keep the route and protection requirements in view when you compare cable families.
Simplex tight-buffered indoor cable
GJFJV SX
A simplex indoor connection built around a tight-buffered fiber, aramid yarn and a PVC or LSZH jacket. Match the fiber, cable diameter and jacket to the termination plan.
Paired indoor fiber optic cable
GJFJV Duplex
A duplex indoor cable for paired fiber connections. Review the unit layout, fiber type, termination method and jacket requirements before ordering.
Follow the equipment route for this cable.
GJFV · direct-colored-fiber mini-bundle — from fiber preparation to agreed acceptance and delivery. See HONGKAI equipment and process references matched to the listed construction.
The functions below explain how this construction is made. They are not a fixed machine count or a final equipment specification.
- 01
Fiber coloring & preparation
Start with the approved optical fiber. Apply and cure the specified identification colors, then rewind; if colored fiber is purchased, verify the incoming identification and package instead.
- 02
Colored-fiber bundle payoff
Gather the approved colored fibers directly under controlled tension. This listed construction does not require an upstream tight buffer.
- 03
Aramid reinforcement
Feed and distribute the specified aramid yarn around the protected optical unit. Yarn specification, tension and arrangement follow the approved mechanical design.
- 04
Compact indoor jacket extrusion
Apply the approved compact PVC or LSZH jacket around the reinforced fiber bundle, then cool, monitor, mark and take up.
- 05
Inspection & delivery preparation
Complete the agreed optical and mechanical checks, inspection records, lengths, marking and packing. HONGKAI handles the agreed acceptance inspection and delivery; process videos are not batch test records.
The HK-60 footage is a related mini-cable extrusion reference, not the exact HK-50 GJFV arrangement. A tight-buffered variant would require a separately reviewed route. Final materials, equipment interfaces and acceptance follow the approved drawing and order.
Optical fiber coloring & rewinding
HONGKAI coloring and rewinding footage: identification ink is applied and cured before the fiber is rewound. Already-colored input can enter the next approved production stage. Equipment and process reference only. Not proof of the manufacturing source, full equipment configuration or acceptance of your cable batch.
Loads YouTube when you press play.Watch on YouTube
Only matching process functions have video controls. Other stages retain their explanation where suitable footage has not been established. These clips are not one continuous factory tour or a batch inspection record.
Independent factories manufacture the finished cable; HONGKAI handles customer-facing supply, payment, agreed acceptance inspection and delivery. Some equipment customers also manufacture the cables we supply. The actual source, specification and acceptance requirements are confirmed for each order.
One partner for your finished-cable order.
HONGKAI connects cable-making equipment experience with finished-cable supply. Work with us on your requirement, then keep payment, acceptance inspection and delivery with HONGKAI.
A production perspective on cable selection
Our equipment business gives the cable discussion a practical starting point: how the fiber, reinforcement, protection and jacket fit the required construction.
A direct relationship with your supplier
HONGKAI is your customer-facing supplier. In our usual supply arrangement, you pay HONGKAI, and we handle acceptance inspection and delivery.
An agreed basis for acceptance
Set the cable drawing, specification, inspection scope and required records in the order documents, so the supply is assessed against your agreed requirement.
Who makes the finished cable?
Independent factories in China that use HONGKAI cable-making equipment. HONGKAI is the supplier, not the finished-cable manufacturer; the actual manufacturing source is confirmed for your order.
What establishes product acceptance?
The agreed cable specification, inspection scope and order records. Using HONGKAI equipment is a production relationship, not a finished-product certification.
Planning your own cable production?
HONGKAI also supplies cable-making equipment and production-project support. Start from the cable drawing, materials and production requirements.
Why source finished cable through HONGKAI?
HONGKAI combines cable-making equipment experience with customer-facing supply responsibility. Some of our equipment customers also manufacture finished cables supplied through HONGKAI. You work with HONGKAI on your requirement, payment, agreed acceptance inspection and delivery. The actual manufacturing source and specification are confirmed for your order.
How do I know whether GJFV fits my project?
A compact indoor mini-bundle construction with colored fibers and aramid yarn. Specify the fiber count, access method and final jacket requirements for your application. Share your route, quantity, destination and any drawing or customer specification so the configuration can be reviewed.
Is HONGKAI the manufacturer of this finished cable?
HONGKAI supplies finished fiber optic cables and handles payment, acceptance inspection and delivery. The cables are manufactured by independent factories in China using HONGKAI cable-making equipment. The actual manufacturing source and acceptance requirements are confirmed for each order.
Who receives payment and handles acceptance and delivery?
For finished cable orders, HONGKAI receives payment and handles acceptance inspection and delivery. The actual manufacturer, specification and acceptance requirements are confirmed for your order.
What if I do not know the model or specification?
You can enquire without selecting a model. Send the route, intended connection, approximate quantity or a drawing. We will help identify the information needed for selection.
Can HONGKAI also help with cable-making equipment?
Yes. HONGKAI also supplies cable-making equipment and production-project support. The equipment configuration follows your cable drawing, materials and production requirements.
