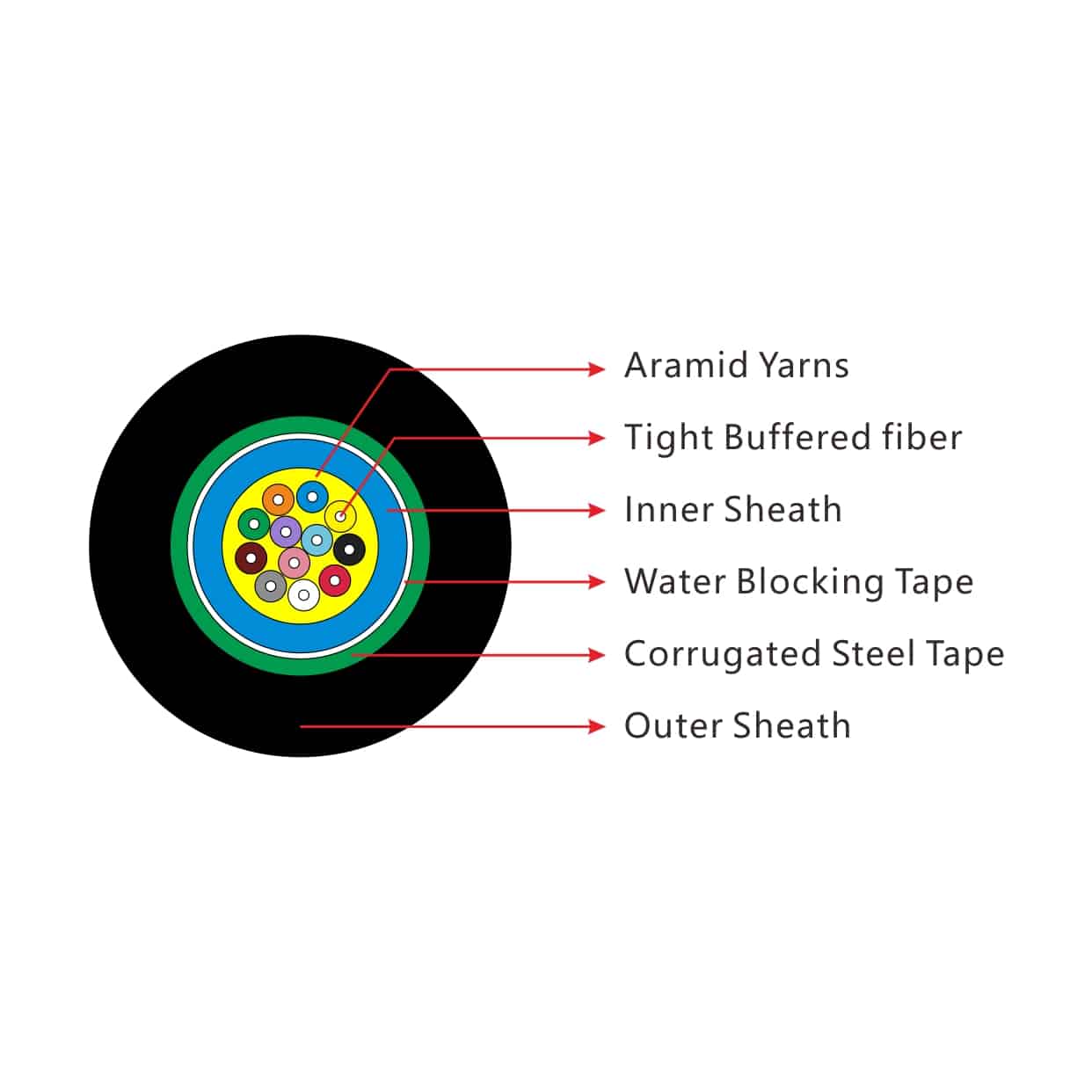

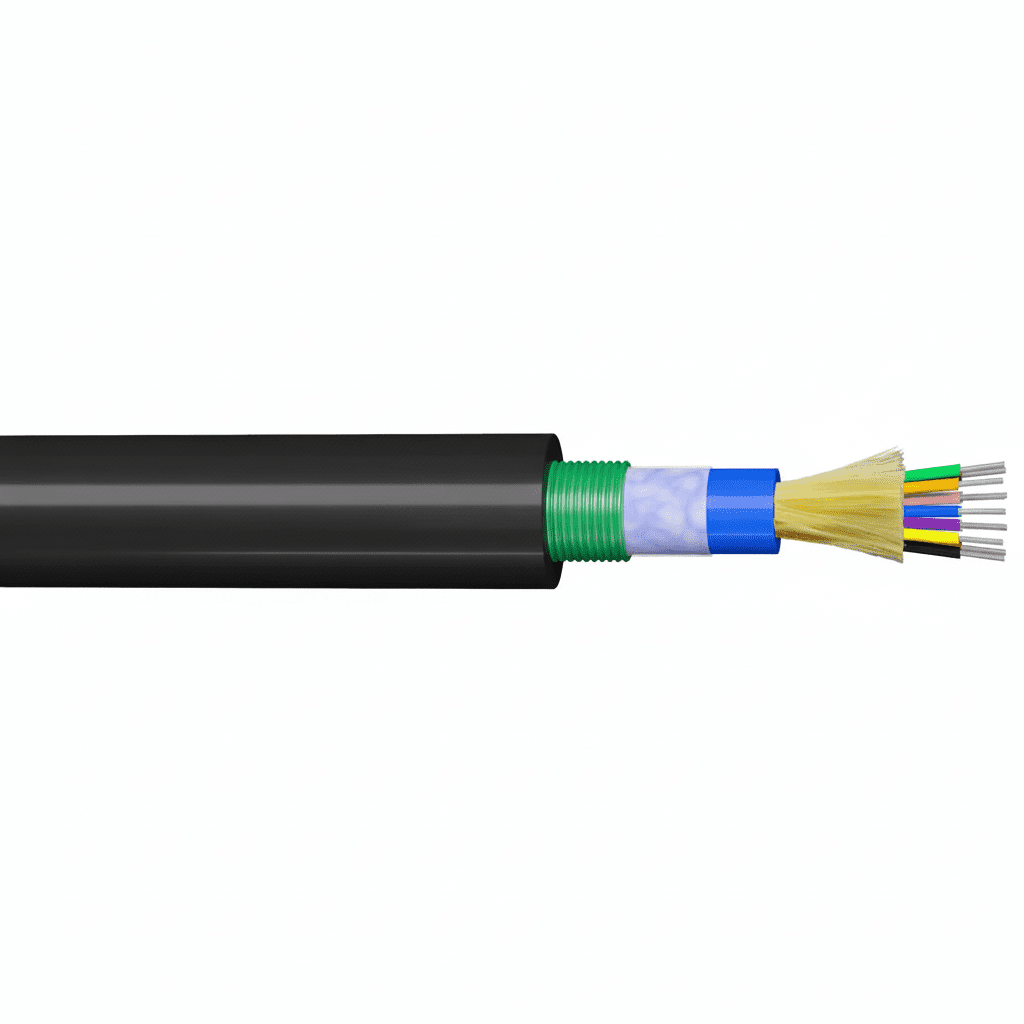

Indoor Steel Armored Fiber Optic Cable (GJFJH53)
·Multicore fibers with armor outer jacket to enhance the attribute of crushing resistance and anti rodent.
· High-strength aramid-reinforced high-performance jacket material.
·Good mechanical and environmental performance.
·Excellent Transverse water-blocking.
DESCRITION OF PRODUCT
Characteristics
- Small diameter, light weight and friendly.
- High tensile strength of aramid yarn meet the requirements of self-supporting and reduce the installation cost.
- Good mechanical and temperature performance.
Standards
GJJFTC8Y cable complies with Standard YD/T11155-2011, YDT 1770-2008, IEC794 etc.
Optical Characteristics
| G.652 | G.655 | 50/125μm | 62.5/125μm | |
|---|---|---|---|---|
| Attenuation (+20°C) | ||||
| @850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | ||
| @1310nm | ≤0.36 dB/km | ≤0.36 dB/km | ||
| @1550nm | ≤0.22 dB/km | ≤0.23 dB/km | ||
| Bandwidth (Class A) | ||||
| @850nm | ≥500 MHz·km | ≥500 MHz·km | ||
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | ||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | ||
| Cable Cut-off Wavelength | ≤1260nm | ≤1480nm |
Technical Parameters
| Cable Type | Fiber Count | Cable Diameter (mm) |
Cable Weight (kg/km) |
Tensile Strength Long/Short Term (N) |
Crush Resistance Long/Short Term N/100m |
Bending Radius Static/Dynamic (mm) |
|---|---|---|---|---|---|---|
| GJJFTC8Y | 2 | 3.5 x 5.5 | 19 | 200/400 | 100/200 | 30D/15D |
| GJJFTC8Y | 4 | 4.0 x 6.0 | 26 | 200/400 | 100/200 | 30D/15D |
| GJJFTC8Y | 6 | 5.0 x 7.0 | 30 | 200/400 | 100/200 | 30D/15D |
| GJJFTC8Y | 8 | 6.0 x 9.0 | 32 | 200/400 | 100/200 | 30D/15D |
| GJJFTC8Y | 12 | 6.5 x 9.5 | 40 | 200/400 | 100/200 | 30D/15D |
