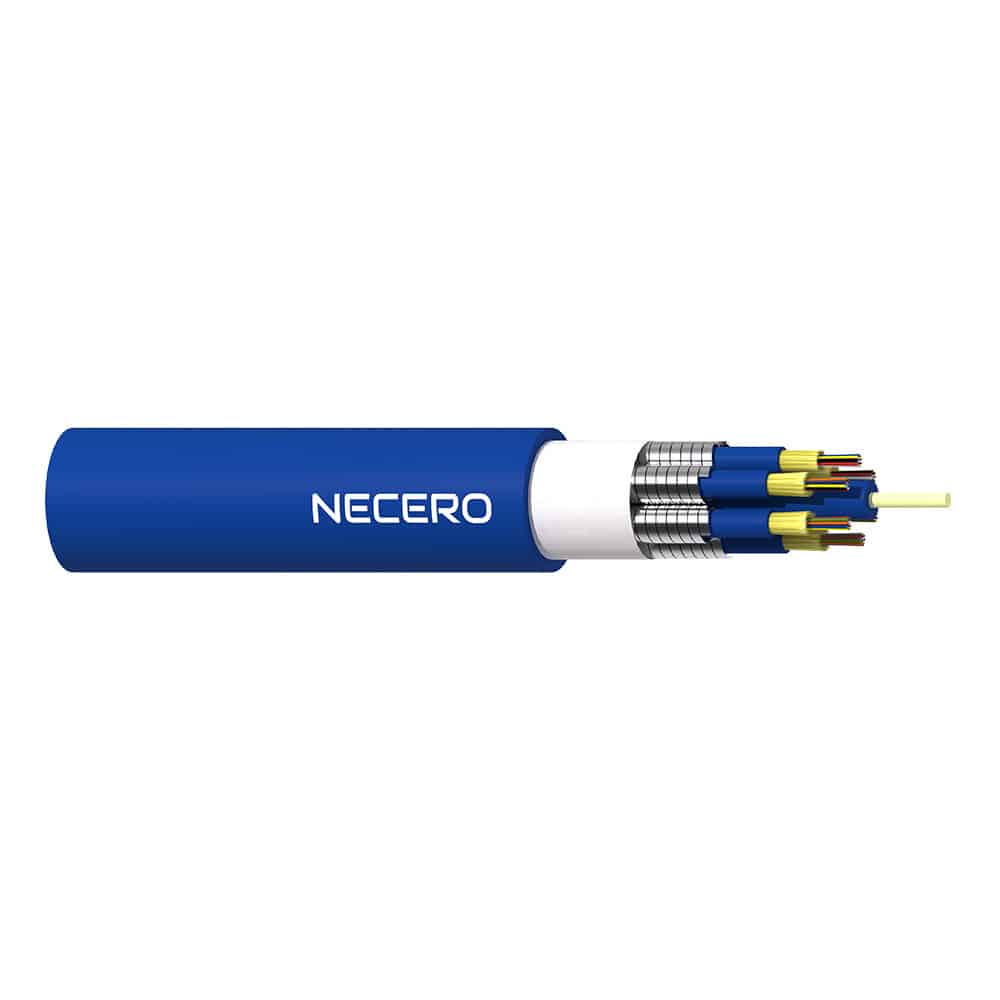

Indoor multi-core bundle type armored cable (GJAFKV)
The structure of the optical fiber cable is a multi-strand aramid fiber reinforced with a multi-core bundle mini ф250μm optical fiber surface. A layer of PVC or LSZH inner sheath is extruded on the stranded surface as a subunit, and the subunit is wound with a layer of steel wire armor, The sub-unit and the non-metallic reinforcements FRP (and possible mats) are stranded in a circle, wrapped with a dry water-blocking tape between the core and the sheath, and finally, the PVC (or LSZH) sheath is extruded cable.
This cable is used across different project and manufacturing stages — from network deployment to in-house cable production.
Telecom & Power Project Contractors
Reliable finished cable supply for overhead network deployment, utility communication projects, and infrastructure integration.
Optical Cable Manufacturers
Used to supplement production capacity, expand product range, or validate new cable designs before scaling.
New Entrants to Cable Manufacturing
Start with finished cable supply, then gradually move toward in-house production with equipment and raw material support.
DESCRITION OF PRODUCT
- Miniature cable, high-strength aramid reinforced, high-performance jacket material protection.
- Bending radius is small, light weight, soft, flexible, easy to follow.
- Flat wire armored to improve the optical cable compression and anti-rat ability.
- Has good mechanical and environmental performance.
- Flame retardant or non-flame retardant outer jacket to provide good safety protection.
- Various conventional connector products.
- Pigtail, jumper.
- Optical communication equipment room, optical patch panels, fiber to the desktop and other light even.
- Optical connection of optical equipment, instruments, etc.
- Indoor horizontal wiring, vertical wiring within the building; LAN network, multi-information point connection.
- Long-distance, outdoor, building wiring, trunking optical hybrid optical connection.
- The backbone of the tail cable, access to the equipment inside the building.
- Small installation space and occasional wiring.
| G.652 | G.655 | 50/125 μm | 62.5 / 125 μm | |
|---|---|---|---|---|
| Attenuation (+20°C) | ||||
| @ 850nm | ≤3.0dB / km | ≤3.0dB / km | ||
| @ 1300nm | ≤1.0dB / km | ≤1.0dB / km | ||
| @ 1310nm | ≤0.36dB / km | – | ||
| @ 1550nm | ≤0.22dB / km | ≤0.23dB / km | ||
| Bandwidth (Class A) | ||||
| @ 850 | ≥ 500MHZ · km | ≥ 500MHZ · km | ||
| @ 1300 | ≥1000MHZ · km | ≥600MHZ · km | ||
| Numerical aperture | 0.200 ± 0.015NA | 0.275 ± 0.015 NA | ||
| Cable cut-off wavelength | ≤1260nm | ≤1480nm |
| Cable Type | Fiber number Fiber Count |
Subunit outer diameter Subunit Diameter mm |
Cable diameter Cable a Diameter mm |
Cable weight Cable Weight Kg/km |
Allowable tension Tensile Strength Long / Short Term N |
Allowable pressure Crush Resistance Long / Short Term N / 100m |
Bending radius Static / Dynamic mm |
|---|---|---|---|---|---|---|---|
| GJFJV + SV | 72 | 3.0 | 14.0 | 42 | 300/750 | 200/1000 | 20D / 10D |
| GJFJV + SV | 144 | 3.0 | 18.0 | 65 | 300/750 | 200/1000 | 20D / 10D |
| Transport Temperature | -20°C ~ +60°C |
| Storage Temperature | -20°C ~ +60°C |
| Installation Temperature | -5°C ~ +50°C |
| Operating Temperature | -20°C ~ +60°C |
