FRP-reinforced steel-armored outdoor cable
GYFTY53 Current cable

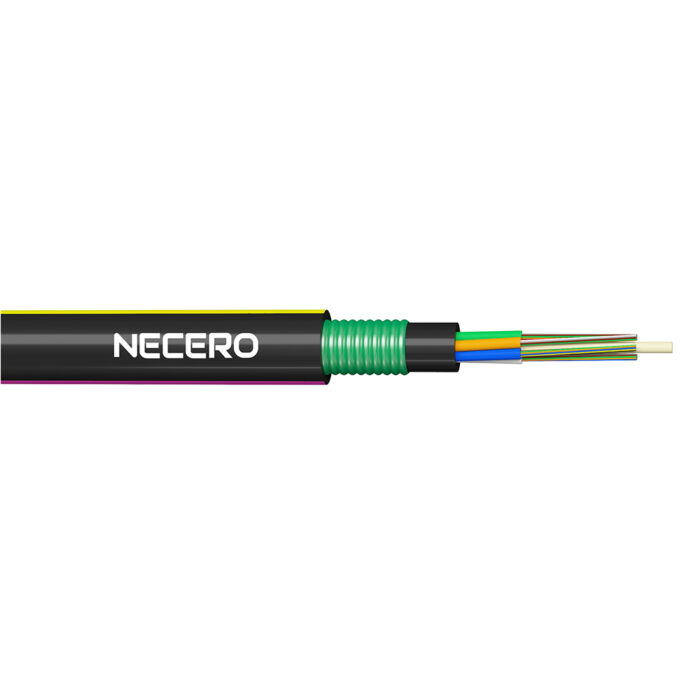

A stranded cable with an FRP center, inner sheath, steel-tape armor and outer PE jacket. Confirm armor, water protection and mechanical acceptance requirements for the route.
OUTDOOR · ARMORED CONSTRUCTION
GYFTY53FRP-reinforced steel-armored outdoor cable
A stranded cable with an FRP center, inner sheath, steel-tape armor and outer PE jacket. Confirm armor, water protection and mechanical acceptance requirements for the route.
- Starting route
- Buried / duct route review
- Configuration
- Confirm fiber, construction and jacket
- Order basis
- Approved specification and acceptance criteria
Not sure it fits? Start with your installation
Production knowledgeCable-making equipment experience.
One supplier contactPayment, acceptance and delivery.
A clear order basisDrawing, specification and agreed checks.
Start with where
the cable will run.
Select a starting point to see what needs to be confirmed for your project.
WHAT TO CONFIRM
A few details make the choice clearer.
Select your route to see the questions that matter for this cable.
- Installation method and mechanical loads
- Fiber type, count and network requirements
- Jacket, protection and acceptance criteria
Every layer has a purpose.
Review the cable components, then confirm the drawing for the configuration you intend to order.
The approved cable drawing defines the final dimensions and materials.

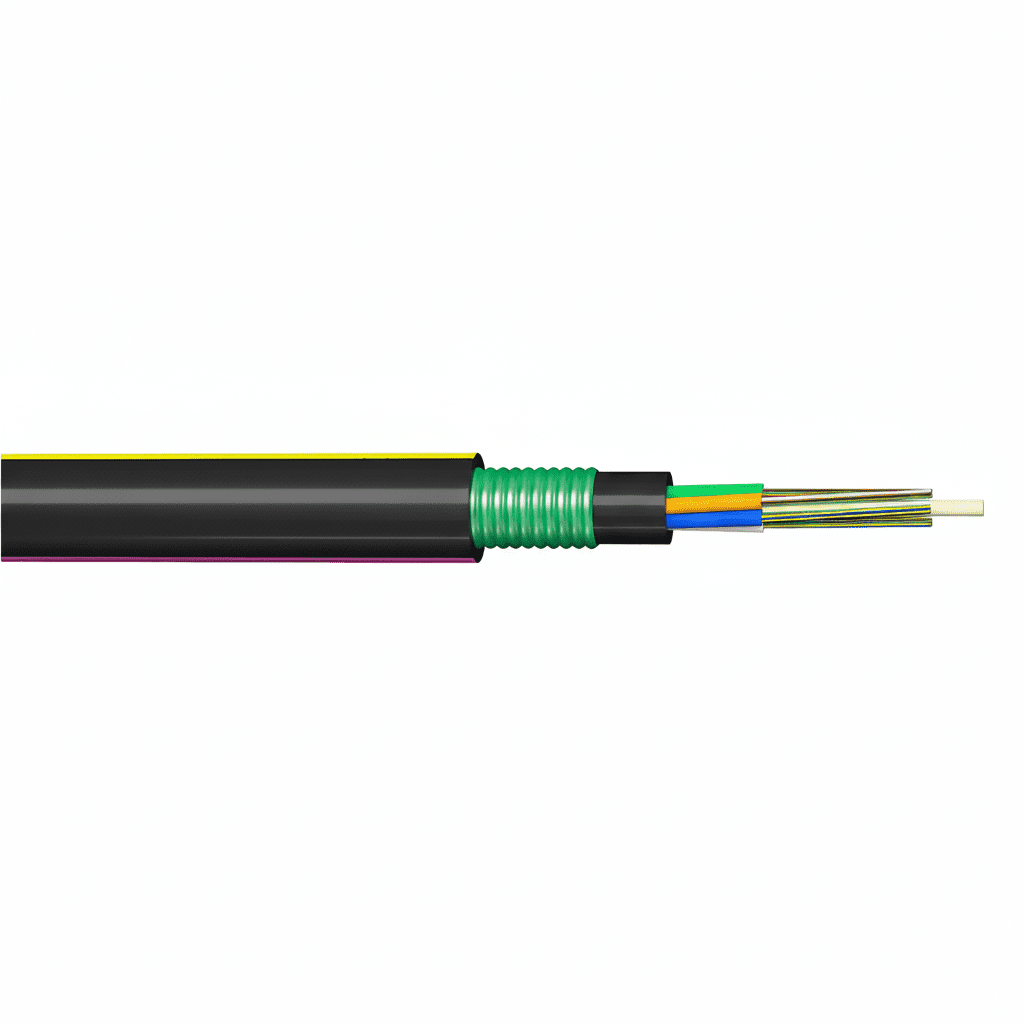

Stranded optical core
Loose tubes and fillers are arranged around an FRP center.
Specifications, with context.
Use these references to frame your requirement. The quotation and approved cable datasheet define the product supplied.
GYFTY53 configuration guide
Start with the construction and installation requirements below.
- Cable construction
- Stranded optical core · Inner PE sheath · Water blockingThe approved drawing defines materials, dimensions and tolerances.
- Optical configuration
- Specify the fiber category and countSelect against the network design, wavelengths and acceptance limits.
- Mechanical configuration
- Match the installation conditionsTensile, crush and bending limits depend on the complete cable construction.
Optical selection reference
If your selected fiber is G.652.D
- 1310–1625 nm
- ≤ 0.40 dB/kmG.652.D cable-attribute reference in ITU-T G.652 (08/2024), Table 2.
- 1530–1565 nm
- ≤ 0.30 dB/kmIncludes 1550 nm. These are standard limits, not a HONGKAI batch test result.
G.652 attenuation limits are not a blanket specification for short indoor cables, jumpers or drop cables. Fiber bending performance also does not determine the minimum bend radius of a finished cable.
Sources & scope
Public technical references checked September 2026. Manufacturer examples illustrate a construction; they do not identify HONGKAI’s source factory or establish the specification of your order.
Compare the construction.
Then narrow your shortlist.
Keep the route and protection requirements in view when you compare cable families.
Double-sheathed steel-armored cable
GYTY53
A stranded loose-tube cable with a central steel strength member, inner PE sheath, steel-tape protection and outer PE sheath. Review ground conditions and installation protection together.
Central loose-tube fiber optic cable
GYXTW
A central loose-tube construction with steel-tape protection, parallel steel wires and a PE outer jacket. Start with your installation route, then confirm the mechanical and optical requirements.
Follow the equipment route for this cable.
GYFTY53 · double-sheathed armored outdoor — from fiber preparation to agreed acceptance and delivery. See HONGKAI equipment and process references matched to the listed construction.
The functions below explain how this construction is made. They are not a fixed machine count or a final equipment specification.
- 01
Fiber coloring & preparation
Start with the approved optical fiber. Apply and cure the specified identification colors, then rewind; if colored fiber is purchased, verify the incoming identification and package instead.
- 02
Loose-tube extrusion
Protect the fibers inside the specified loose tube. Confirm tube material, dimensions, excess fiber length and filling or dry water-blocking construction.
- 03
Loose-tube core stranding
Assemble the tubes and fillers around the approved FRP center, with the specified binding and core water-blocking system.
- 04
Inner PE sheath
Apply the specified inner sheath around the prepared optical core before the outer protection stages. Confirm the inner-sheath material and dimensions from the double-sheathed drawing.
- 05
Water blocking & corrugated steel tape
Apply the approved steel-tape protection and water-blocking package before outer sheathing. Confirm tape type, forming or corrugation, overlap and the required cable drawing.
- 06
Outer PE sheath & take-up
Apply the specified outer sheath, cool, check dimensions, mark and take up. Material grade, diameter, tooling and delivery length follow the approved order.
- 07
Inspection & delivery preparation
Complete the agreed optical and mechanical checks, inspection records, lengths, marking and packing. HONGKAI handles the agreed acceptance inspection and delivery; process videos are not batch test records.
Keep the inner sheath, water-blocking / steel protection and outer sheath as distinct functions. The shared footage does not verify both extrusion passes or the corrugated-tape arrangement. Final materials, equipment interfaces and acceptance follow the approved drawing and order.
Optical fiber coloring and rewinding
HONGKAI coloring and rewinding footage: identification ink is applied and cured before the fiber is rewound. Already-colored input can enter the next approved production stage. Equipment and process reference only. Not proof of the manufacturing source, full equipment configuration or acceptance of your cable batch.
Loads YouTube when you press play.Watch on YouTube
Only matching process functions have video controls. Other stages retain their explanation where suitable footage has not been established. These clips are not one continuous factory tour or a batch inspection record.
Independent factories manufacture the finished cable; HONGKAI handles customer-facing supply, payment, agreed acceptance inspection and delivery. Some equipment customers also manufacture the cables we supply. The actual source, specification and acceptance requirements are confirmed for each order.
Cable Supply with Clear Responsibility
HONGKAI supports cable machinery and production projects, and supplies finished fiber optic cables. Our finished cables are produced by independent factories in China that use HONGKAI equipment.
For orders supplied by HONGKAI, we handle the quotation, customer payment, agreed acceptance inspection and delivery coordination.
One Point of Contact for Your Order
Work with HONGKAI on your cable requirements, quotation and order arrangements. Specifications, payment terms and delivery responsibilities are confirmed through one supplier.
Sourcing Informed by Equipment Experience
Our cable-equipment experience provides a practical basis for discussing cable construction and production requirements with supplying factories. This helps connect your application requirements with the proposed cable design.
Acceptance Agreed for Your Order
Acceptance criteria, inspection scope and required supporting records are agreed for the order. HONGKAI handles acceptance inspection against that agreed scope before delivery.
Coordinated Delivery Support
HONGKAI coordinates delivery arrangements and order communication under the agreed commercial terms. Lead time, packing requirements and required shipping documents are confirmed as part of the order scope.
Who makes the finished cable?
Independent factories in China that use HONGKAI cable-making equipment. HONGKAI is the supplier, not the finished-cable manufacturer; the actual manufacturing source is confirmed for your order.
What establishes product acceptance?
The agreed cable specification, inspection scope and order records. Using HONGKAI equipment is a production relationship, not a finished-product certification.
SUPPLY & DELIVERY
HONGKAI Service Support
One point of contact for your cable requirements, agreed acceptance and delivery coordination.
Procurement & Communication
Work with one HONGKAI contact on cable requirements, quotation and order arrangements. We confirm the specification, payment terms and delivery responsibilities for your order.
Specifications & Acceptance
Discuss the cable construction and agree the acceptance criteria, inspection scope and required records before ordering. HONGKAI handles acceptance inspection against the agreed scope.
Delivery Coordination
Coordinate packing requirements, shipping documents and delivery arrangements through HONGKAI. Lead time and delivery responsibilities follow the confirmed commercial terms.
Service scope is defined in the confirmed quotation or order agreement.
Planning your own cable production?
HONGKAI also supplies cable-making equipment and production-project support. Start from the cable drawing, materials and production requirements.
Why source finished cable through HONGKAI?
HONGKAI combines cable-making equipment experience with customer-facing supply responsibility. Some of our equipment customers also manufacture finished cables supplied through HONGKAI. You work with HONGKAI on your requirement, payment, agreed acceptance inspection and delivery. The actual manufacturing source and specification are confirmed for your order.
How do I know whether GYFTY53 fits my project?
A stranded cable with an FRP center, inner sheath, steel-tape armor and outer PE jacket. Confirm armor, water protection and mechanical acceptance requirements for the route. Share your route, quantity, destination and any drawing or customer specification so the configuration can be reviewed.
Is HONGKAI the manufacturer of this finished cable?
HONGKAI supplies finished fiber optic cables and handles payment, acceptance inspection and delivery. The cables are manufactured by independent factories in China using HONGKAI cable-making equipment. The actual manufacturing source and acceptance requirements are confirmed for each order.
Who receives payment and handles acceptance and delivery?
For finished cable orders, HONGKAI receives payment and handles acceptance inspection and delivery. The actual manufacturer, specification and acceptance requirements are confirmed for your order.
What if I do not know the model or specification?
You can enquire without selecting a model. Send the route, intended connection, approximate quantity or a drawing. We will help identify the information needed for selection.
Can HONGKAI also help with cable-making equipment?
Yes. HONGKAI also supplies cable-making equipment and production-project support. The equipment configuration follows your cable drawing, materials and production requirements.
