What Key Machines Do You Need for Fiber Optic Cable Production?

Picture of Peter He
Peter He
Deliver high-quality fiber-optic cables with 4 core machines—coloring, coating, SZ stranding & sheathing.
Share Post:

Struggling to identify the essential equipment for fiber optic cable manufacturing? Setting up a production line can seem complex and costly if you choose the wrong machines.

Starting fiber optic cable production requires specific machines: fiber coloring/rewinding, secondary coating line, SZ stranding line, and a sheathing line. Each plays a vital role in creating high-quality, reliable cables for modern communication networks.

Fiber optic cable production process with 4 key machines

Understanding these core machines is the first step. As someone who helps businesses set up their cable manufacturing, I know how crucial each piece of equipment is. Let’s explore each process to see how they contribute to the final product and why choosing the right equipment matters for your success. Getting this right from the start saves a lot of headaches later on.

How Does Fiber Coloring and Rewinding Ensure Cable Quality?

Confused about why optical fibers need coloring? Incorrect fiber identification leads to installation errors and network downtime, costing time and money.

Fiber coloring assigns unique colors to individual fibers for easy identification during splicing and installation. The rewinding process ensures fibers are neatly spooled without damage, maintaining signal integrity before they move to the next production stage.

Fiber coloring and rewinding process with tension control

Think about installing a cable with dozens, maybe hundreds, of identical-looking fibers. It would be a nightmare! That’s where coloring comes in. It’s the first step after the bare fiber is drawn. We use specialized machines to apply a thin layer of UV-curable ink. This process needs precision – the color must be consistent and adhere well without affecting the fiber’s performance. After coloring, the fibers are carefully rewound onto bobbins. This isn’t just about neatness; it’s about maintaining the fiber’s integrity. The rewinding machine controls tension perfectly to prevent micro-bending or damage that could weaken the signal later.

The Coloring Process Explained

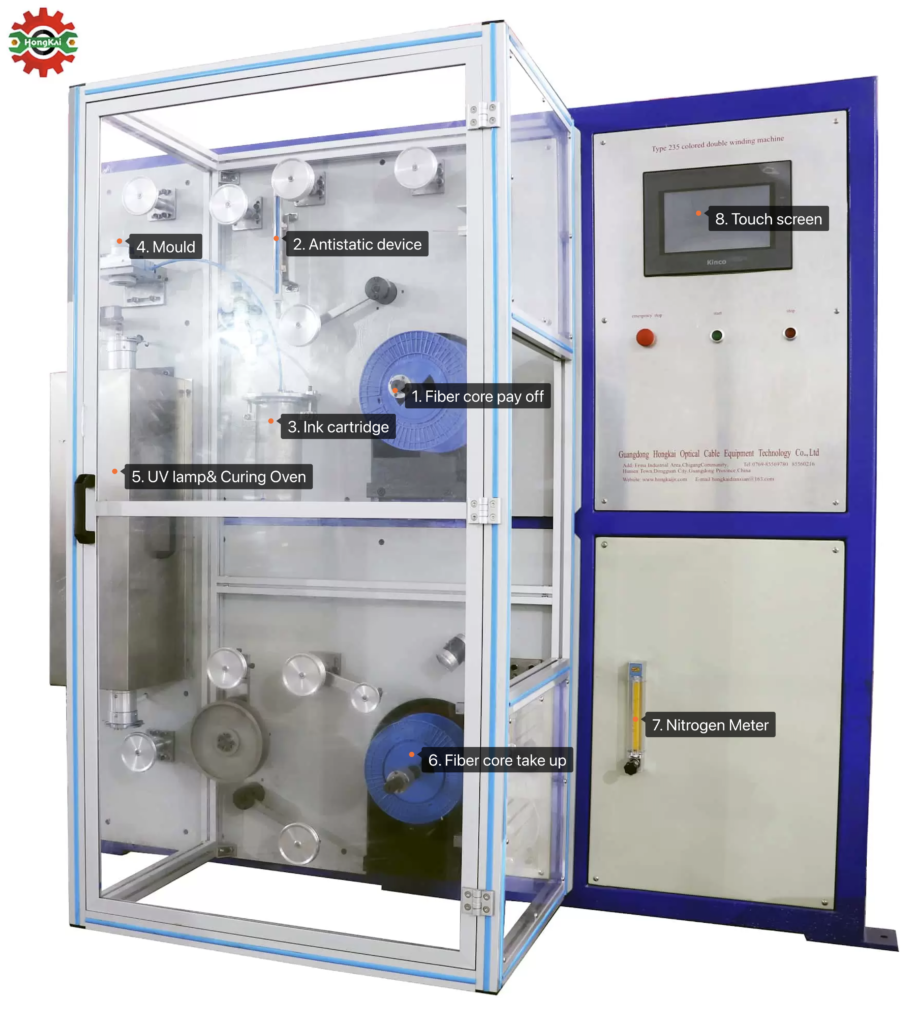

The coloring machine typically includes a payoff stand for the bare fiber spool, a cleaning unit to remove dust, the coloring applicator itself, a UV curing oven, a capstan to control speed, and the take-up rewinder. High-speed lines can color fiber quickly, often exceeding 1000 meters per minute. The key is uniform color application and rapid, complete ink curing. We need colors that meet international standards, like TIA-598-C, so technicians anywhere can understand them.

Importance of Rewinding Tension Control

After coloring and curing, the fiber goes to the rewinding section. If the tension is too high, it can stress the fiber. If it’s too low, the winding can be loose and unstable, leading to tangles or damage during transport to the next stage. Modern rewinders use sophisticated dancer arms or electronic feedback systems to maintain constant, precise tension. This ensures the fiber is ready for the secondary coating1 without any hidden defects introduced during coloring and rewinding.

Feature Importance Machine Focus
Color Coding Enables easy fiber identification Coloring Applicator
UV Curing Hardens ink quickly without damaging fiber UV Oven
Rewinding Prepares fiber for next stage Take-up Winder
Tension Prevents fiber stress or loose winding Tension Control System
Speed Determines production line output Capstan / Drive System

What’s the Role of Secondary Coating in Fiber Protection?

Worried about fragile optical fibers breaking during handling or installation? Bare fibers are highly vulnerable to physical stress and environmental factors.

Secondary coating adds a protective layer (loose tube or tight buffer) around the colored fibers. This layer shields the fibers from moisture, mechanical stress, and temperature changes, significantly enhancing the cable’s durability and lifespan.

Secondary coating line for fiber optics

Once the fibers are colored and rewound, they need more robust protection. The primary coating applied during fiber drawing is skinny, only about 250 microns in diameter, including the glass itself. It’s not enough for the rough handling of the cable. That’s where the secondary coating1 line comes in. This process applies another layer, significantly increasing the fiber’s resilience. There are two main approaches: loose tube and tight buffer. The choice depends entirely on the cable’s intended application.

Loose Tube vs. Tight Buffer Designs

In a loose tube design, several colored fibers (typically 6 or 12) are placed inside a plastic tube with a larger inner diameter. This tube is often filled with a water-blocking gel or uses water-swellable yarns. The fibers "float" loosely inside, providing excellent protection against external crush forces and temperature variations, as the fibers can move slightly within the tube. This design is ubiquitous for outdoor cables.

A tight buffer design involves extruding a thicker layer of plastic (often PVC or LSZH) directly onto each colored fiber, typically bringing its diameter up to 900 microns. This makes the fiber feel more like a thin wire, easier to handle, and to terminate directly with connectors. Tight buffered cables are generally used indoors for patch cords or building backbone applications where flexibility and ease of termination are key. Still, they offer less isolation from external stress than loose tubes.

Materials Used for Secondary Coating

The materials chosen for the secondary coating1 are critical. Materials like PBT (Polybutylene Terephthalate) are common for loose tubes because they offer good mechanical strength, chemical resistance, and stability over a wide temperature range. The filling gel inside is usually thixotropic, meaning it stays in place but allows fiber movement. For tight budgets, PVC is cost-effective for general indoor use. At the same time, LSZH (Low Smoke Zero Halogen) materials are required in many installations due to fire safety regulations, as they produce less smoke and no toxic halogen gases when burned.

Feature Loose Tube Design Tight Buffer Design Machine Focus
Structure Fibers inside oversized tube Plastic extruded directly onto fiber Extruder
Protection Excellent environmental & mechanical Good handling, less environmental Cooling Trough
Application Outdoor, Duct, Aerial Indoor, Patch Cords, Data Centers Material Selection
Handling Requires breakout/fanout kits Easier to terminate directly Diameter Control
Materials PBT, Gel/Swellable Yarns PVC, LSZH Extrusion Die Head

Why is SZ Stranding Crucial for Fiber Optic Cables?

Wondering how multiple fiber tubes fit into one cable without damage? Simply bundling them together causes stress and potential signal loss when the cable bends.

SZ stranding2 twists the buffered tubes (or tight buffered fibers) around a central strength member in alternating helical directions. This technique allows fibers extra length, preventing strain during cable bending and installation, ensuring reliable performance.

SZ stranding machine for fiber optic cables

After the fibers have their secondary coating1 (either as loose tubes or tight buffers), we need to assemble them into a cable core. If we just laid them straight along the cable length, any bending would directly stress the fibers inside. Optical fiber, being glass, doesn’t like tensile stress! The SZ stranding2 machine solves this problem elegantly. It winds the tubes (or tight buffered fibers) around a central member (like a GRP rod or steel wire) in a helical pattern. The "SZ" part means the direction of the helix reverses periodically (S-twist, then Z-twist).

The Mechanics of SZ Stranding

Imagine wrapping a string around a pencil. The string gets tightly bound if you keep wrapping in the same direction (a simple helix). But with SZ stranding2, the machine lays the tubes down in one helical direction for a certain length (say, 100mm), then reverses the twist direction for the next 100mm, and so on. This oscillating twist creates pockets of extra length for the tubes along the cable axis. When the cable bends, the tubes outside the bend can slide slightly within these pockets, using the extra length instead of stretching the fibers inside. It’s a clever way to build flexibility and strain relief into the cable core. The machine uses rotating carriages or planetary gear systems to achieve this precise oscillating lay.

Benefits Over Simple Bundling

Compared to just laying tubes parallel or using a simple helical twist (like in old copper cables), SZ stranding3 offers significant advantages for fiber optics. The primary benefit is improved bending performance and tensile strength without stressing the fibers. This is critical during installation, where cables are pulled through ducts or around corners. It also makes mid-span access easier – because the tubes aren’t tightly bound in one direction, a technician can open the jacket and access a specific tube more easily without disturbing the others as much. This design is fundamental to modern high-performance fiber optic cables.

Parameter Description Importance Machine Control
Stranding Type SZ (Oscillating Lay) Provides fiber excess length, flexibility Planetary Gear / Cages
Lay Length Distance for one complete helical turn (S or Z) Affects bending radius and excess fiber length Drive System Speed
Reversal Pitch Length between S-twist and Z-twist reversals Determines size of ‘pockets’ for movement Control System Logic
Central Member Provides tensile strength and anti-buckling (e.g., GRP) Core stability Payoff Tension
Binding Yarns Holds stranded tubes together before sheathing Maintains core geometry Binder Head Speed

How Does Sheathing Complete the Fiber Optic Cable Manufacturing Process?

Is your cable core vulnerable to the elements? Without a final protective layer, the stranded fibers are exposed to abrasion, moisture, UV radiation, and chemicals.

Sheathing involves extruding a final outer jacket PE, LSZH, or PVC) over the stranded cable core. This jacket provides the primary environmental and mechanical protection, determining the cable’s suitability for different installation environments (indoor/outdoor/duct).

Fiber optic cable sheathing line

The final step in making the cable is applying the outer jacket, or sheath. We have the SZ stranded core, possibly with water-blocking tapes or yarns wrapped around it, and now it needs its ultimate protection. The sheathing line does this job. It’s essentially an extensive extrusion line. The stranded core is pulled through the center of an extrusion die, and molten plastic is forced around it, forming a seamless outer layer. You see and handle this jacket when you work with the finished cable. Its properties are critical for the cable’s survival in its intended environment.

Common Sheathing Materials and Their Properties

The choice of sheathing material depends heavily on where the cable will be used.

  • Polyethylene (PE): Excellent moisture resistance and UV stability (mainly black PE). Very durable. Commonly used for outdoor and duct cables. Can be pretty stiff.
  • PVC (Polyvinyl Chloride): More flexible than PE, generally flame-retardant, and cost-effective. Often used for general-purpose indoor cables. However, it produces smoke and corrosive gases when burned.
  • LSZH (Low Smoke Zero Halogen): Designed for safety in indoor spaces, mainly populated areas like offices, data centers, or tunnels. It produces very little smoke and no toxic halogen compounds in a fire. Often mandated by building codes. It can be less flexible or durable than PE or PVC.

Intermediate jackets or metallic armor (like corrugated steel tape) are sometimes applied before the final outer sheath for extra mechanical protection, especially for direct burial cables.

The Extrusion Process for Sheathing

The sheathing line consists of a payoff for the stranded core, potentially an armoring station, the extruder itself (a screw mechanism that melts and pressurizes the plastic pellets), a crosshead die where the plastic forms around the core, a long cooling trough (usually filled with water) to solidify the jacket, diameter measurement tools, a capstan puller, and a take-up winder for the finished cable drum. Precise control over temperature, pressure, line speed, and cooling rate is essential to get a uniform jacket thickness and diameter without damaging the core inside. The final cable is often printed with identification markings during this stage.

Material Key Property Common Use Fire Safety Flexibility Machine Focus
PE UV/Moisture Resist. Outdoor, Duct Poor Medium Temp Control
PVC Flame Retardant Indoor (General) Medium Good Pressure Control
LSZH Low Smoke/Halogen Indoor (Safety) Good Medium-Good Material Drying
Armor Mechanical Protect. Direct Burial N/A Low Armoring Station

Conclusion

Setting up fiber optic cable production involves key stages: coloring, secondary coating, SZ stranding3, and sheathing. Understanding each machine’s role helps build a reliable manufacturing line for high-quality cables.



  1. Learn about the protective benefits of secondary coating, which significantly enhances fiber durability and lifespan.

  2. Discover how SZ stranding prevents damage to fibers during installation, ensuring reliable performance in communication networks.

  3. Explore the benefits of SZ stranding for improved performance and flexibility in fiber optic cables.
