FINAL PRODUCT'S description

5/5

What’s the Tight Buffered cable?

A tight buffered cable is an optical cable that has been wrapped in a buffer material. This buffer helps to protect the optical fibers from damage and makes the cable more durable.

The Tight Buffered Cable is the most basic step for Patch Cord cable

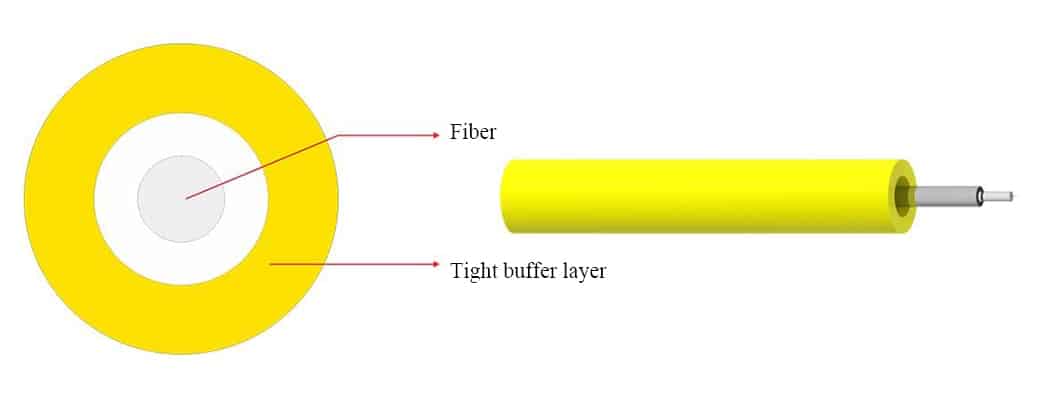

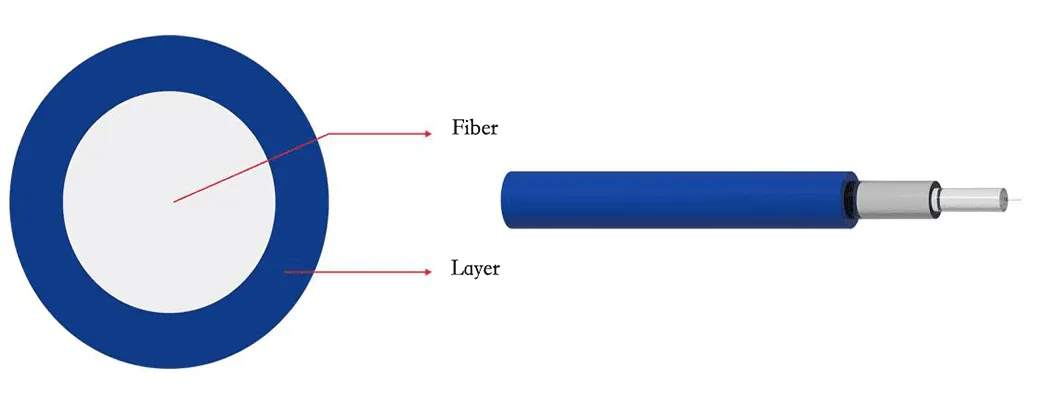

Structurally the Tight Buffered cable consists of the following components.

  1. Fiber core
  2. Jacket

How to produce the Tight Buffered cable?

So just need one line to do this cable:

  1. HK-30 IPC+PLC Control Tight Buffered Production Line can finish all the process, for Jacket material normal using LSZH/PVC/TPEE
PROCESS OF PRODUCT

HK-30 IPC+PLC CONTROL TIGHT BUFFERED PRODUCTION LINE

Hk 30 Tight Buffered Fiber Production Line

  • Fiber pay off*2: put on 25km/50km bare fiber.
  • Fiber preheater: heating the fiber before the extruder.
  • Dryer and Automatic Hopper machine: will hopper and dryer the raw material by automatic.
  • Vacuum supply: Ensure the stability of the cable diameter under vacuum.
  • Main extruder: using the best quality screw from China, extrusion the PE/PVC/TPEE material; the motor using Siemens plus an encoder and adopts closed-loop control to make the production line for diameter change is more stable during the line speed increase or decrease.
  • Control cabinet: PLC+IPC control, more easy operation for the worker, the transducer using American Emerson/Mitsubishi, Japanese, other electric parts using Schneider.
  • Warm and Cooling Water Trough: cooling the wire down slowly.
  • Diameter Gauge: display the actual diameter of the cable to the operator.
  • Capstan: automatic change the line speed by Panasonic servo plus Gearbox.
  • Take up: motor using Siemens, traversing by servo and there also have a display screen for the operator speed up/down.



tight buffer line's layout
Tight buffer line’s layout

SHARE TIGHT BUFFERED PRODUCTION LINE WITH YOUR CLIENTS

Steps of How To Get The Machine

pi
Get Full Project
Discussing
Depending on your specific needs, we set up the most suitable solution. If you have a new factory to build, we can also design a reasonable length to fit the space of your factory.
pi
Get Full Project
Cutting
Making Your Machine
Producing
We will deliver your product within 55-65 days after receiving a 30% deposit and finalizing the orientation/color of the equipment. (Specific time depends on different products)
Cutting
Making Your Machine
testing report
Testing The Machines
Trailing Before Dispatch
We will perform a complete run of the equipment and provide a full test report prior to shipment.
testing report
Testing The Machines

Packing &Delivery

WHY Choice HONGKAI

pi
Visualization of Quote

Quotations are like short, helpful sentences that allow customers to understand your plan in an instant.

layout
Whole plant planning

According to the actual specifications of this factory, it’s possible for you to plan or layout your whole production process.

oem
OEM Aiailable

With our customizable options, you can make your product stand out from the rest!

cost check
Cost Check

The cost of a product is determined by many different factors. From materials used to produce it, all the way down through even what country you manufacture in can make a difference on your final price tag!

order follow up sheet
Order Follow Up Sheet

Wow! The list is updated every Friday, so that customers also know the order process. It’s a great way to stay in touch with what you need and when it will be delivered.”

commissionging and trail available
Free Commissioning &Installation

Technical support is available for all of your needs. Whether it’s an installation or training, we’ve got you covered!

Letter ofthanks

Thanks letter from USA
USA
thanks letter from Russia
Russia
thanks letter from Ukraine
Republic of Belarus

What  you want to know

Yes, this is. One-stop service can save you time and money, isn't it?

Yes, it is. We don’t make used equipment, so it may not be possible to see a complete production line in our factory every time.

Sure, we can arrange any machine you want to check around our city. if you are from INDIA, we also can arrange it in NOIDA.

Yes, it is. We don’t make used equipment, so it may not be possible to see a complete production line in our factory every time.

We will provide the water/electric circuit diagram and operation manual of the equipment.

we will provide the power, gas, water consumption and floor area of the each production line.
