Micro Cable is a compact optical fiber cable used in FTTx networks, data centers, and backbone communication systems. It features small diameter, high fiber density, and lightweight construction for space-constrained ducts. A typical structure includes 1–12 colored optical fibers in jelly-filled loose tubes, a central strength member, water-blocking tape, and a protective PE outer sheath for durability and moisture resistance.

Mirco CABLE PRODUCTION LINE's Description

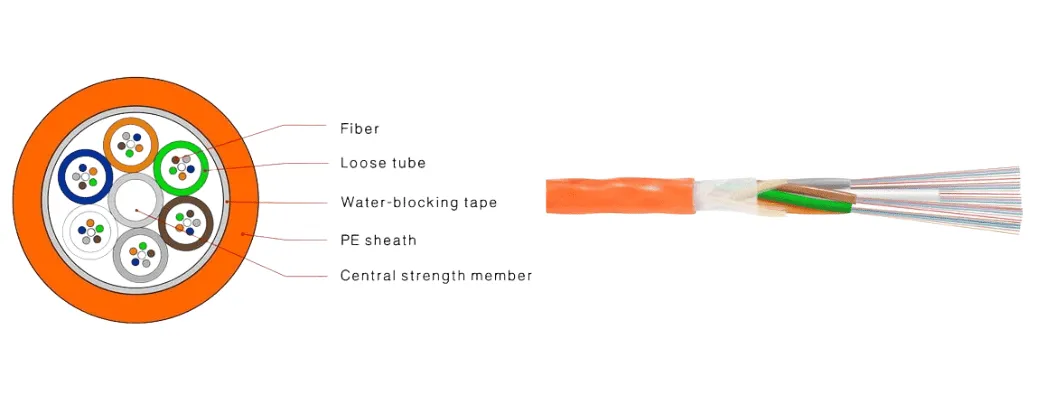

Cross-section and structure of Micro Cable fiber optic cable with fiber, loose tube, water-blocking tape, PE sheath, and central strength member

 5/5

What is Micro Cable?

Micro Cable is a compact optical fiber cable widely used in FTTx, data centers, and backbone networks. With its small diameter, high fiber density, and lightweight design, it is ideal for space-limited and high-capacity installations.

Key Components:

1–12 Core Colored Fibers – high-speed data
Jelly-Filled Loose Tube – fiber protection
Central Strength Member – tensile stability
Water-Blocking Tape – moisture resistance
PE Sheath – durability & environmental protection

How to Produce Micro Cable?

Production requires four key machines:

HK-235 Coloring & Rewinding – colors fibers for identification.
HK-50 Loose Tube Line – extrudes jelly-filled PBT tubes.
HK-SZ Stranding Line – strands tubes around strength member.
HK-90 Sheathing Line – applies water-blocking tape and PE sheath.

✅ The Micro Cable Production Line enables manufacturers to produce reliable, high-density cables with excellent performance for modern FTTx and data center demands.

Micro Cable Production Line Overview

Our Micro Cable Production Line is designed for efficient, precise, and high-quality production of micro optical cables used in FTTx, data centers, and backbone networks. With advanced control systems, stable operation, and modular design, this line ensures excellent fiber protection, compact structure, and reliable long-distance performance.

1.HK-235 COLORING AND REWINDING MACHINE

coloring machine — Mirco CABLE PRODUCTION LINE 7

Specially designed for coloring and rewinding fiber cores at 12 colors.
High-speed performance with coloring up to 1200m/min and rewinding up to 1500m/min.
Equipped with PLC control and Siemens motors for consistent operation.
Compact design with low power consumption and stable output.

Benefits: Clear fiber identification, smooth rewinding process, and reliable preparation for further cable processing.

2.HK-50 IPC+PLC CONTROL LOOSE TUBE PRODUCTION LINE

Automatic jelly filling ensures excellent fiber protection.
Precise diameter and concentricity control through laser gauge.
Capstan system with Siemens control for stable line speed.
Integrated PLC + IPC system with touch screen for real-time monitoring.
Energy-efficient water trough for fiber cooling.

Benefits: Stable tube formation, excellent fiber cushioning, and high-speed production efficiency.

3. HK-SZ LOOSE TUBE BUNCHED PRODUCTION LINE

Central stranding system with precise SZ stranding.
Consistent tension and back-twist accuracy for uniform cable structure.
Servo-driven system ensures pitch precision.
Automatic payoff and take-up system for smooth operation.
Capable of handling multiple loose tubes simultaneously.
Benefits: Reliable bunching of loose tubes with minimized fiber stress and optimized cable flexibility.

4. HK-90 OPTICAL CABLE SHEATHING PRODUCTION LINE

Hk 90 Optical Fiber Sheath Production Line For Adss

Double-layer extrusion system for PE sheath protection.
Central strength member integration for tensile stability.
Automatic control for diameter and wall thickness.
Equipped with Siemens PLC, touch screen, and synchronization control.
Advanced cooling trough and caterpillar haul-off for smooth extrusion.

Benefits: Strong, durable, and water-resistant sheath protection, ensuring long-term cable performance in demanding environments.

Why Choose Our Micro Cable Production Line?

High Efficiency: Designed for high-speed, continuous production with minimal downtime.
Smart Control: IPC + PLC automation with Siemens touch screen for precision and ease of use.
Quality Assurance: Advanced monitoring systems for diameter, concentricity, and sheath thickness.
Flexible Applications: Suitable for FTTx deployment, backbone cables, data centers, and high-density micro cables.
Durability & Reliability: Water-blocking, PE sheath, and central strength member integration ensure cable stability under tough conditions.

⚡ With our Micro Cable Production Line, you can achieve higher productivity, lower operation costs, and consistent optical cable quality that meets international standards.

full outdoor machines' layout — full outdoor machines’ layout
