Network Cable Cost Calculator

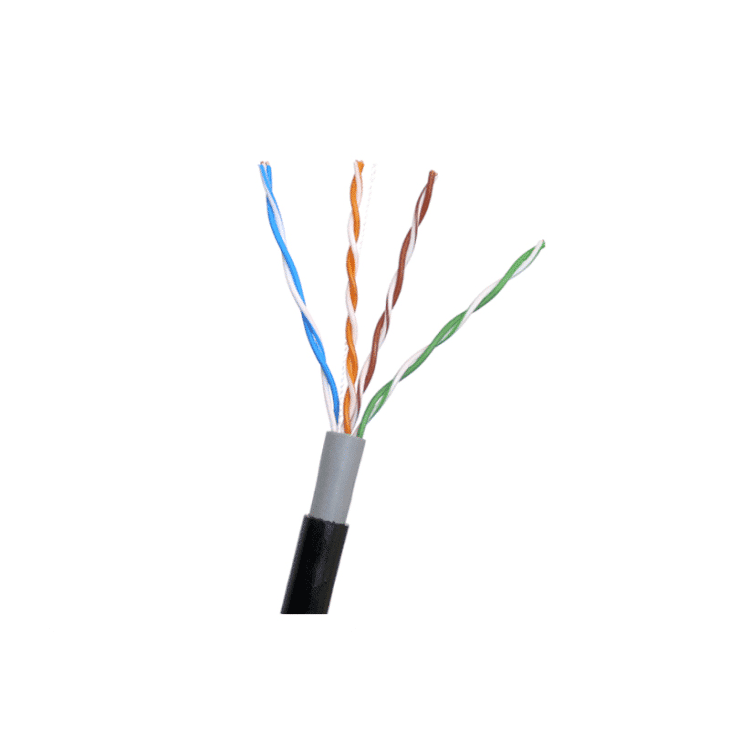

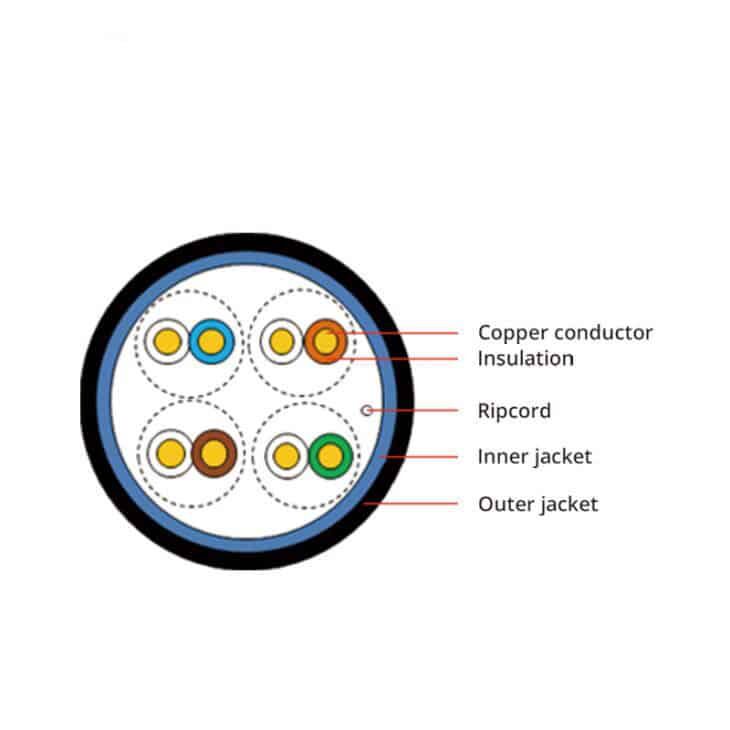

Cat5 UTP
| Material | Specification | Usage/Km | Unit | Unit Price | Cost |
|---|---|---|---|---|---|
| Copper Conductor | Oxygen-free Copper | 22.5 | kg | - | |
| Insulation | HDPE | 5.5 | kg | - | |
| Jacket | PVC | 8.0 | kg | - | |
| Filler | Polymer | 2.0 | kg | - | |
| Subtotal: | - | ||||

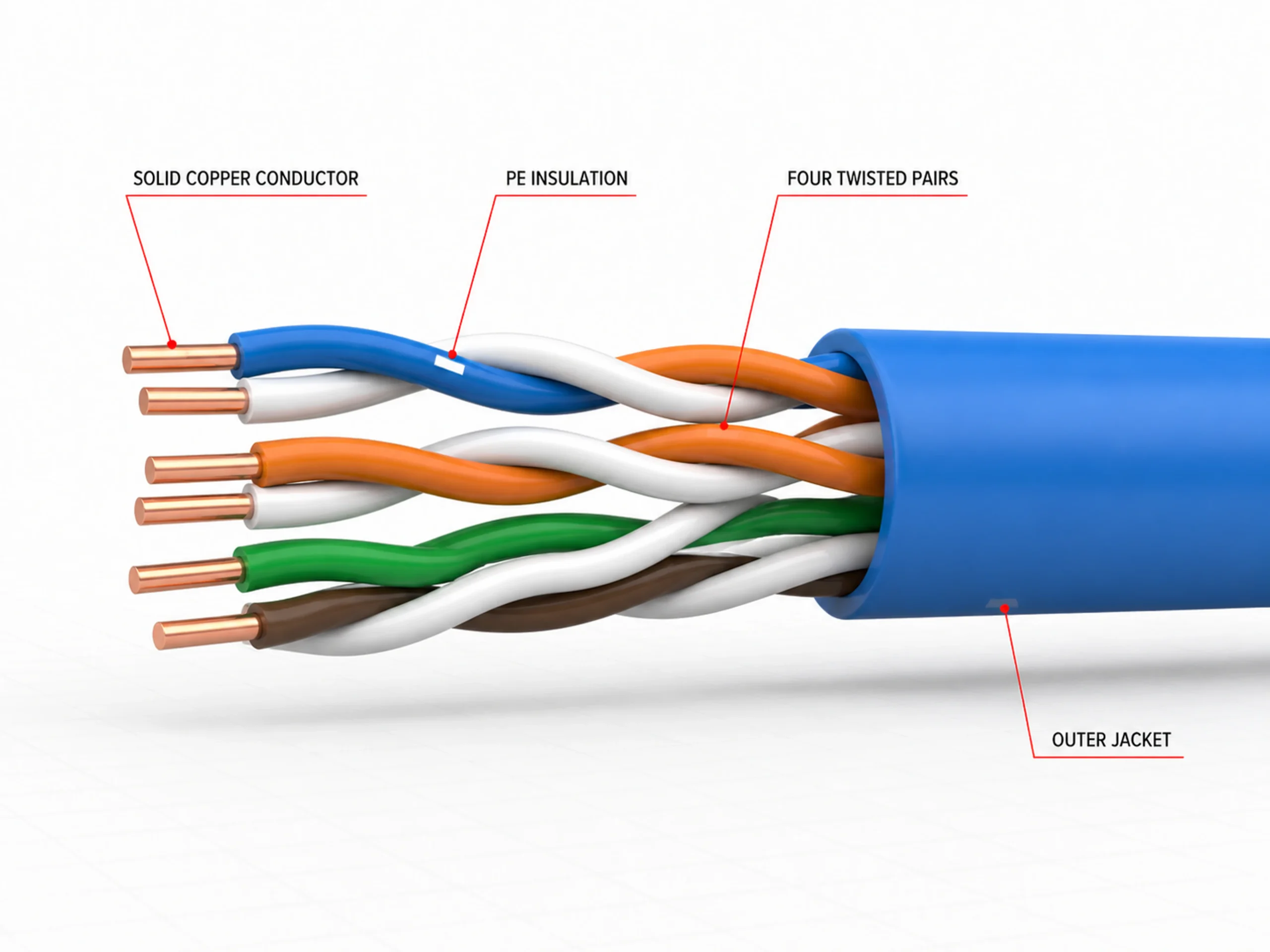

Cat5e UTP
| Material | Specification | Usage/Km | Unit | Unit Price | Cost |
|---|---|---|---|---|---|
| Copper Conductor | Oxygen-free Copper | 25.0 | kg | - | |
| Insulation | HDPE | 6.0 | kg | - | |
| Jacket | PVC | 8.5 | kg | - | |
| Filler | Polymer | 2.5 | kg | - | |
| Subtotal: | - | ||||
Cat6 UTP
| Material | Specification | Usage/Km | Unit | Unit Price | Cost |
|---|---|---|---|---|---|
| Copper Conductor | Oxygen-free Copper | 30.0 | kg | - | |
| Insulation | HDPE | 7.0 | kg | - | |
| Jacket | PVC | 9.5 | kg | - | |
| Cross Separator | Polymer | 3.5 | kg | - | |
| Subtotal: | - | ||||
Cat6a UTP
| Material | Specification | Usage/Km | Unit | Unit Price | Cost |
|---|---|---|---|---|---|
| Copper Conductor | Oxygen-free Copper | 32.5 | kg | - | |
| Insulation | HDPE | 8.0 | kg | - | |
| Jacket | PVC | 10.5 | kg | - | |
| Cross Separator | Polymer | 4.0 | kg | - | |
| Subtotal: | - | ||||
Cat6 FTP (with Foil Shield)
| Material | Specification | Usage/Km | Unit | Unit Price | Cost |
|---|---|---|---|---|---|
| Copper Conductor | Oxygen-free Copper | 30.0 | kg | - | |
| Insulation | HDPE | 7.0 | kg | - | |
| Foil Shield | Aluminum | 3.0 | kg | - | |
| Jacket | PVC | 9.5 | kg | - | |
| Cross Separator | Polymer | 3.5 | kg | - | |
| Subtotal: | - | ||||
Cat6a FTP (with Foil Shield)
| Material | Specification | Usage/Km | Unit | Unit Price | Cost |
|---|---|---|---|---|---|
| Copper Conductor | Oxygen-free Copper | 32.5 | kg | - | |
| Insulation | HDPE | 8.0 | kg | - | |
| Foil Shield | Aluminum | 3.5 | kg | - | |
| Jacket | PVC | 10.5 | kg | - | |
| Cross Separator | Polymer | 4.0 | kg | - | |
| Subtotal: | - | ||||
Cat7 SFTP (with Foil and Braid Shield)
| Material | Specification | Usage/Km | Unit | Unit Price | Cost |
|---|---|---|---|---|---|
| Copper Conductor | Oxygen-free Copper | 33.5 | kg | - | |
| Insulation | Special Polymer | 8.5 | kg | - | |
| Pair Foil Shield | Aluminum | 4.0 | kg | - | |
| Overall Braid Shield | Tinned Copper | 5.0 | kg | - | |
| Jacket | PVC/LSZH | 11.0 | kg | - | |
| Subtotal: | - | ||||
Cat7a SFTP (with Foil and Braid Shield)
| Material | Specification | Usage/Km | Unit | Unit Price | Cost |
|---|---|---|---|---|---|
| Copper Conductor | Oxygen-free Copper | 37.5 | kg | - | |
| Insulation | Special Polymer | 9.0 | kg | - | |
| Pair Foil Shield | Aluminum | 4.5 | kg | - | |
| Overall Braid Shield | Tinned Copper | 5.5 | kg | - | |
| Jacket | PVC/LSZH | 12.0 | kg | - | |
| Subtotal: | - | ||||
Cat5e UTP (LSZH Version)
| Material | Specification | Usage/Km | Unit | Unit Price | Cost |
|---|---|---|---|---|---|
| Copper Conductor | Oxygen-free Copper | 25.0 | kg | - | |
| Insulation | HDPE | 6.0 | kg | - | |
| Jacket | LSZH | 9.0 | kg | - | |
| Filler | Polymer | 2.5 | kg | - | |
| Subtotal: | - | ||||
Cat6 UTP (LSZH Version)
| Material | Specification | Usage/Km | Unit | Unit Price | Cost |
|---|---|---|---|---|---|
| Copper Conductor | Oxygen-free Copper | 30.0 | kg | - | |
| Insulation | HDPE | 7.0 | kg | - | |
| Jacket | LSZH | 10.0 | kg | - | |
| Cross Separator | Polymer | 3.5 | kg | - | |
| Subtotal: | - | ||||
Instructions:
- Select the cable type from the dropdown menu
- Enter the current market price for each material in the "Unit Price" column
- The "Cost" column will automatically calculate the cost for each material
- The subtotal at the bottom shows the total cost per kilometer
- All usage data is based on industry averages and may vary in actual production
