FINAL PRODUCT'S description
5/5
“Bluecom” Only Machines’ Supplier, the first one in China to make this machine with a speed of 90m/min!

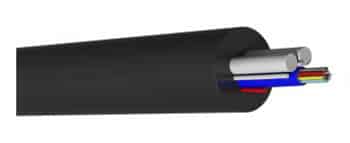

What’s the ASU cable?
Structurally the ASU cable consists of the following components.
- 1-12 cores Coloured Fiber core
- Reinforce wire(FRP)*2
- Ripcord/PE Jacket
How to produce the ASU cable?
So these production lines are needed in the equipment to complete：
- HK-50 IPC+PLC Control Loose Tube Cable Production Line to finish the PBT Tube and filling the Jelly Inside it
- HK-90 IPC+PLC Control ASU Cable SZ/Sheathing Production Line to do the Tube/FRP*2 Stranding and Sheathing both at one time.
PROCESS OF PRODUCT
1.HK-50 IPC+PLC CONTROL LOOSE TUBE PRODUCTION LINE
- 1-12 Heads fiber pay off: put on 1-12 cores fiber by Danfoss driver controlled.
- Jelly filling machine: fill the jelly into the loose tube and remove the air from it by automatic.
- Electrostatic removal device: remove impurities from the fiber surface before extruder.
- Masterbatch compounder: fill the color masterbatch of another color.
- Dryer and Automatic Hopper machine: will hopper and dryer the raw material by automatic.
- Main extruder: using the best quality screw from China, extrusion the PP/PPT material. and the motor using Siemens.
- Control cabinet: PLC+IPC control, more easy operation for the worker, the transducer using American Emerson, other electric parts using Schneider.
- Warm and Cooling Water Trough: cooling the wire down slowly.
- Diameter Gauge: display the actual diameter of the cable to the operator.
- Capstan: automatic change the line speed by Panasonic servo.
- Semi-automatic take up: motor using Siemens, transducer using Emerson, the control system by 7-inch Kinco touch screen plus Siemens S7-200 PLC control. it will change the wire coil by automatic when one pcs is full.
2.HK-90 ASU CABLE SZ/SHEATHING PRODUCTION LINE
- FRP pay off*2: put on FRP from 630-1000mm.
- Loose tube pay off: put on the loose tube from 630-1000mm.
- SZ stranding device: stranding control by 2 sets Servo motor, adjustable Pitch, linkage with the individual cabinet.
- Double heads Binding device: Binding control by 2 sets Servo motor, The concentricity reaches 100% after test, linkage with the individual cabinet.
- Press cable device: Keeping the cable stable before extruder.
- Dryer and Automatic Hopper machine: will hopper and dryer the raw material by automatic.
- Main extruder: using the best quality screw from China, extrusion the PE/PVC material. and the motor using Siemens.
- Control cabinet: PLC+IPC control, more easy operation for the worker, the transducer using American Emerson, other electric parts using Schneider.
- Warm and Cooling Water Trough: cooling the wire down slowly.
- Diameter Gauge: display the actual diameter of the cable to the operator.
- Capstan: automatic change the line speed by Panasonic servo.
- Accumulator: linkage with the take up, 500 meters for loading when changing the bobbin of take up
- 630-800mm double heads take up: motor using Siemens, transducer using Emerson, the control system by 7-inch Kinco touch screen, the traverse control by 2 sets Servo Motor.
SHARE ASU CABLE PRODUCTION LINE WITH YOUR CLIENTS
5 Critical Mistakes to Avoid When Installing an Optic Cable Production Line
Packing &Delivery
Packing
Fumigated wooden pallets and wooden frames to ensure the safety of the goods
Label
Attach a label to each piece of equipment to facilitate inventory
Loading Layout
According to the size of different equipment in advance layout of the cabinet
loading container
loading all goods in the container
Visualization of Quote
Quotations are like short, helpful sentences that allow customers to understand your plan in an instant.
Whole plant planning
According to the actual specifications of this factory, it’s possible for you to plan or layout your whole production process.
OEM Aiailable
With our customizable options, you can make your product stand out from the rest!
Cost Check
The cost of a product is determined by many different factors. From materials used to produce it, all the way down through even what country you manufacture in can make a difference on your final price tag!
Order Follow Up Sheet
Wow! The list is updated every Friday, so that customers also know the order process. It’s a great way to stay in touch with what you need and when it will be delivered.”
Free Commissioning &Installation
Technical support is available for all of your needs. Whether it’s an installation or training, we’ve got you covered!
Letter ofthanks
IS THIS THE COMPLETE PLAN FROM A-Z?
Yes, this is. One-stop service can save you time and money, isn't it?
IS IT THE PRODUCTION LINE IS NEW?
Yes, it is. We don’t make used equipment, so it may not be possible to see a complete production line in our factory every time.
CAN I SEE THE ACTUAL EQUIPMENT USAGE BEFORE I PLACE AN ORDER?
Sure, we can arrange any machine you want to check around our city. if you are from INDIA, we also can arrange it in NOIDA.
WHAT'S THE LIFE OF EACH MACHINE?
Yes, it is. We don’t make used equipment, so it may not be possible to see a complete production line in our factory every time.
IS THERE ANY MANUAL OF EACH MACHINE?
We will provide the water/electric circuit diagram and operation manual of the equipment.
COULD YOU CLEARING EVERYTHING IF WE WANT TO BUILD A NEW FACTORY?
we will provide the power, gas, water consumption and floor area of the each production line.
