TL;DR: A complete fiber optic cable production line in 2025 requires an initial investment of $750,000 to $2,500,000. Key cost drivers are the main production machinery (50-60%) and raw materials. With strong market demand, most businesses achieve a full return on investment (ROI) within 18 to 36 months.

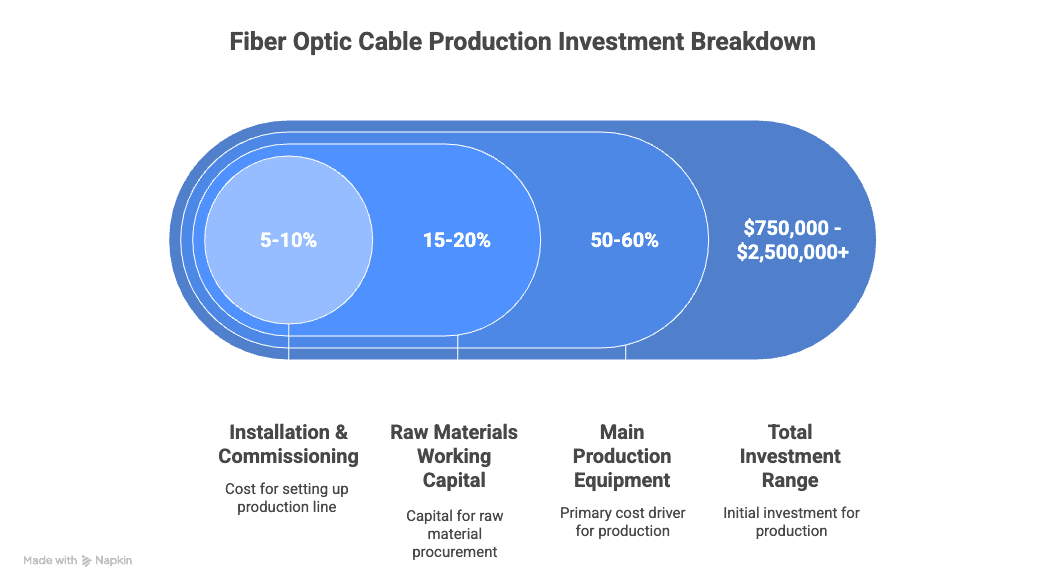

Investment Overview

Embarking on fiber optic cable production¹ is a significant venture. From our experience working with over a hundred new manufacturers, a clear-eyed view of the total investment is the first step toward success. Let’s break down the headline numbers.

Total Investment Range: $750,000 – $2,500,000+

Typical ROI Period: 18 – 36 months

Break-Even Production: Approx. 800 – 1,200 km of cable per month

Key Cost Drivers:

• Main Production Equipment (accounts for 50-60% of total cost)
• Raw Materials Working Capital (accounts for 15-20% of total cost)
• Installation & Commissioning (accounts for 5-10% of total cost)

Complete Cost Breakdown

We will dive deep into every cost you should anticipate. We believe in transparency, and that means looking beyond the price tag of the machinery itself.

Initial Investment Costs

This is your upfront capital expenditure to get the factory doors open and the machines running.

1. Equipment Costs

This is the heart of your operation and the largest single expense. The cost varies widely based on capacity, automation level, and brand.

Equipment Component	Cost Range	Notes
Main Production Line (Coloring, Secondary Coating, Sheathing)	$450,000 – $1,200,000	Core machinery for cable manufacturing. Speed and capacity are key differentiators.
Auxiliary Equipment (SZ Stranding, Jelly Filling)	$100,000 – $300,000	Essential for multi-fiber cable structures.
Proof-Testing & Rewinding Machine	$50,000 – $150,000	Ensures cable tension and optical performance standards are met.
Quality Control Equipment (OTDR, LAN Cable Tester)	$30,000 – $80,000	Critical for verifying signal integrity and meeting industry certifications.
Total Equipment	$630,000 – $1,730,000

Equipment Cost Factors:

• Production Speed: A line producing 800m/min will cost significantly more than one producing 300m/min.
• Automation Level: Fully automated lines reduce labor costs but require a higher initial investment². Think about features like automated bobbin changing.
• Brand & Origin: Equipment from established European brands can cost 50-100% more than machinery from reputable Asian manufacturers like us at HONGKAI.

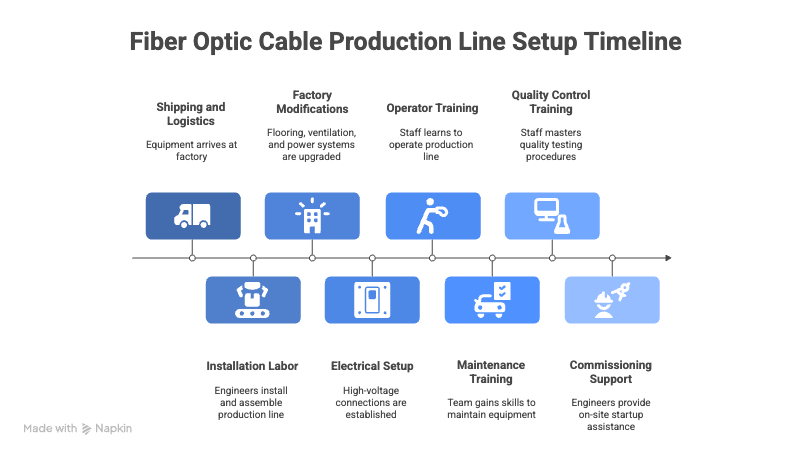

2. Installation and Setup Costs

Getting the equipment to your factory and making it operational is a project in itself. Don’t underestimate these costs.

Cost Item	Cost Range	Timeline
Shipping and Logistics	$25,000 – $70,000	4-6 weeks
Installation Labor (Including our engineers’ support)	$15,000 – $40,000	2-3 weeks
Factory Modifications (Flooring, ventilation, power)	$10,000 – $100,000	4-8 weeks
Electrical Setup (High-voltage connections)	$5,000 – $20,000	1-2 weeks
Total Installation	$55,000 – $230,000	~8-12 weeks

3. Training and Commissioning

Your team needs to run and maintain the equipment effectively. The best machinery is useless without skilled operators.

Training Component	Cost	Duration
Operator Training	$5,000 – $15,000	7-10 days
Maintenance Training	$5,000 – $12,000	5-7 days
Quality Control Training	$3,000 – $8,000	3-5 days
Commissioning Support	$10,000 – $25,000	2-3 weeks
Total Training	$23,000 – $60,000	~3-4 weeks

4. Initial Working Capital

You need cash on hand to cover initial operating expenses before revenue starts flowing.

Item	Amount	Notes
Raw Materials (1-2 months)	$50,000 – $400,000	Optical fibers, plastics (HDPE, LSZH), armoring tapes, filling compounds.
Spare Parts Inventory	$15,000 – $50,000	Essential wear parts like extruder screws, heaters, and belts.
Operating Cash Reserve	$20,000 – $100,000	For payroll, utilities, and unforeseen expenses for the first 3 months.
Total Working Capital	$85,000 – $550,000

Total Initial Investment Summary

Let’s consolidate these numbers to see the full picture.

Category	Low End	High End
Equipment	$630,000	$1,730,000
Installation	$55,000	$230,000
Training	$23,000	$60,000
Working Capital	$85,000	$550,000
TOTAL INITIAL INVESTMENT	$793,000	$2,570,000

Operating Costs

Once you’re up and running, these are the recurring costs you’ll face every month.

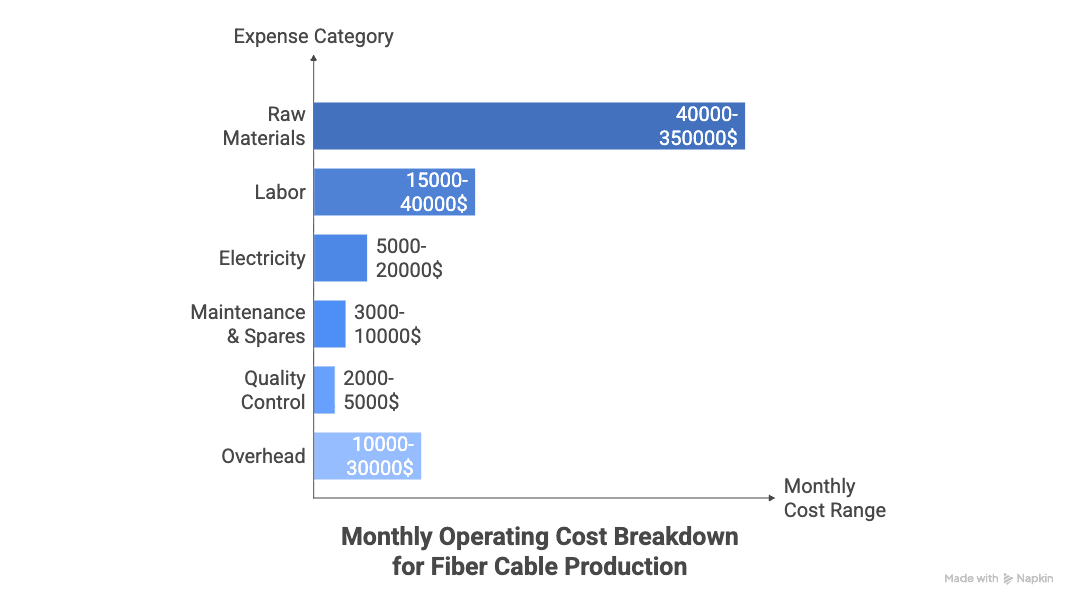

Monthly Operating Expenses

Expense Category	Monthly Cost	Annual Cost	% of Revenue
Raw Materials	$40,000 – $350,000	$480,000 – $4,200,000	50-65%
Labor (8-15 operators, engineers)	$15,000 – $40,000	$180,000 – $480,000	10-15%
Electricity	$5,000 – $20,000	$60,000 – $240,000	3-5%
Maintenance & Spares	$3,000 – $10,000	$36,000 – $120,000	2-4%
Quality Control	$2,000 – $5,000	$24,000 – $60,000	1-2%
Overhead (Rent, Admin, Sales)	$10,000 – $30,000	$120,000 – $360,000	5-10%
TOTAL MONTHLY	$75,000 – $455,000	$900,000 – $5,460,000	71-91%

Operating Cost Optimization:

• Bulk Raw Material Purchasing: Negotiating volume discounts on fiber and plastics can reduce material costs by 5-10%.
• Energy-Efficient Machinery: Modern servo motors can cut electricity consumption by up to 20% compared to older DC motors.
• Cross-training Operators: Training your staff on multiple machines improves scheduling flexibility and reduces downtime during shift changes.

Revenue Potential

The financial viability of your investment hinges on your ability to produce and sell cable.

Production Capacity and Pricing

Production Capacity:

• Daily output: 20 – 100 km of cable
• Monthly output (22 working days): 440 – 2,200 km
• Annual output: 5,280 – 26,400 km

Market Pricing (2025 Estimates):

Product Type	Price per Meter	Market Demand
4-Core FTTH Drop Cable	$0.15 – $0.25	High
12-Core Distribution Cable	$0.40 – $0.70	High
96-Core Duct Cable	$2.50 – $4.00	Medium

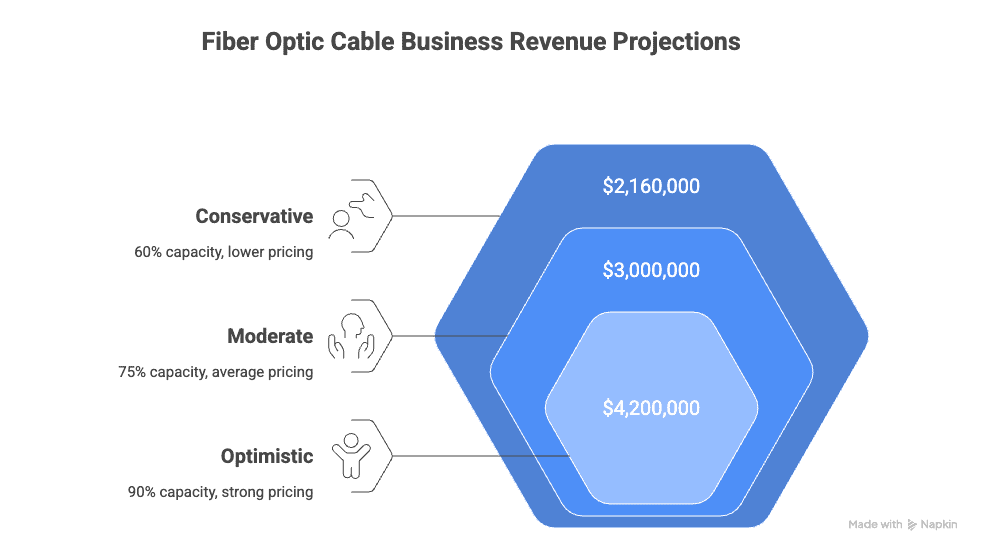

Revenue Projections

Based on a medium-scale setup producing a mix of cable types.

Scenario	Monthly Revenue	Annual Revenue	Assumptions
Conservative	$180,000	$2,160,000	60% capacity utilization, lower market pricing3.
Moderate	$250,000	$3,000,000	75% capacity utilization, average market pricing3.
Optimistic	$350,000	$4,200,000	90% capacity utilization, strong pricing for premium products.

ROI Analysis

Here’s where we tie it all together. Let’s calculate profitability based on a moderate initial investment² of $1,500,000.

Profitability Calculation

Conservative Scenario:

Metric	Year 1	Year 2	Year 3
Revenue	$2,160,000	$2,376,000	$2,613,600
Operating Costs	$1,980,000	$2,178,000	$2,395,800
Gross Profit	$180,000	$198,000	$217,800
Gross Margin	8.3%	8.3%	8.3%
Cumulative Cash Flow	-$1,320,000	-$1,122,000	-$904,200

Payback Period: > 5 years (not ideal)
ROI (3 years): Negative

Moderate Scenario (Target Scenario):

Metric	Year 1	Year 2	Year 3
Revenue	$3,000,000	$3,300,000	$3,630,000
Operating Costs	$2,550,000	$2,805,000	$3,085,500
Gross Profit	$450,000	$495,000	$544,500
Gross Margin	15%	15%	15%
Cumulative Cash Flow	-$1,050,000	-$555,000	-$10,500

Payback Period: ~36 months
ROI (3 years): ~33%

Optimistic Scenario:

Metric	Year 1	Year 2	Year 3
Revenue	$4,200,000	$4,620,000	$5,082,000
Operating Costs	$3,360,000	$3,696,000	$4,065,600
Gross Profit	$840,000	$924,000	$1,016,400
Gross Margin	20%	20%	20%
Cumulative Cash Flow	-$660,000	$264,000	$1,280,400

Payback Period: ~20 months
ROI (3 years): ~85%

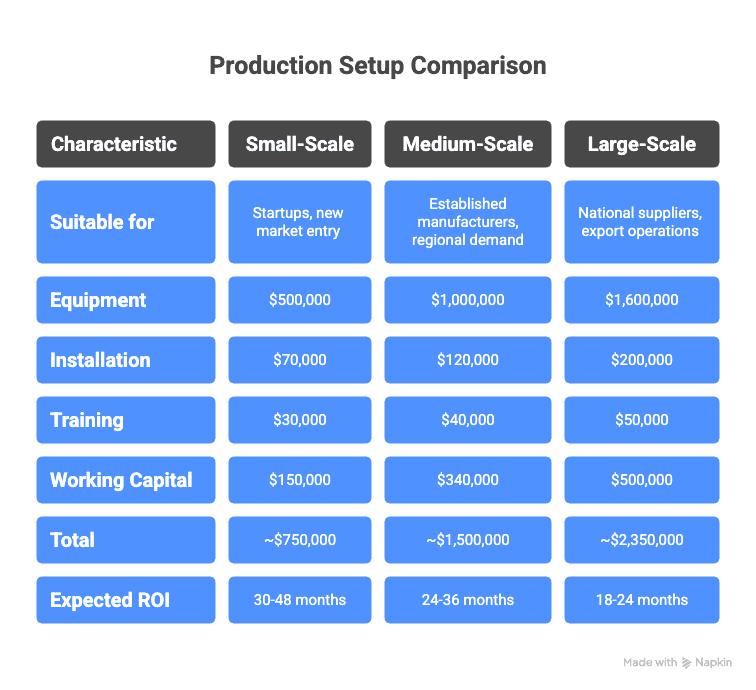

Cost Comparison by Scale

Small-Scale Setup ($750k – $1M)

Suitable for:

• Startups or businesses entering a new market.
• Targeting specific products like FTTH drop cables.

Investment breakdown:

• Equipment: $500,000
• Installation: $70,000
• Training: $30,000
• Working Capital: $150,000
• Total: ~$750,000

Expected ROI: 30-48 months

Medium-Scale Setup ($1M – $1.8M)

Suitable for:

• Established cable manufacturers expanding their portfolio.
• Serving regional demand with a mix of cable types.

Investment breakdown:

• Equipment: $1,000,000
• Installation: $120,000
• Training: $40,000
• Working Capital: $340,000
• Total: ~$1,500,000

Expected ROI: 24-36 months

Large-Scale Setup ($1.8M – $2.5M+)

Suitable for:

• Large-scale national suppliers.
• Export-focused operations requiring high output and efficiency.

Investment breakdown:

• Equipment: $1,600,000
• Installation: $200,000
• Training: $50,000
• Working Capital: $500,000
• Total: ~$2,350,000

Expected ROI: 18-24 months

Hidden Costs to Consider

Many buyers overlook these costs, which can impact profitability. We’ve seen this happen firsthand.

1. Regulatory Compliance and Certification

Typical Cost: $10,000 – $30,000 annually

Why it’s often missed: It’s not a machine or material, but a recurring operational cost. Certifications like ISO 9001 or industry-specific standards (e.g., Telcordia) are essential for selling to large telecom operators.

How to budget for it: Earmark a budget for annual audits, testing fees, and potential consulting from day one.

2. Scrap and Waste Material

Typical Cost: 1-3% of raw material costs ($5,000 – $100,000+ annually)

Why it’s often missed: Every production line has startup scrap and material that doesn’t meet quality standards. In the beginning, this rate can be as high as 5-7% while your team is learning.

How to budget for it: Factor a 3% scrap rate into your initial cost of goods sold calculations. Invest in good operator training to reduce this rate quickly.

3. Factory IT Infrastructure

Typical Cost: $15,000 – $50,000

Why it’s often missed: Modern production lines are data-generating powerhouses. You need a robust local network, servers for production monitoring software (MES), and cybersecurity measures.

How to budget for it: Consult an IT specialist during the factory planning phase, not after the machines have arrived.

Cost-Saving Strategies

Based on our experience with over 100 installations, we’ve identified key strategies to improve your bottom line.

Strategy 1: Optimize Raw Material Sourcing

Potential Savings: $50,000 – $200,000 annually (5-10% reduction in material cost)

Implementation:

1. Qualify at least three suppliers for each key material (fiber, HDPE, LSZH).
2. Establish a quarterly review process to benchmark prices.
3. For large-volume items, negotiate annual contracts to lock in favorable pricing.

Trade-offs: Requires more sophisticated supply chain management but significantly impacts gross margin.

Strategy 2: Phased Investment

Potential Savings: $200,000 – $500,000 in initial cash outlay

Implementation:

1. Start with a core production line for a high-demand product (e.g., FTTH drop cable).
2. Re-invest profits from the first 12-18 months to add a second line (e.g., for stranding or sheathing larger cables).
3. Purchase auxiliary equipment like proof-testers for multiple lines to share.

Trade-offs: Slower market penetration and lower initial revenue, but much lower initial risk.

Strategy 3: Invest in High-Quality Training

Potential Savings: $30,000 – $80,000 annually in reduced scrap and downtime.

Implementation:

1. Choose a supplier (like HONGKAI) that provides comprehensive, on-site training.
2. Develop a "master operator" program where key staff receive advanced training.
3. Create clear, visual standard operating procedures (SOPs) for all processes.

Trade-offs: Higher upfront training cost, but it pays for itself within the first year through improved efficiency.

Real-World Case Studies

Case Study 1: Startup Manufacturer – Poland

Initial Investment: $950,000

Setup: A focused FTTH drop cable line with a capacity of 500m/min.

Actual Results:

• Monthly revenue: $210,000
• Monthly profit: $35,000
• Actual payback: 27 months (vs. projected 36 months)
• Current ROI: 44% annually

Key Success Factors:

• Focused on a single, high-demand product for the local market.
• Secured a large contract with a regional ISP before starting production.

Case Study 2: Established Cable Company – UAE

Initial Investment: $1,700,000

Setup: Medium-scale line to add fiber optics to their existing copper cable portfolio.

Actual Results:

• Monthly revenue: $320,000 (from fiber division)
• Monthly profit: $50,000
• Actual payback: 34 months
• Current ROI: 35% annually

Key Success Factors:

• Leveraged existing sales channels and customer relationships.
• Used profits from their copper business to fund the initial investment².

Expert Insights

"The biggest mistake I see is underestimating working capital⁴ needs. I always advise clients to plan for at least 3-4 months of operating expenses in cash reserves. This covers the critical period while you’re building your customer base and waiting for those first invoices to be paid."

"From a technical standpoint, investing in an integrated line control system adds about 5% to the upfront equipment cost. However, it typically reduces material scrap by 1-2% and improves line speed by 10%, paying for itself in under 18 months. It is a no-brainer for any serious manufacturer."

Common Questions

Q: What’s the minimum investment⁵ to get started?
A: Realistically, the minimum to start a viable, small-scale operation is around $750,000. This covers a basic line, installation, and essential working capital. Anything less makes it difficult to achieve the quality and scale needed to compete.

Q: How accurate are these cost estimates?
A: These estimates are based on our experience with dozens of projects and are typically accurate within a 15% range. The biggest variables are local labor/construction costs and final equipment configuration.

Q: What factors most affect ROI?
A: The two most critical factors are raw material cost⁶ and sales volume⁷. A 5% reduction in material costs or a 10% increase in sales can cut your payback period by 6-12 months.

Q: Can I start small and scale up later?
A: Absolutely. Our lines are designed to be modular. You can start with a single sheathing line and later add SZ stranding or secondary coating lines as your product mix expands. This is a very popular and financially prudent strategy.

Q: What’s the typical profit margin⁸ in this business?
A: Gross margins typically range from 8% to 20%. Well-run operations with optimized supply chains and strong sales can achieve net profit margins⁸ of 5-12%.

Cost Checklist

Before you sign any purchase order, run through this list.

Initial Costs:

• Main equipment ($450k – $1.2M)
• Auxiliary equipment ($180k – $530k)
• Installation & Shipping ($55k – $230k)
• Training & Commissioning ($23k – $60k)
• Working capital ($85k – $550k)
• Contingency (10-15% of total)

Ongoing Costs:

• Raw materials (Optical Fiber, Plastics)
• Labor (Operators, Engineers, QC)
• Utilities (Electricity is the main one)
• Maintenance (Spares, Lubricants)
• Quality Control (Testing, Certifications)
• Marketing and Sales

Hidden Costs:

• Regulatory Compliance
• Scrap & Waste
• IT Infrastructure

Key Takeaways

After helping dozens of companies build their fiber optic cable business, here are the final thoughts:

• Total Investment: Expect to invest between $750,000 and $2,500,000 for a full turnkey solution.
• ROI Timeline: A typical payback period is 18 to 36 months. Success hinges on quickly securing sales volume⁷.
• Critical Success Factor: Your ability to manage raw material cost⁶s is the most important factor affecting profitability.
• Biggest Cost Driver: The main production equipment will always be your largest single outlay, representing over 50% of the initial investment⁹.
• Best Savings Opportunity: Implementing a phased investment strategy¹⁰ offers the best way to reduce initial risk and capital outlay.

Next Steps

Ready to move forward with your investment? We are here to help you succeed.

At HONGKAI, our goal is to be more than just an equipment supplier. We act as your partner, providing the technical knowledge and process expertise you need to build a profitable manufacturing operation. We can guide you through factory layout planning, financial modeling, and operator training to ensure your investment is a success from day one.

Step 1: Download our detailed equipment specification sheets and cost guides.
Step 2: Schedule a consultation to get a customized, no-obligation quote and a personalized ROI analysis based on your exact needs.

---
