Struggling to produce high-quality optical fiber consistently? The core process, using a structure typically 7 to 45 meters tall, might be the issue. Understanding this tower is key.

A fiber drawing tower is specialized industrial equipment, often 7 to 45 meters high, that heats a glass preform (around 20cm diameter) to about 1900-2200°C and draws it into a precise 125µm optical fiber. It’s vital for creating the low-loss (e.g., ~0.2 dB/km) fibers essential for modern communication cables.

Getting the fiber drawing process¹ right is fundamental. It directly impacts the final quality and performance of the optical cables you manufacture, determining factors like signal loss and data speed. Let me walk you through how these impressive machines work and why they are vital for anyone serious about cable production. This comes from my experience at HONGKAI, where we aim to provide a ‘Cable Machinery – One Shop Solution’. Understanding the drawing tower is a big part of that.

How Does the Fiber Drawing Process Work Step-by-Step?

Confused about how a solid glass rod becomes a hair-thin fiber? The transformation from a preform, often 2 meters long, into kilometers of fiber seems complex, but it follows clear, controlled stages.

The fiber drawing process¹ involves meticulously preparing and heating a glass preform to its softening point (1900-2200°C), then drawing it at high speeds (often over 10 m/s) into a fiber of precisely controlled diameter (typically 125µm ±0.1µm), applying protective coatings, and spooling it.

Let’s break down the journey from preform to spooled fiber. As Peter He, founder of HONGKAI, I’ve seen firsthand how crucial mastering each step is for our clients aiming for top-tier cable manufacturing. It’s not just about having the machine; it’s about understanding the flow from a large preform to excellent fiber.

Perform Preparation and Loading

Everything starts with the glass preform, a specially manufactured rod of highly pure glass, typically around 20cm in diameter and up to 2 meters long. This preform contains the core and cladding structure. Before drawing, it’s meticulously cleaned and inspected. It’s then carefully loaded into the top of the drawing tower, often using an X-Y positioning system for precise alignment as it feeds into the Furnace.

Heating and Drawing

The tower’s heart is the drawing furnace, usually a graphite resistance type, heating the preform tip to 1900°C to 2200°C in an inert gas atmosphere like argon to prevent oxidation. At this temperature, the glass softens, and a thin strand is pulled downwards, often at speeds exceeding 10 meters per second. A laser-based diameter gauge constantly measures the fiber, providing feedback to the capstan to adjust speed and maintain a consistent diameter, typically 125 micrometers with a tolerance of just ±0.1 micrometers.

Coating, Curing, and Spooling

The bare glass fiber is fragile. It immediately passes through coating applicators that apply one or two layers of protective polymer (usually acrylate), often a soft inner layer and a harder outer layer, to a total thickness of around 250 micrometers. This can be a "wet-on-wet" or "wet-on-dry" process. The coated fiber then passes through UV curing lamps or a thermal oven to instantly harden the coating. This protects against abrasion. Finally, the capstan pulls the fiber, and a spooler winds it carefully onto a spool.

Understanding these steps helps appreciate the engineering involved. At HONGKAI (www.hkcablemachine.com), we ensure our clients understand this process.

What Key Components Make Up a Modern Fiber Drawing Tower?

Wondering what specific parts work together in that tall structure? A fiber drawing tower² is a system of integrated components, each vital for producing high-quality optical fiber.

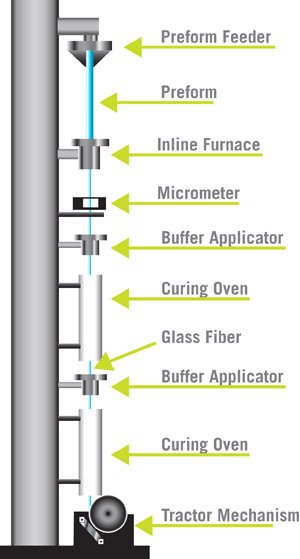

Key components include the preform feeding mechanism with X-Y positioning, a high-temperature graphite furnace with argon gas supply, laser diameter and coating gauges, multi-stage coating applicators, UV/thermal curing ovens, capstan, tension measurement systems, and the fiber spooler, often with a proof tester.

Knowing the main parts helps in understanding the operation. When I started in HONGKAI at 2019, the complexity was apparent, but essential for providing real solutions. Let’s look closer.

Core Drawing and Environmental Systems

The Preform Feed Mechanism securely holds and lowers the preform using motors, chucks, and an X-Y positioning system to enter the Drawing Furnace precisely. This is typically a graphite resistance furnace using an Argon Gas Supply System to prevent oxidation at high temperatures. HEPA Filters are often used to ensure a clean drawing environment, especially for specialty fibers.

Measurement, Coating, and Curing

A Laser Diameter Gauge (measuring fibers from 50 to 1000µm) non-contactually measures the fiber. Coating Applicators apply dual protective layers (soft inner, hard outer). Coating Diameter Gauges and Coating Concentricity Controls ensure the coating is uniform and centered, which is crucial for preventing microbending losses. UV Curing Ovens or thermal systems then harden these coatings.

Tension, Pulling, Winding, and Testing

Tension Measurement devices monitor the draw tension. The Capstan (or puller) grips the fiber and pulls it at the precise speed. The Spooler (sometimes with an automatic reel changer) winds the fiber. Many towers also incorporate an in-line Proof Tester/Rewinder to test the fiber’s tensile strength and detect flaws.

Each component must work perfectly. At HONGKAI, we help clients select towers where they are well-integrated, reflecting our mission to be a trusted partner.

How Can You Ensure Optimal Performance and Quality from Your Fiber Drawing Tower?

Getting inconsistent fiber quality or facing downtime? Optimizing your tower requires attention to detail in setup, operation, maintenance, and using advanced control systems.

Ensure optimal performance by using high-quality preforms, maintaining strict environmental controls (HEPA filters, argon gas), precisely calibrating all systems, using advanced process control software (like FlexAuto), performing regular maintenance, and thorough operator training.

Achieving peak performance is an ongoing effort. As someone in industrial solutions for 8 years, I know that proactive measures prevent costly problems. Let’s dive into key areas.

Material, Environment, and Control Systems

Start with High-Quality Preforms³ that are consistent and defect-free. The drawing environment must be spotless, using HEPA filters and controlled gas management (e.g., argon flow). Temperature and humidity stability are also vital. Implement Advanced Control Systems⁴, like those mentioned by YOEC or similar integrated software (e.g., FlexAuto), to coordinate parameters like temperature, speed, and gas flow, allowing for real-time adjustments and production planning.

Calibration, Monitoring, and Maintenance

Regularly Calibrate All Sensors and Controls, especially diameter gauges, tension sensors, and temperature controllers. Implement Real-time Process Monitoring for diameter, tension, coating concentricity, and furnace temperature. Use Statistical Process Control (SPC). Preventative Maintenance is crucial: clean coating dies, check furnace elements (graphite can degrade), inspect mechanical parts, and verify alignments.

Operator Skill

Invest in Thorough Operator Training⁵. Skilled operators understand the nuances, can spot early warnings, troubleshoot effectively, and manage the complexities of preform variability, as each preform might require slight adjustments to alignment, speed, and temperature.

At HONGKAI, we emphasize these points. Optimizing the drawing tower is a continuous improvement cycle.

What Are the Common Challenges Faced When Operating a Fiber Drawing Tower?

Experiencing fiber breaks, diameter variations, or coating issues? Operating a fiber drawing tower involves overcoming technical hurdles like furnace degradation and environmental factors.

Common challenges include maintaining consistent fiber diameter (±0.1µm), preventing breaks, ensuring coating quality and concentricity, managing furnace stability (graphite degradation above 600-800°C can cause contamination), controlling draw tension, isolating vibrations, and handling preform-to-preform variability.

Running a drawing tower isn’t always straightforward. These challenges pop up frequently. Recognizing them is the first step.

Fiber Geometry, Strength, and Coating

Diameter Variation is a constant concern due to unstable draw speeds, furnace temperature fluctuations, or gas flow variations. Fiber Breaks can be caused by preform defects, particles, or tension issues. Ensuring Coating Quality and Concentricity is vital; off-center coatings cause microbending loss. Bubbles or poor adhesion are also problematic.

Furnace, Environment, and Mechanics

Furnace Stability is key; graphite elements can degrade at high temperatures (above 600-800°C if not fully protected by argon), potentially contaminating the fiber. Environmental Contamination (dust) requires strict cleanroom protocols and HEPA filtration. Vibration Isolation is critical; towers often need special foundations to isolate them from building or ground vibrations. Gas Management (argon flow) must be precise.

Operational Factors

Handling Preform Variability means each new preform might require slight alignment, speed, or temperature recalibration. Instrument Calibration must be diligently maintained for all measurement devices to ensure accuracy. High operating speeds amplify all these challenges.

Addressing these requires good equipment, rigorous processes, and skilled personnel – the core of HONGKAI’s solutions.

Conclusion

The fiber drawing tower, a complex and precise system, is the heart of optical fiber production. Mastering its components and operation is essential for high-quality, reliable communication cables.
