GJFJHV Вырваться's Informations
Многоцелевой кабель для разводки (GJFJHV)
·Каждый субкабель содержит арамидную нить, хорошую устойчивость к изгибу, не содержит геля, удобен в очистке, прост в сборке и подключении.
-Герметичное буферное волокно с одним прочным членом и оболочкой для преодоления воздействия плохой окружающей среды и механических нагрузок.
· Оболочка LSZH, огнестойкая, самозатухающая, подходит для машинного отделения, кабельных шахт и использования внутри помещений, например, для прокладки проводов внутри стен.
-LSZH оболочка, УФ, водонепроницаемый плесени, ESCR, без выделения кислотных газов, не коррозии оборудования комнаты, подходит для внутреннего и наружного использования или нужно высокое огнестойкое класса внутренней среды (например, проводка в потолке, открытый провод кабелей и т.д.).
This cable is used across different project and manufacturing stages — from network deployment to in-house cable production.
Telecom & Power Project Contractors
Reliable finished cable supply for overhead network deployment, utility communication projects, and infrastructure integration.
Optical Cable Manufacturers
Used to supplement production capacity, expand product range, or validate new cable designs before scaling.
New Entrants to Cable Manufacturing
Start with finished cable supply, then gradually move toward in-house production with equipment and raw material support.
ОПИСАНИЕ ПРОДУКТА

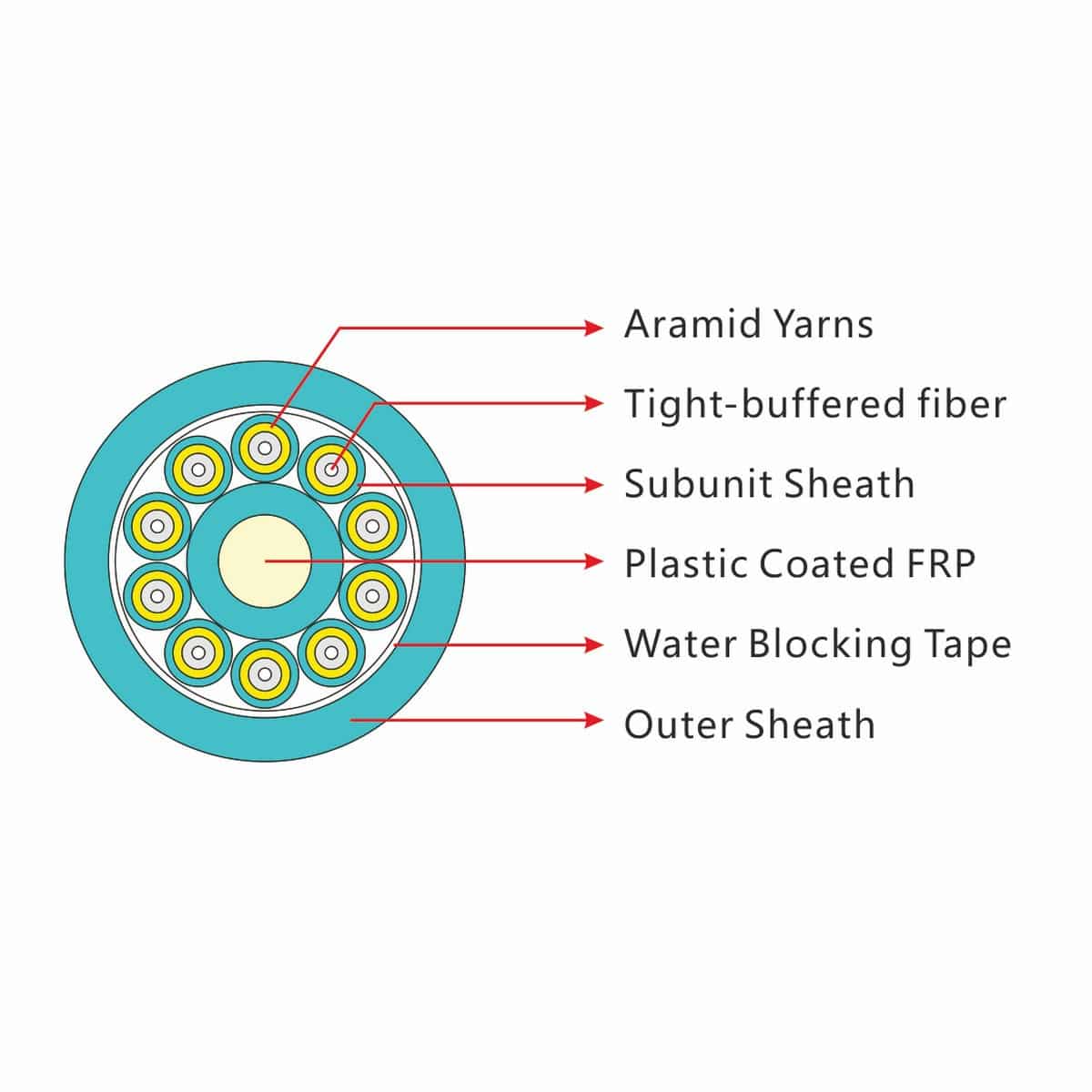

- Each sub cable contains aramid yarn, good bend performance, without gel, cleaning friendly, easy construction and connection.
- Tight buffer fiber with single strength member and sheath to overcome the effect from bad environment and Mechanical stress.
- LSZH sheath, anti-retardant, Self-extinguishing, Suitable for machine room, cable shaft and used in indoor environment such as wiring inside the wall.
- LSZH sheath, UV, Waterproof mildew, ESCR, No acid gas release, non-corrosive room equipment, suitable for indoor and outdoor use or need a high flame-retardant indoor environment (such as wiring in the ceiling, open wire cabling etc.)
- Indoor horizontal wiring, vertical wiring in buildings, LAN network.
- Standard core can be directly apply to connectors, to use for device connecting.
- Used as a backbone cable tail can access directly from the indoor and outdoor to save the junction box, isolated lightning, improve system reliability.
| Г.652 | G.655 | 50/125µm | 62.5/125µm | ||
|---|---|---|---|---|---|
| Attenuation (+20°C) | |||||
| @850 нм | ≤3.5dB/km | ≤3.5dB/km | |||
| @1300 нм | ≤1.5dB/km | ≤1.5dB/km | |||
| @1310 нм | ≤0.45dB/km | ≤0.45dB/km | |||
| @1550 нм | ≤0.30dB/km | ≤0.30dB/km | |||
| Полоса пропускания (класс A) | |||||
| @850 | ≥500MHZ·km | ≥200MHZ·km | |||
| @1300 | ≥1000MHZ·km | ≥600MHZ·km | |||
| Числовая апертура | 0.200±0.015NA | 0.275±0.015NA | |||
| Длина волны отсечки кабеля | ≤1260nm | ≤1480nm | |||
| Количество волокон | Диаметр субъединицы мм |
Диаметр кабеля мм |
Вес кабеля кг/км |
Предел прочности Долгосрочный/короткосрочный Н |
Сопротивление раздавливанию Долгосрочный/короткосрочный N/100m |
Радиус изгиба Статический/динамический мм |
|---|---|---|---|---|---|---|
| 2 | 2.0 | 7.0±0.5 | 45 | 500/1000 | 400/800 | 30D/15D |
| 4 | 2.0 | 7.0±0.5 | 45 | 500/1000 | 400/800 | 30D/15D |
| 6 | 2.0 | 8.3±0.5 | 62 | 500/1000 | 400/800 | 30D/15D |
| 8 | 2.0 | 9.4±0.5 | 85 | 500/1000 | 400/800 | 30D/15D |
| 10 | 2.0 | 10.7±0.5 | 109 | 500/1000 | 400/800 | 30D/15D |
| 12 | 2.0 | 12.2±0.5 | 140 | 500/1000 | 400/800 | 30D/15D |
| Температура транспортировки | -20°C ~ +60°C |
| Температура хранения | -20°C ~ +60°C |
| Температура установки | -5°C ~ +50°C |
| Рабочая температура | -20°C ~ +60°C |
