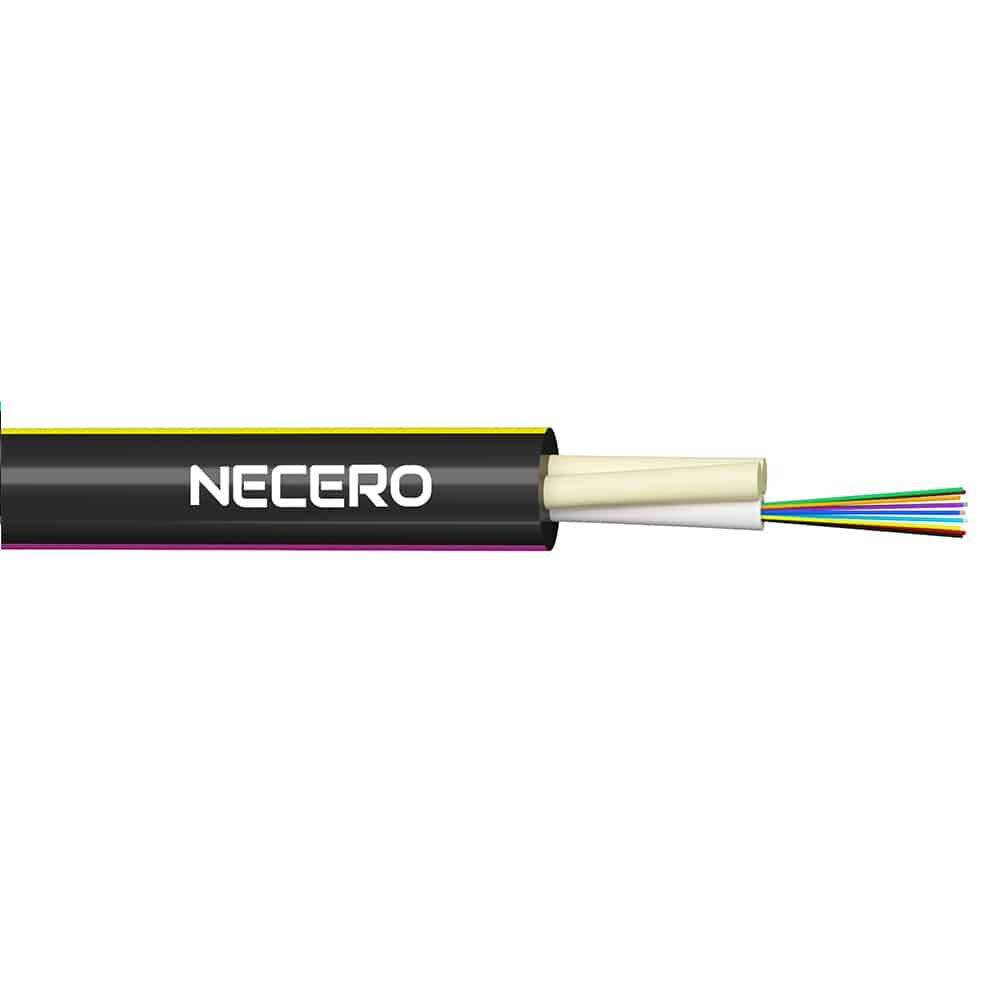

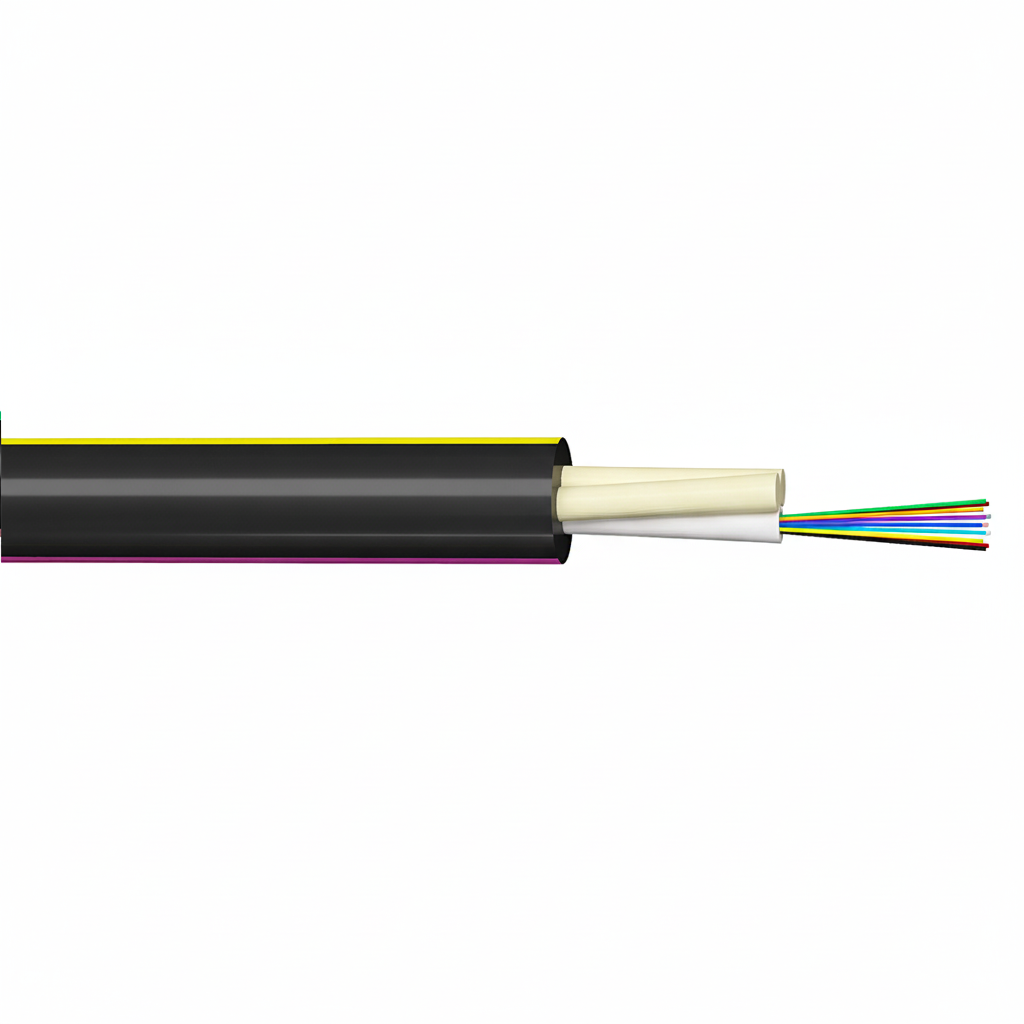

DUA Kabel Serat Optik Udara FRP (GYFFY)

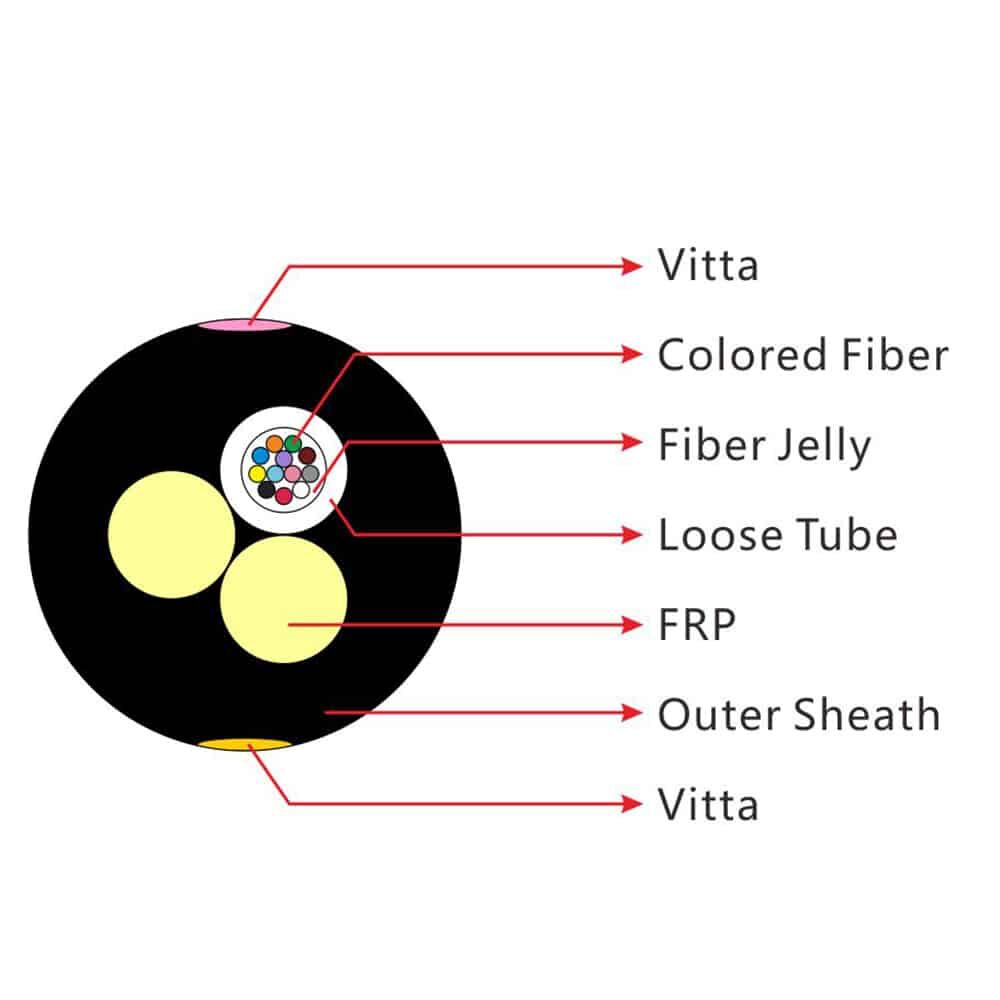

Struktur kabel meletakkan serat berwarna ф250μm dalam tabung longgar PBT, dan dua FRP sebagai anggota penguat. Permukaan kabel diekstrusi dengan selubung luar PE.
This cable is used across different project and manufacturing stages — from network deployment to in-house cable production.
Telecom & Power Project Contractors
Reliable finished cable supply for overhead network deployment, utility communication projects, and infrastructure integration.
Optical Cable Manufacturers
Used to supplement production capacity, expand product range, or validate new cable designs before scaling.
New Entrants to Cable Manufacturing
Start with finished cable supply, then gradually move toward in-house production with equipment and raw material support.
DESKRIPSI PRODUK
- Small Size and Light Weight.
- Two FRP as strength member to provide good tensile performance.
- Gel Filled or gel free, good waterproof performance.
- Low price, high fiber capacity.
- Applicable for short span aerial and duct installation.
| G.652 | G.655 | 50/125μm | 62,5/125μm | |
|---|---|---|---|---|
| Attenuation (+20°C) | ||||
| @850nm | ≤3,0 dB/km | ≤3,0 dB/km | ||
| @1300nm | ≤1,0 dB/km | ≤1,0 dB/km | ||
| @1310nm | ≤0,36 dB/km | ≤0.23 dB/km | ||
| @1550nm | ≤0,22 dB/km | ≤0.23 dB/km | ||
| Bandwidth (Kelas A) | ||||
| @850nm | ≥200 MHZ·km | ≥200 MHZ·km | ||
| @1300nm | ≥500 MHZ·km | ≥500 MHZ·km | ||
| Bukaan Numerik | 0,200±0,015NA | 0,275±0,015NA | ||
| Panjang Gelombang Pemutus Kabel | ≤1260 nm | ≤1480nm |
| Inti Kabel | Unit | 2F | 4F | 6F | 8F | 10F | 12F |
|---|---|---|---|---|---|---|---|
| inti | inti | inti | inti | inti | inti | ||
| Jumlah Tabung | 1 | 1 | 1 | 1 | 1 | 1 | |
| Jumlah serat | 2 | 4 | 6 | 9 | 10 | 12 | |
| Jumlah Serat dalam Tabung | inti | 2 | 4 | 6 | 9 | 10 | 12 |
| Diameter Kabel | mm | 6,6±0,5 | 6,8±0,5 | ||||
| Berat Kabel | kg/km | 40±10 | 45±10 | ||||
| Kekuatan Tarik yang Diizinkan | N | Span=80, 1.5*P | |||||
| Ketahanan hancur yang diizinkan | N | 1000N | |||||
| Suhu operasi | °C | -20°C to +65°C | |||||
